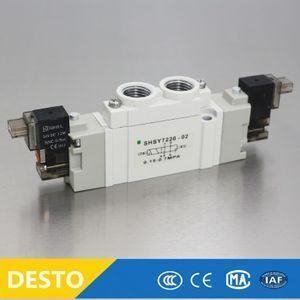

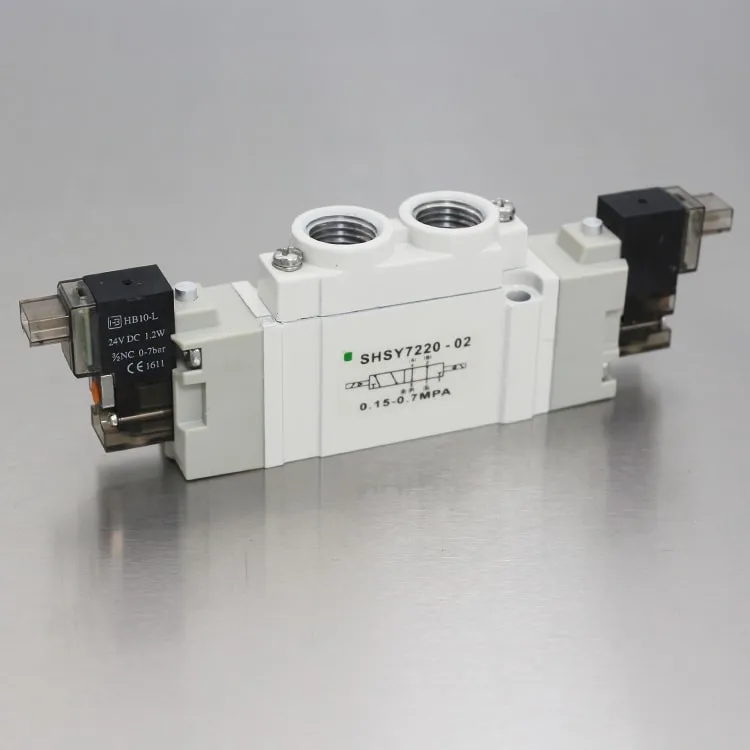

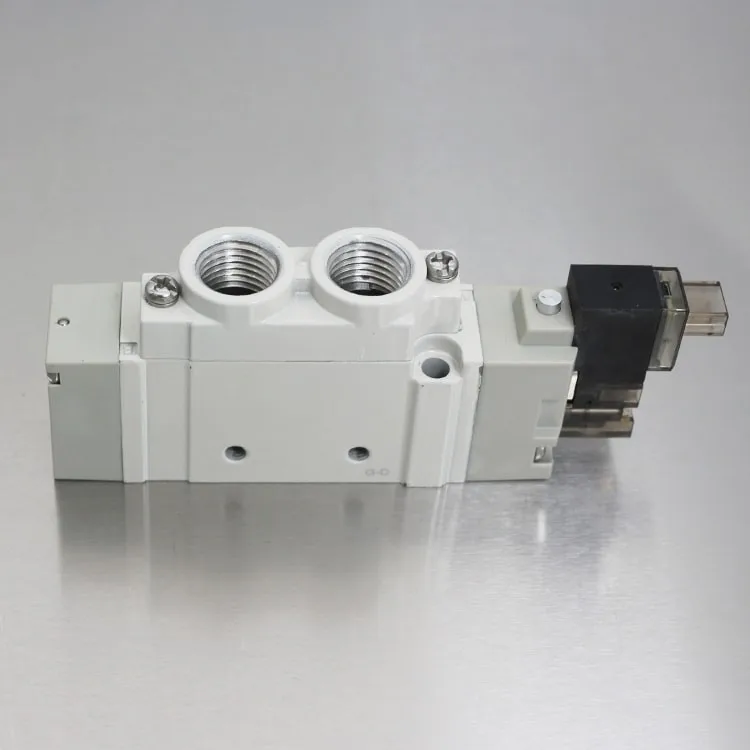

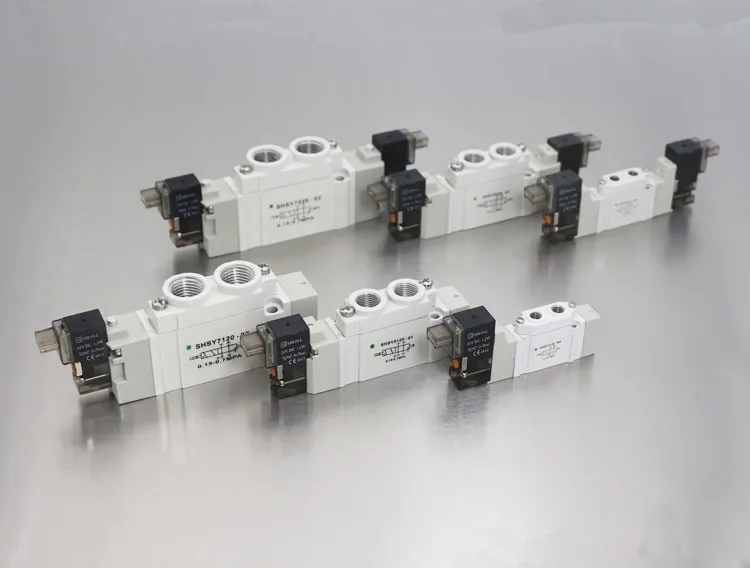

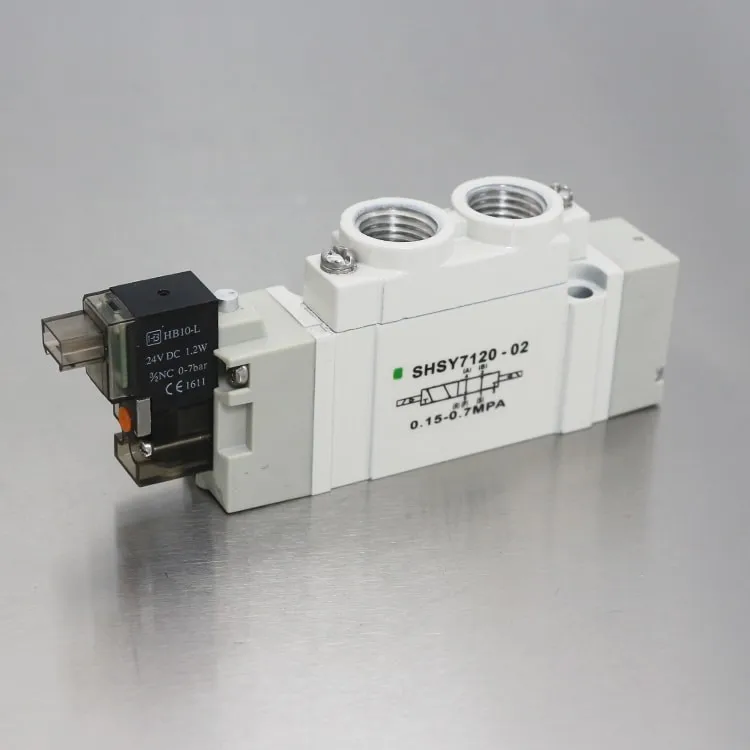

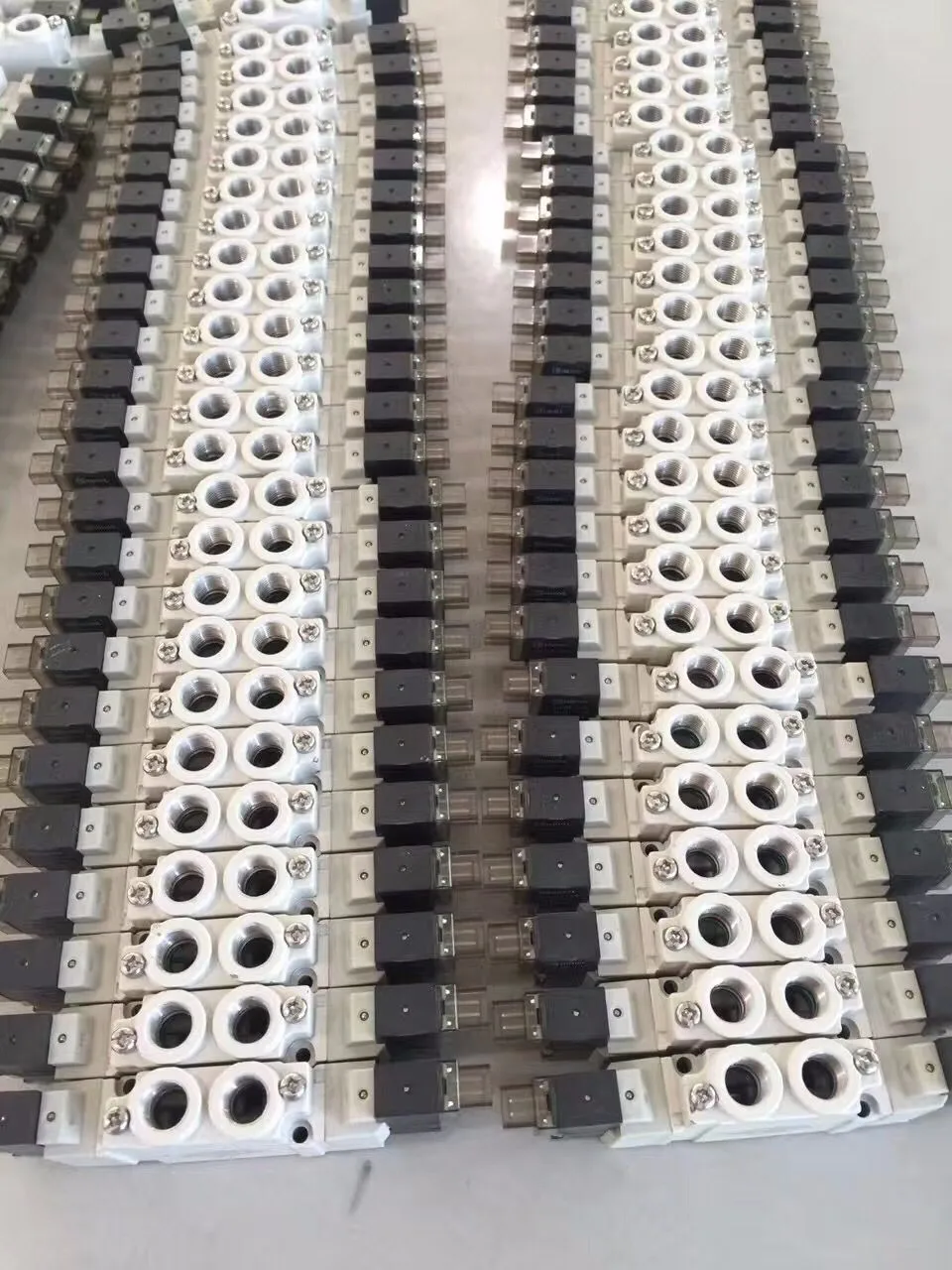

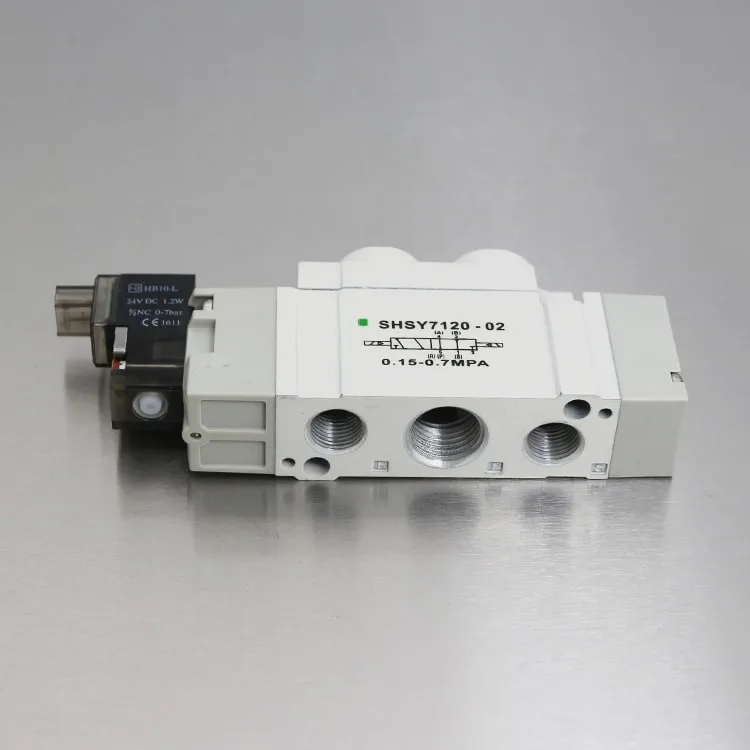

2 Position 5 port SY Series M5 thread pneumatic solenoid control New SMC valve
-
Supplier: China DESTO Pneumatic Components Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr. Mike Chin -
Price: $7.00 /piece -
Min. Order: 1 piece
| Application: | General; | Optional Thread: | NPT, BSPT (R/RC), BSPP (G), etc.; |
| Model Number: | SY3220-5LZD-m5; | Port Size: | 1/8" 1/4" 3/8" 1/2"; |
| Temperature of Media: | Medium Temperature; | Standard or Nonstandard: | Standard; |
| Structure: | Control; | Material: | Ceramic; |
| actuation: | 2 position single; | Pressure: | Medium Pressure; |
| Packaging Detail: | Cartons ( Neutral packing accepted); | Certifacates: | ISO9001 & CE; |
| Delivery Detail: | Shipped in 5 days after payment; | Release Color: | White; |
| Media: | Gas; | type: | pneumatic solenoid; |
| Place of Origin: | Zhejiang China (Mainland); | Brand Name: | DESTO; |
| Supply Ability: | 10000 Piece/Pieces per Month 2 Position 5 port SY Series M5 thread pneumatic solenoid control; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; |
| Power: | Pneumatic; | Port: | Ningbo, Shanghai Port; |
Technical Parameters
| Model | SY3000 | SY5000 | SY7000 | SY9000 | |
| Fluid | Air | ||||
| Inner Pilot Operatting Pressure Range(Mpa) | 2 position single | 0.15-0.7 Mpa | |||
| 2 position double | 0.1-0.7 Mpa | ||||
| 3 position | 0.2-0.7 Mpa | ||||
| Ambient And Fluid Temperature ℃ | -10~50 ℃ | ||||
| Max.Operating Frequency(HZ) | 2 position single/double | 10 | 5 | 5 | 5 |
| 3 position | 3 | 3 | 3 | 3 | |
| Response Time(Light/Surge Voltage supressor) | 2 position single | ≤12 | ≤19 | ≤31 | ≤35 |
| 3 position | ≤15 | ≤32 | ≤50 | ≤62 | |
| Pilot Exhaust Mehtod | Common exhaust type for main and pilot valve | ||||
| Lubrication | Not Needed | ||||
| Mounting orientation | Unrestricted | ||||
| Impact/Vibration Resistance m/s Note²) | 150/30 | ||||
| Enclosure | Dust Proof(DIN terminal, M8 connector conforms to IP65) | ||||
| Electrical Entry | L Plug connector(L) | ||||
| Coil Rated Voltage(V) | DC | 24,12 | |||
| AC 50/60HZ | 110,220 | ||||
| Allow Voltage Fluctuation | ±10% | ||||
| Power Consumption | DC | Standard | 0.35W(with indicate light 0.4) | ||
| Apparent Power | AC | 110V | 1.6VA(with indicate light 1.7) | ||
| 220V | 2.5VA(with indicate light 2.6) | ||||
| Indicator Light | LED | ||||
Features:
1 .Equivalent to SMC Solenoid valve SY Series , with the same appearance
2 .Internally piloted action, 5 port 2 position or 5 port 3 position.
3 .L plug electrical connector, low power consumption, long service life.
4 .Voltage: 220V/AC, 110V/AC, 24V/DC, 12V/DC, special voltage is available.
5 .Port size: M5,1/8", 1/4".
Why DESTO?
1. More than 10 years' manufacturing experience in pneumatics
2. Rich experience of internaitonal business
3. 100% test before shippment
4. Real high quality and competitive price.
5. Solid packing
6. New designed products, each year we have new products into the market
7. Huge stockpile
8. Prompt delivery
9. Perfect post-sale service
10. OEM & ODM accepted
1.Are you manufacturer or trading company?
We are a professional manufacturer on pneumatic connector and tubing with over 13 years experience on this field. In the civil market , we have over 176 agencies in 176 cities and 30 province. We also supply and OEM/ODM to other local professional cylinder or air equipment manufacturer.
2.How to get sample? Any good policy for samples?
It an honor for us to get your request for our samples, so we are in pleasure to provide the sample for free, and we also have good policy for special fittings. In a word, each of your needs are of most valuable matter for us.
3.How quality control is being executed?
We are CE and ISO9001 certificated, as a permanent policy, quality are always the most important issue of all.
4.what are the payment methods?
We encourage you my dear friend to use alibaba trade assurance payment policy for your best benefit, which enable you to get goods in time, quality ensured and payment safe.
The payment will normally preferred by T/T,30% in advance, for small payment, paypal, west Union or moneygram are acceptable.
5. Any good policy for shipping?
Yes, we have special discount from our forwarder that’s why your shipping cost would be affordable and in-delayed .
-
