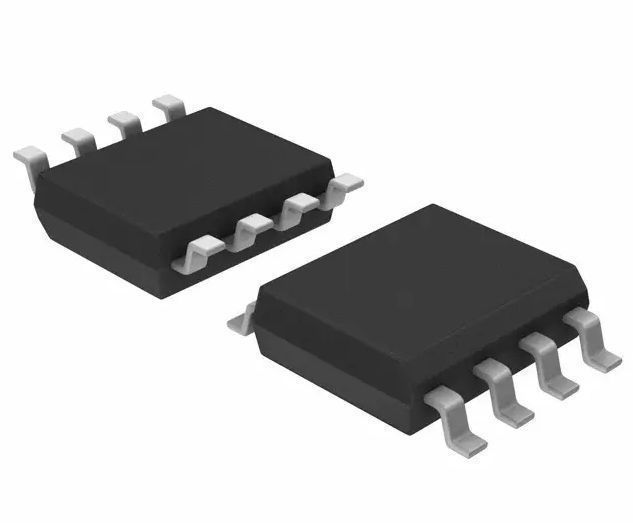

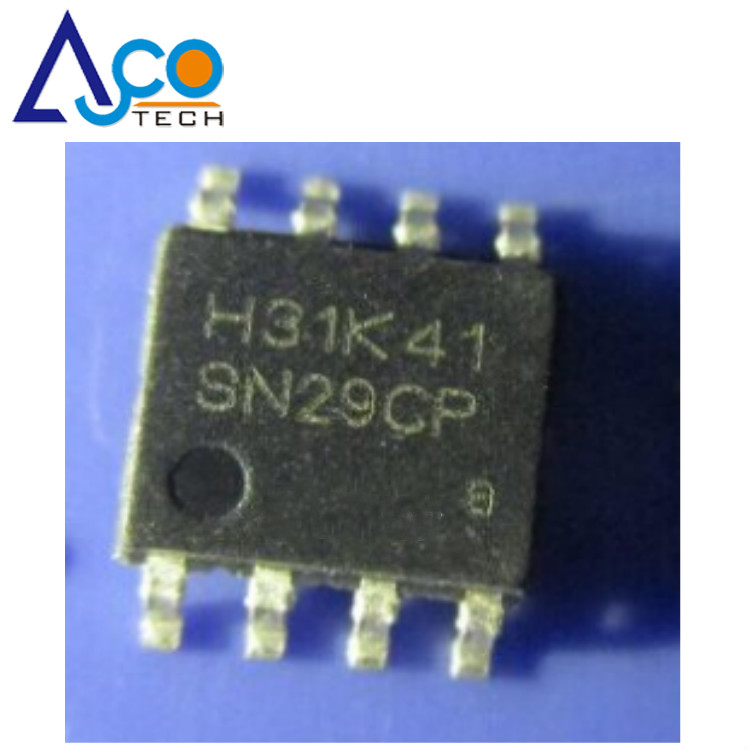

LED driver IC SN29CP IC SOIC8 original new integrated circuit SN29CPA

All ICs/ICs and Electronic Components from China's Largest Independent Distributor

SN29CP SOP-8 package driver isolation high PF solution IC application LED lighting field
Scope of application: 6-60W built-in, built-in/external LED drive scheme
Circuit architecture: PSR primary control, single-stage PFC flyback, external MOSFET
Market direction: bulb lamp, down lamp, PAR lamp, ceiling lamp, panel lamp, flood lamp, wall washer, fluorescent lamp, etc.
Alternative opponents: SY5800 BP3309, etc.
SN29CPA advantages:
1. The primary control single-stage PFC flyback controller saves the secondary constant current circuit, and the circuit structure is simple.
2. It can be used as a goal bulb.
3. High production consistency.
4. The program is mature, and more than 1KKpcs have been produced.
5,6W to 60W solutions have 75% identical components, reducing inventory material costs and making the company healthier.
 Design Points:
1. Combine SN29CP peripheral components into a module, generally in the range of 12W-60W.
2. The bottom plate is made of CEM-1 material, so there is no need to design a double-sided bottom plate, which reduces costs.
3. The selected transformer must be selected according to 1.3~1.5 times of the rated output power (selected when making safety products)
4. Working frequency range: 40K-130KHz (low input voltage, high input voltage, high frequency)

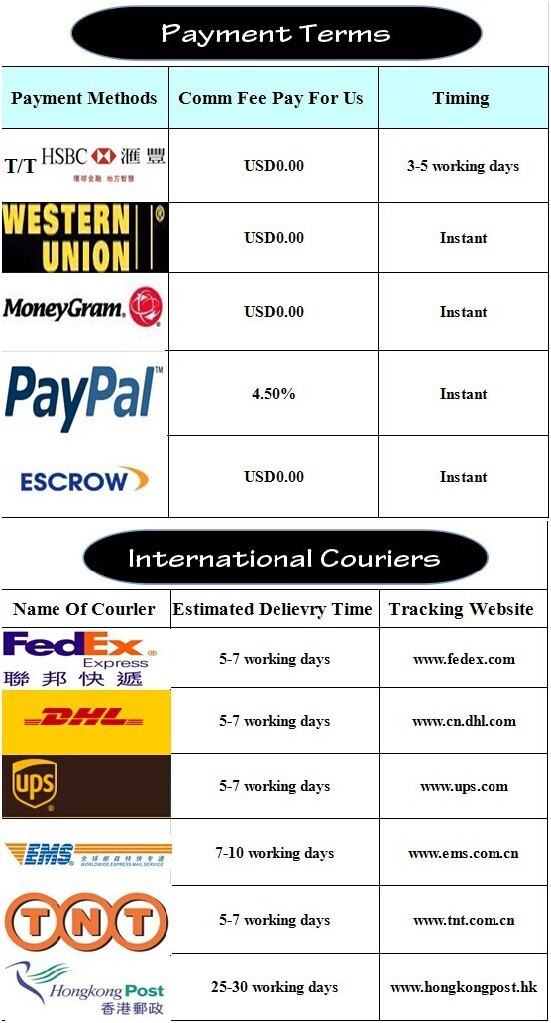

shipping

1. We will ship within 2 working days after the payment is made.

2. We can ship to you by UPS/DHL/TNT/EMS/Fedex. Please contact us directly and we will use your

preferred way. For countries and regions that cannot be delivered by EMS, please choose other shipping methods.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. Any import charges or charges are the responsibility of the buyer.

to pay

1. Wire transfer in advance

2. Alipay

3. Western Union

4. Money gram

5. Hosting

6.Net 1-30 (old customers only)
