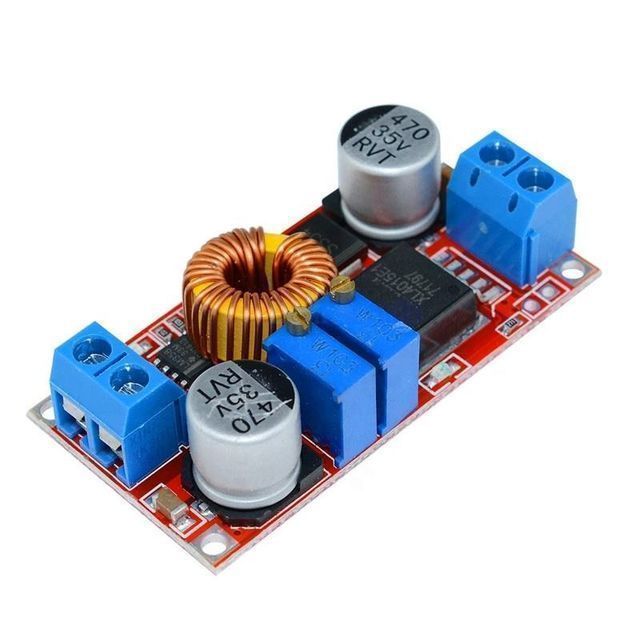

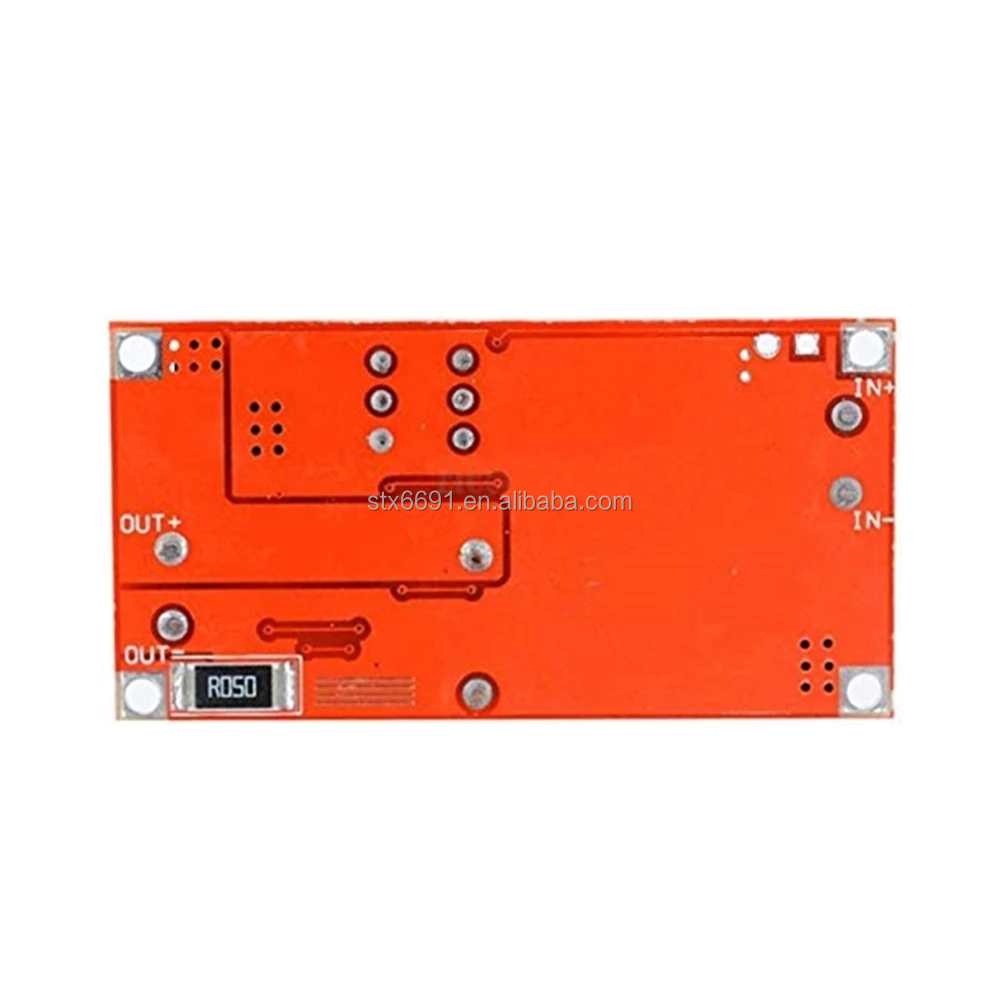

XL4015 5A DC to DC CC CV lithium battery step-down charging board LED power converter lithium battery charger step-down module

Supplier: Shenzhen Shengtaixin Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr shaosheng xu
Price: $0.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Cross reference:	see description below	payment terms:	Western Union, T/T, MoneyGram
Input voltage:	5 volts - 32 volts	port:	China
Origin:	China	On-off level:	300 Hz
brand:	The original	Packaging Details:	carton
best price:	Please contact us	Operating temperature:	40°C to +85°C
type:	other	Supply capacity:	100000 pieces per week
size:	5126.314mm	The output voltage:	0.8 volts - 30 volts
Payment/Payment:	new	pack:	module

XL4015 5A DC to DC CC CV lithium battery step-down charging board LED power converter lithium battery charger step-down module

Isolated Buck Module Module Properties

Synchronous rectification method

Input voltage 5v - 32v

Output voltage 0.8V - 30V

Adjustable output current Maximum 5 95% conversion efficiency (highest)

Switching frequency 300KHZ

Output ripple 50 mv (maximum) 20 m bandwidth

Load regulation plus or minus 0.5%

Voltage regulation plus or minus 2.5%

Working temperature 40°C to +85°C

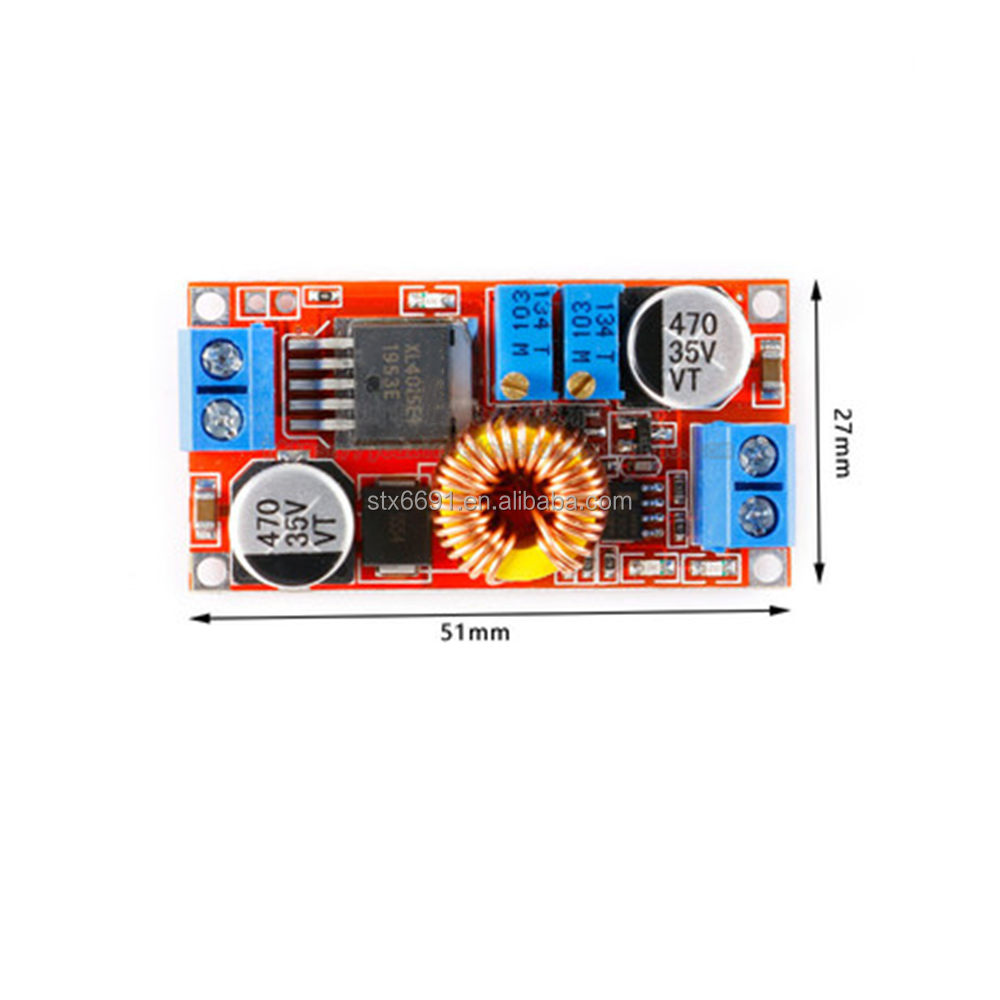

51*26.3*14 size (length*width*height) (mm)
