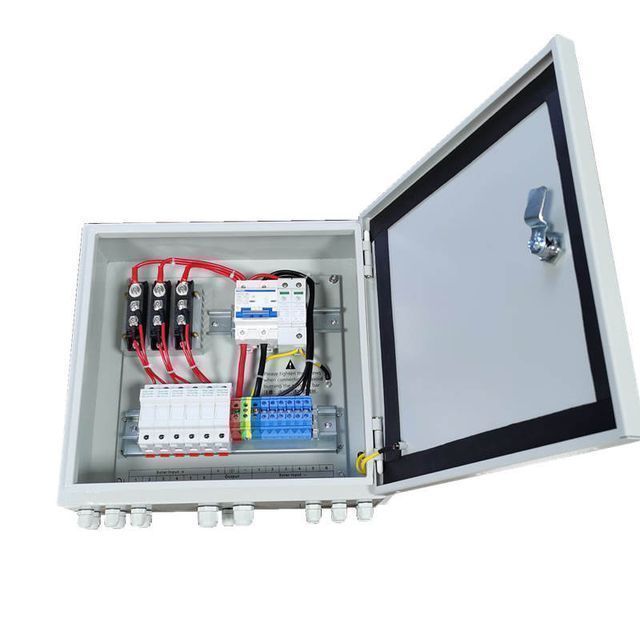

IP65 waterproof 6 in 1 out photovoltaic combiner box 6 strings of solar panels 500VDC solar combiner box

Product details
maximum. The output voltage:500VDCpayment terms:Western Union, T/T
application:The Sun can generate systemSupply capacity:10000 pieces per month
DC output circuit breaker:yesplace of origin; place of origin:Guangdong, China
brand:SenjulikMaterial:iron
Protection class:IP65maximum. Single PV array input current:15A
port:Guangzhou, Shenzhen, FoshanSurge protection:yes
Package preview:cooling method:natural cooling
model:SHH6TPackaging Details:Carton
Finish:powder coatingSingle photovoltaic array fuse:20A
Product parameters
Model
SHH4T
SHH6T
SHH8T
SHH10T




enter
PV array input channel number
4
6
8
10

Single channel maximum photovoltaic array current
10A




Single Channel Photovoltaic Array Fuses
20A



Number of single-channel photovoltaic array lines
PG7, 4mm2



output
output date
1
2
Maximum output current
40A
30A/way, 60A in total
40A/channel, total 80A
50A/channel, 100A in total
output line number for each channel
PG16, 8mm2/way
PG16, 10mm2/way
PG16, 10mm2/way
PG16, 12mm2/way
output voltage
800VDC



DC output circuit breaker
yes



SPD
yes








other
waterproof
IP65



temperature range
-30℃~+60℃



Net weight Gross weight
5.3/9.3
8.4/12.9
9.5/14.3
10.8/15.6
Product size: (D*W*H)
340*300*140mm
360*340*145mm
400*420*145mm

Package size: (D*W*H)
450*420*245mm
470*450*255mm
530*510*255mm
cooling method
air cooled
surge protection
yes
Ground wire
≥6mm2
