Packaging Details: | Box size: 40.7 x 28.8 x 8.3CM 5pcs/ctn Carton size: 43.5 x 42.0 x 31.5CM Weight: 12.0-12.3 KG/CTN | terminal type: | PBX phone system |
Attached English user manual: | yes | Intercom caller ID: | yes |
place of origin; place of origin: | Guangdong, China | Package preview: | |
model: | CS+208; CS+308; CS+416 | Forward Caller ID: | yes |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | brand: | Telecommunications company |
Support for analog phones: | yes | Internal extension: | 8-16 extension |
Types of: | public phone | Support for Mandarin phones: | yes |
CO line: | 2-4 rows | port: | Shenzhen |
Recordable OGMs: | 20s or 60s or 90s optional | Supply capacity: | 4000 pieces per month |
easy to use: | yes | | |

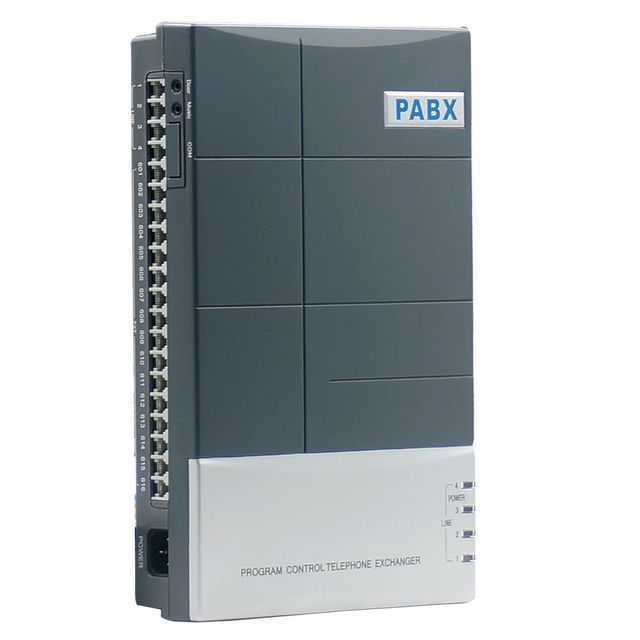

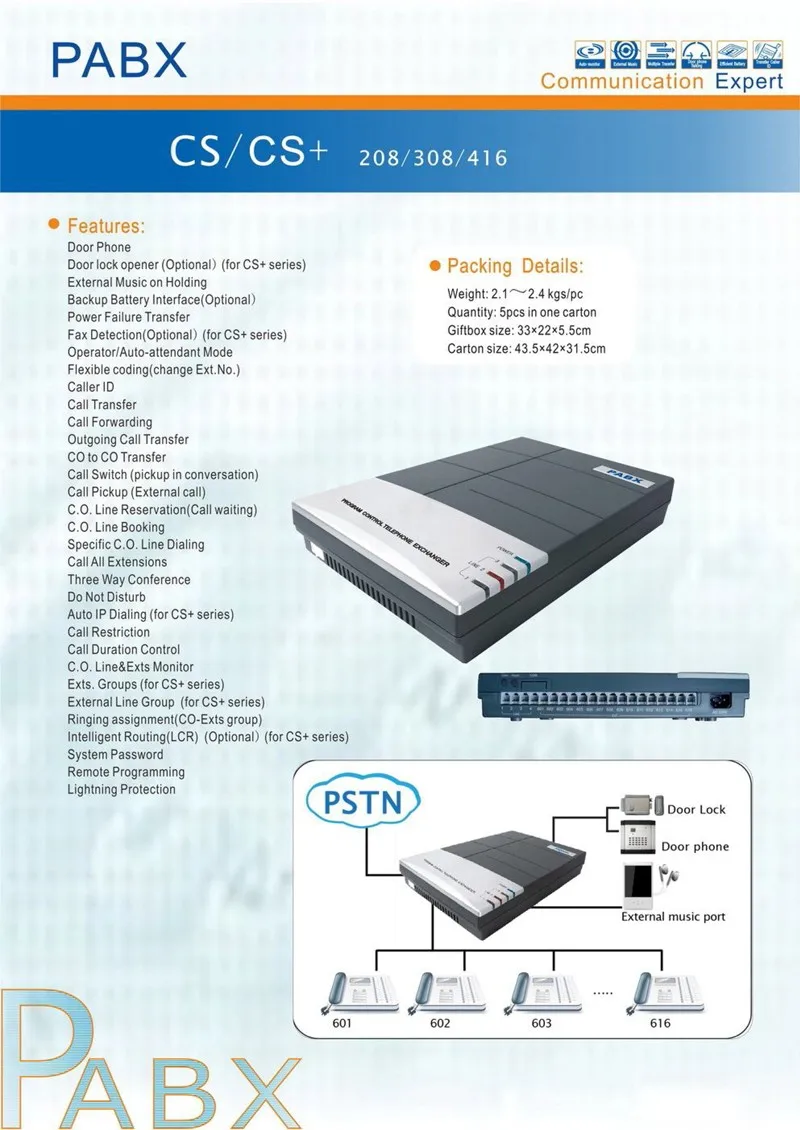

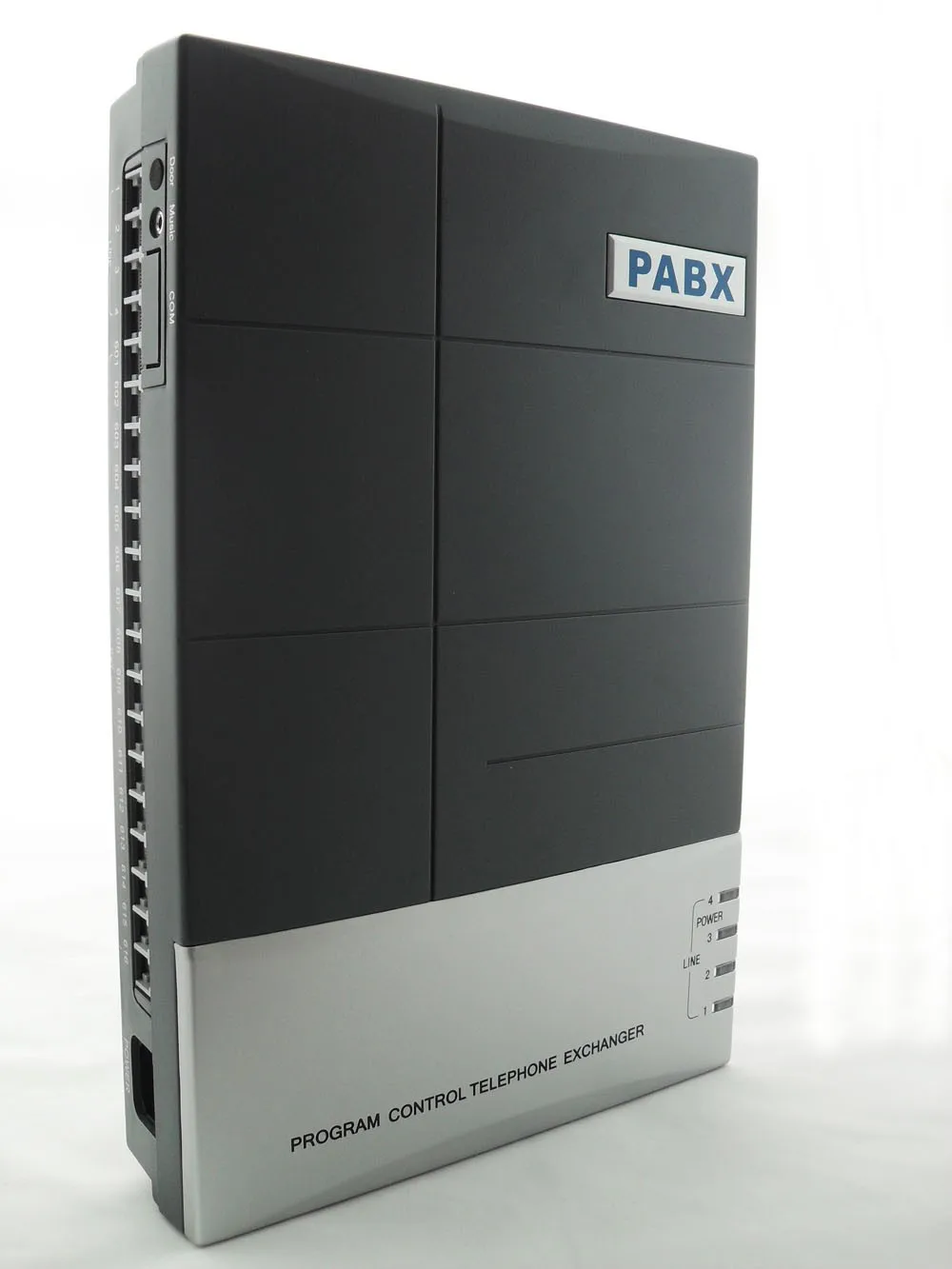

Product name: MINI PBX
Model: CS+208; CS+308; CS+416
CS+208 (2CO line x 8 extensions)
CS+308 (3CO line x 8 extensions)
CS+416 (4CO line x 16 extensions)
automated telephone system
This CS+ Series PBX system is the ideal phone system for small offices and home offices. It's very easy to install and use. It has all the standard features comparable to those expensive PBX systems on the market. It works with your current analog phone and you don't need to spend extra money on a proprietary phone to use it with the PBX.
Installation is simple and requires no special tools, test equipment or technical skills. The unit has been programmed to work out of the box.
The main differences between CS series switches and CS+ series switches are as follows:
feature |
CS series |
CS+ series |
Recordable OGM (Out of Office Message) |
10 second outgoing message |
20 second outgoing message |
hold external music |
No |
yes |
Day/night mode function |
No |
yes |
Forward caller ID feature |
No |
yes |
Intercom caller display function |
No |
yes |
ext. Group and Outside Line Group Features |
No |
yes |
Support door phone function |
No |
Yes (only compatible with our own doorphones) |
CS+ Series PBX Features
- CO. Lines 2-4
- ext. Lines 8-16
- multiple communication lines
- normal conversion power
- Switching power supply (optional)
- Backup battery interface (optional)
- Power outage transfer
- Outside Caller ID
- Auto-Attendant (DISA-20s three stages)-OGM 60s or 90s optional
- Forward Caller ID
- walkie talkie caller ID
- Outgoing Message Recording
- in house music
- remote programming
- Power off memory protection
- Auto/Operator Mode
- system password
- Flexible extension. number assignment
- multi-out mode
- outside group
- call duration control
- pick up the phone
- outgoing call forwarding
- Call forwarding
- Call forwarding
- Coding flexibility (change extension number)
- do not disturb
- Automatic EX Report
- Flash time selection
- bell job
- call barring
- three way conference
- call all extensions
- Dedicated line dial
- ring recognition
- CO line reservation
- CO line reservation
- carrier settings
- carbon monoxide monitor
technical parameter
- Extension: 8, 16
- Outside lines: 2, 3, 4
- Communication lines: 7
- Power supply: AC 100-240V
- Power: =<40W
- Battery voltage: DC 48V Charging current: =<30mA (optional)
Comment:CS+208 refers to 2 CO lines and 8 extension ports
CS+308 refers to 3 CO lines and 8 extension ports
CS+416 means 4 CO lines, 16 extension ports
