Dinstar Cost Effective 32 FXS Analog VoIP Gateway DAG2000-32S, 32 FXS Ports

Supplier: Shenzhen Dinstar Co., Ltd.
Region: Guangdong, China
Contact: Mr Roy Wang
Price: $607.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty:	12 months	model:	DAG2000-32S
brand:	tripod star	type:	analog gateway
brand:	Dingstar	aspect:	44025044mm
Function:	telecommunications	Origin:	Guangdong, China
product name:	VoIP FXS Gateway	Supply capacity:	3000 pieces per month
Model:	DAG2000-32S	FXS port:	twenty four
unit weight:	3.2 kg	payment terms:	Western Union, T/T, Paypal
Packaging Details:	Outer box + inner box + PE	color:	Black
Various codecs:	G.711A/U,G.723.1,G.729A/B,G.726

Product Description

Product parameters

overview

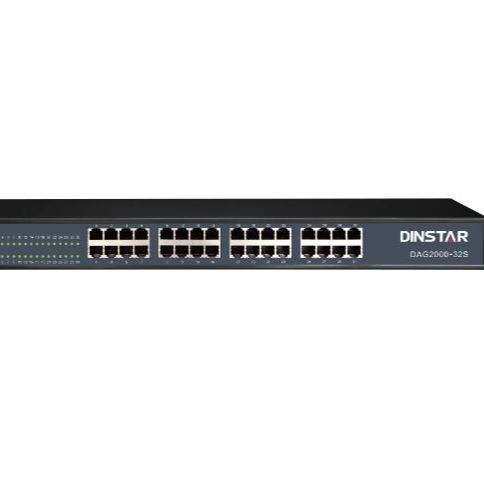

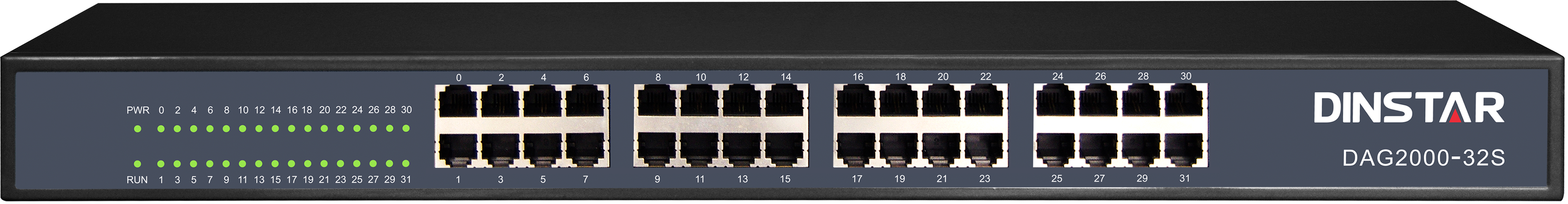

The DAG2000-32S is a versatile analog gateway that provides seamless connectivity between IP-based telephone networks and traditional telephone (POTS), fax and PBX systems. The equipment adopts standard RJ11 and RJ21 interfaces and provides 32 FXS interfaces. It is ideal for small and medium businesses, call centers and multi-location environments requiring VoIP services. DAG2000-32S supports standard SIP protocol, compatible with leading IMS/NGN platform and SIP-based IP telephone system.

main features

Cost-effective gateway IP fax (T.38 and pass-through) with 32 FXS ports Supports IPv4 and IPv6 TR069 and SNMP Multiple codecs: G.711A/U, G.723.1, G.729A/B, AMR, G .726, etc. are fully compatible with leading IMS/NGN, SIP-based IP telephone systems

physical interface

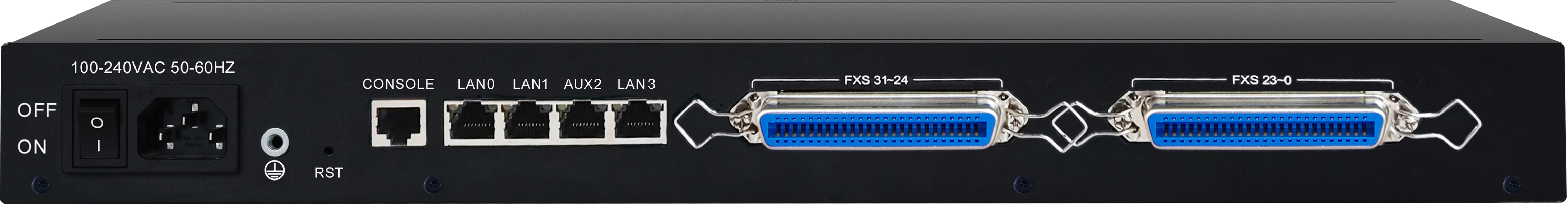

Capacity 32 FXS with RJ11 2*RJ21, 50 PIN Ethernet interface: 3* LAN, 10/100Mbps, RJ-45 Console: 1*RS232, 115200bps

voice and fax

G.711A/U method, G.723.1, G.729 A/B, G.726, AMR, iLBC Mute Suppression Comfort Noise Generation (CNG) Voice Activity Detection (VAD) Echo Cancellation (G.168), up to 128ms auto Adaptive (Dynamic) Jitter Buffer Hook Flash Programmable Gain Control T.38/Thru High Speed Fax Modem up to 14.4kbps/POS DTMF Mode: Signaling/RFC2833/INBAND VLAN 802.1P/802.1Q (Data/Voice/Management VLAN) Layer3 QoS and DiffServ

FXS

Connectors: RJ11 and RJ21 Dialing Mode: DTMF and Pulse Pulse: 10 and 20 PPS Caller ID: DTMF/FSK CLI Demo Maximum Cable Length: 5 km Reverse Polarity Programmable Call Progress Tone

online telephone

Protocol: SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311 SIP TLS/SRTP RTP/RTCP, RFC2198, 1889 RFC4028 session timer RFC3266 IPv6 in SDP RFC2806 TEL URI RFC3581 NAT,rport Primary/backup SIP server Outbound Proxy DNS SRV/A Query/NATPR Query SIP Trunk Early Media/Early Answer NAT:STUN, Static/Dynamic NAT

environmental

Power supply: 100-240VAC, 50-60 Hz Power consumption: 40W(Typical) Operating temperature: 0 ℃ ~ 45 ℃ Storage temperature: -20 ℃ ~80 ℃ Humidity: 10%-90% Non-condensing size (W/D /H ): 440*250*44mm Unit Weight: 3.2kg Compliance: CE, FCC
