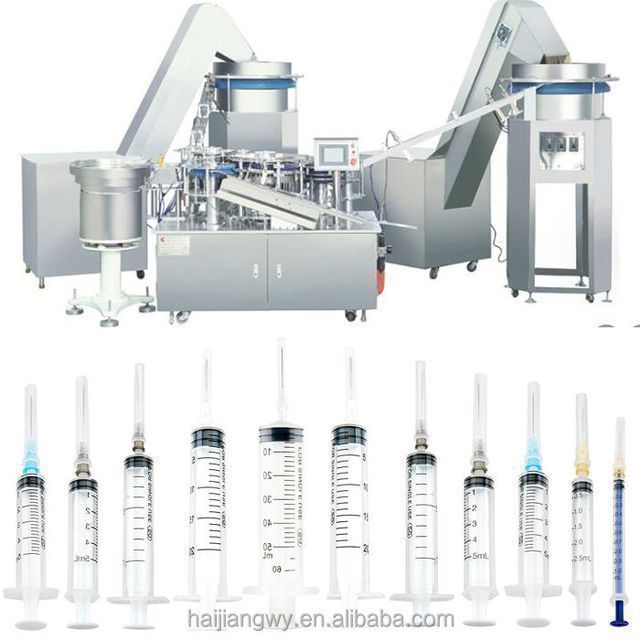

Injection Molding Machine for Disposable Infusion Set Infusion Set Production Line
-
Supplier: Ningbo Haijiang Weiye Imp&exp Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Weiye Haijiang -
Price: $15000.00 /set -
Min. Order: 1 set
| Power (kW): | 18.5 kW | Ejection stroke(mm): | 130 mm |
| port: | Ningbo | color: | customer request |
| Injector number: | other | automatic: | yes |
| Distance between tie rods (height) (mm): | 470mm | Screw aspect ratio: | 18.8 |
| Packaging Details: | export standard packaging | Showroom location: | Egypt, Canada, Italy, Vietnam, Brazil, Pakistan, India, Morocco, Chile, UAE, Algeria, Bangladesh |
| payment terms: | L/C, T/T | Mold height(mm): | 130 - 180mm |
| Theoretical injection volume (cm³): | 431 cubic centimeters | Screw diameter (mm): | 50 mm |
| State of health: | new | Open stroke (mm): | 450 mm |
| Applicable industries: | Hotels, Clothing Stores, Manufacturing Plants, Machinery Repair Shops, Energy and Mining, Food and Beverage Stores, Others | Supply capacity: | 300 sets per month |
| Type of machine: | hydraulic | Injection Rate (g/s): | 170g/s |
| After-sales service provided: | online support | Shot Weight (grams): | 431 grams |
| Mechanical test report: | if | Clamping force(kN): | 2000 kN |
| Distance between tie rods: | 500*470 | model: | HJF200 |
| Start the itinerary: | 450mm | Plastic processing: | PP,PC,ABS,PET,FRPP/PVC,PPR,HDPE,MLLDPE,polystyrene,EVOH,HDPE/PP,ABS/PP,polylactic acid |
| style: | horizontal | Main selling points: | competitive price |
| Warranty: | 1.5 years | place of origin; place of origin: | Zhejiang, China |
| Screw speed (rpm): | 1 - 185 rpm | Plastic Type: | thermoplastic |
| Injection rate: | 136/170/185G/S | brand: | Haijiang |
| Ejection force(kN): | 45 kN | Weight (kg): | 5800 kg |
| Types of: | Tube head injection | Distance between tie rods (width) (mm): | 500mm |
| Core component warranty: | 1.5 years | Video shipment inspection: | if |
| Shot weight: | 314/388/470G | Power (watts): | 18.5KW |
| Core components: | Bearing, motor, water pump, PLC, others, screw |
|
Specification |
Hai Jinfeng200 |
|||
|
screw type |
A sort of |
Second |
C |
|
|
Screw diameter |
mm |
45 |
50 |
55 |
|
Screw aspect ratio |
aspect ratio |
20 |
18.8 |
18.8 |
|
Injection volume (theoretical value) |
cubic centimeter |
349 |
431 |
522 |
|
Injection weight (PS) |
G |
314 |
388 |
470 |
|
Injection rate |
g/s |
136 |
170 |
185 |
|
Injection pressure |
MPa |
220 |
180 |
150 |
|
Screw speed |
Rotating speed |
0~185 |
||
|
clamping force |
KN |
2000 |
||
|
start itinerary |
mm |
450 |
||
|
space between tie rods |
mm |
500*470 |
||
|
mold height |
mm |
500 |
||
|
Minimum mold height |
mm |
180 |
||
|
Ejection stroke |
mm |
130 |
||
|
Ejection tonnage |
KN |
45 |
||
|
Maximum pump pressure |
MPa |
16 |
||
|
Motor Power |
kilowatt |
25.1 |
||
|
Heater power |
kilowatt |
7.5 |
||
|
Machine size(L*W*H) |
rice |
5.3*1.4*1.9 |
||
|
machine weight |
Ton |
5.8 |
||
|
Fuel tank capacity |
large |
240 |
||

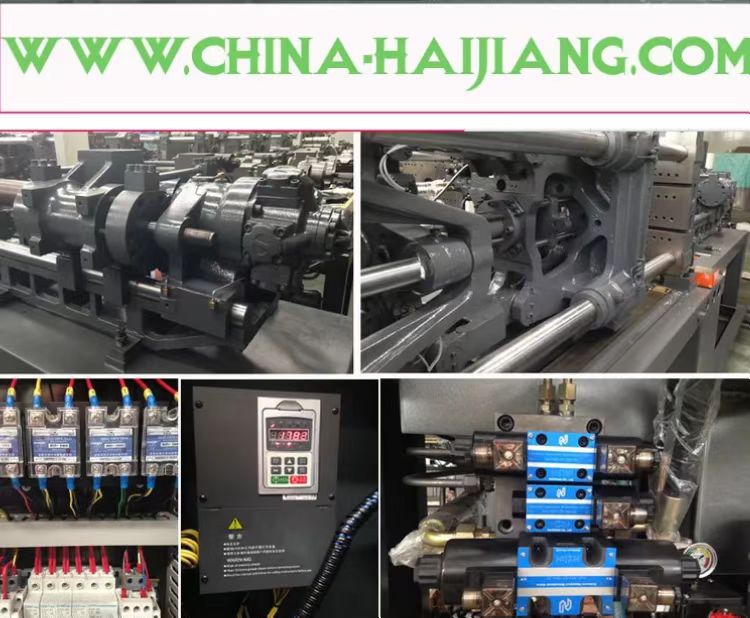

Haijiang injection molding machine features
- more space between the tie rods
-Central clamping structure
- well-known components
-Servo motor energy saving
-Low noise, fast response
- High precision, stability, long life
-T-slot platen
- Abundant spare parts
-Better price.
clamping parts
The new-generation clamping device and computer simulation optimized parameters make the moving plate, fixed plate and high rigid toggle structure move, ensuring high strength and anti-fatigue characteristics. Compared with similar machines, it has larger internal tooth pitch between tie rods, mold space and mold opening stroke, and can process larger-sized plastic products.

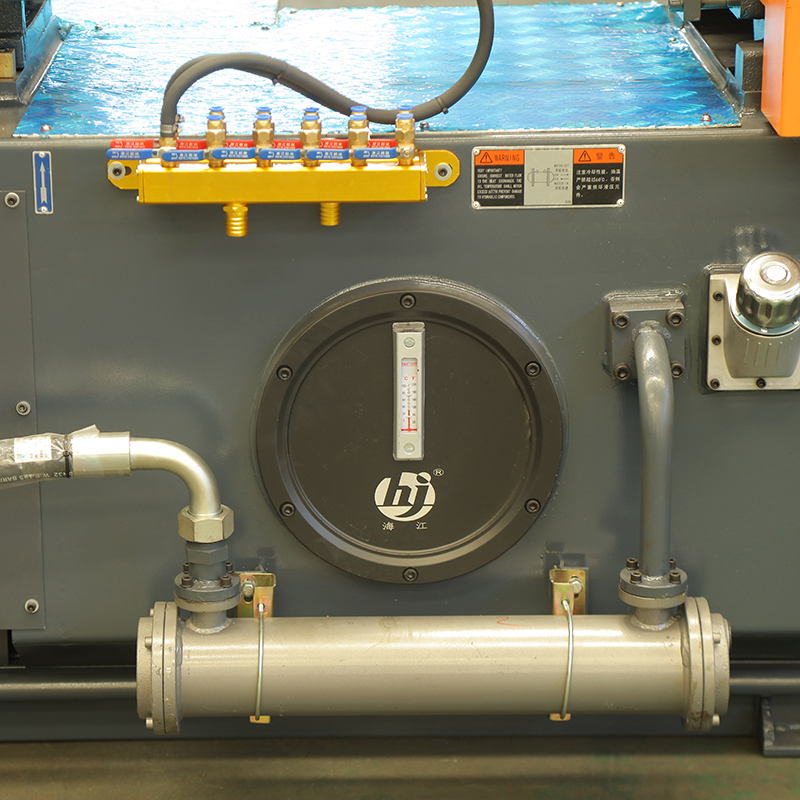

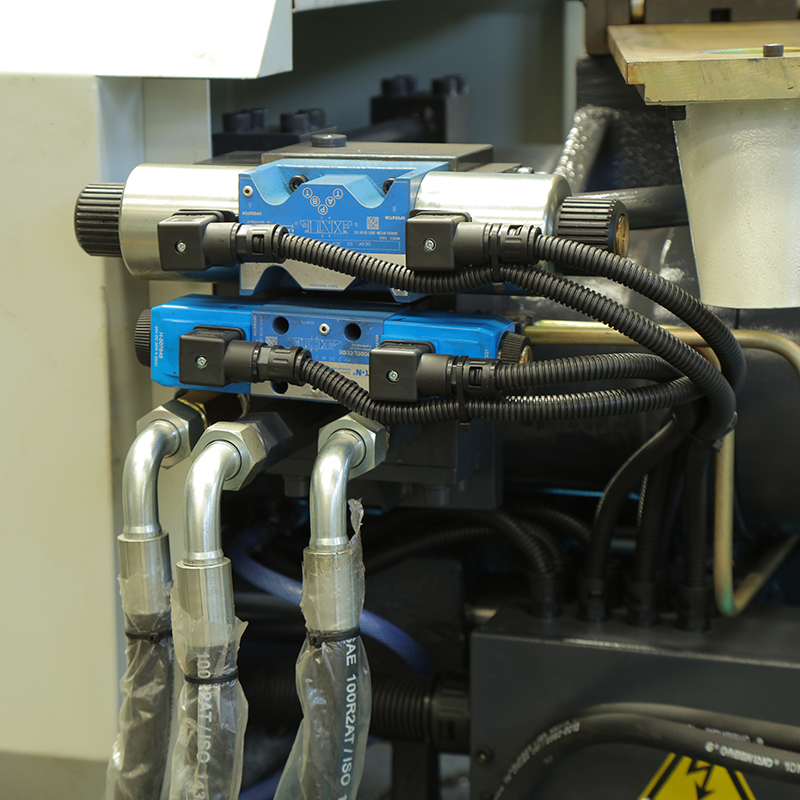

hydraulic device
The high-efficiency, energy-saving, high-precision proportional pressure and flow variable pump system makes the output of the hydraulic system match the power required for the operation of the whole machine without losing high-pressure throttling and overflow energy. Compared with quantitative pumps, it can save electricity by 30%~60%.

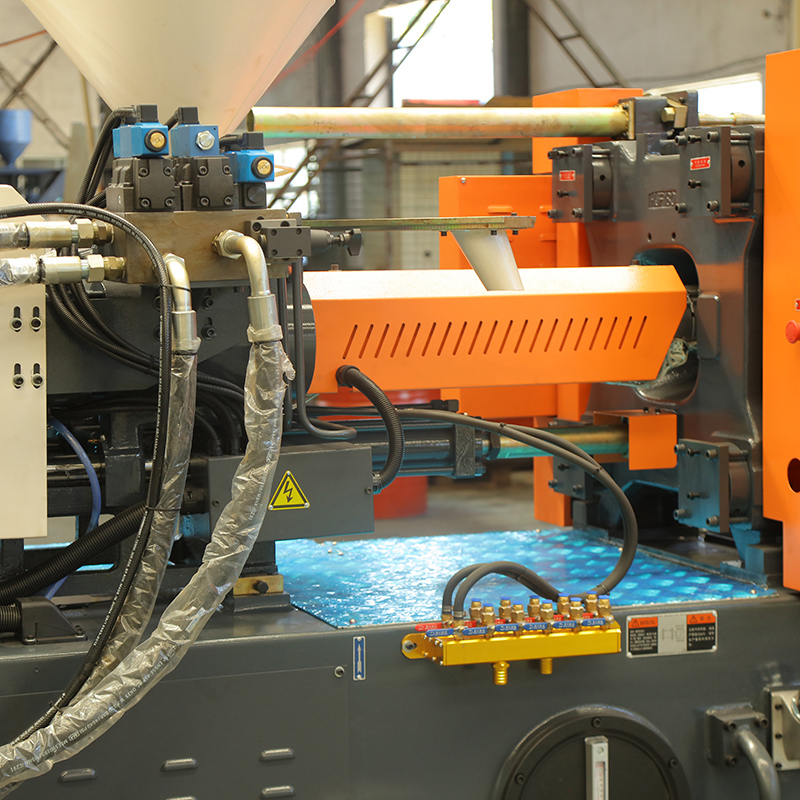

injection device
High injection pressure and fast injection speed
The screw stop head and stop ring are made of hot work tool steel imported from Japan and quenched by vacuum flame, which has the characteristics of high temperature resistance, wear resistance and corrosion resistance.
-
