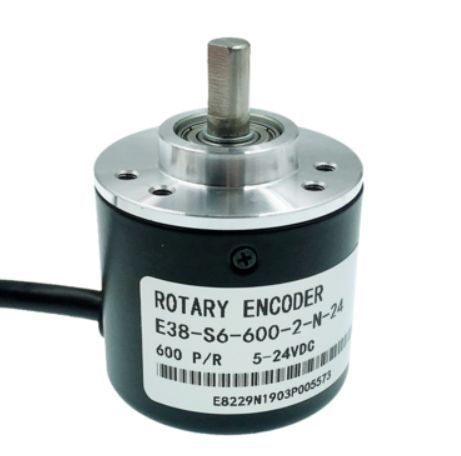

Incremental Rotary Encoder 5-24V Encoder DC 360/600 P / R Photoelectric Rotary AB Two Phase 6mm Shaft

360 p/r (single-phase 360 ​​pulses/R, two-phase 4 times frequency to 1440 pulses)
Power supply: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output: AB 2-phase output rectangular quadrature pulse circuit, the output is NPN open collector output type
Maximum mechanical speed: 5000 rpm
Response frequency: 0-20KHz
Cable length: 1.5 meters
Note: AB two-phase output cannot be directly connected to VCC, otherwise the output triode will be burned, because the batch is different, there may be no terminal

connect:

Green=phase A, white=phase B, red=Vcc power+, black=V0
application:
For measuring rotational speed, angle and acceleration of objects as well as length measurement
It is suitable for intelligent control of various displacement measurements, automatic fixed-length leather automatic scissors machine, steel cutting length control, civil height measuring human body scale, student racing robot

Package includes:

1 x Encoder 360P/R incremental rotary encoder

600 p/r (single-phase 600 pulses/R, two-phase 4 times frequency to 2400 pulses)
Power supply: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output: AB 2-phase output rectangular quadrature pulse circuit, the output is NPN open collector output type
Maximum mechanical speed: 5000 rpm
Response frequency: 0-20KHz
Cable length: 1.5 meters
Note: AB two-phase output cannot be directly connected to VCC, otherwise the output triode will be burned, because the batch is different, there may be no terminal

connect:

Green=phase A, white=phase B, red=Vcc power+, black=V0
application:
For measuring rotational speed, angle and acceleration of objects as well as length measurement
It is suitable for intelligent control of various displacement measurements, automatic fixed-length leather automatic scissors machine, steel cutting length control, civil height measuring human body scale, student racing robot


Package includes:

1 x Encoder 600P/R incremental rotary encoder
