MOQ: | 1 set | Origin: | Japan |

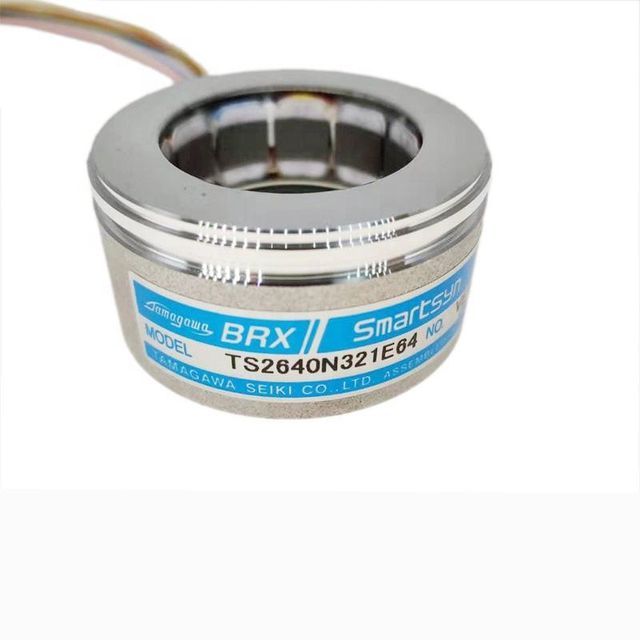

pack: | Carton | Model: | TS2640N321E64 |
type: | 1X-BRX, magnetic encoder | basic: | R1-R2 (rotor) |
size: | twenty one | model: | TS2640N321E64 |
output: | 140+j270Ω±15% | Health status: | 100% brand new |
Package preview: | Warranty: | 1 year | |
brand: | Tamagawa | describe: | Encoder |
weight: | 0.3KG | Packaging Details: | Export label package, hard cartoon |
theory: | Xuanmai | usage: | industrial |
size | 6 | 8 | 10 | ||
Model | TS2603N21E64 | TS2605N1E64 | TS2610N171E64 | ||
type | 1X-BRX | 1X-BRX | 1X-BRX | ||
basic | R1-R2 (rotor) | R1-R2 (rotor) | R1-R2 (rotor) | ||
Input voltage | AC7Vrms 10kHz | AC7Vrms 10kHz | AC7Vrms 10kHz | ||
Ratio [K] | 0.5±5% | 0.5±5% | 0.5±5% | ||
Electrical Error (Accuracy) | ±20' max | ±10' max | ±10' max | ||
residual voltage | 50mVrms max | 20mVrms max | 20mVrms max | ||
phase shift | +20°±10° | +10°nominal | +5° nominal | ||
input resistance | zero | 120Ω±20% | 140Ω±20% | 160Ω nominal | |
output impedance | ZSO | - | - | 160Ω nominal | |
Zss | 130Ω±20% | 120Ω±20% | 130Ω nominal | ||
Allowable speed | 30,000min-1{rpm} | 40,000min-1{rpm} | 10,000min-1{rpm} | ||
range of working temperature | -55℃~+155℃ | -55℃~+155℃ | -55℃~+155℃ | ||
Dielectric strength | AC250Vrms1min | AC500Vrms1min | AC500Vrms1min | ||
Insulation resistance | 10MΩ min. | 100MΩ min. | 10MΩ min. | ||
Lots of | 0.015kg nominal | 0.03kg nominal | 0.04kg nominal | ||
output voltage equation | +type | -type | -type |
size | 15 | twenty one | 34 | ||||
Model | TS2620N21E11 | TS2620N271E14 | TS2640N321E64 | TS2660N31E64 | |||
type | 1X-BRX | 1X-BRX | 1X-BRX | 1X-BRX | |||
basic | R1-R2 (rotor) | R1-R2 (rotor) | R1-R2 (rotor) | R1-R2 (rotor) | |||
Input voltage | AC7Vrms 10kHz | AC10Vrms 4.5kHz | AC7Vrms 10kHz | AC7Vrms 10kHz | |||
Ratio [K] | 0.5±5% | 0.5±5% | 0.5±5% | 0.5±10% | |||
Electrical Error (Accuracy) | ±10' max | ±10' max | ±10' max | ±10' max | |||
residual voltage | 20mVrms max | 20mVrms max | 20mVrms max | - | |||
phase shift | 0°REF | +8° nominal | -5°±10° nominal | 0°±10° | |||
input resistance | zero | 70+j100Ω nominal | 90+j180Ω nominal | 100+140Ω±15% | 150Ω reference | ||
output impedance | ZSO | 180+j300Ω nominal | 220+j350Ω nominal | 140+j270Ω±15% | - | ||
Zss | 175+j275Ω nominal | 210+j300Ω nominal | 120+j240Ω±15% | 860Ω reference | |||
Allowable speed | 10,000min-1{rpm} | 10,000min-1{rpm} | 10,000min-1{rpm} | 6,000min-1{rpm} | |||
range of working temperature | -55℃~+155℃ | -55℃~+155℃ | -55℃~+150℃ | -55℃~+155℃ | |||
Dielectric strength | AC500Vrms1min | AC500Vrms1min | AC500Vrms1min | AC500Vrms1min | |||
Insulation resistance | 100MΩ min. | 100MΩ min. | 100MΩ min. | 100MΩ min. | |||
Lots of | Maximum 0.065kg | Maximum 0.18kg | 0.22kg±0.1kg | Maximum 1.0kg | |||
output voltage equation | +type | +type | +type | +type |
size | twenty one | 34 | |||
Model | TS2640N321E64 | TS2660N31E64 | |||
type | 1x-BRX | ||||
basic | R1-R2 (rotor) | ||||
Input voltage | AC7Vrms 10kHz | AC7Vrms 10kHz | |||
Ratio [K] | 0.5±5% | 0.5±10% | |||
Electrical Error (Accuracy) | ±10' max | ±10' max | |||
residual voltage | 20mVrms max | - | |||
phase shift | +1° nominal | 0°±10° | |||
input resistance | zero | 100+j140Ω±15% | 150Ω reference | ||
output impedance | ZSO | 140+j270Ω±15% | - | ||
Zss | 120+j240Ω±15% | 860Ω reference | |||
Allowable speed | 10000min-1{rev} | 6000min-1{rev} | |||
range of working temperature | -55°C∼+150°C | -55℃∼+155℃ | |||
Dielectric strength | 500V AC RMS for one minute | 500V AC RMS for one minute | |||
Insulation resistance | 100MΩ min. | 100MΩ min. | |||
Lots of | 0.28kg nominal | Maximum 1.0kg | |||
output voltage equation | +type | +type |
