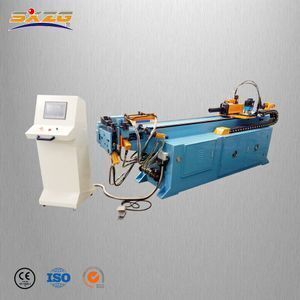

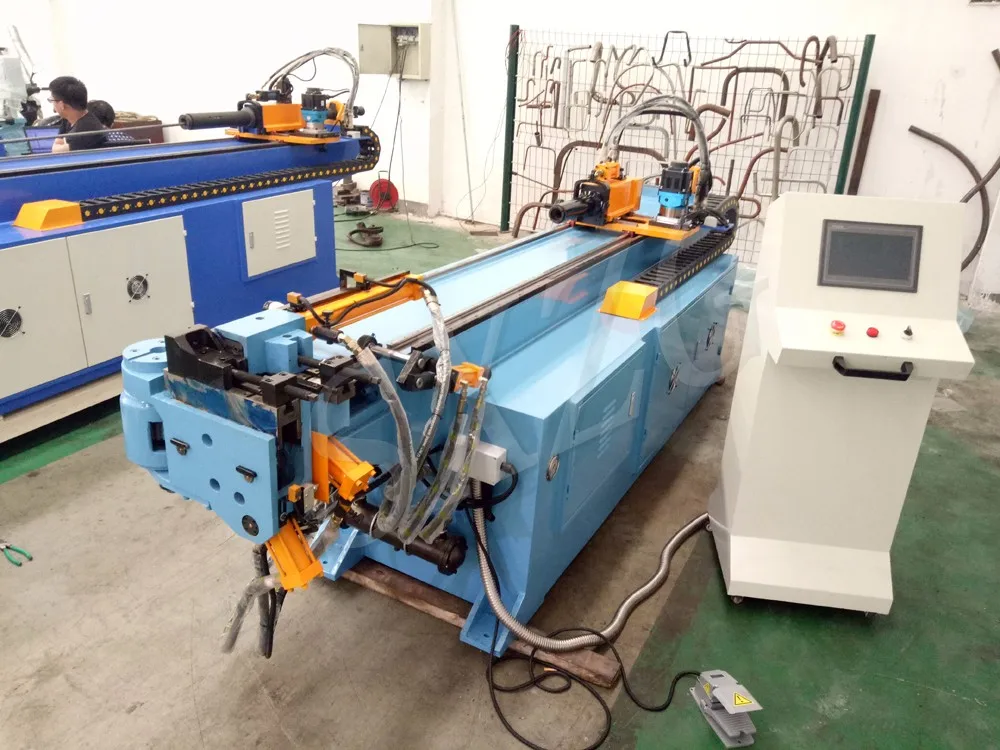

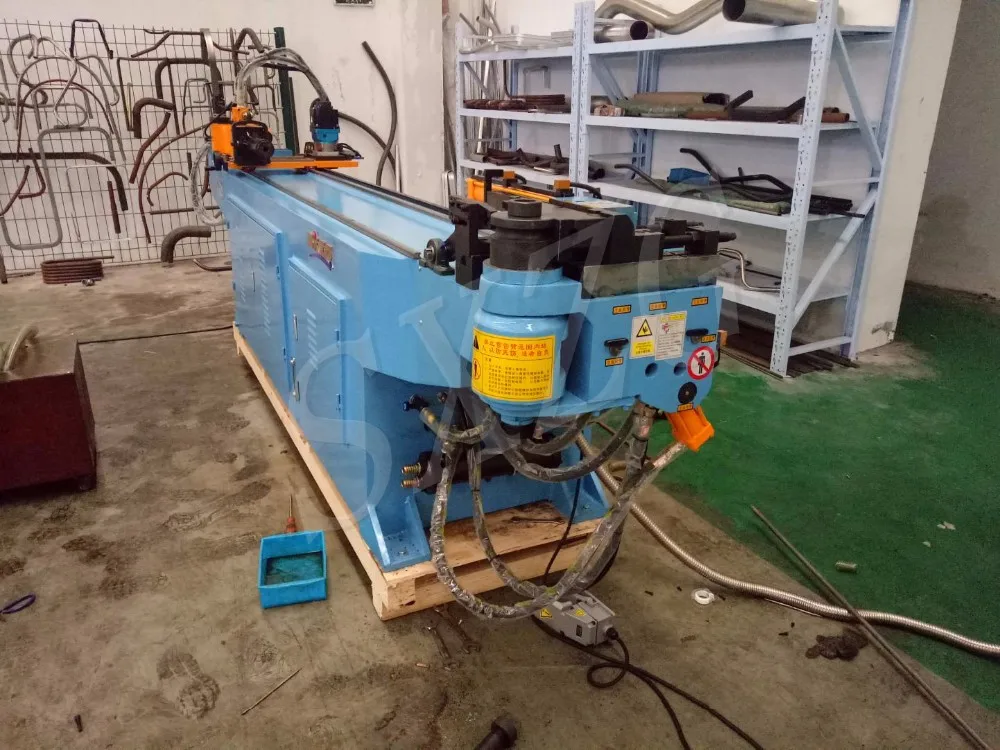

Full automatic 3d 2 inch hydraulic exhaust cnc pipe bending machine for sale

Supplier: Anhui Sanxin Heavy Industry Machinery Manufacturing Co., Ltd.
Region: Anhui, China
Contact: Ms Zoe Xu
Price: $8888.00 /set
Min. Order: 1 set

Click here to contact

Product details

Item:	CNC pipe bending machine;	Type:	Bending machine;
Warranty:	3 Years;	Port:	Shanghai;
Packaging Detail:	cnc pipe bending machine for sale is packaged by plastic film.;	Raw Material:	PIPE;
Place of Origin:	Anhui China (Mainland);	Power:	Hydraulic;

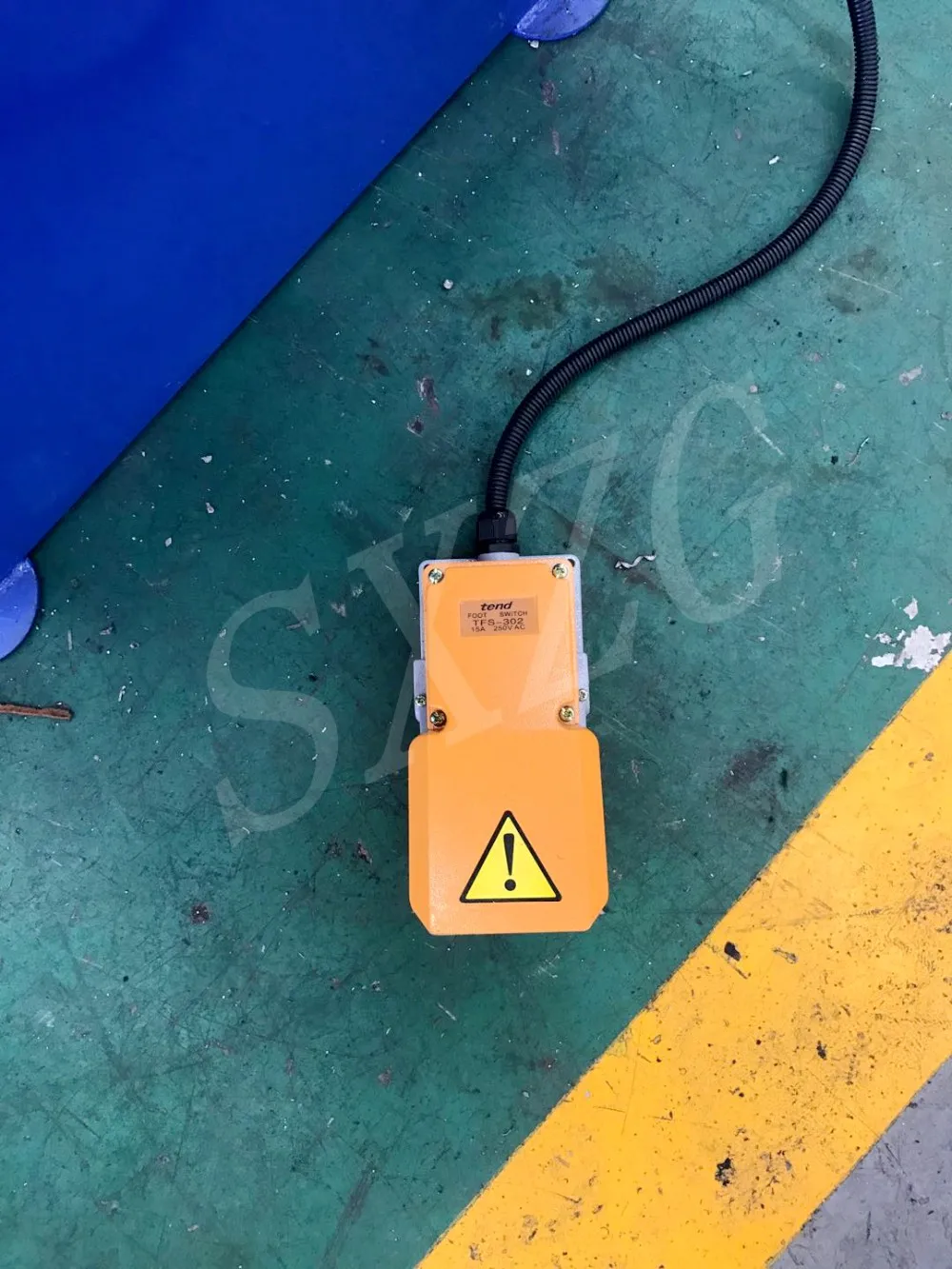

Automation:	Automatic;	Automation:	Foot-operated;
Warranty:	3 years;	Weight:	2500KG;
Power:	Hydraulic;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Brand Name:	SXZG;	Payment Terms:	L/C,T/T;
Material / Metal Processed:	ALLOY,Brass / Copper,Carbon Steel,Stainless Steel,Aluminum;	Year:	2019;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	199 Set/Sets per Month cnc pipe bending machine for sale;
Color:	Optional;	Certification:	CE;
Voltage:	220V/380V/440V;	Extra Services:	Machining;
Condition:	New;	Machine Type:	Pipe and Tube Bending Machine;

Product Description

WORKING VIDEO: https://youtu.be/SjhkEYzfmUQ

1. Fully automatic and CNC pipe bending machine.
2. Equipped with servo motor programmable axis,2axis 3 axis, 4 axis or 5 axis...
3. Feeding: servomotor drive; Rotation: servomotor drive
4. Bending: hydraulic and encoder control; Servomotor with reducer.
5. Imported hydraulic system and PLC unit or IPC.
6. Automatic lubrication system for moving areas.
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage.
9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
10. Touch screen and human/machine interface control provide user friendly operations.

TECHNICAL PARAMETERS
Model	Unit	DW50CNC-2A-1S
Max bending capability	Mm	50*3
Max bending radius	Mm	R250
Min bending radius	Mm	According to pipe diameter
Max bending angle	°	190
Bending speed	°/s	85
Rotary speed	°/s	200
Feeding speed	Mm/s	1000
Bending method	/	Hydraulic bending
Motor Power	Kw	5.5
Max oil pressure	Mpa	12
Weight	Kg	2500
Dimension	Mm	500013001500

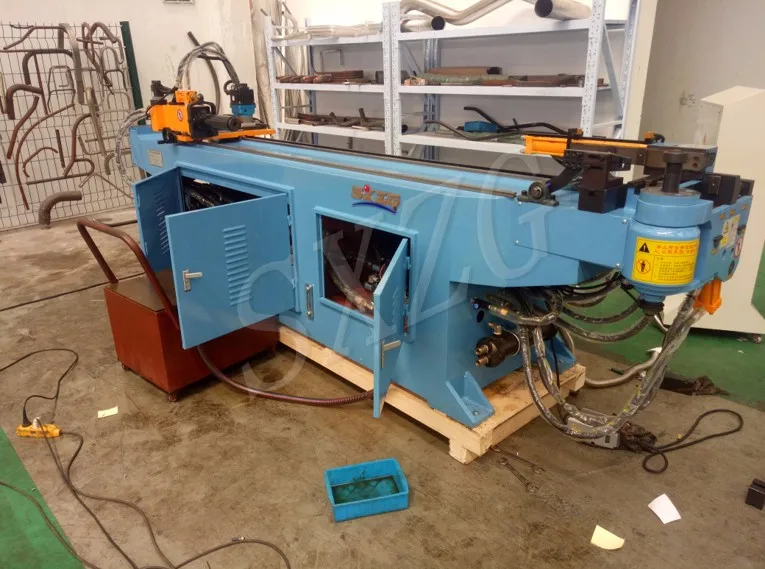

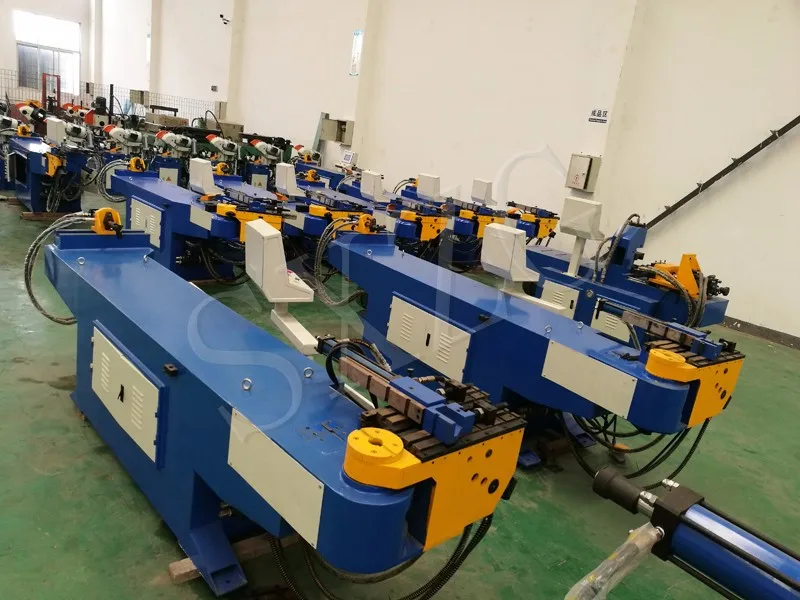

Workshop

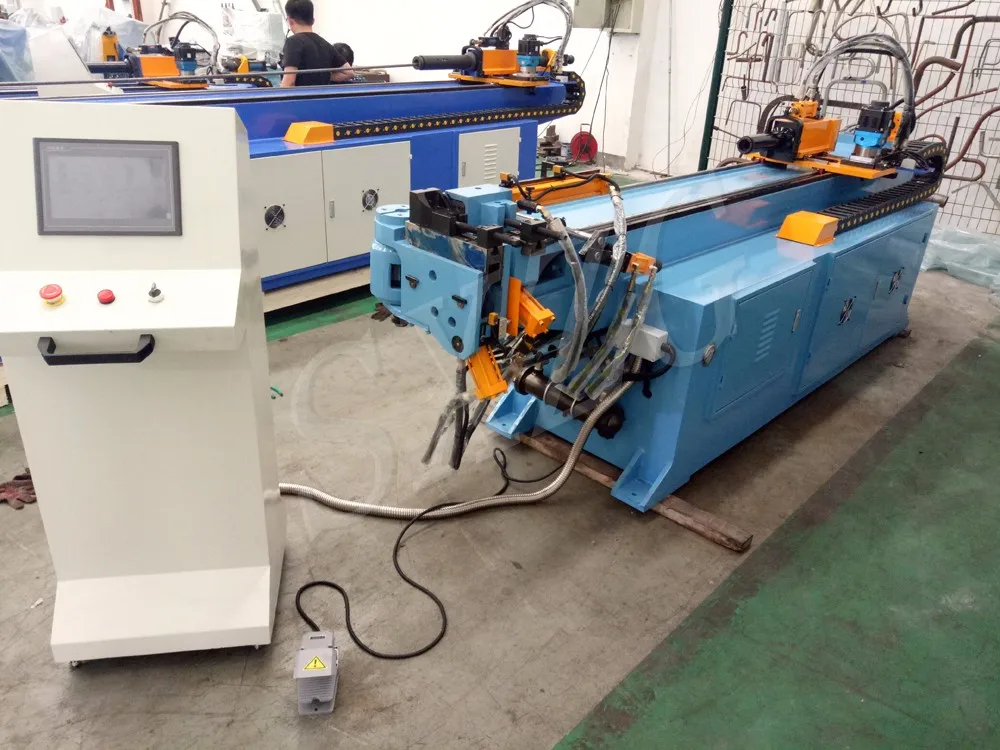

Detailed Images

Machine Parts

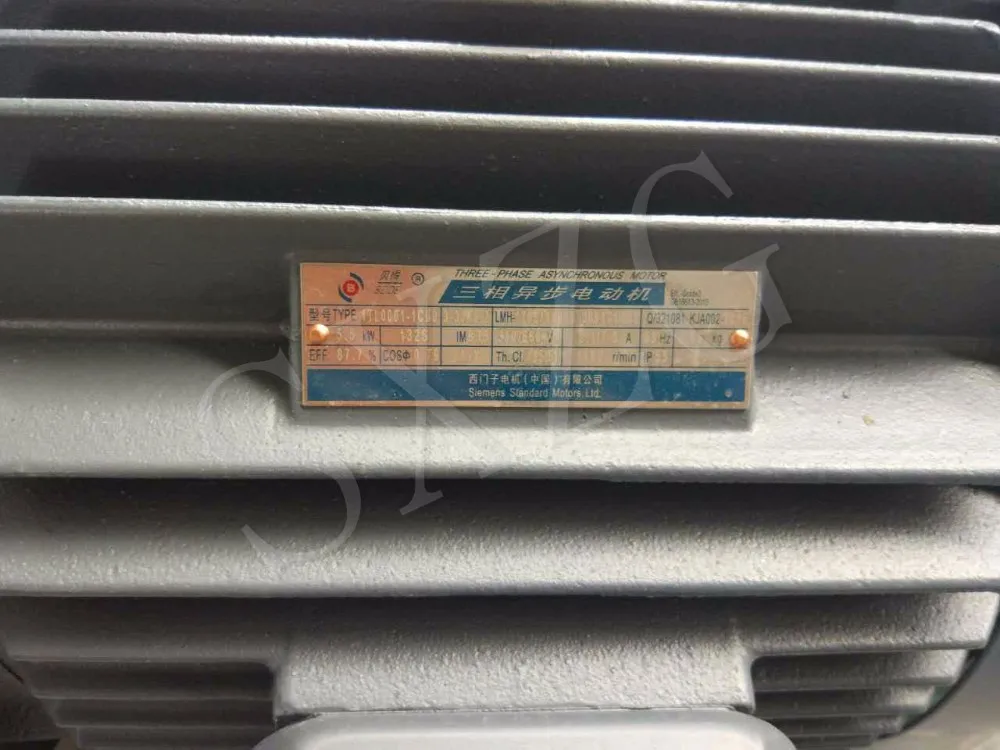

Name: HYDRAULIC MAIN MOTOR

Brand: Siemens

Original: Germany

Wordwide famous motor, with high quality, high stability.

Main Features

Name:SERVO MOTOR
Brand: MITSUBISHI
Original: JAPAN
Wordwide famous brand, with high quality, high stability.

Machine Parts

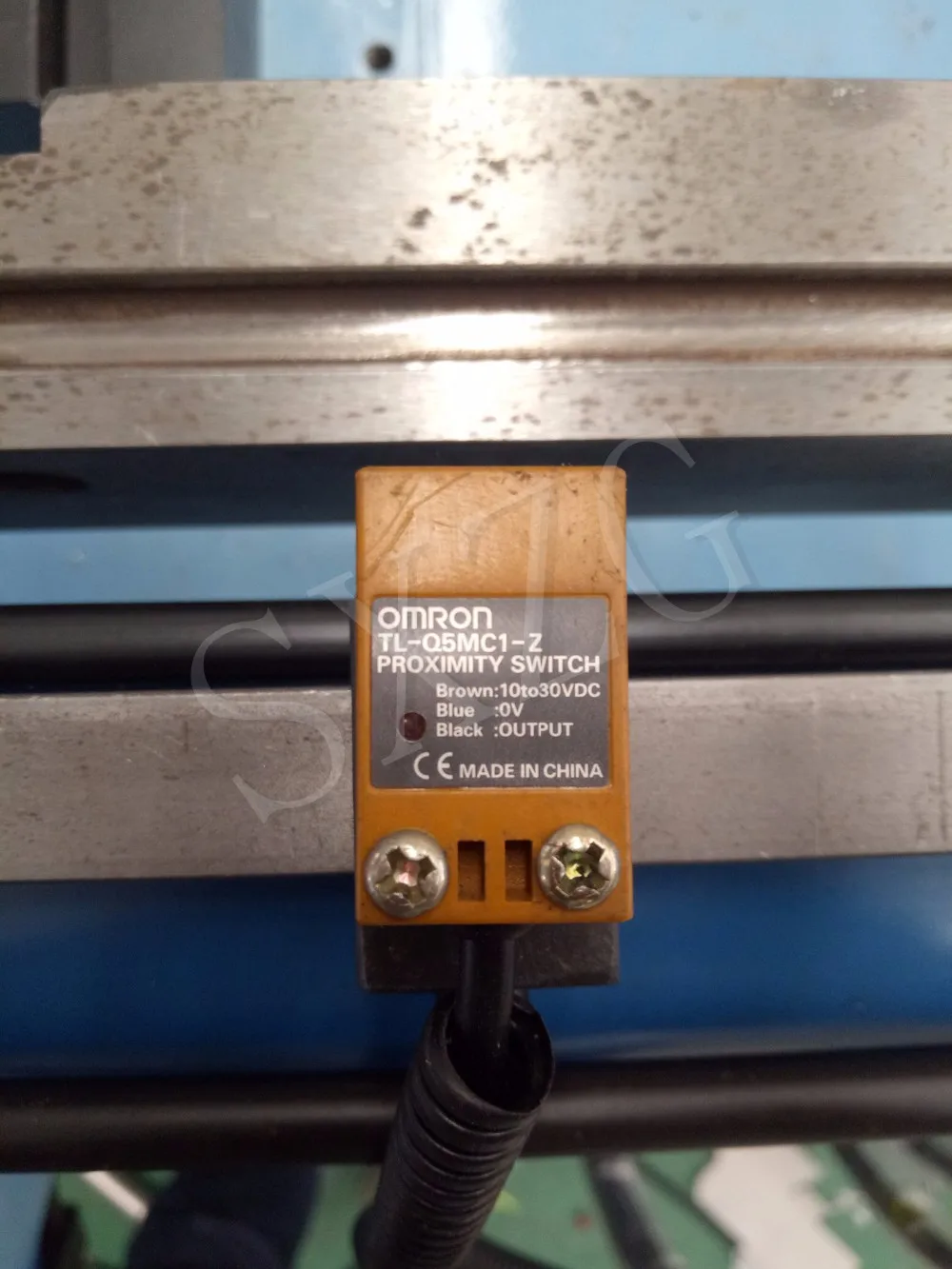

Name: SWITCH
Brand: OMRON
Original: JAPAN
Wordwide famous brand, with high quality, high stability.

Main Features

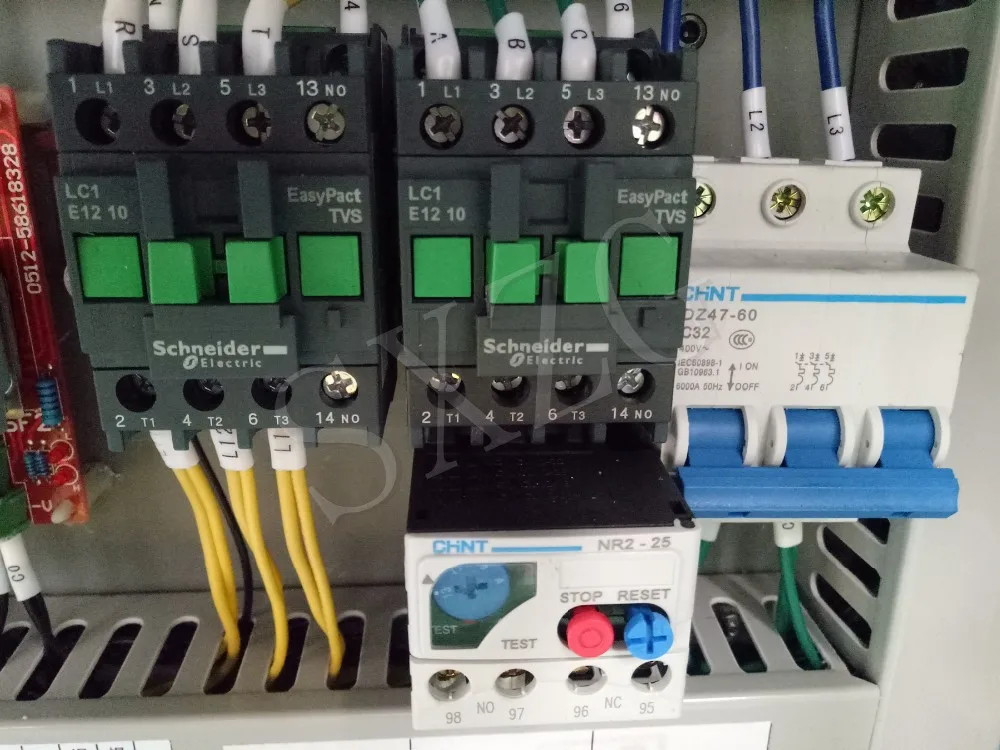

Name: ELECTRICS
BRAND: SCHNEIDER
Original: FRANCE
Wordwide famous brand, with high quality, high stability.

Customer Visit

Packing & Delivery

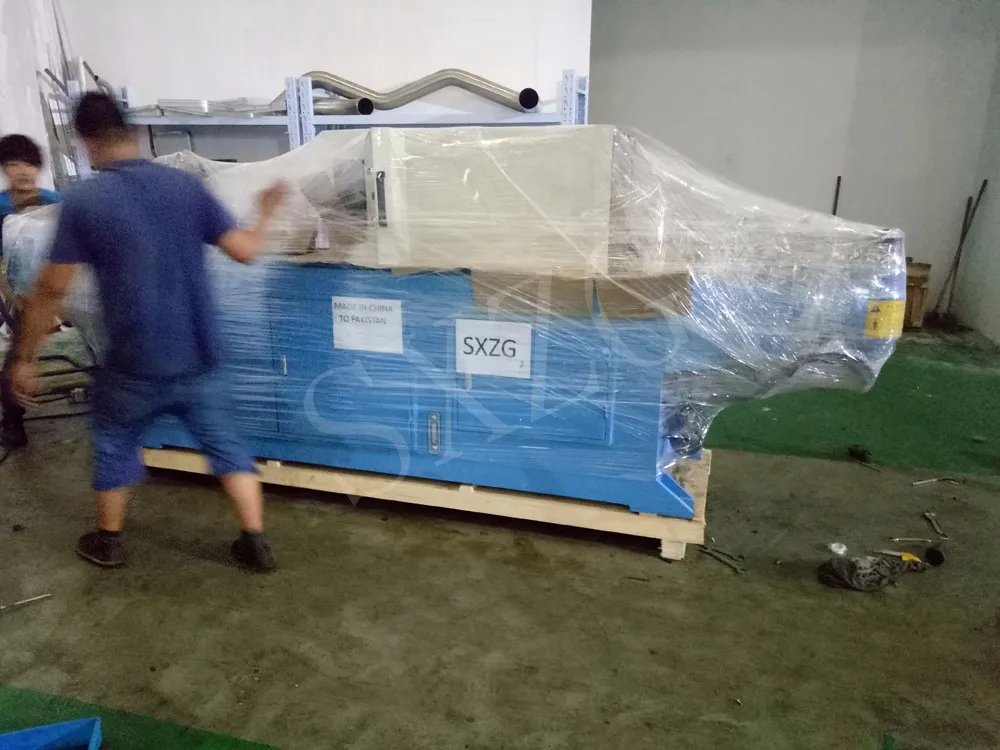

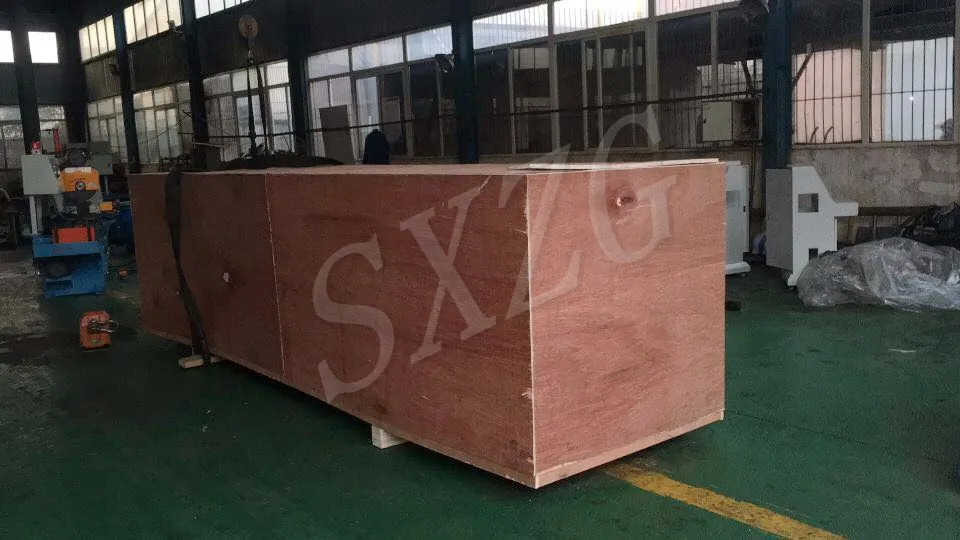

Packaging
Size	3500(L) * 750 (W) * 1100 (H)MM
Weight	1500KG
Packaging Details	The normal package is platic film. If customer require, we can make wooden box.
