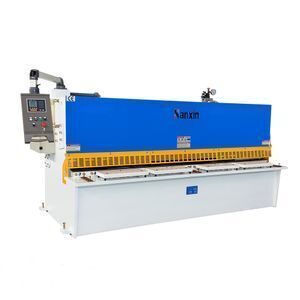

1mm ms 3000mm iron swing beam hydraulic shearing machines supplier

Supplier: Anhui Sanxin Heavy Industry Machinery Manufacturing Co., Ltd.
Region: Anhui, China
Contact: Ms Zoe Xu
Price: $3200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Backgauge Travel (mm):	20 - 600 mm;	Power (kW):	5.5 kW;
Machinery Test Report:	Provided;	Blade Length (mm):	3300;
Certification:	CE;	Weight (KG):	5000 KG;
Supply Ability:	99 Set/Sets per Month;	Local Service Location:	Viet Nam,Philippines,Brazil,Indonesia,India,Russia,Thailand,Malaysia,Australia,South Africa;
Application:	plate sheet processing;	Condition:	New;
Cutting length:	3200mm;	After Warranty Service:	Video technical support,Online support;
Automatic Level:	Fully Automatic;	Max. Cutting Width (mm):	3200 mm;
Showroom Location:	Viet Nam,Philippines,Brazil,Saudi Arabia,Indonesia,India,Russia,Thailand,South Africa,Malaysia,Australia;	Warranty:	12 Months,3 Years;
Control system:	ESTUN E21S;	Cutting thickness:	4mm;
Payment Terms:	L/C,T/T;	Port:	Shanghai;
Packaging Detail:	Metal Hydraulic Shearing Machine Price Usedwith steel rope fireed plastic film covered;	Max. Cutting Thickness (mm):	4;
Voltage:	220V/380V/400V,Customized;	Name:	shearing machine;
Color:	Customized;	Key Selling Points:	Competitive Price;
Brand Name:	SXZG;	Applicable Industries:	Manufacturing Plant,Construction works ,Energy & Mining;
Marketing Type:	Hot Product 2019;	Warranty of core components:	1 Year;
Core Components:	Motor,Pump,Pressure vessel,Engine;	Dimension(LWH):	390016001600;
Place of Origin:	Anhui China;	Material:	Mild Steel;
Year:	2020;	Shearing Angle:	1.5;
Video outgoing-inspection:	Provided;	Throat Depth (mm):	100;

1mm ms 3000mm iron swing beam hydraulic shearing machines supplier

Main Feature:

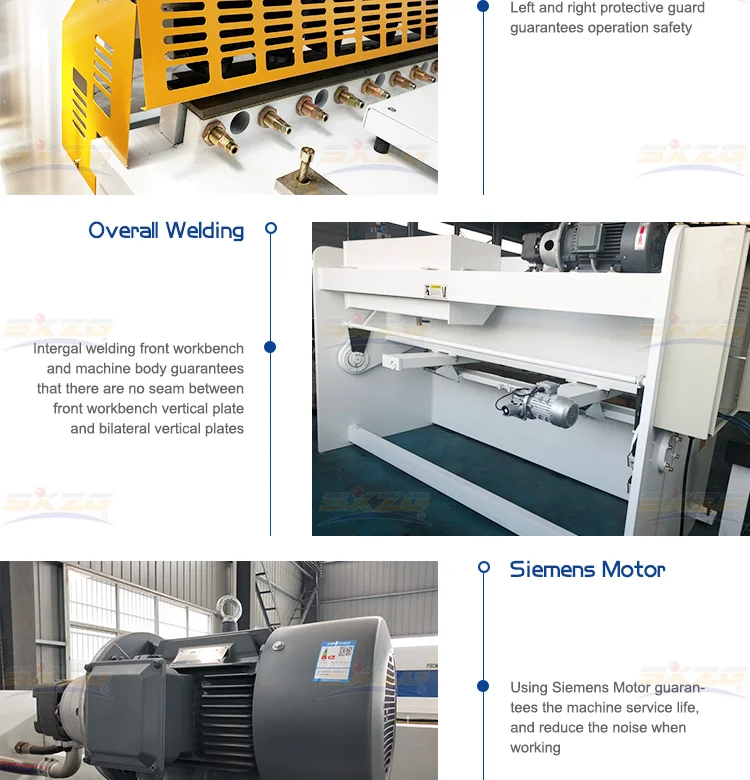

1.Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.

2.Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.

3.Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.

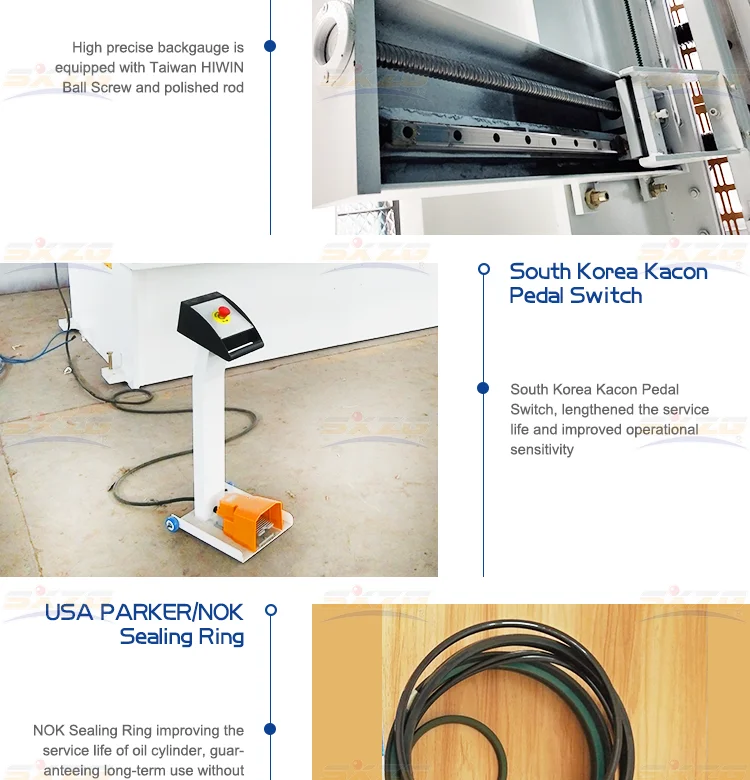

4.Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent positioning device horizontal swinging, significantly improving positioning accuracy.

5.Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.

6.Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.

7.Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.

8.The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty material can be cutter easily.

9.Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.

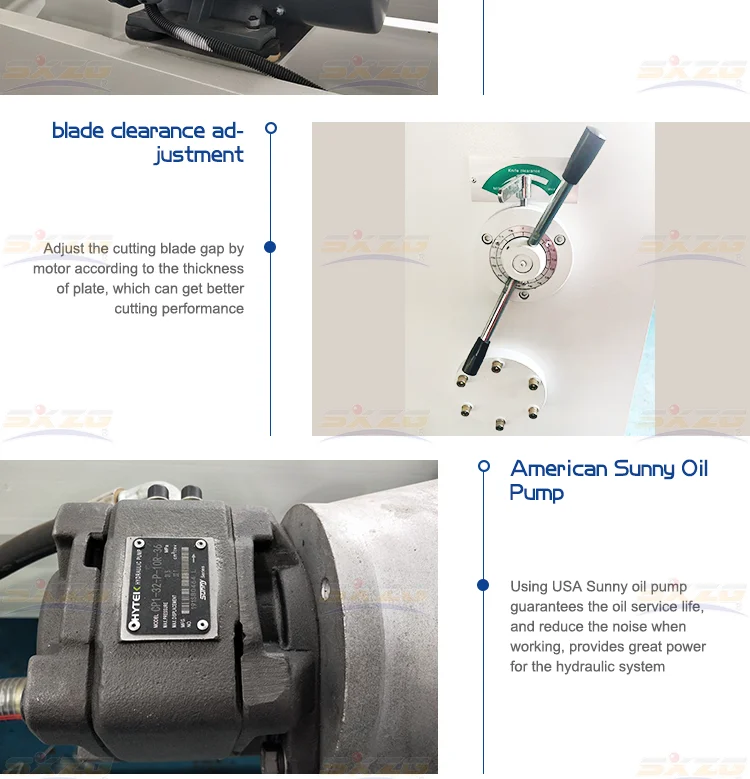

10.Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.

E21S controller features:

1. Back guage and block control

2.Intelligent positioning

3.Stock counter

4.Program memory up to 40 programs

5.Up to 25 steps per program

6.One side positioning Retract function

7.One key backup/ Restore of parameters

8.Chinese/ English MM/ Inch

FAQ:

1. Q: Are you a manufacturer or trading company?
A: We are professional manufacturer of press brake machine.

2. Q: How about your manufactory in China?
A: SXZG located in Ma'anShan City,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

3. Q: How to choose the model of the shearing machine?
A: Pls inform us following details:
- The thickness of your sheet?
- The width of your sheet?
- The material of your sheet?

4. Q: How about your machine quality?
A: SXZG is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 50 countries where there are metal plate industry. And where there are our machines, there are good reputation and terminal user satisfaction.

Our Service:

1.Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. However,don't worry,we have our company own Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5. products before they leave the factory ,To ensure that products are qualified.

6. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhereProfessional Staff will adjust the.
