Health status: | new | Showroom location: | Egypt, Italy, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia |
Dimensions (length*width*height): | size | Voltage: | 220V/380V |
brand: | Mechanical metal shearing | type: | Metal mechanical shearing |
Main selling points: | long lasting | maximum. Cutting thickness (mm): | 8mm |
Cutting thickness: | 0-10mm | application: | Industrial machinery metal shearing |
Applicable industries: | Hotels, clothing stores, building materials stores, machinery repair shops, manufacturing plants, food and beverage plants, farms, restaurants, home use, retail, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agencies | Throat depth (mm): | 200mm |
Core components: | Bearings, motors, pumps, gears, PLC, engines, gearboxes | usage: | Cut sheet metal |
Cutting speed: | 10-33 times | Warranty: | 2 years |
Core component warranty: | 4 years | Mechanical test report: | if |
Video outbound inspection: | if | product name: | Electric shearing machine |
color: | customizable | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, mechanical metal shearing machine |
Supply capacity: | 100 mechanical metal shears per month | Automatic level: | Semi-automatic |
Blade length (mm): | 3300mm | Weight (kg): | 2000kg |
Place of origin: | Anhui, China | port: | Mechanical metal shearing machine FOB Shanghai Port, China. Or mechanical metal shear CIF port in your country. |

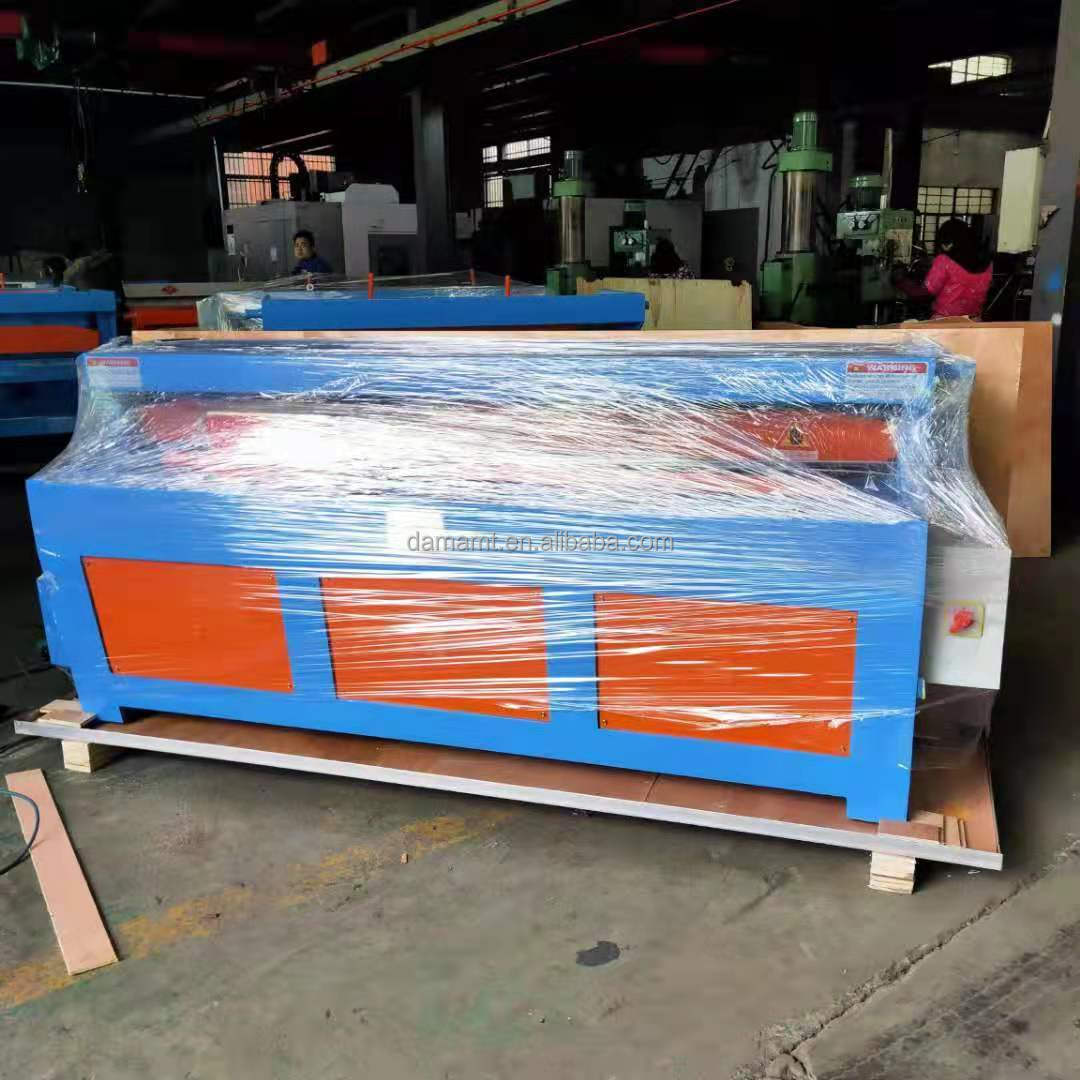

Power (kW): | 5.5kW | Packaging details: | Mechanical metal shearing machine, plastic film optional wooden box, or mechanical metal shearing machine packaging according to your requirements. |
Marketing type: | normal product | maximum. Cutting width (mm): | 3200 |
Cutting materials: | Metal stainless steel carbon steel aluminum |

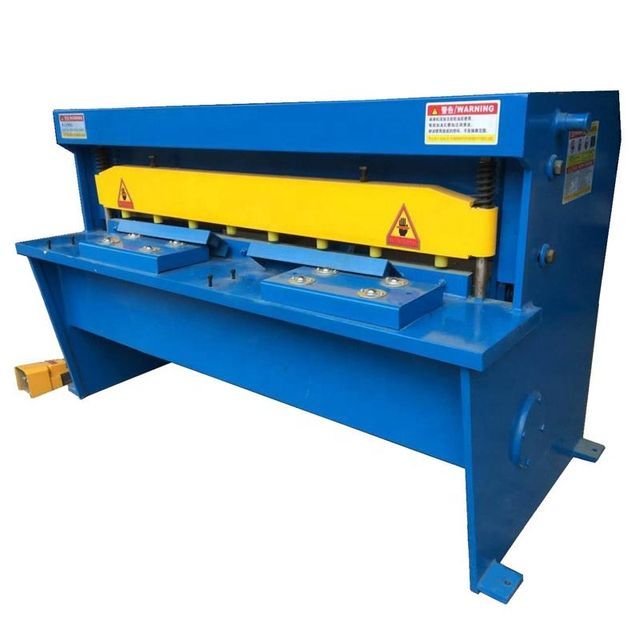

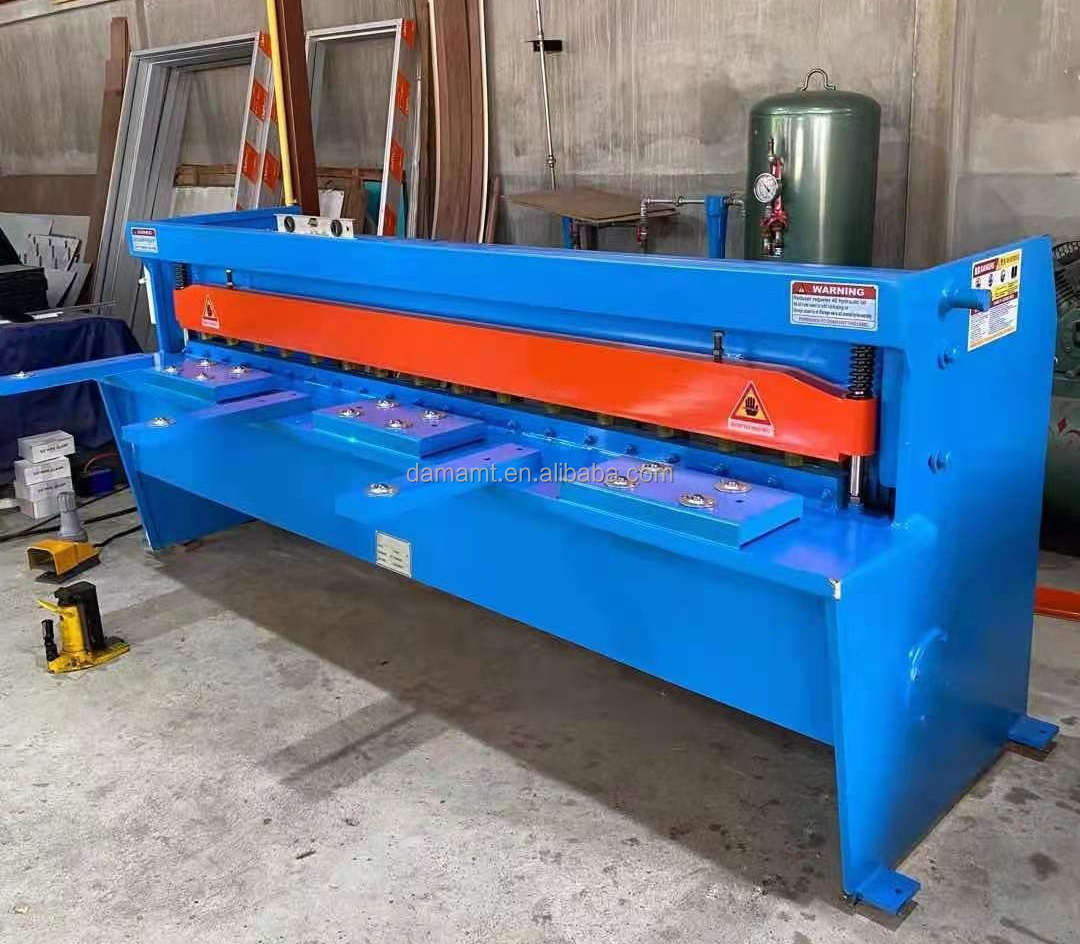

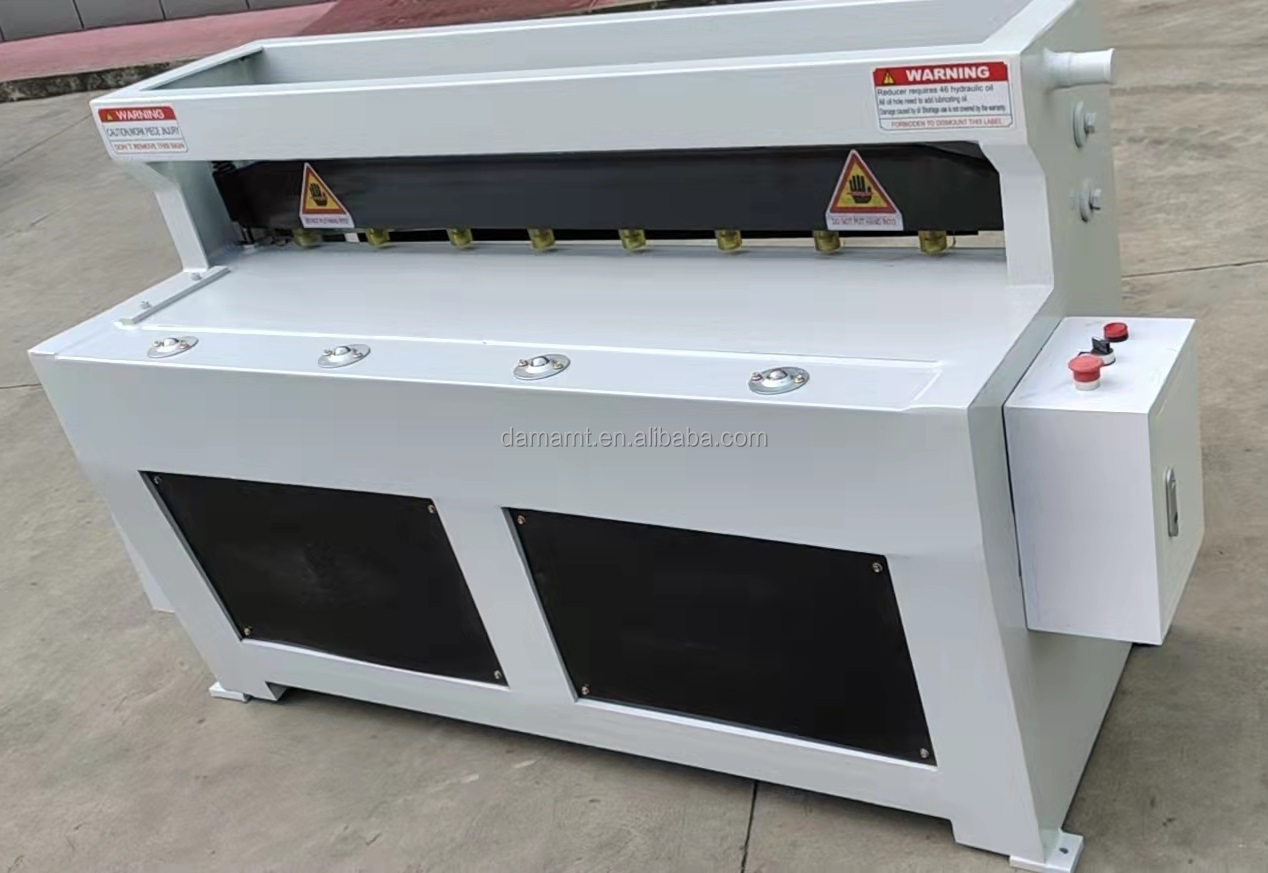

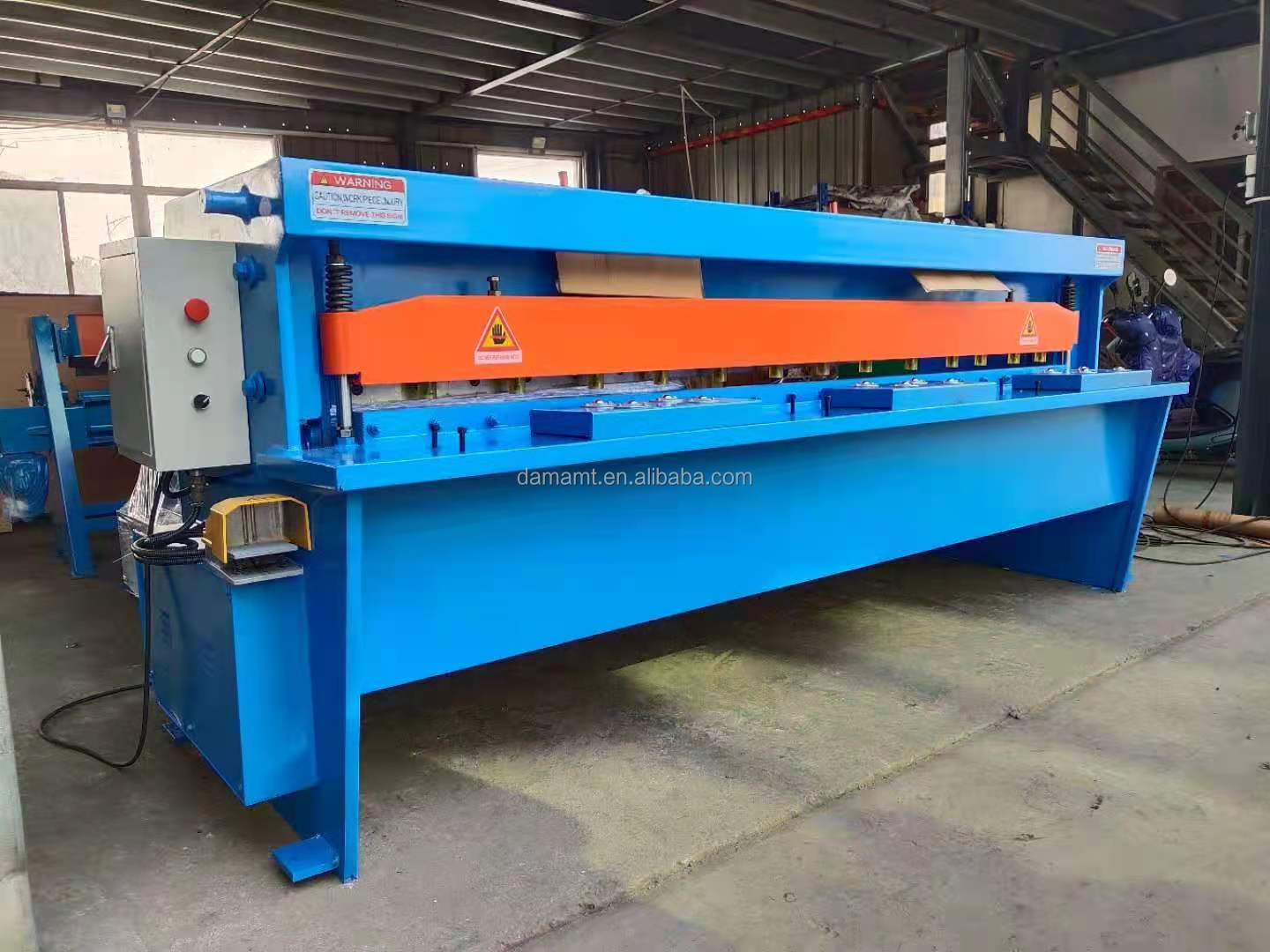

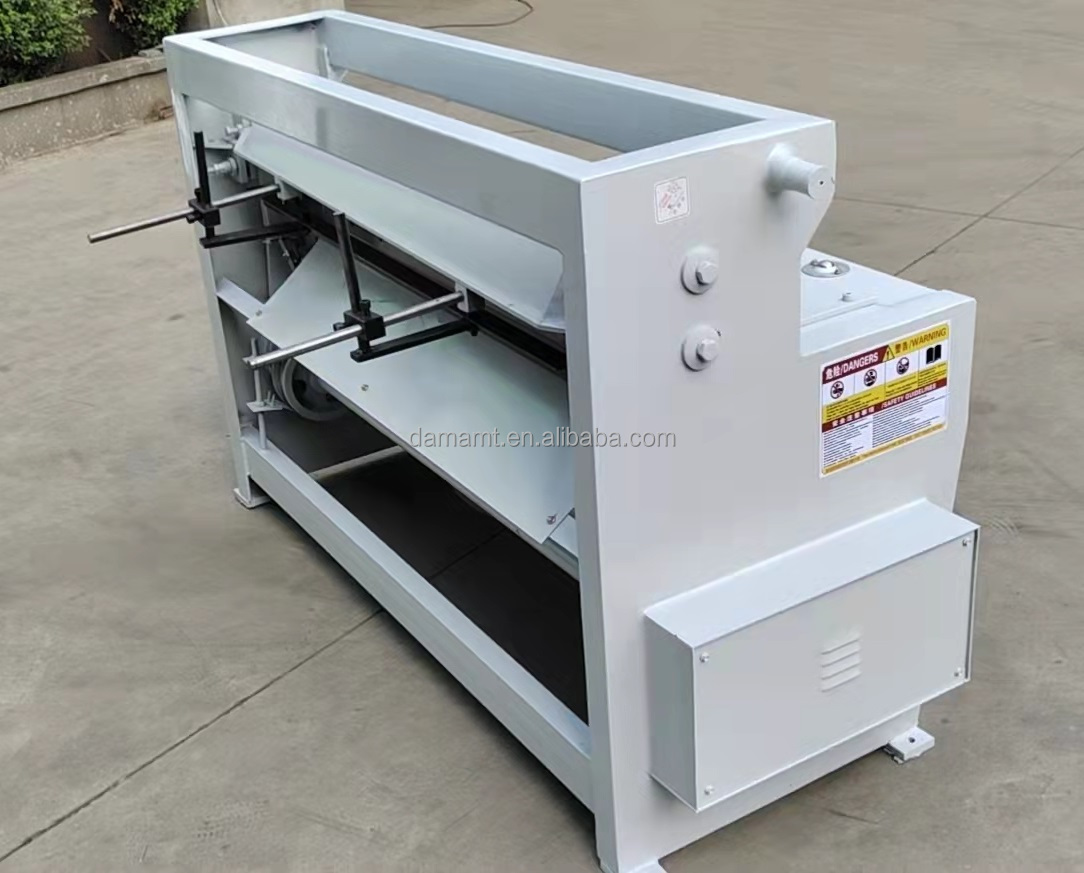

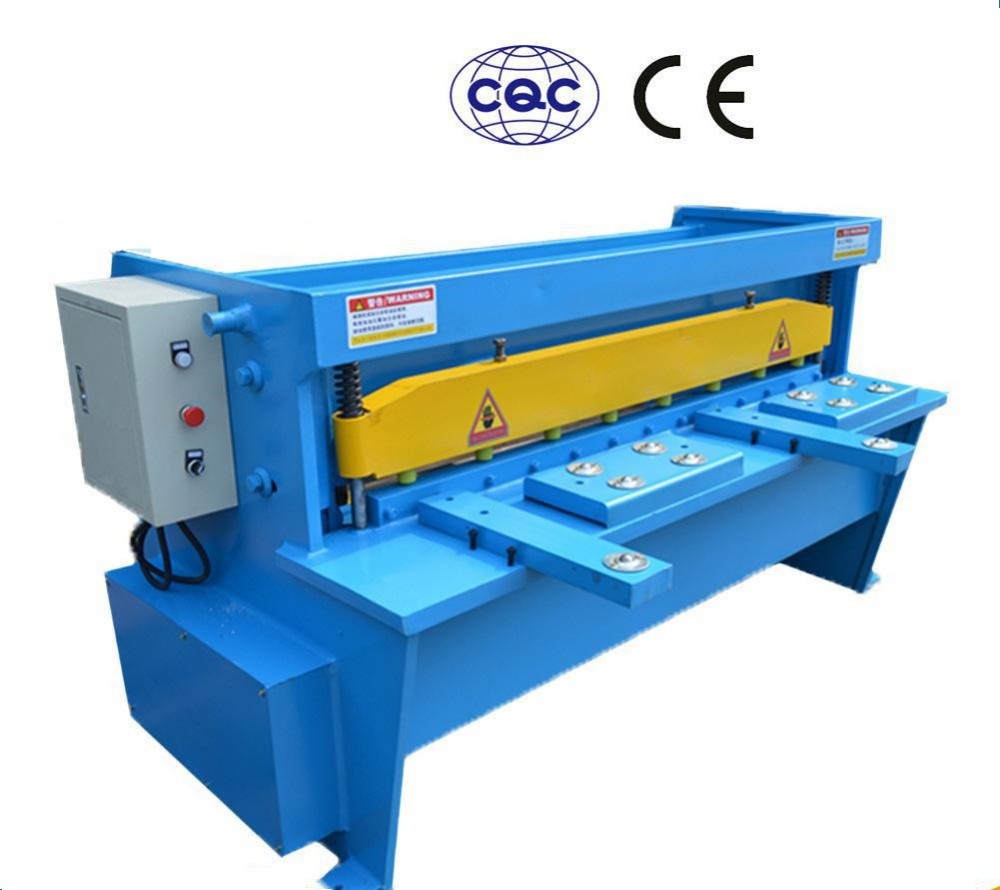

High work quality Q11 thin plate electric shearing machine, iron plate shearing machine, mechanical metal shearing machine
feature
1. Prefabricated steel structure, compact structure, light weight, good rigidity and stability
2. The backgauge adopts an intelligent digital display device, and the number of cuts is automatically counted. The distance between the backgauge can be set according to customer requirements.
3. The motion trajectory of the blade beam is inclined toward the support surface of the bottom blade, so a good shear surface can be obtained. Jacking screw on top blade provides fine adjustment to minimize "chips" or "burrs" on material shear edges
4. The pressing device adopts butterfly spring. There are anti-slip heel blocks on the pressure plate's holding device. The pressure is high but does not damage the sheet metal surface.
5. The machine is driven by an independent fully enclosed gearbox installed directly on the main shaft. It has compact structure, good gear lubrication, low noise and long service life.
6. This machine has no clutch or flywheel. It is directly driven by a magnetic brake motor to shear the plate. This reduces the motor's idle time and saves energy.
7. The front and rear gauges are equipped with dials showing scales. The backgauge can be easily adjusted simultaneously.
The main technical parameters
type | Cutting thickness(mm) | Cutting width (mm) | Travel time (times/minute) | Cutting angle(°) | Backgauge range (mm) | Power (kW) | Dimensions length*width*height (mm) |
3*1200 | 3 | 1200 | 20 | 2°25' | 350 | 3 | 2015*1500*1300 |
3*1300 | 3 | 1300 | 20 | 2°25' | 350 | 3 | 2115*1500*1300 |
3*1500 | 3 | 1500 | 20 | 2°25' | 350 | 3 | 2515*1500*1300 |
4*2000 | 4 | 2000 | 20 | 1°30' | 500 | 5.5 | 3200*1300*1610 |
4*2500 | 4 | 2500 | 20 | 1°30' | 500 | 5.5 | 3580*1300*1610 |
4*3200 | 4 | 3200 | 20 | 1°30' | 600 | 7.5 | 4380*1900*1600 |
6.3*2000 | 6.3 | 2000 | twenty four | 2° | 500 | 7.5 | 3180*1765*1500 |
8*2000 | 8 | 2000 | twenty four | 2° | 500 | 11 | 3180*1765*1500 |
6*2500 | 6 | 2500 | twenty four | 2° | 500 | 7.5 | 3680*2200*2020 |
6*3200 | 6 | 3200 | 20 | 1°45' | 650 | 7.5 | 4300*2250*2150 |
8*2500 | 8 | 2500 | 20 | 2°30' | 650 | 15 | 3680*2250*2450 |
13*2500 | 13 | 2500 | 30 | 3° | 700 | 11 | 3680*2330*2500 |
16*2500 | 16 | 2500 | 30 | 3° | 700 | twenty two | 3680*2800*2450 |
20*2500 | 20 | 2500 | 25 | 3° | 750 | twenty two | 3950*2800*2900 |
