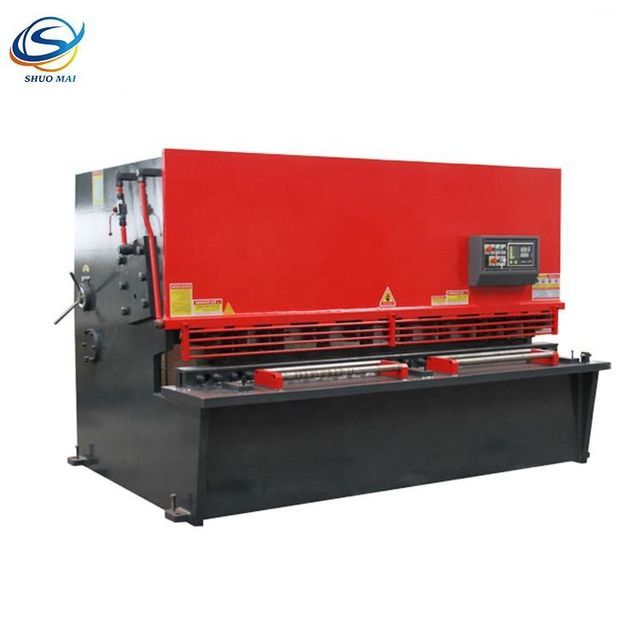

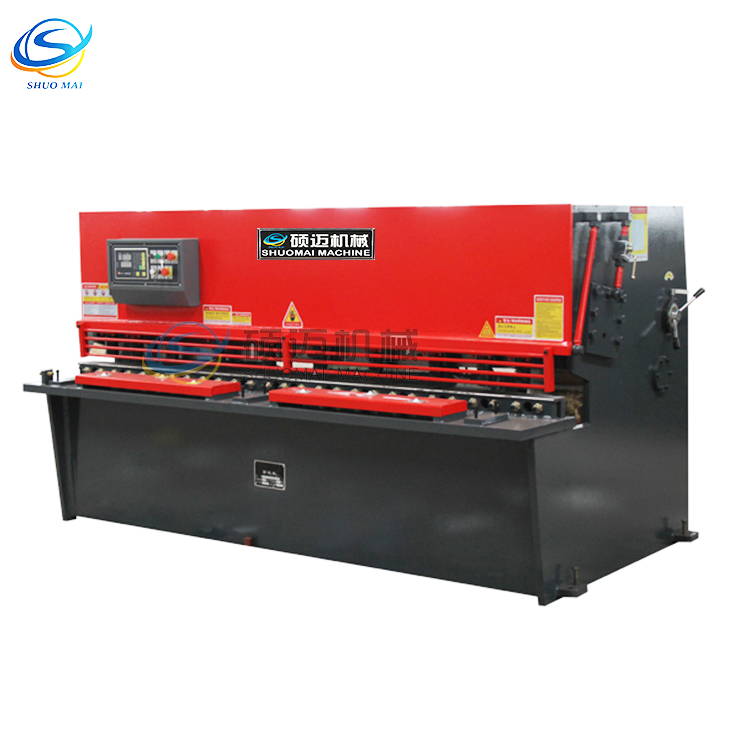

High quality hydraulic metal shearing machine factory price qc11y 16 3200

Supplier: Zaozhuang Shuomai Industrial And Commercial Co., Ltd.
Region: Shandong, China
Contact: Ms Annie Cui
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

Main specifications

QC11Y/K series gate shearing machine

thing	Cutting thickness (mm)	cutting width (mm)	Number of passenger trips (mm-1)	Rear gear stroke (mm)	shear angle (°)	Workbench height (mm)	Motor power (kilowatt)
6x2500	6	2500	14-30 days	20-600	0.5-2	800	7.5
6x3200	6	3200	12-28th	20-600	0.5-2	800	7.5
6x4000	5	4000	10-24 days	20-600	0.5-2	800	7.5
QC11Y-6×6000	6	6000	6-18	20-600	0.5-2	850	15
QC11Y-8×2500	8	2500	12-28th	20-600	0.5-2	800	7.5
QC11Y-8×3200	8	3200	10-24 days	20-600	0.5-2	800	11
QC11Y-8×4000	8	4000	8-20	20-600	0.5-2	800	11
QC11Y-8×6000	8	6000	6-16	20-600	0.5-2	850	15
QC11Y-10×2500	10	2500	12-28th	20-600	0.5-2	800	15
QC11Y-10×3200	10	3200	10-20 days	20-600	0.5-2	800	18.5
QC11Y-10×4000	10	4000	8-20	20-600	0.5-2	800	15
QC11Y-10×6000	10	6000	6-16	20-600	0.5-2	850	18.5
QC11Y-12×2500	12	2500	10-24 days	20-600	0.5-2.5	800	15
QC11Y-12×3200	12	3200	8-16	20-600	0.5-2.5	800	18.5
QC11Y-12×4000	12	4000	6-14	20-600	0.5-2.5	800	18.5
QC11Y-12×6000	12	6000	4-16	20-780	0.5-2.5	900	twenty two
QC11Y-16×2500	16	2500	8-14	20-600	0.5-2.5	800	18.5
OC11Y-16×3200	16	3200	6-10	20-780	0.5-2.5	800	twenty two
QC11Y-16×4000	16	4000	5-10	20-780	0.5-2.5	850	30
QC11Y-16×600	16	6000	4-16	20-780	0.5-2.5	1000	37
QC11Y-20×2500	20	2500	5-18	20-780	0.5-2.5	850	twenty two
QC11Y-20×3200	20	3200	5-16	20-780	0.5-2.5	900	30
QC11Y-20×4000	20	4000	4-16	20-780	0.5-2.5	900	37
QC11Y-20×6000	20	6000	4-14	20-780	0.5-2.5	1000	45
C11Y-25×2500	25	2500	5-16	20-780	0.5-3	900	30
OC11Y-25×3200	25	3200	4-16	20-780	0.5-3	900	37
QC11Y-25×400	25	4000	4-16	20-780	0.5-3	1000	45
QC11Y-25×6000	25	6000	4-14	20-780	0.5-3	1100	55
C11Y-30×2500	30	2500	5-16	20-780	0.5-3.5	1000	45
QC11Y-30×3200	30	3200	5-10	20-780	0.5-3.5	1100	55
QC11Y-30×4000	30	4000	4-10	20-780	0.5-3.5	1200	55
QC11Y-40×2500	40	2500	3-8	20-780	0.5-4	1200	55
QC11Y-40×3200	40	3200	3-8	20-780	0.5-4	1200	55
