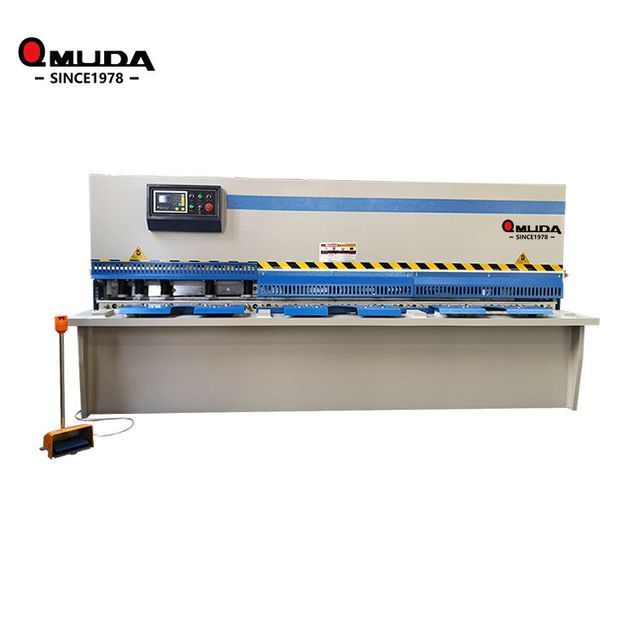

AMUDA 10X2500 Pendulum Shearing Machine with MD11 Control System

Supplier: Ningbo Amuda Automation Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sophia Xu
Price: $4700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Household, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Advertising Agencies	Table height:	900mm
Name:	Hydraulic Pendulum Shearing Machine	Shear angle:	1.5°
Marketing Type:	New Products for 2022	Mechanical test report:	if
strokes:	12 N/min	Throat Depth (mm):	100 mm
Core component warranty:	2 years	Power (kW):	7.5 kW
Control System:	MD11 control system	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
maximum. Cutting width (mm):	2500	Weight (kg):	7300 kg
Packaging Details:	Waterproof membrane/wooden box	Supply capacity:	80 sets per month
Year:	2022	Cutting material:	Metal. Alloy metal aluminum
Back gauge travel (mm):	20 - 600 mm	Distance between columns:	2860mm
brand:	Amda	Health status:	new
Blade length (mm):	2600 mm	Main selling points:	competitive price
color:	custom made	Core components:	Motors, Pumps, Engines
Origin:	Anhui, China	application:	Industrial Metal Cutting
Warranty:	2 years	Showroom location:	not any
Automatic level:	fully automatic	Dimensions (LWH):	3040x1700x1700 mm
Oil quantity:	220 liters	Voltage:	220V/380V/customized, 220V/380V
Video outbound inspection:	if	maximum. Cutting thickness (mm):	10mm

Product Description

main feature:Special numerical control system for shearing machine. Hold position after live display. Multi-step programming function, automatic operation, continuous positioning, and position maintenance after automatic adjustment. Cutting counting function, real-time display counting, power-off memory function: keep position, program and parameters after power failure. Ball screw linear guides ensure machining accuracy.

machine display

The machine works continuously under the rated load, without leakage and with high precision. The hydraulic system is composed of motor, oil pump, valve block, linear, pressure display and so on.

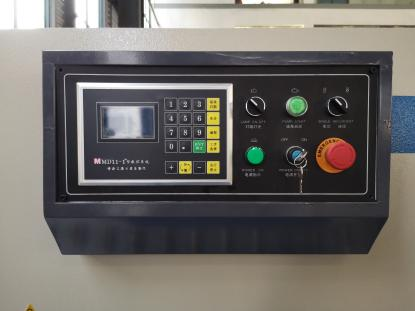

Ternary MD11:

The LCD interactive interface display is more user-friendly. • Free debugging function, only need to count twice. •Frequency conversion positioning, PID algorithm, one step. • 9 products can be programmed, and each product can enter 9 work steps. • One-key restore to factory settings, no longer afraid of novices to adjust parameters. • Sequential counting effect, counting is more humane.

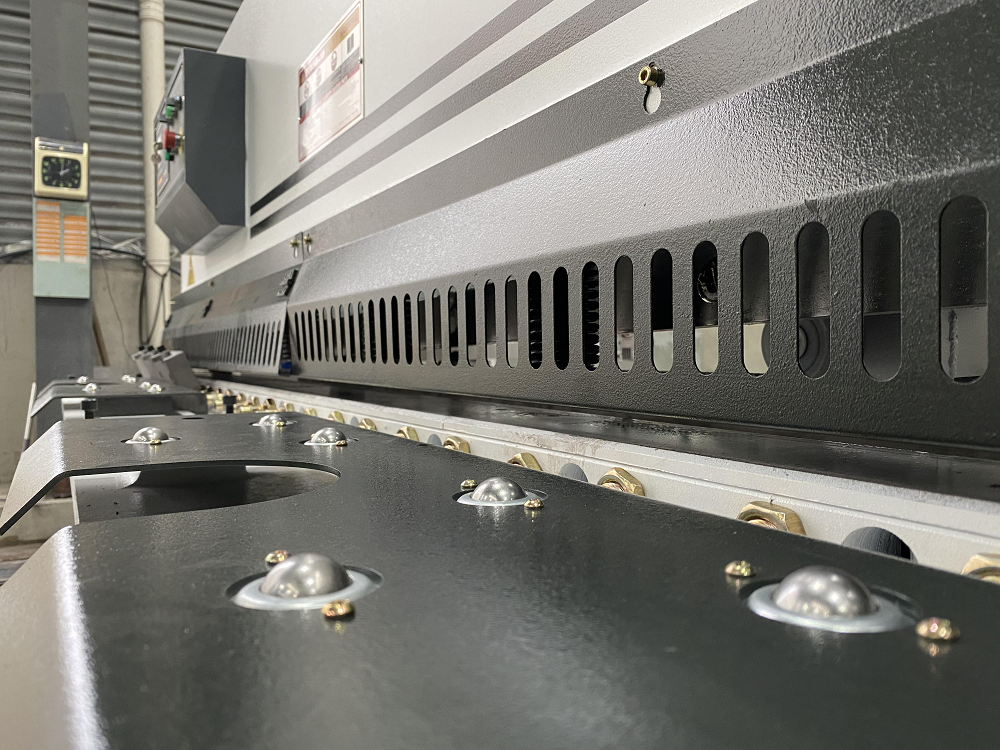

1,support platform(ball type) reduces friction

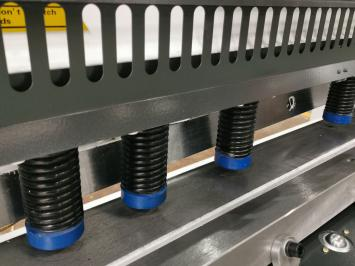

2. Pressure cylinder, small

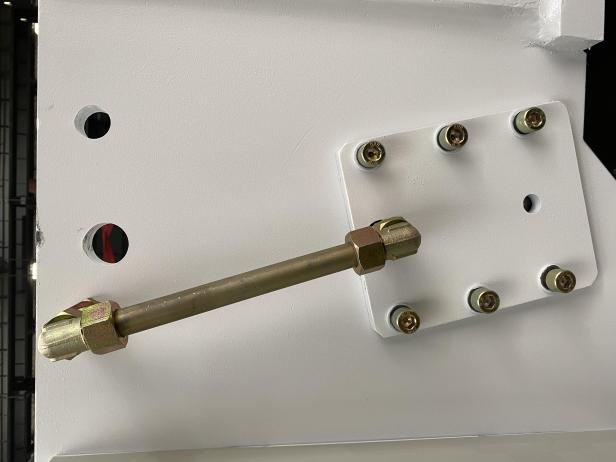

3.Fitting

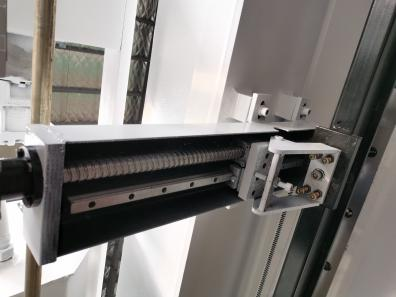

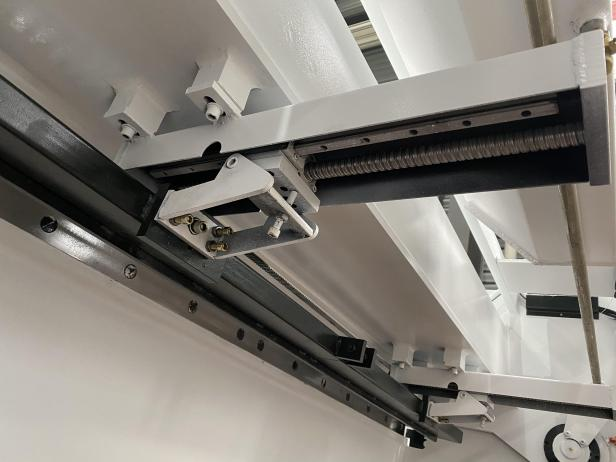

4.Ball screw linear guide

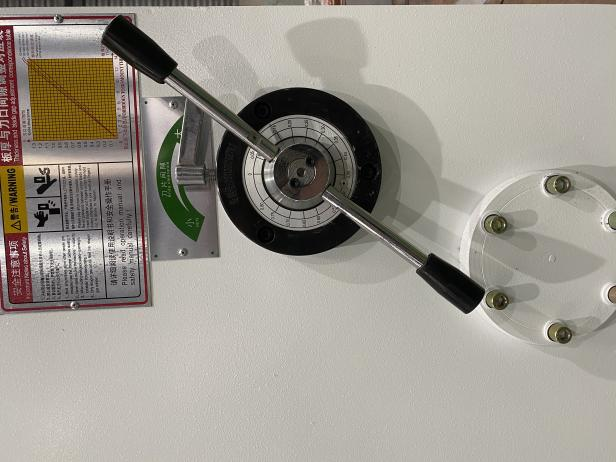

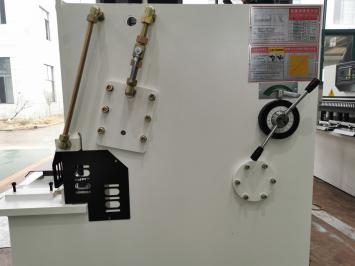

5.Blade clearance adjustment

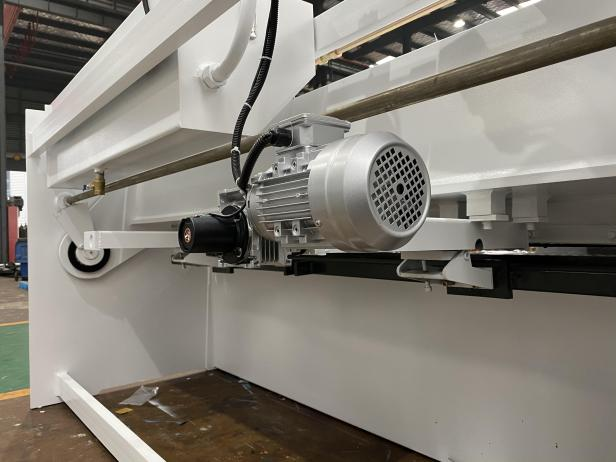

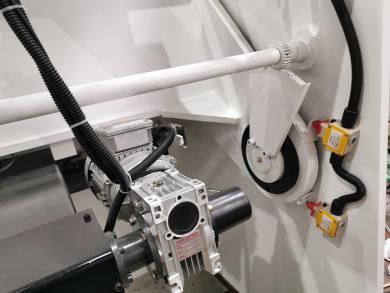

6.Back gauge motor

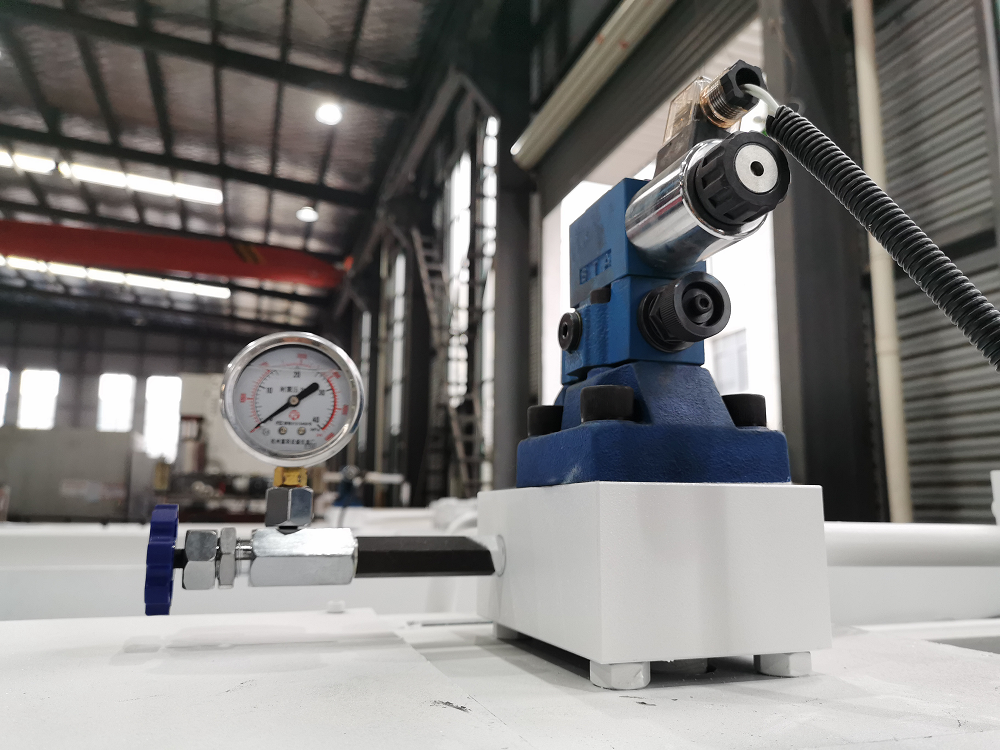

7.Hydraulic valve block with pressure display

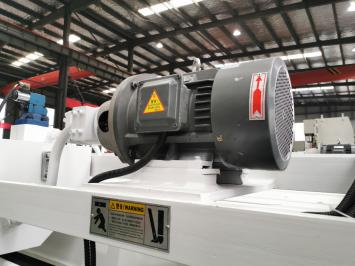

8, the main motor,Fully enclosed, self-fan cooling, asynchronous motor.

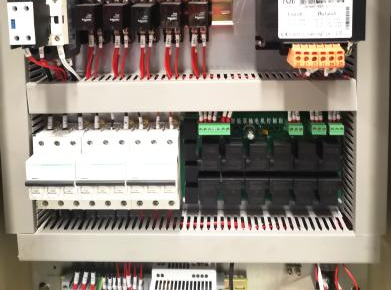

9,Electrical components

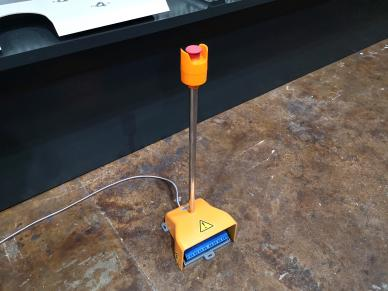

10.foot switch

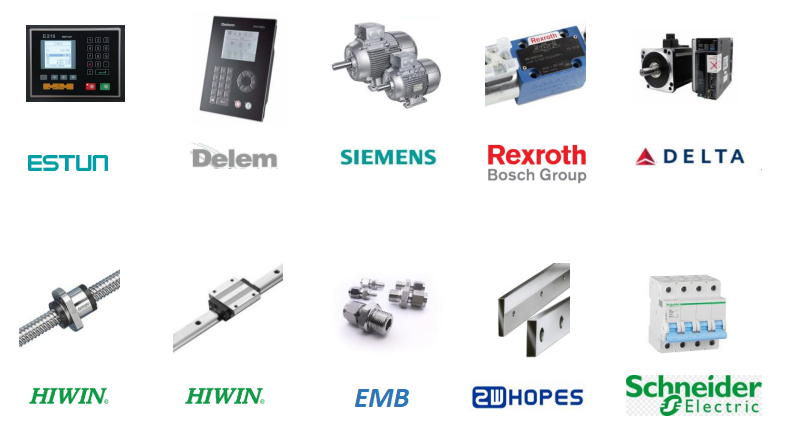

International brand endorsement

Main configuration

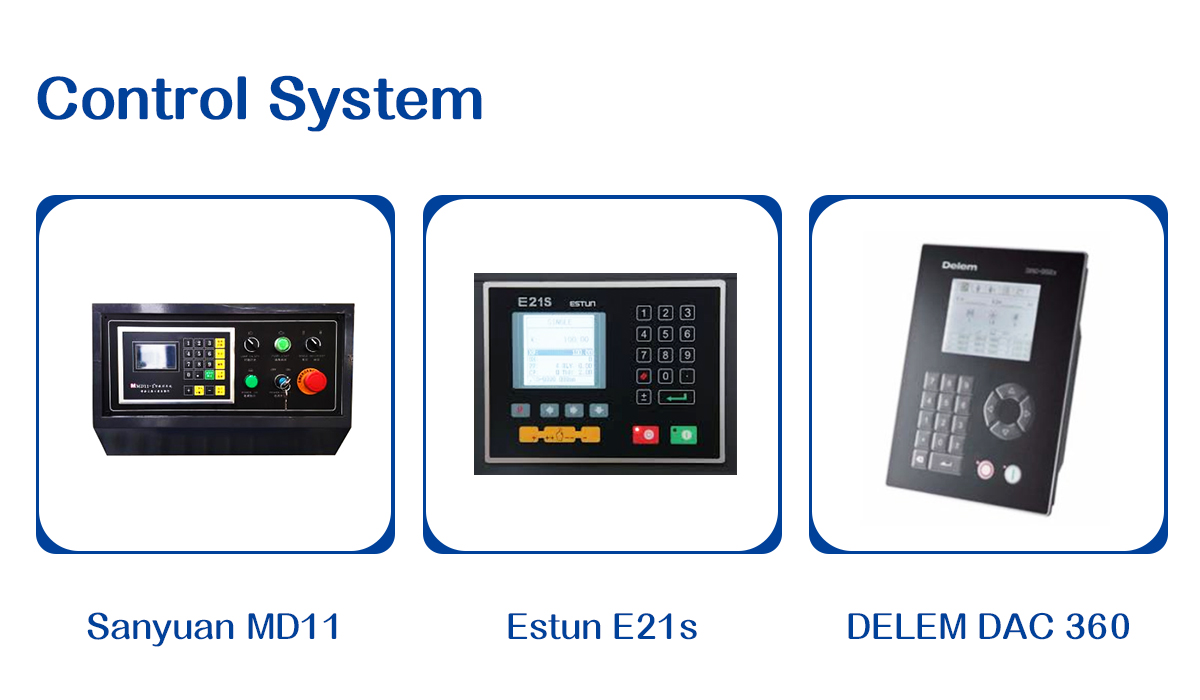

CNC system	Eston E21s/DELEM DAC360/MD11
main electrical components	French Schneider Electric
main motor	German Siemens brand
memory drive	Taiwan Delta energy-saving servo driver
Hydraulic system	Bosch Rexroth
sealing element	Anti-corrosion
Hose connector	German EMB
Ball screw/polished rod	Shangyin from Taiwan
Foot switch electrical components	French Schneider Electric
security lights must	(optional)

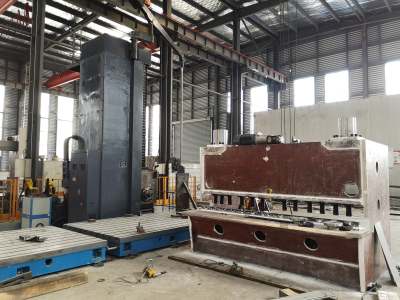

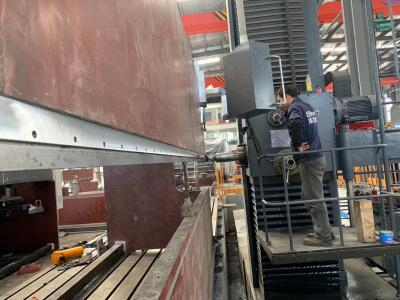

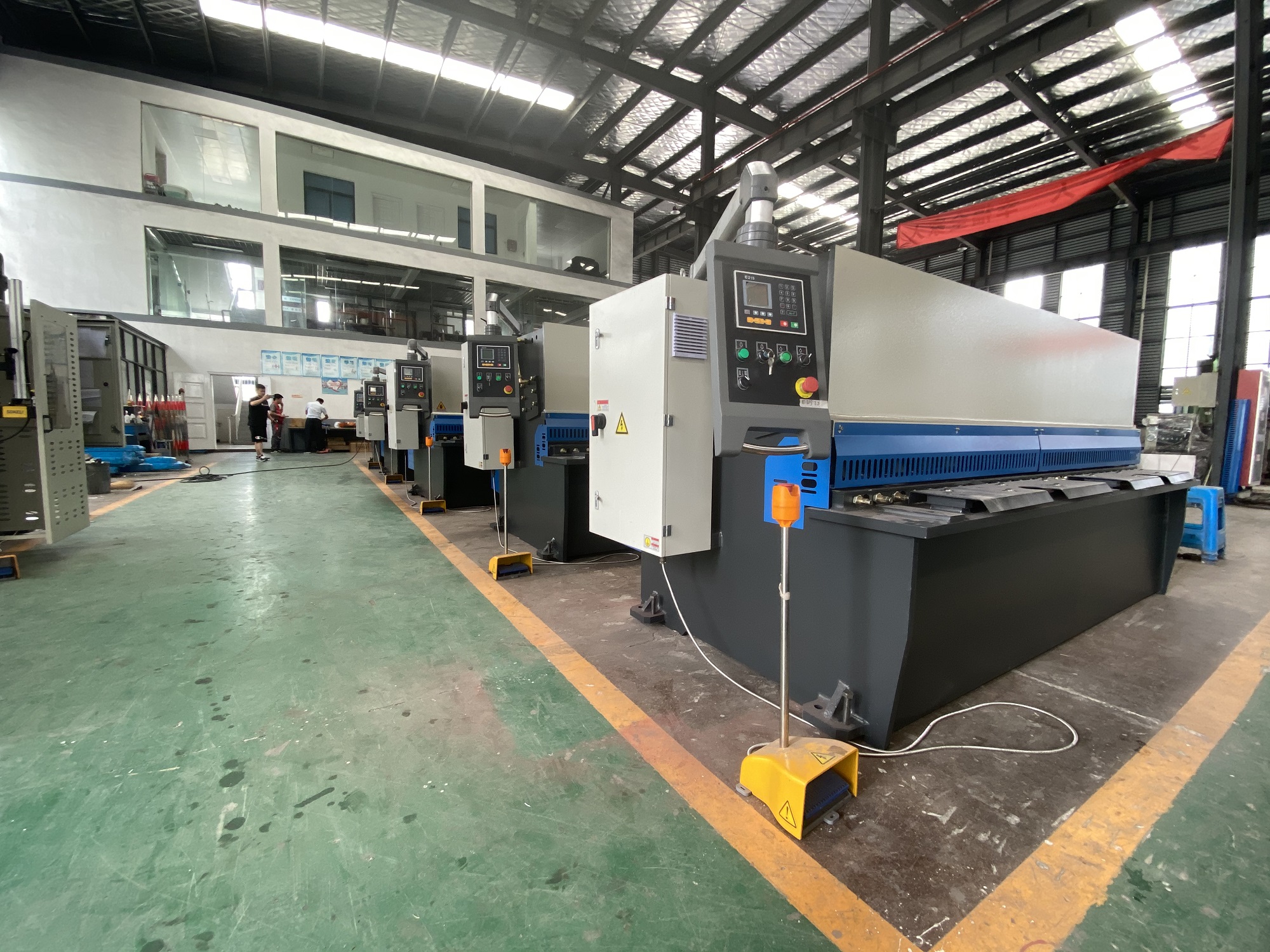

our studio

Safe and reliable

All components are certified according to European standards and mainly sourced from Germany, the United States, the Netherlands, Italy and Switzerland. All structural parts are calculated by finite element method, and only high-quality steel materials S275 and S355 JR or J2 (+N) are used.

workbench protection
Laser protection: The blade stops when the laser detects an obstacle.

mechanical back
Light curtain guards or point guards or safety fences to warn people of dangerous work areas.

Both sides of the workbench
A security fence prevents people from accidentally entering.
