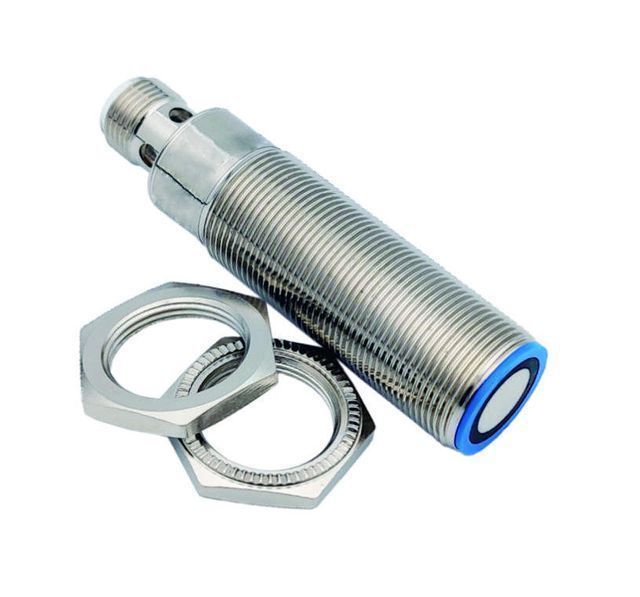

Ultrasonic Sensor Waterproof High Quality Ultrasonic Sensor Adjustable Sensing Distance NPN PNP

Supplier: Ningbo Yingke Industrial Automation Co., Ltd.
Region: Zhejiang, China
Contact: Ms Melody Wang
Price: $155.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Repeatability:	0.15% of full scale value	Packaging Details:	Carton and nylon bag standard packing
theory:	distance sensor	Response time:	22 milliseconds
output:	plug and play	payment terms:	L/C, Western Union, T/T, Paypal
brand:	Yingke	power supply:	10-30vdc
Measuring range:	300-6000mm	model:	UBD-050M18NO-B5
port:	Ningbo	Supply capacity:	20000 pieces per month
brand:	Chinese	usage:	ultrasonic sensor
place of origin; place of origin:	Zhejiang, China	Types of:	ultrasonic sensor
application:	A wide range of	describe:	ultrasonic sensor
product name:	Ultraconis sensor

Product Description

Ultrasonic sensors can be used to solve complex tasks involving object detection or liquid level measurement with high precision, because its measuring method works reliably under almost all conditions. Suitable for a variety of applications, not affected by the color, transparency and material of the inspected object, such as liquid, paper, plastic sheet, transparent material, gold/silver/aluminum foil, etc. For more details, please contact us, thank you.

Specification

Use in harsh environments
Available in M12, M18 and M30
Sensing distance: 20mm -150mm and above different sensing distances
Blind zone: 0-20mm
Multiple output types: 1 switch output ro 2 switch outputs NPN, PNP, analog, voltage, analog current and push-pull available

Resolution: 0.17mm
Repeatability: + or - 0.15% of full scale value
Temperature effect: + or - 1% of full scale value
Response time: 22ms
Switching frequency: 31Hz
Boot delay: <500ms
Operating Voltage: 10-30VDC Reverse Polarity, Polarity and Surge Protection
Red leg light: on: no target
Green LED light: On: Target detected
No-load current: <30mA
Input type: with synchronization function, learning function
Material: Nickel-plated brass, epoxy resin, PBT
Protection class: IP67
Connection type: M12 connector 5-pin
Ambient temperature: -25℃…70℃
