ZHONGLING cut off solenoid valve 12v diesel generator parts power off valve fuel shut off pull push solenoid valve engine parts XHQ-PT

Supplier: Fu 'an Zhongling Electronics Co., Ltd.
Region: Fujian, China
Contact: Mr YOU lixiong
Price: $10.00 / 1 - 99 pieces
$8.50 / 100 - 499 pieces
$7.00 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	5000 pieces per month	usage:	Generator Set Engine Shutdown
weight:	0.6 kg	brand:	Zhong Ling
Packaging Details:	standard carton	current:	16
Types of:	Solenoid valve 12V	Certification:	ISO9001
payment terms:	Western Union, T/T, MoneyGram, Cash	Voltage:	DC 12V/24V
model:	XHQ-PY-12V	Warranty:	1 year 3 months - 1 year
product name:	solenoid	place of origin; place of origin:	Fujian China
color:	Black	pack:	carton
port:	Fuzhou

Product Description

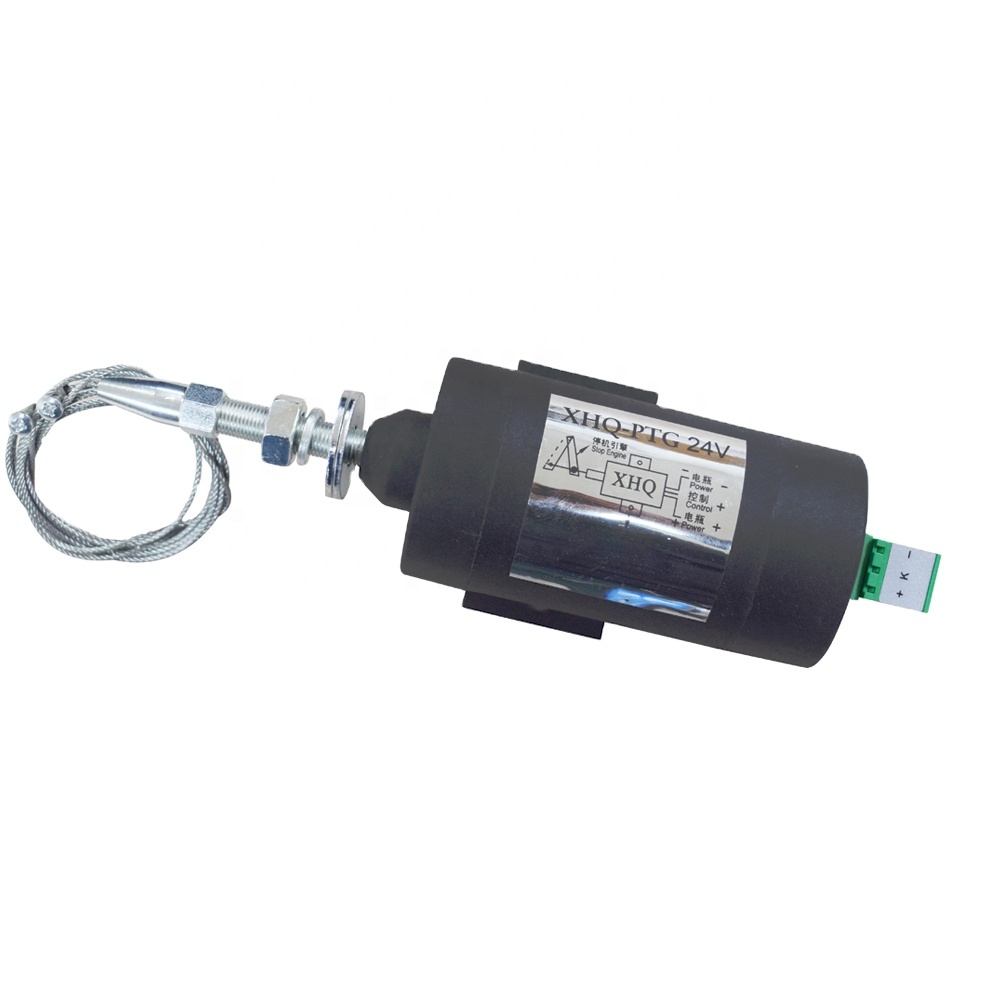

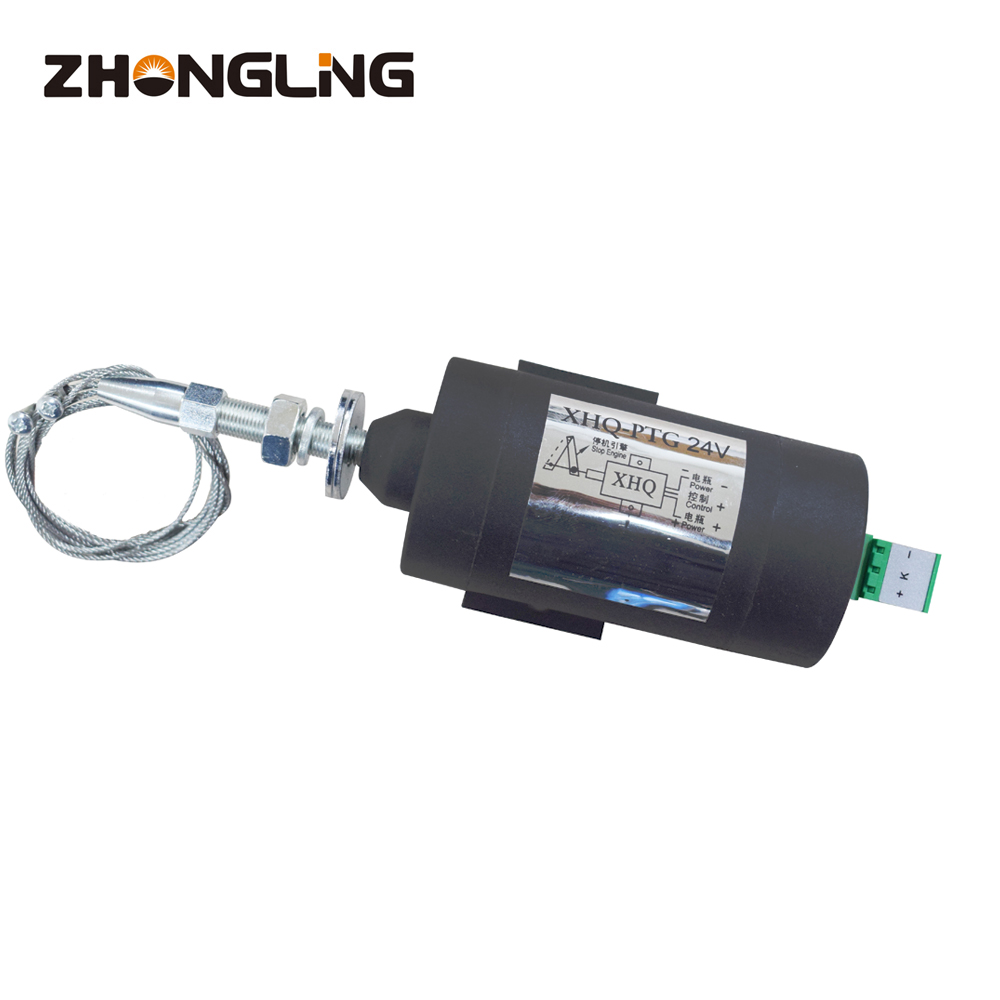

Generator Set Engine Stop Solenoid Close Solenoid Valve

XHQ-PTG

Electromagnet XHQ-PTG is used for diesel engine shutdown control, and can be applied to different types of diesel engines. pass
The wire rope exerts force on the throttle lever of the diesel engine to stop the engine and return it automatically
Location. It has the advantages of small working current, no heat generation, stable work and long service life.

12V 24V Diesel engine oil cut-off solenoid valve XHQ-PTG oil cut-off solenoid valve
Operating Voltage	12V(9-15V DC) 24V(18-30V DC)
full load current	12V-2.0A 24V-1.0A (automatically turn off the power after completion, working current <15mA)
Control line working current	<15mA
Operating stroke	53±1mm
Maximum tension	90N
ambient temperature	-30℃～60℃
Reaction time:	²≤2 seconds
