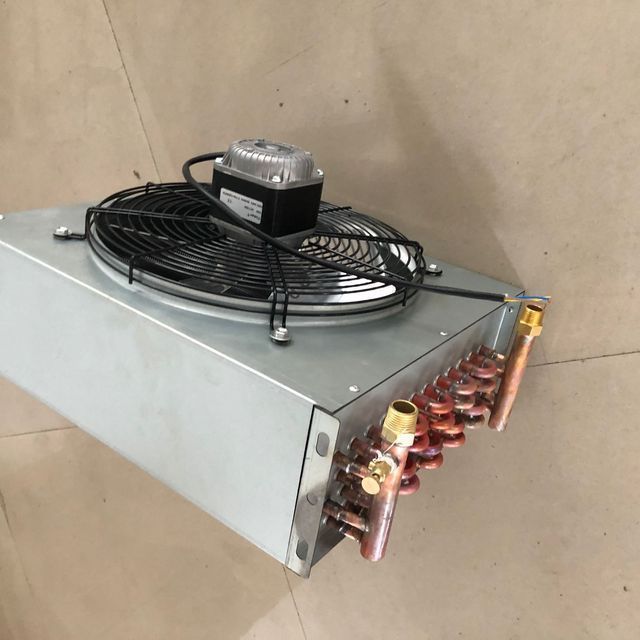

Copper tube aluminum fin condenser with fan

Air-cooled copper tube condenser coil heat exchanger is usually called copper air heat exchanger, copper alloy for heat exchanger, copper brazed heat exchanger, copper fin heat exchanger, copper shell and tube heat exchanger, copper water air Heat exchangers, duct coils or furnace radiators, for installation into forced air furnaces to provide heat from hot water. They are usually installed on the cold air side of the furnace. They work in much the same way as central air conditioning units. These air-cooled copper tube condenser coil heat exchangers can also be used as a stand-alone heat source by simply attaching a fan or squirrel cage to one side of the unit. Air-cooled copper tube condenser coil heat exchangers can be installed on the side in the hot air or in the return flow of cold air from the furnace. Note that if installing in a cold air return, you will need to install a 3-way zone valve for the fan to operate properly.

Air Cooled Copper Tube Condenser Coil Heat Exchanger Compact Units are designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with high density aluminum fins. These fins are spaced such that the fins Density is 12 fins per inch. This design achieves a heat load of 50,000-60,000 Btu per square foot (see performance chart). Despite this high fin density, there is minimal pressure drop across these coils. This This air cooled copper tube condenser coil heat exchanger is made of stainless steel. Because the water flows through this heat exchanger at such a high velocity, it cleans itself. The type of heat exchanger you need depends on what you need it to handle Water volume. Applications thaools, hot tubs and waste water. This particular water to air copper heat exchanger has a capacity of 60,000 BTU/H. Air cooled copper tube condenser coil heat exchangers such as this one can be used including oil coolers, Transmission and engine coolers, b oiler sample coolers

Air Cooled Copper Tube Condenser Coil Heat Exchanger Specifications

Water-air copper heat exchanger packaging details: Standard export packaging, such as cartons, wooden boxes, plywood boxes, wooden pallets, etc.

Production details of water-air copper heat exchanger: We are a manufacturer of copper heat exchangers, and we can produce different types of products according to customers' drawings!
