Main selling points: | Sustainable | Warranty: | 1 year |
Heat exchanger type: | Tube Heat Exchanger | Marketing Type: | New Products 2020 |
Showroom location: | not any | usage: | industrial refrigeration |
feature: | high heat transfer | describe: | Coaxial Tube Heat Exchanger |
After warranty service: | Video technical support | Core component warranty: | 1 year |
Health status: | new | Packaging Details: | wooden case, pallet, custom design |
After-sales service provided: | online support | Package preview: | |
Mechanical test report: | if | Voltage: | 220/380V |
Liquid flow rate: | 2.5m/s | Core components: | Pump |
Origin: | Jiangsu, China | structure: | Tube Heat Exchanger |
Video shipment inspection: | if | Maximum working pressure: | 3.5MPa |
Applicable industries: | Machinery Repair Shop, Food and Beverage Factory, Food and Beverage Store | payment terms: | L/C, T/T |
weight: | 7 kg | brand: | OEM production |
Dimensions (L*W*H): | 108*310*89 | | |
Product overview

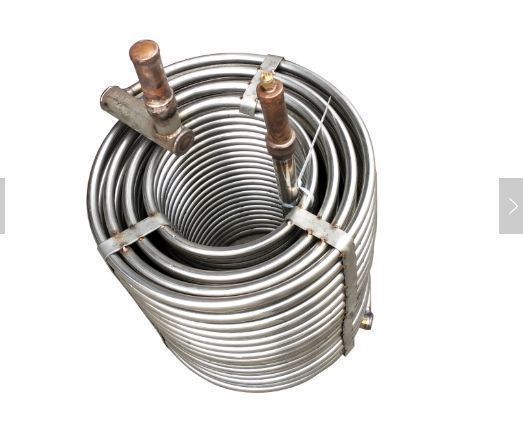

coaxial heat exchanger
Coaxial heat exchangers consist of two tubes, an inner tube and an outer tube coiled together. This one is unique. This unique, compact design prevents thermal fatigue, increases efficiency and reduces overall size. It is ideal for high temperature, high pressure and low flow applications. It is ideal for high temperature, high pressure and low flow applications such as chillers and tanks.
The coaxial copper heat exchanger has good thermal conductivity and is suitable for air source heat pump water heaters and chillers.
The spiral twist structure optimizes the surface structure and increases the area of the unit heat exchange tube.
Due to the helical twisted structure, it generates high turbulence and improves heat transfer efficiency.
Unlimited water quality in the large diameter.
High internal turbulence reduces fouling rates on the water side.
A heat exchange tube has the risk of internal leakage.
Wide selection of materials, from copper, cupronickel, aluminum, titanium, stainless steel to carbon steel.
Tube-in-tube heat exchangers are specially designed for use in water-cooled condensers, water chillers and water-source heat pumps. The design is used by major OEMs and the expanding wholesale replacement market around the world. The simplicity of design and installation make this product ideal for both markets.
List of functions
Coaxial heat exchangers are widely used in food and beverage factories Product Description Titanium spiral corrugated tubes are processed by special rolling process, corrugated heat exchange tubes with double-sided annular spiral grooves, as shown in the figure. Due to its good heat transfer efficiency and low pressure loss, the coaxial bellows heat exchanger makes it especially suitable for heat pump systems.
inner tube | Titanium coil |
Outer tube | Seamless steel tube/Seamless titanium smooth tube |
connect | Pointed tube ends accommodate various connection diameters |
Install | The support structure can be adapted to your location and screw hole diameter, and the roll diameter can accommodate various compressors |
application | Condenser, water source heat pump, ground source heat pump, water heater, freezer, refrigeration equipment, HVAC, chiller |
About Amity
Our company has always had strict quality control standards in the refrigeration heat exchange equipment market, focusing on providing customized services for customers. Not only do we have high requirements for the selection of raw materials, but we also keep up with the latest production technology and have high testing standards.

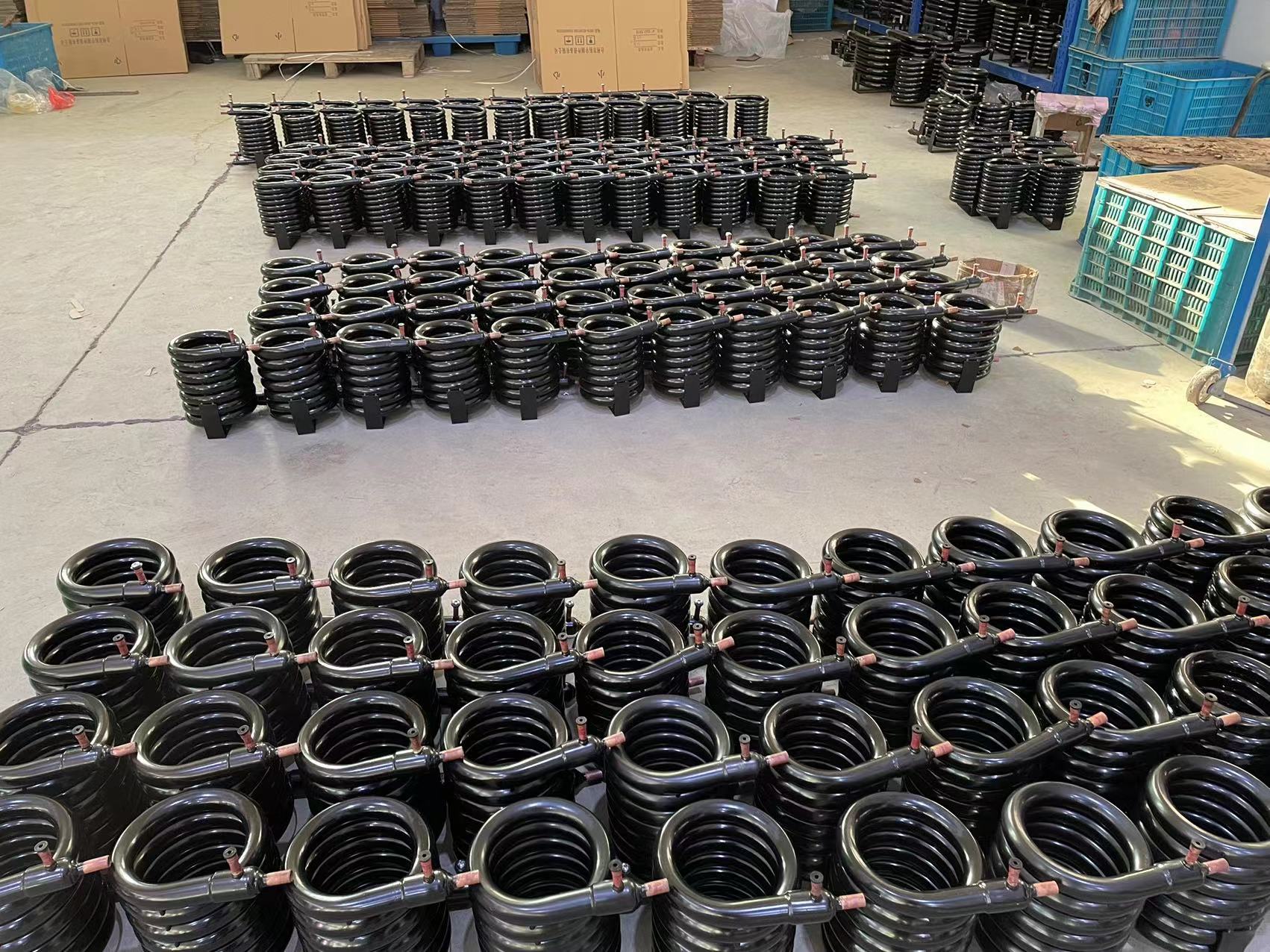

visit the factory
