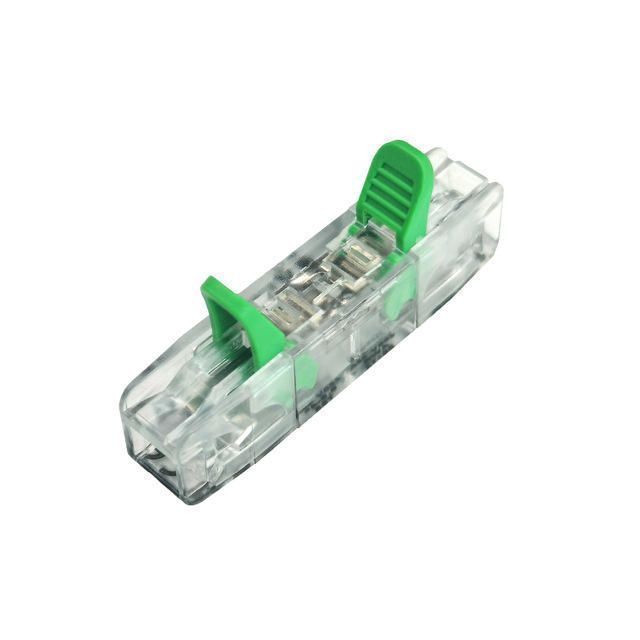

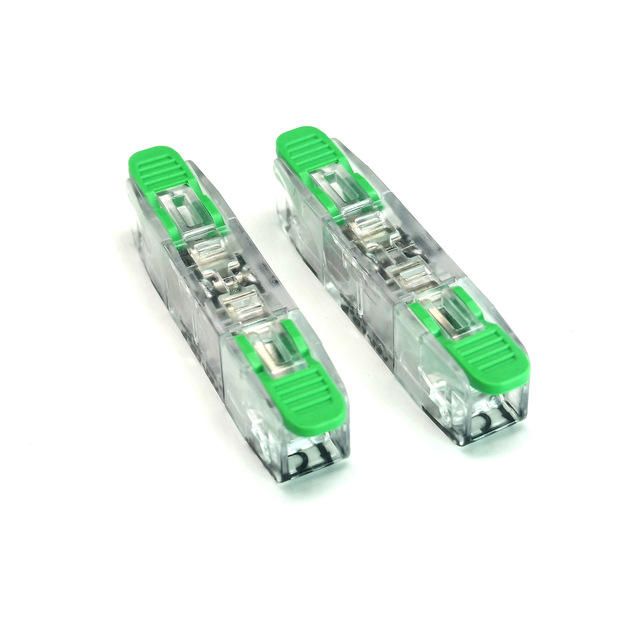

1 In 1 Out Quick Wire Connector Terminal Connection Block Wiring Cable With Lever

Supplier: Zhongshan Xianguan Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Ti Lyu
Price: $0.16 / 500 - 4999 pieces
$0.15 / 5000 - 9999 pieces
$0.14 / >=10000 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Rated voltage:	600V AC (UL); 450V AC (International Electrotechnical)	Origin:	Guangdong, China
Number of poles:	2P, 1 in 1 out	Flammable:	UL94V-2
brand:	come	Wiring specification:	24-12 AWG (American Standard); 0.2-4 mm² (IEC)
Insulation Materials:	PA66+PC	UL file number:	E497783
port:	Guangzhou port or Shenzhen port	payment terms:	Western Union, T/T, MoneyGram
model:	OJ-281	Conductor size:	12 - 24 AWG
Certificate:	ENEC, CQC, CE	Ambient temperature:	T85
Material:	no screws	Rated current:	32A (IEC & UL)
type:	insert

Product Description

brand	come
model	OJ-281
number of contacts	1
type	insert
rated current	32A (IEC & UL)
Rated voltage	600V AC (UL); 450V AC (International Electrotechnical)
flammable	UL94V-2
Wiring specification	24-12 AWG (American Standard); 0.2-4 mm² (IEC)
UL file number	E497783
Insulation Materials	PA66+PC
number of poles	1P, 1 in 1 out
ambient temperature	T85
certified	UL & CUL, ENEC, CQC, CE
Material	no screws

Key words:

Wire Connector Terminal Blocks Universal Quick Connect Cable Connectors for Cable Connection

Threadless quick connectors for wiring, connection blocks
