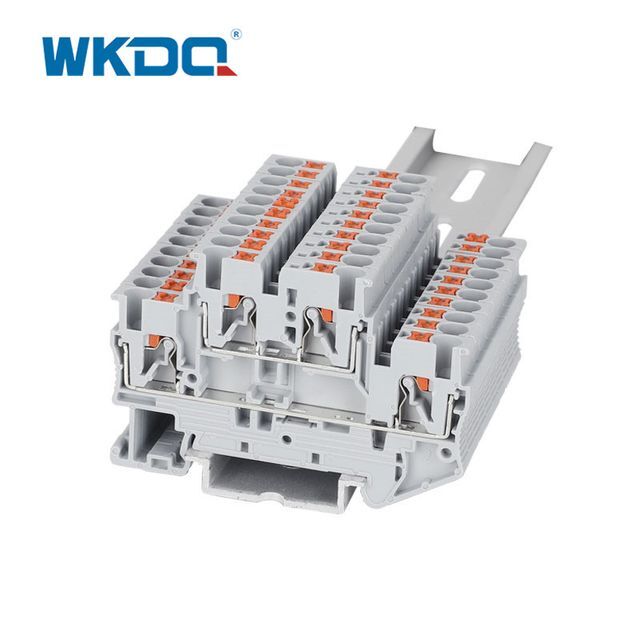

JPTTB 2.5 Push Connect Feedthrough DIN Rail Terminal Blocks

  • Supplier: Wonke Electric Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Ms Zoey Zheng
  • Price: $1.00 / 100 - 499 pieces
    $0.05 / 500 - 999 pieces
    $0.01 / >=1000 pieces
  • Min. Order: 100 pieces
Product details
Supply capacity:1,000,000 pieces/monthRated voltage/current:500V/22A
port:Shanghai, Ningbo, ShenzhenPackaging Details:10.23g/pc, 50PCS/BOX
type:springConductor size:26-12AWG, 26-12AWG
L/W/H (mm):68/47.5/5.2Cross section, solid/flexible cable:0.14-4mm2/0.14-2.5mm2
standard:IEC 60947-7-1brand:Wank
color:Gray, blue, other colors can be customizedConnection method:Push-in connection
model:JPTTB 2.5Material:Flame retardant nylon PA66 V0
place of origin; place of origin:Zhejiang, ChinaNumber of contacts:1 - 10
Installation type:DIN rail NS 35Packaging Details:export carton
payment terms:L/C,Western Union,T/T,Paypal

JPTTB 2.5 Push-In Feedthrough DIN Rail Terminal Blocks

Product details

feature:

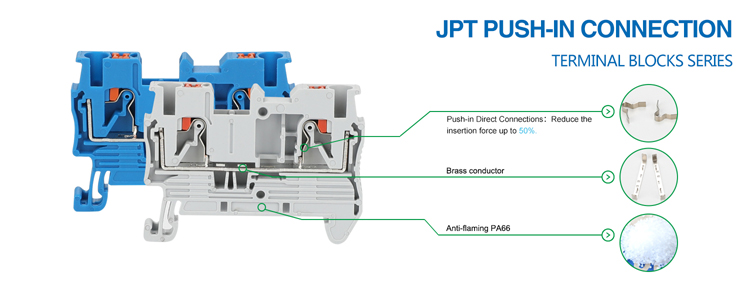

Push-in direct connection technology reduces insertion force by up to 50%, and tool-less wiring allows conductors to be inserted easily and directly.



l Engineering flame retardant nylon PA66, copper conductor.

l Push-in terminal blocks feature simple and tool-free conductor wiring using ferrules or solid conductors.

l Compact design and front connection for wiring in tight spaces.

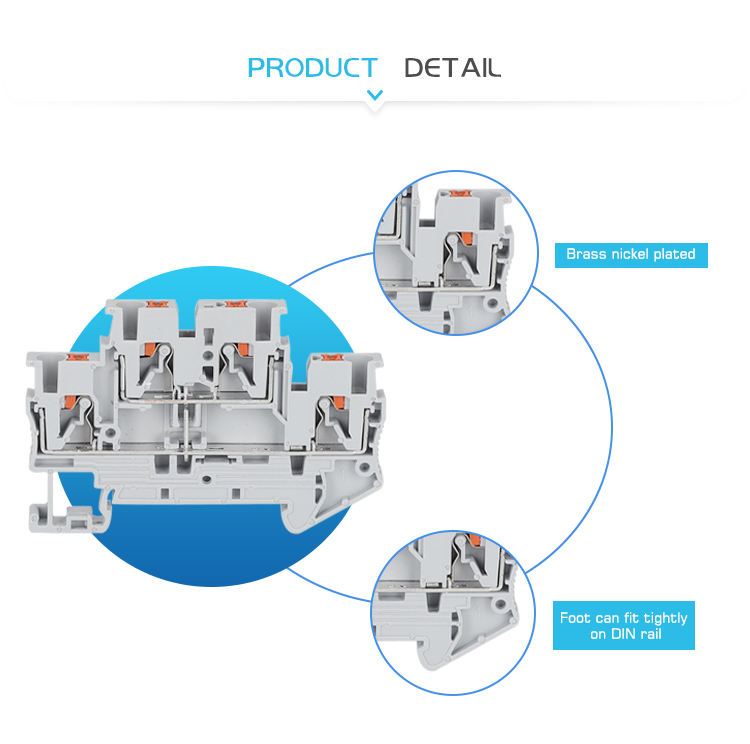

l With universal feet, can be installed on Din Rail NS 35.

l With V0 flame retardant

l Potential distribution can use terminal center fixed bridge.

l Multi-conductor terminal blocks allow you to distribute potential at low cost while saving space.

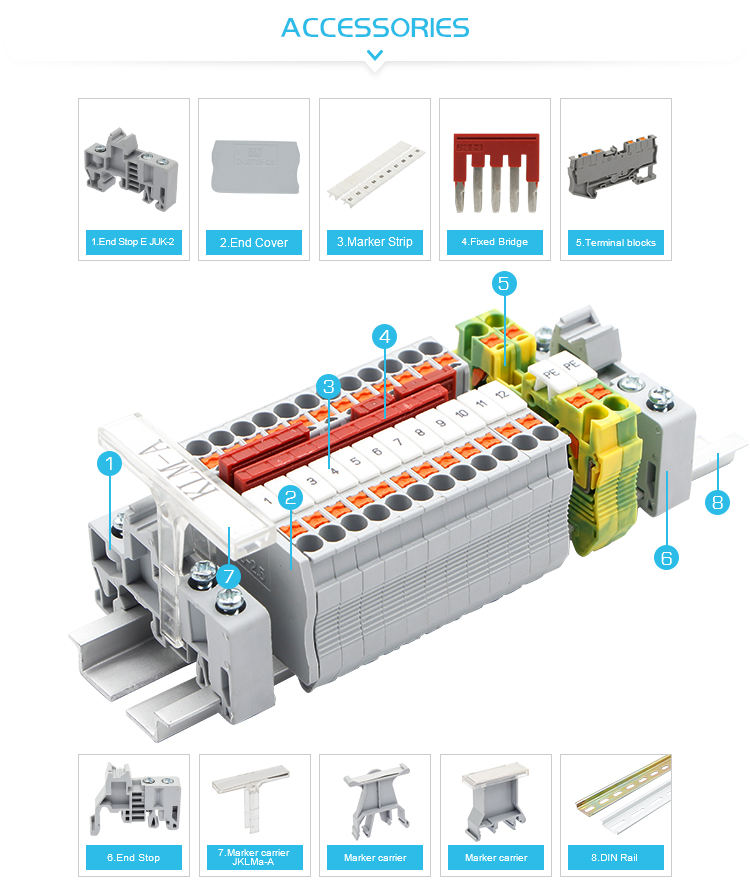

l Various accessories: end caps, end plugs, marking strips, plug-in bridges, marking carriers, etc.





model

JPTTB 2.5

color

Gray, blue, other colors can be customized

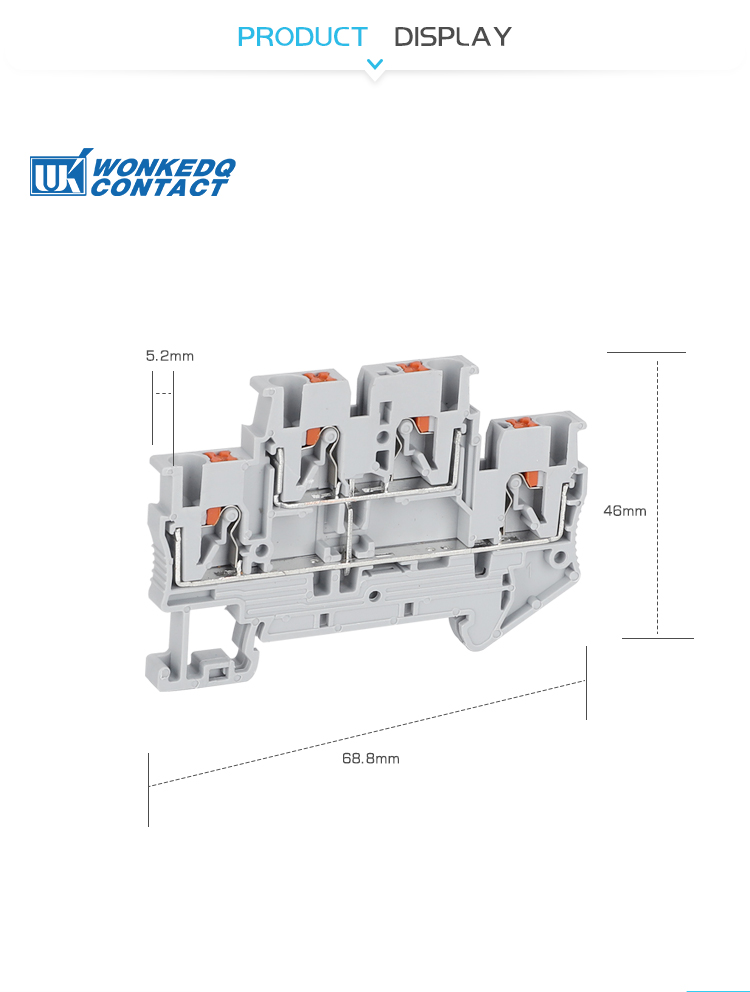

L/W/H(mm)

68/47.5/5.2

Connection method

Push-in connection

Material

Flame retardant nylon PA66 V0

Rated voltage/current

500V/22A

Cross section, solid/flexible cable

0.14-4mm²/0.14-2.5mm²

Conductor size

26-12AWG

installation type

DIN rail NS 35

standard

IEC 60947-7-1

logo

WonkeDQ, LOGO can be customized

Packaging Details

10.23g/pc, 50PCS/BOX

Certification

CE/RoHS/CQC/ISO 9001



Installation and Wiring
