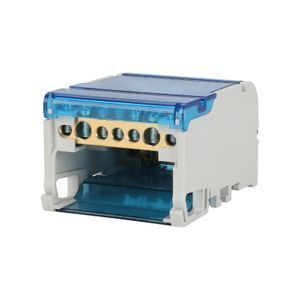

WKH 407 Brass busbar Distribution Terminal blocks with removable cover

  • Supplier: Wonke Electric Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Ms Zoey Zheng
  • Price: $0.01 / >=100 pieces
  • Min. Order: 100 pieces
Product details
Place of Origin:Zhejiang China;Type:Screw;
Number of Contacts:4X7;Connection method:Screw connection;
Color:Blue and Gray;Material:Flame resistant Nylon PA66, brass conductor;
Payment Terms:L/C,T/T,Western Union,Paypal;Mounting Type:DIN Rail NS 35;
Conductor Size:35mm;Quantity of Hole:4X7;
Standard:IEC 60947-7-1;Rated Voltage/Current:500V/125A;
Port:Shanghai ,Ningbo, Shenzhen;Model Number:WKH 407;
Dimension for Brass Conductor:6.5*12mm;Packaging Detail:EXPORT CARTON;
Certification:CE/RoHS/CQC/ISO 9001;Length/Height/Wide (mm):67/50/90;
Brand Name:WONKEDQ;Supply Ability:1000000 Piece/Pieces per Month;

WKH 407 Brass busbar Distribution Terminal blocks with removable cover

Product Detail

Features:

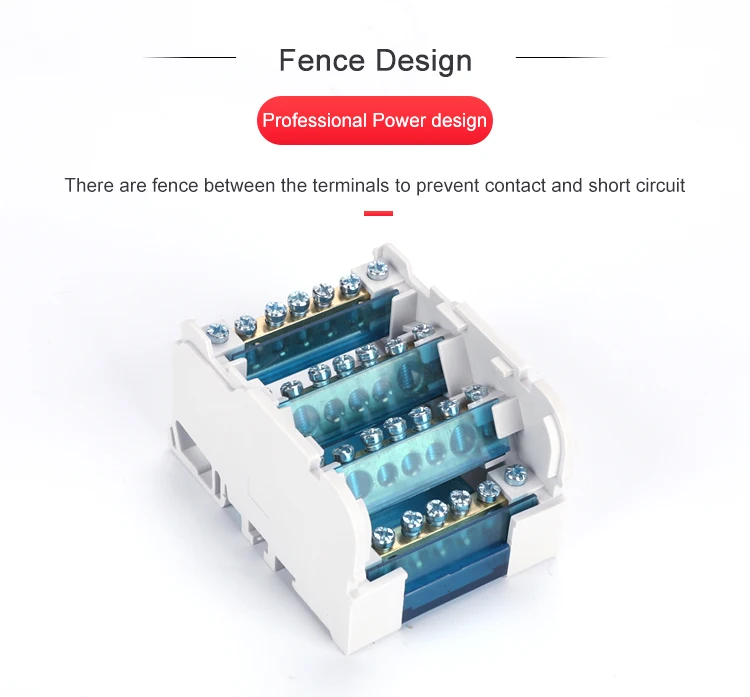

Power distribution blocks offer a safe,convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits.WKH series offers DIN-Rail mount installation and an optional hinged safety cover. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material. They also protect personnel from accidentally contacting energized connectors.

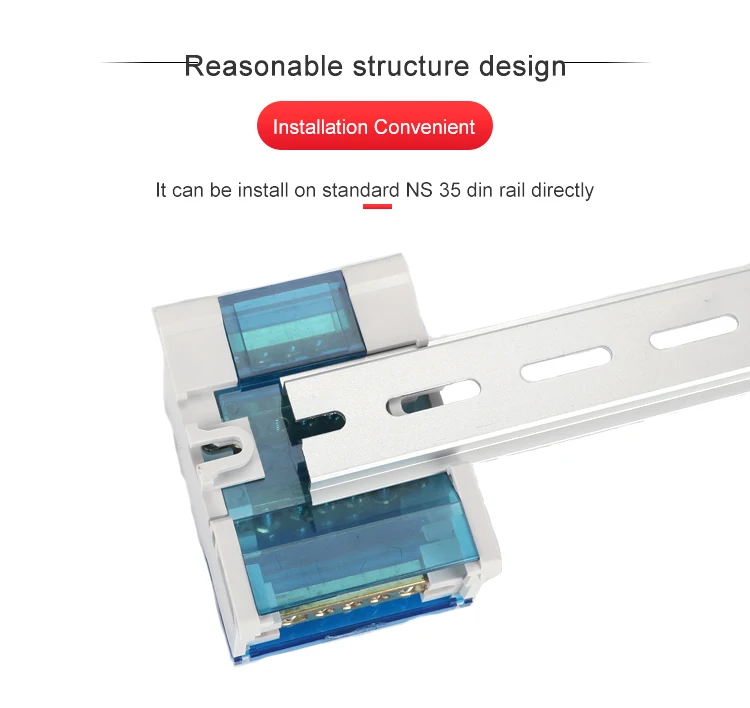

  • For DIN rail or chassis mounting with screws.

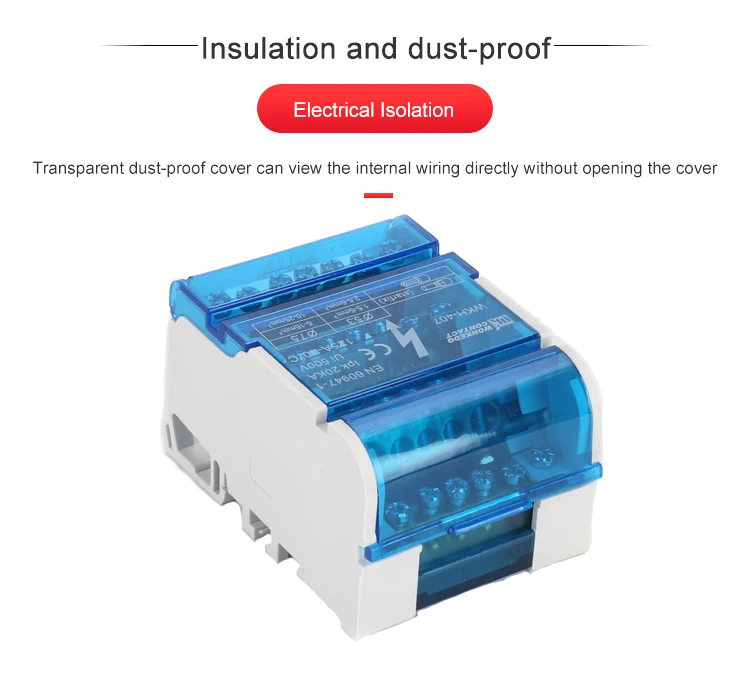

  • IP20 rated with hinged and removable cover.
  • High conductivity with excellent electrical contacts.
  • Compact design.
  • CE marked and RoHs compliant.

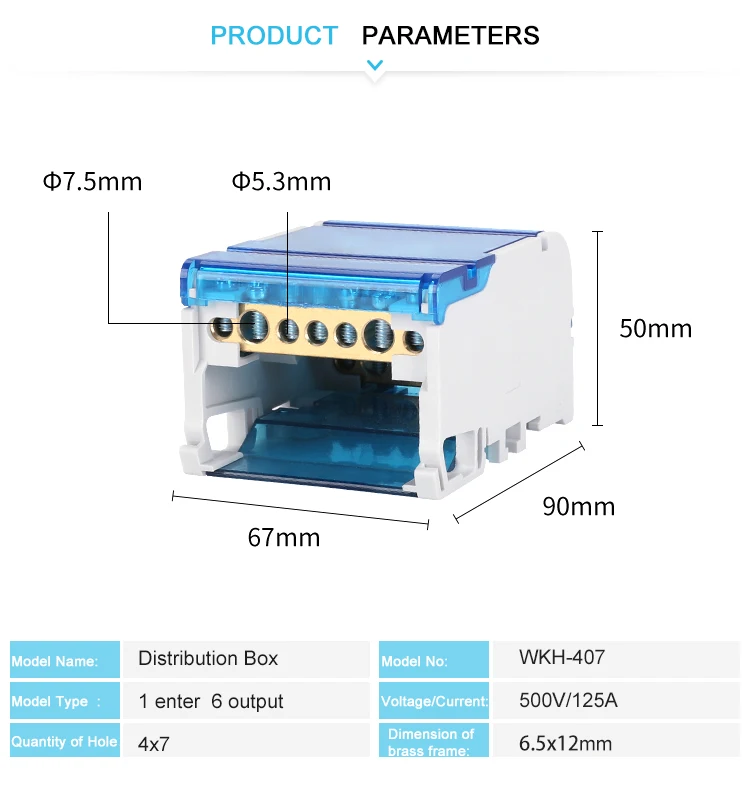

Technical Parameters

Model No.

WKH 407

Color

Blue and Gray

Length/Height/Wide (mm)

67/50/90

Connection method

Screw connection

Material

Flame resistant Nylon PA66,  brass conductor

Rated Voltage/Current

500V/125A

Quantity of Hole

4X7

Dimension for Brass Conductor

6.5*12mm

Mounting Type

DIN Rail NS 35

Standard

IEC 60947-7-1

LOGO

WonkeDQ,  LOGO can be customized

Certification

CE/RoHS/CQC/ISO 9001
