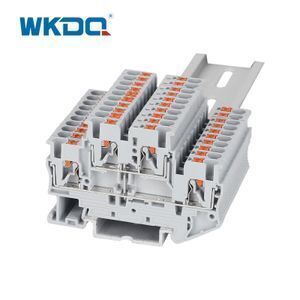

High Quality JPTTB 2.5-PV Push in wire Terminal Block

Supplier: Wonke Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Zoey Zheng
Price: $0.01 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Packing Detail:	10.23g/pc, 50PCS/BOX;	Color:	Grey,Blue, other color can be customized;
Place of Origin:	Zhejiang China;	Mounting Type:	DIN Rail NS 35;
Cross section, solid/soft Cable:	0.14-4mm2/0.14-2.5mm2;	Conductor Size:	26-12AWG,26-12AWG;
Number of Contacts:	1 - 10;	Standard:	IEC 60947-7-1;
Material:	Flame resistant Nylon PA66 V0;	Packaging Detail:	EXPORT CARTON;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Port:	Shanghai ,Ningbo, Shenzhen;
Supply Ability:	1000000 Piece/Pieces per Month;	Length/Wide/Height (mm):	68/47.5/5.2;
Rated Voltage/Current:	500V/22A;	Brand Name:	WKDQ;
Model Number:	JPTTB 2.5-PV;	Connection method:	Push-in connection;
Type:	Spring;

High Quality JPTTB 2.5-PV Push in wire Terminal Block

Product Detail

Features:

The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.

l Made from engineering flame retardants nylon PA66,Copper conductor.

l The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.

l The compact design and front connection enable wiring in a confined space.

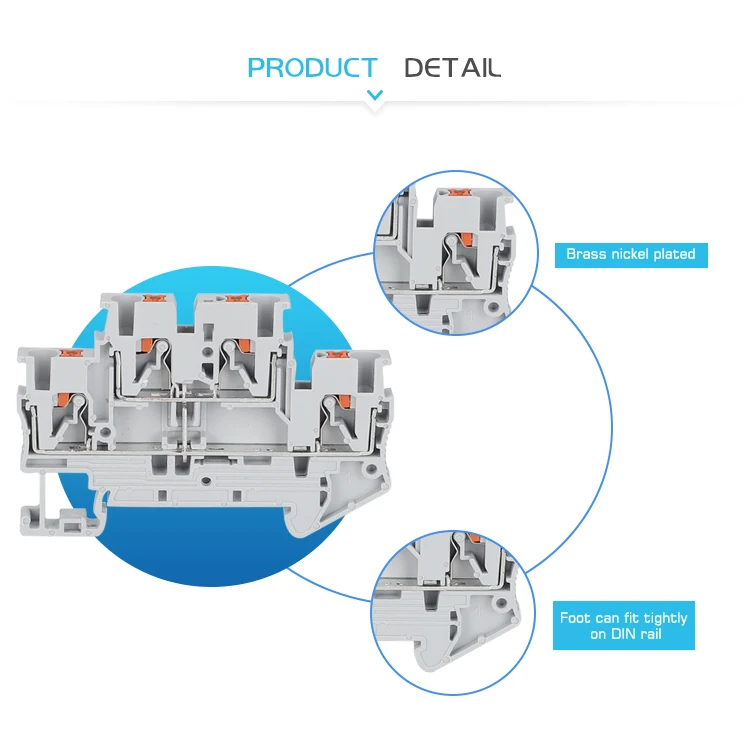

l With universal foot which can be installed on Din Rail NS 35.

l With V0 flame retardant

l Electric potential distribution can use fixed bridges in the terminal center.

l Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space.

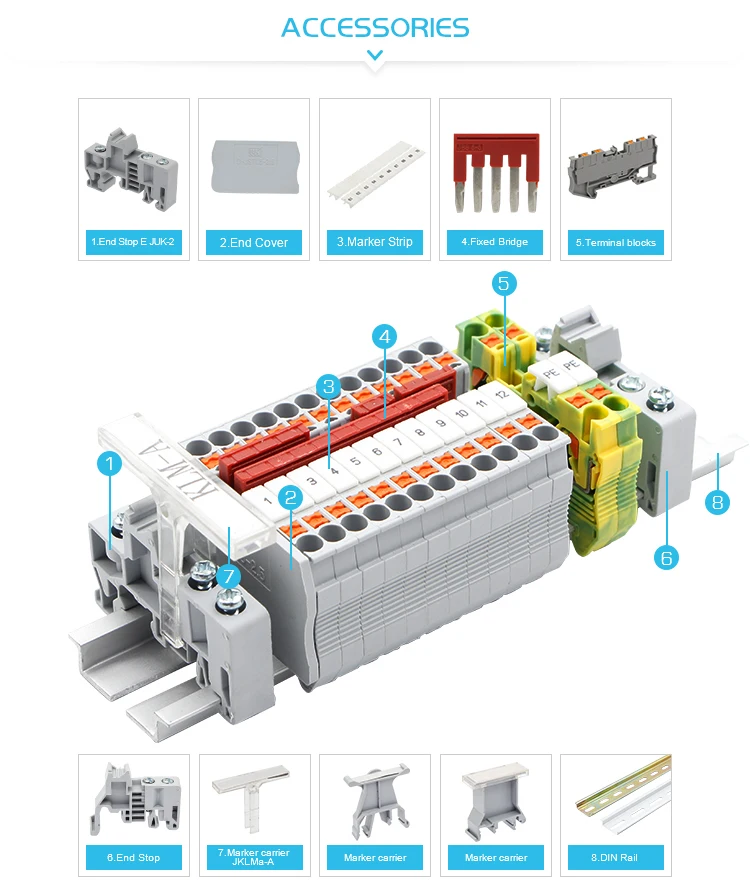

l All types of accessories: End cover, End Stopper, Marker strip, Plug-in bridge, Marker carrier,etc.

Model Number	JPTTB 2.5-PV
Color	Grey,Blue, other color can be customized

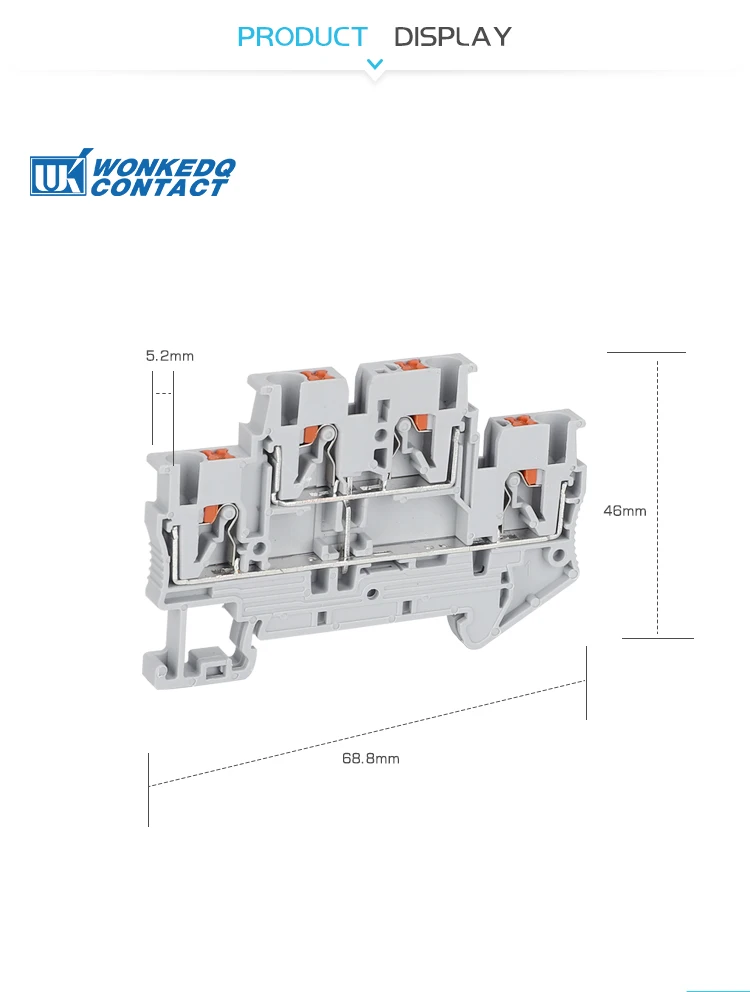

Length/Wide/Height (mm)	68/47.5/5.2
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.14-4mm²/0.14-2.5mm²
Conductor Size	26-12AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	10.23g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
