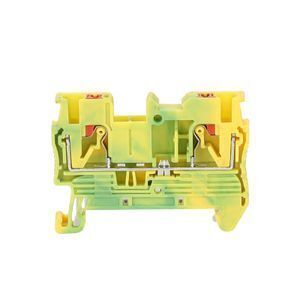

JPT 2.5 PE Ground Modular Push In Terminal Blocks Connector Din Rail

Supplier: Wonke Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Zoey Zheng
Price: $0.01 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Port:	Shanghai ,Ningbo, Shenzhen;	Mounting Type:	NS 35/7.5;
Color:	Grey, Blue, other color can be customized;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Packaging Detail:	EXPORT CARTON;	Packing Detail:	7.55g/pc, 100PCS/BOX;
Standard:	IEC 60947-7-1;	Place of Origin:	Zhejiang China;
Model Number:	JPT 2.5-PE;	Cross section, solid/soft Cable:	0.2-4mm2 / 0.2-2.5mm2;
Material:	Nylon PA66;	Rated Voltage/Current:	800V/31A;
Connection method:	Push-in connection;	Brand Name:	WKDQ;
Type:	Spring;	Number of Contacts:	1 - 10;
Conductor Size:	24-12 AWG,24-12 AWG;	Supply Ability:	1000000 Piece/Pieces per Month;
Length/Wide/Height (mm):	48.5/36/5;

JPT 2.5 PE Ground Modular Push In Terminal Blocks Connector Din Rail

Product Detail

Features:

The Push-in direct connection technology make the insertion forces reduced by up to 50 percent and tool-free wiring, enable the conductors to be inserted easily and directly.

Made from engineering flame retardants nylon PA66 with brass screw metal.

Made from engineering flame retardants nylon PA66 with brass screw metal.
The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
The compact design and front connection enable wiring in a confined space.
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection.
With a single click, PT series ground modular terminal blocks can simply snap onto the DIN rail to create the PE connection.
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center.
l Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space.
All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

Model Number	JPT 2.5-PE
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	48.5/36/5
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	7.55g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
