WONKEDQ JUK 2.5B 2.5mm Screw Din Rail Terminal Block

Supplier: Wonke Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Zoey Zheng
Price: $0.01 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Color:	Grey, Blue, other color can be customized;	Brand Name:	WONKEDQ;
Connection method:	Screw connection;	Rated Voltage/Current:	800V/32A;
Standard:	IEC 60947-7-1;	Port:	Shanghai ,Ningbo, Shenzhen;
Model Number:	JUK 2.5B;	Type:	Screw;
Packaging Detail:	EXPORT CARTON;	Packing Detail:	6.9g/pc, 50PCS/BOX,3000PCS/CTN;
Supply Ability:	1000000 Piece/Pieces per Month;	Place of Origin:	Zhejiang China;
Number of Contacts:	1 - 10;	Mounting Type:	DIN Rail NS 35;
Certification:	CE/RoHS/CQC/ISO 9001;	Conductor Size:	12 - 24 AWG;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Length/Height/Wide (mm):	42.5/41/6.2;
Material:	Nylon PA66;

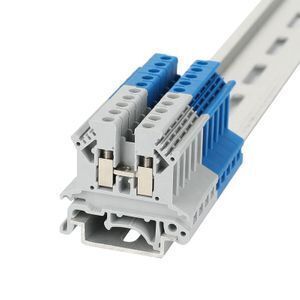

WONKEDQ JUK 2.5B 2.5mm Screw Din Rail Terminal Block

Product Detail

Features:

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section

The JUK universal screw terminal block series has the typical features which are decisive for practical applications.
Made from engineering flame retardants nylon PA66 with brass screw metal.
With universal foot which can be installed on Din Rail NS 35.
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

Model Number	JUK 2.5B
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/41/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-4 mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	6.9g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
