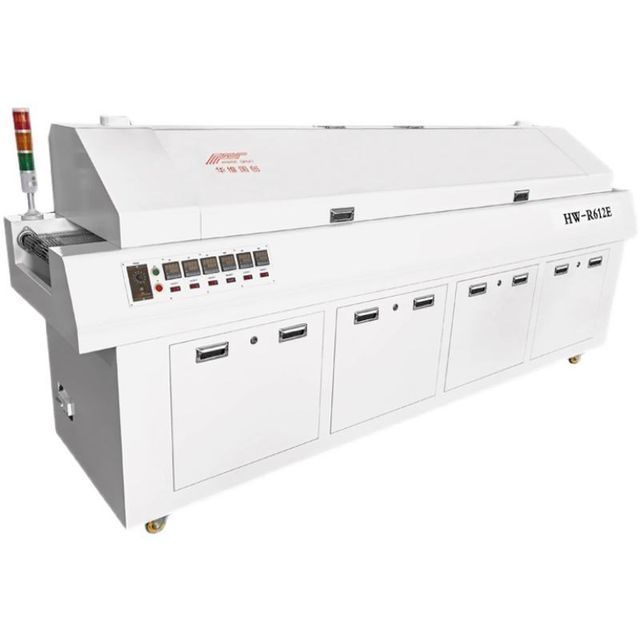

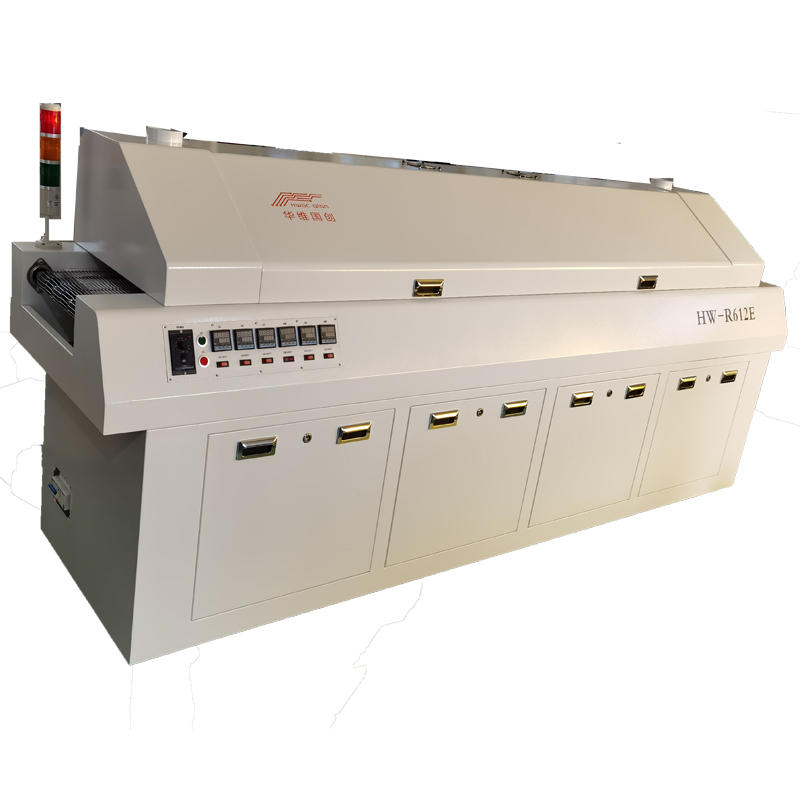

Large desktop reflow soldering automatic heat preservation reflow soldering oven R612E for PCB soldering

Supplier: Beijing Huaweiguochuang Electronic Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Linn Fu
Price: $2650.00 /set
Min. Order: 1 set

Click here to contact

Product details

aspect:	35007001400MM	Mechanical test report:	if
Origin:	Beijing China	power supply:	5 wires 3 phases 380V 50/60Hz
Showroom location:	India, Russia	type:	reflow soldering
brand:	Huawei Guochuang	port:	Guangzhou/Shanghai/Ningbo
Conveyor belt height:	880±20mm	Video shipment inspection:	if
Supply capacity:	350 sets per month	Main selling points:	automatic
payment terms:	L/C, Western Union, T/T, Paypal	Local service location:	India, Russia
Weight (kg):	450 kg	Voltage:	380V
Belt width:	350mm	Applicable industries:	Clothing stores, building materials stores, machinery repair shops, manufacturing plants, printing shops, construction, energy and mining, advertising agencies
Package preview:		heating method:	heat
Marketing Type:	normal product	Shipping direction:	left to right
Heating zone length:	2100mm	After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support
After warranty service:	Video technical support, online support, spare parts	Core components:	bearings, motors
Number of heating zones:	Up 6 Down 6	Shipping method:	Mesh belt drive + guide rail
Nominal Duty Cycle:	100%	Number of cooling zones:	2
heating time:	about 20 minutes	current:	50/60 Hz
Core component warranty:	1 year	Certification:	CE certification
Health status:	new	Rated Capacity:	24kw
Warranty:	1 year	Packaging Details:	Guangzhou/Shanghai/Ningbo
usage:	Printed circuit board soldering

Product Description

Specification

Heating parameters
Number of heating zones	Up 6 Down 6
Heating zone length	2100mm
heating method	heat
Number of cooling zones	2
Send part parameters
Belt width	350mm
Shipping direction	left → right
conveyor belt height	880±20mm
mode of transport	Mesh belt drive + guide rail
transfer speed	0-600mm/min electronic speed control
control section parameters
power supply	5 wires 3 phases 380V 50/60 Hz
starting power	24KW
Power during normal operation	About 6KW
heating time	about 20 minutes
Temperature control range	Room temperature -400℃
Temperature control method	Full computer PID closed-loop control, SSR drive
Temperature control accuracy	±1-2℃
PCB temperature distribution deviation	±2-3℃
Abnormal alarm	Abnormal temperature (extra high temperature after constant temperature)
Machine parameters

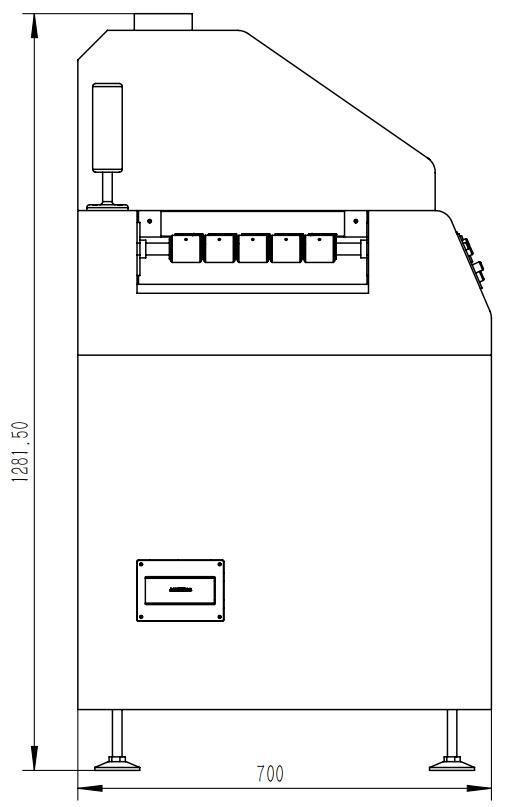

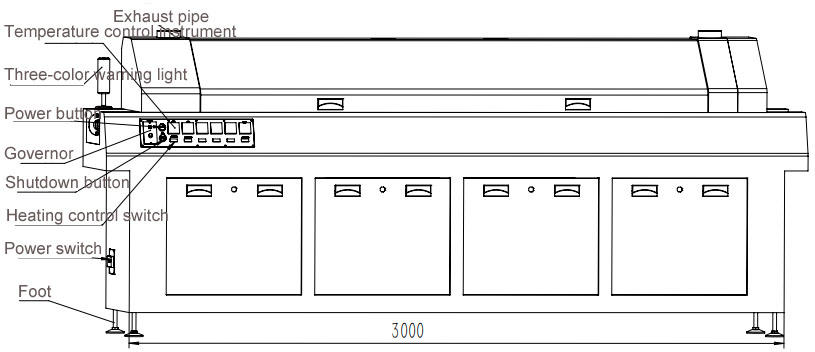

size	L3500×W700×H1400MM
weight	About 450Kg

Internal structure introduction

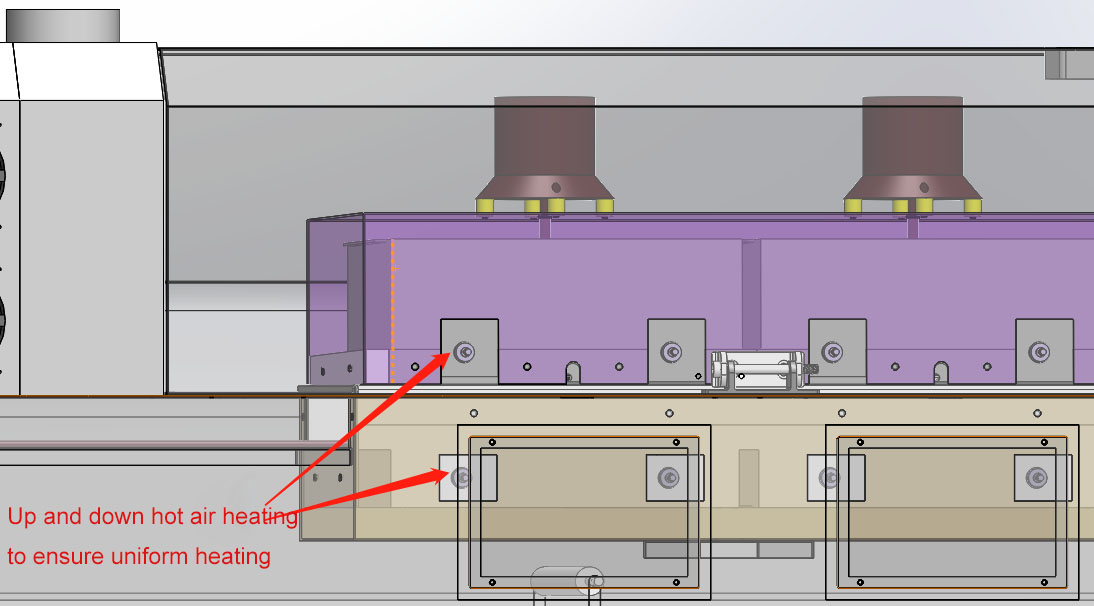

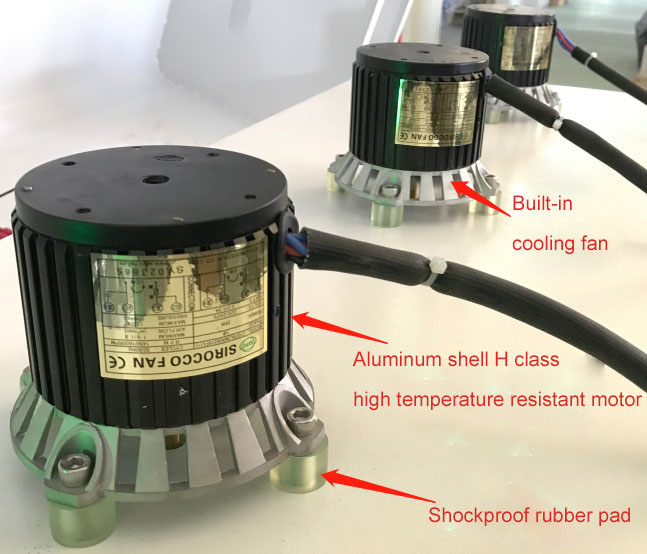

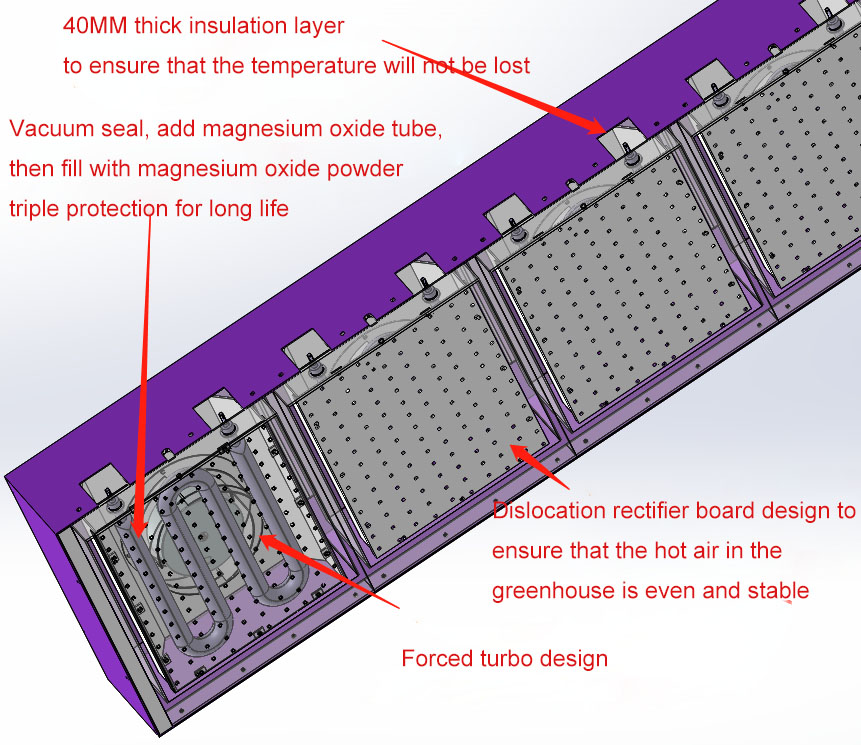

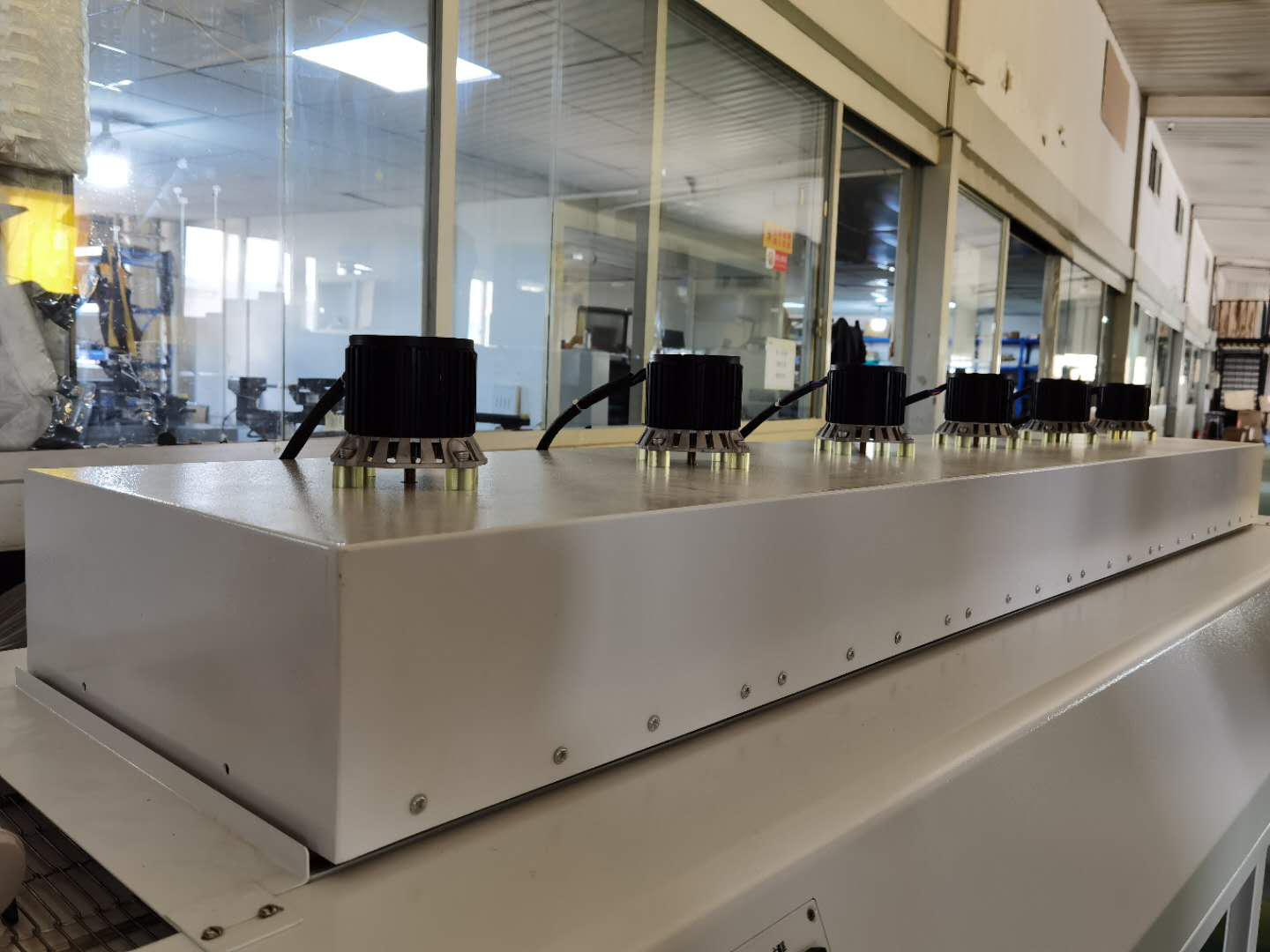

Unique and advanced long-life heating system 1. The heating system adopts high-efficiency and energy-saving Swedish nickel welding heating wire, equipped with a curved reflector, which has high thermal efficiency and fast heating speed. The special forced hot air circulation structure system makes the PCB and components heated evenly. 2. The insulation system adopts a special high temperature protection system (American Cyril 120kg/cubic high-density insulation rock wool), and the furnace is made of special stainless steel, which is suitable for lead-free welding. The welding area is equipped with a rosin flux recovery system to protect the environment; 3 . Adopt Taiwan Mitsukoshi long-axis high-temperature wind motor and ring heating wire design, modular design, no noise, no vibration, easy maintenance and disassembly; 4. The upper and lower sides of the furnace body are evenly distributed by porous aluminum plates to ensure that the heat reaches the PCB evenly and evenly. The upper furnace body can be opened as a whole to facilitate the cleaning of the furnace cavity.

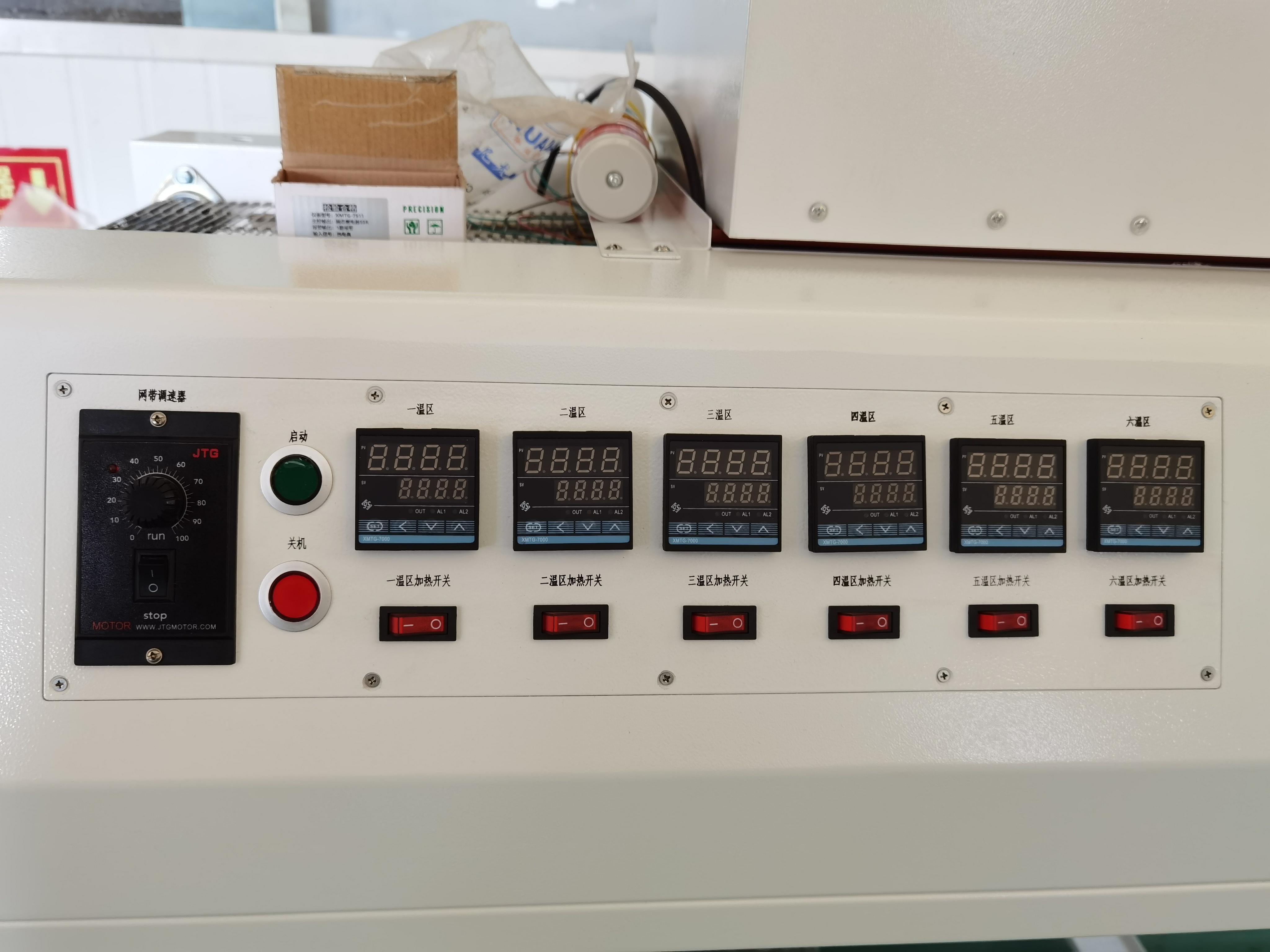

Reliable and stable transmission system1. The transmission system adopts Taiwan STK speed-adjusting motor, matched with a 1:150 turbo reducer, which runs smoothly, and the speed is steplessly adjustable from 0-600MM/min. 2. Adopting independent roller structure, flat support, and matching stainless steel mesh belt, it runs smoothly and the speed accuracy is ±20mm/min; 3. The special stainless steel zigzag mesh belt is durable and wear-resistant, and it is not easy to replace after long-term use.Stable and reliable electrical control system1. Temperature control adopts Transmit G8 precision controller, fuzzy control, and PID intelligent calculation. Through PID intelligent calculation, the generation of heat is automatically controlled. The fuzzy control function increases the function of overshoot and suppression, and responds quickly to external thermal changes. Respond to the change of external heat at the fastest speed, and ensure the temperature balance through internal control; 2. Taiwan panduit thermocouples are used in each temperature zone, which can quickly and sensitively respond to changes in each temperature zone, timely transmit control, and compensate for the temperature balance of each temperature zone; 3. The special SSR solid state relay is matched with the special heat sink, which greatly improves the heat dissipation efficiency and effectively prolongs the service life; the non-contact output, safe and reliable, combined with the unique fuzzy control function of the thermostat, has been monitoring the external temperature and calorific value, and the temperature change is minimized Pulse control fast response ensures high temperature control accuracy, uniform temperature distribution inside the machine, and temperature distribution in the length direction conforms to IPC standards; 4. Abundant power, rapid temperature rise, about 20 minutes from normal temperature to constant temperature; 5. With over-temperature, fault diagnosis, Sound and light alarm function; 6. Delay shutdown protection function, evenly cool down after shutdown
