NeoDen IN6 Quick Ship Economical Benchtop Reflow Oven with CE Mark

  • Supplier: Zhejiang Neoden Technology Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Ms Haimi Lin
  • Price: $2399.00 / 1 - 1 sets
    $2390.00 / 2 - 2 sets
    $2381.00 / 3 - 3 sets
    $2372.00 / >=4 sets
  • Min. Order: 1 set
Product details
Weight (kg):66 kgPackage preview:
usage:Printed circuit board solderingScreen:Full color touch screen.
port:all mainland seaportstype:reflow soldering
Core component warranty:2 yearsNominal Duty Cycle:15-25 minutes
Temperature control range:Room temperature~300℃Mechanical test report:if
Warranty:2 yearsSupply capacity:200 sets of NeoDen IN6 economical benchtop reflow oven with CE certification per month
Health status:newVideo shipment inspection:if
Heating zone:Up 3/Down 3brand:new arrival
Main selling points:easy to operateHeating type:Nichrome wire and aluminum alloy heating
Voltage:110/220 voltsOrigin:Zhejiang, China
application:SMT production line/PCB soldering machinething:Desktop reflow oven for sale
Rated Capacity:2KWCore components:Motors, engines, pumps, bearings, gears
Standard maximum height:30mmaspect:1020*507*350mm
Showroom location:India, Colombia, Australia, Turkey, Brazil, South Africa, Ukraine, Spain, United Kingdom, Chile, Vietnam, Argentina, United States, Italy, France, Germany, RussiaConveyor belt width:260mm
Packaging Details:Fumigation Free Wooden Box NeoDen IN6 Quick Ship Economical Benchtop Reflow Oven with CE for Salepayment terms:L/C, Western Union, T/T
Marketing Type:normal productApplicable industries:Home, building supplies store, print shop, manufacturing plant, energy and mining, food store
Heating time:20-30 minutesLength processing chamber:680 mm

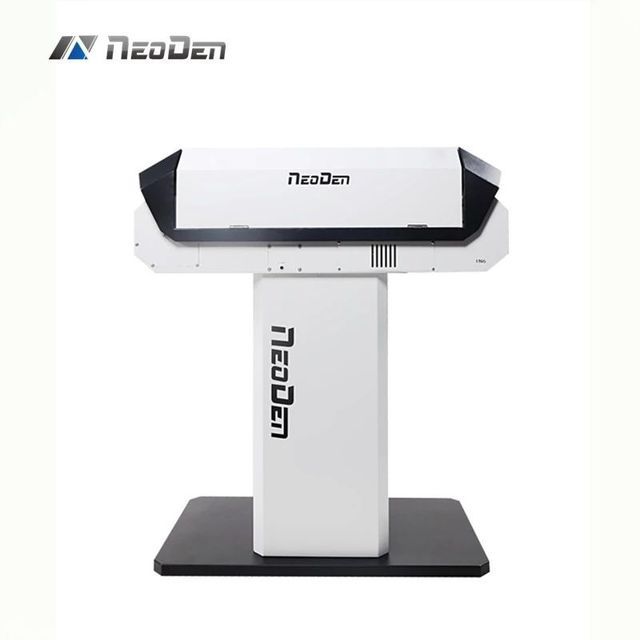

NeoDen IN6 Quick Ship Economical Benchtop Reflow Oven with CE Mark
Product Description
NeoDen IN6 is an energy-efficient soldering equipment that can be used for pcb prototyping projects or small batch PCBA manufacturing. It is a good choice for laboratories or universities with small size and attractive design.
reflow solderingreflow ovenSoldering machinereflow ovensmd reflow ovenpcb reflow oven smd line

feature
1. Full convection, excellent welding performance.
2. 6-zone design, lightweight and compact.
3. Using intelligent control of high-sensitivity temperature sensor, the temperature can be stabilized within +2°C.
4. The original high-performance aluminum alloy heating plate replaces the heating tube, which is energy-saving and efficient, and the lateral temperature difference is less than 2°C.
5. The original built-in welding fume filtering system is elegant and environmentally friendly.
6. Heat insulation protection design, the shell temperature can be controlled within 40 ℃.
7. Household power supply, convenient and practical.
8. ESD tray, easy to collect PCB after reflow soldering, convenient for R&D and proofing.
9. It can store multiple working files, freely switch between Celsius and Fahrenheit, flexible and easy to understand.
10. Japanese NSK hot air motor bearings and Swiss heating wires are strong and durable.
11. Reinforced heavy-duty carton packaging, light in weight and environmentally friendly.
12. Real-time measurement and display of PCB welding temperature curve.
13. Passed TUV CE certification, authoritative and reliable.
wave solderingReflow Oven ControllerOven Reflow SolderingSmall Reflow OvenReflow Soldering MachineSMD ovenInfrared Reflow Oven

Specification
Model
New board IN6
electricity demand
110/220VAC 1 phase
Maximum power
2KW
Number of heating zones
Up 3/Down 3
transfer speed
5 - 30 cm/min (2 - 12 in/min)
standard maximum height
30mm
Temperature control range
Room temperature ~ 300 degrees Celsius
Temperature control accuracy
±0.2 degrees Celsius
Temperature distribution deviation
±1 degree Celsius
Welding width
260 mm (10 inches)
Length craft room
680 mm (26.8 inches)
Heating time
about 20-30 minutes
aspect
1020 x 507 x 350mm (LxWxH)
Package Size
112x 62x 56cm (excluding workbench)
Net weight/Gross weight
49KG/ 66kg (excluding workbench)

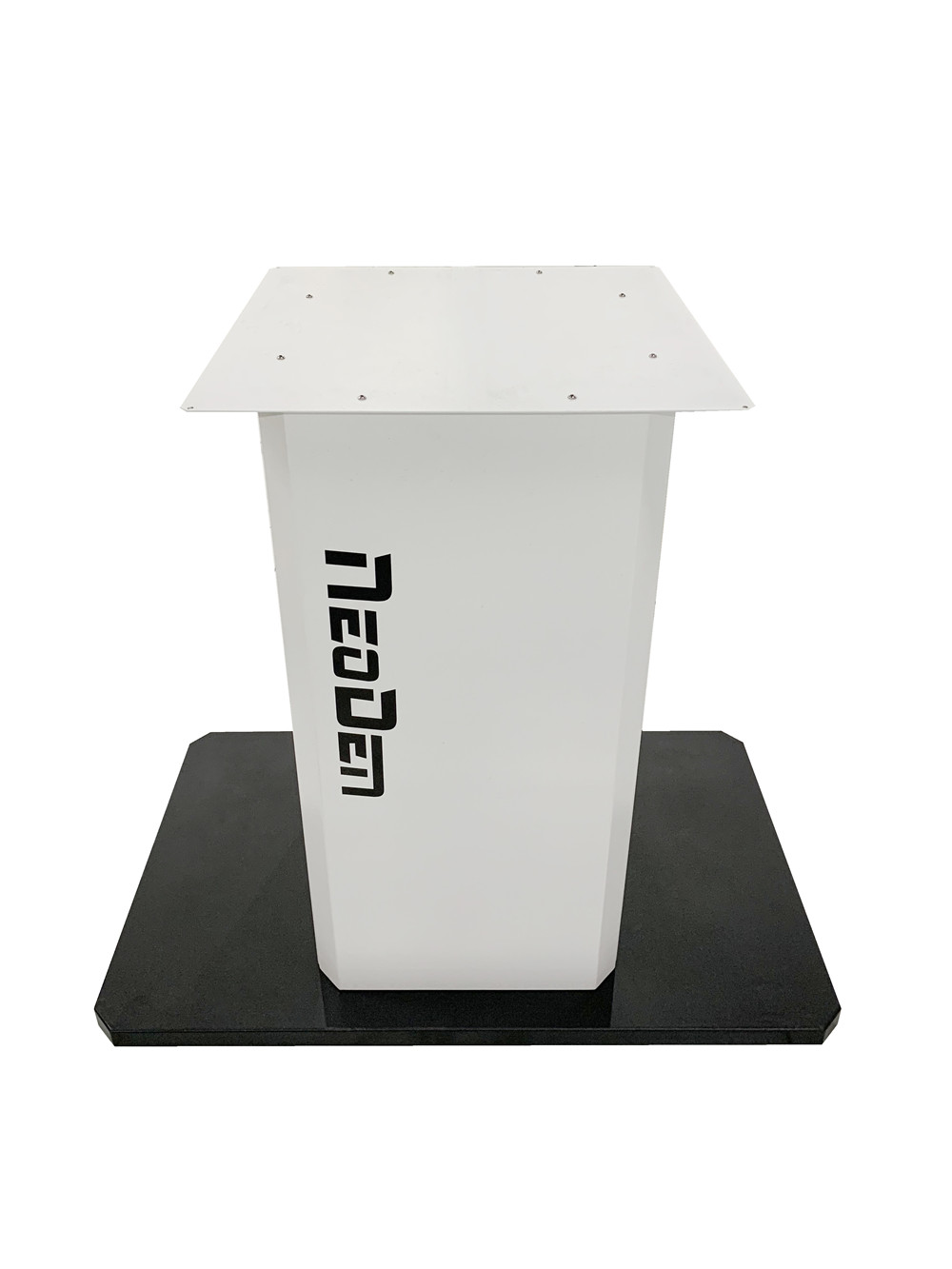

NeoDen IN6 Base

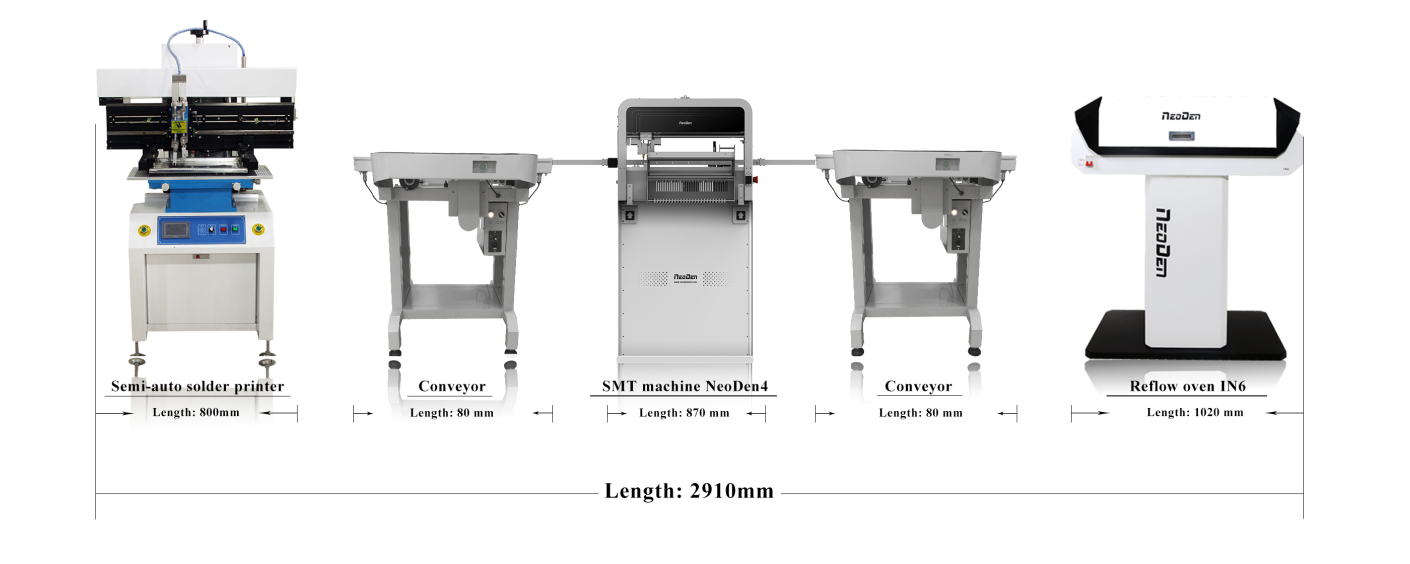

patch line
