Spindle motor power (kW): | 100 | Table size (mm): | 960x1100 |
type: | horizontal | Name: | ALLAME thrust boring machine |
Positioning accuracy (Z axis) mm: | 100 | Supply capacity: | 25 sets per month |
Origin: | Adana, Turkey | brand: | Alami-Farb |
Model: | FK-97 | Main selling points: | automatic |
Video shipment inspection: | if | Positioning accuracy (Y axis) mm: | 100 |
Marketing Type: | 2019 Hot Products | Warranty: | 2 years |
Core components: | engine, bearing | Dimensions (L*W*H): | 97*1528mm |
Accessories: | Gauge-Valve-Hose | Core component warranty: | 1 year |
Showroom location: | turkey | Table travel (Z) (mm): | 250 mm |
Operation method: | Manuel | Voltage: | 100 |
maximum. Table load(kg): | 100 | Number of spindles: | 4 |
Mechanical test report: | if | Health status: | new |
Number of axes: | 4 | driving type: | Air compressor |
CNC or not: | normal | Applicable industries: | Mechanical repair shops, construction, energy and mining |

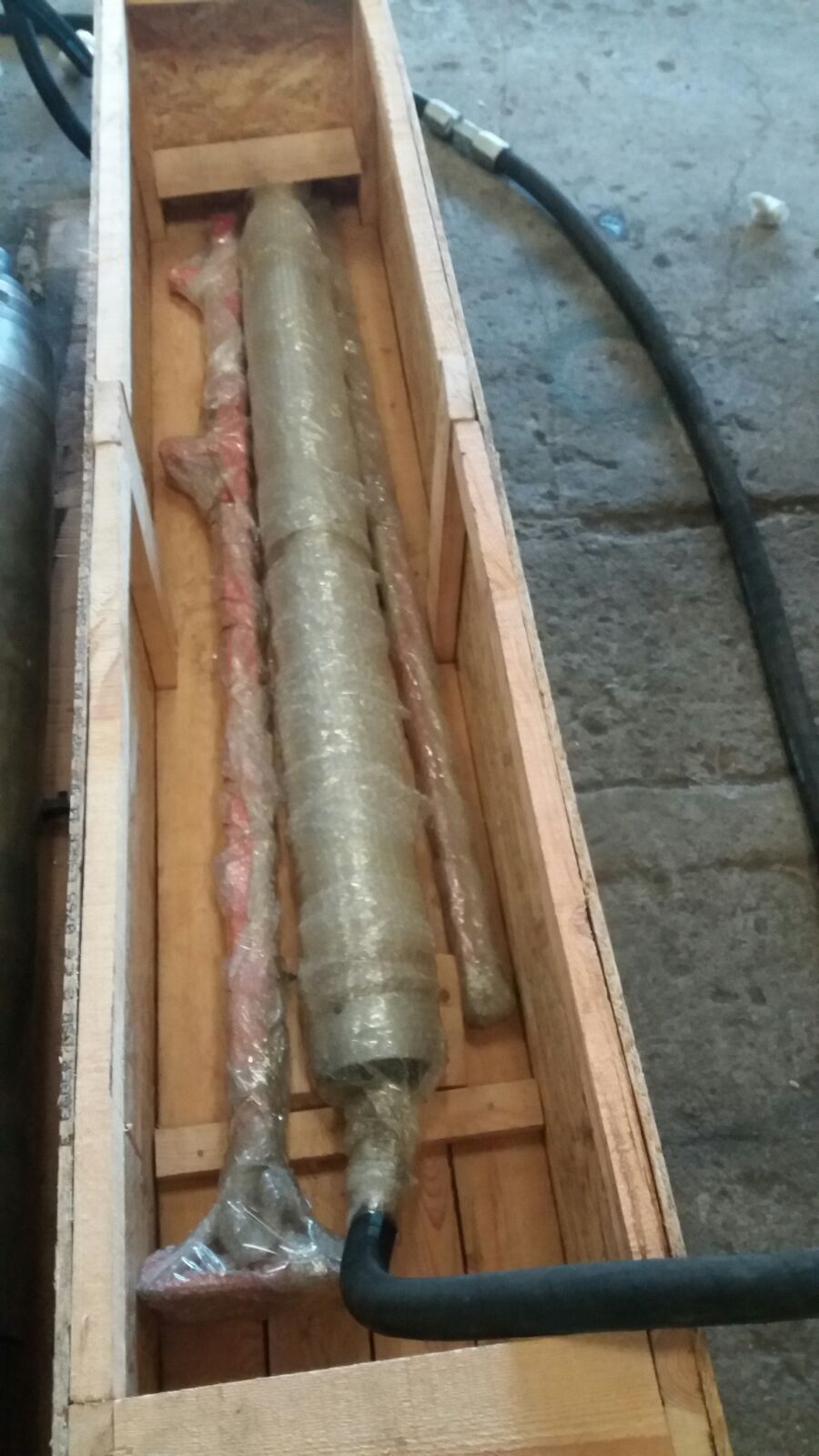

Weight (ton): | 0.25 tons | Packaging Details: | In wooden case - standard export packing. |
port: | Eviap | Drilling diameter: | 97mm |
Positioning accuracy (X axis) mm: | 100 | Travel (W axis) (mm): | 1200mm |
Spindle speed range (rpm): | 100 rpm | Table travel (X) (mm): | 1100mm |
Table travel (Y) (mm): | 500 mm | Production capacity: | 25 / week |
payment terms: | L/C, Western Union, T/T, MoneyGram | Product Category: | Pneumatic mole removal machine |
Material: | steel |
www.thrustboring.com
go throughboringandThrust boring machine, underground supply lines, such as pipelines for gas, water, communication and energy cables, can be easily laid underground without causing any damage to structures above ground. Furthermore, daily life is not disturbed while operating.
thisThrust boring machineProvides accurate horizontal drilling under roads, railways without excavating the ground.

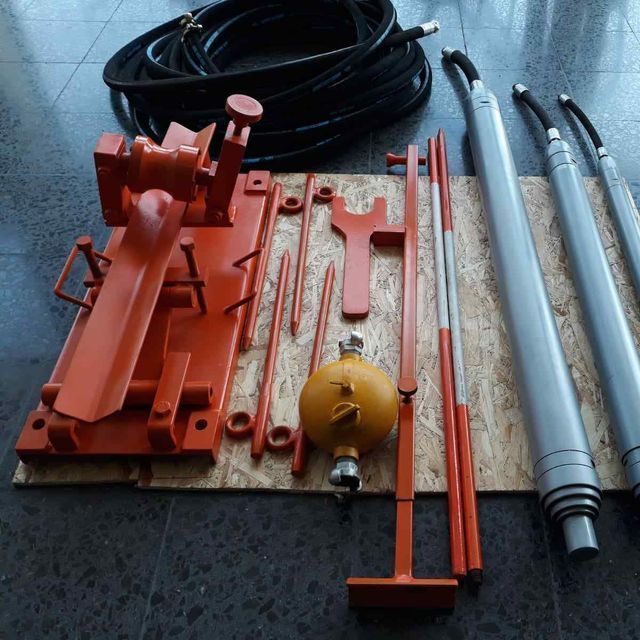

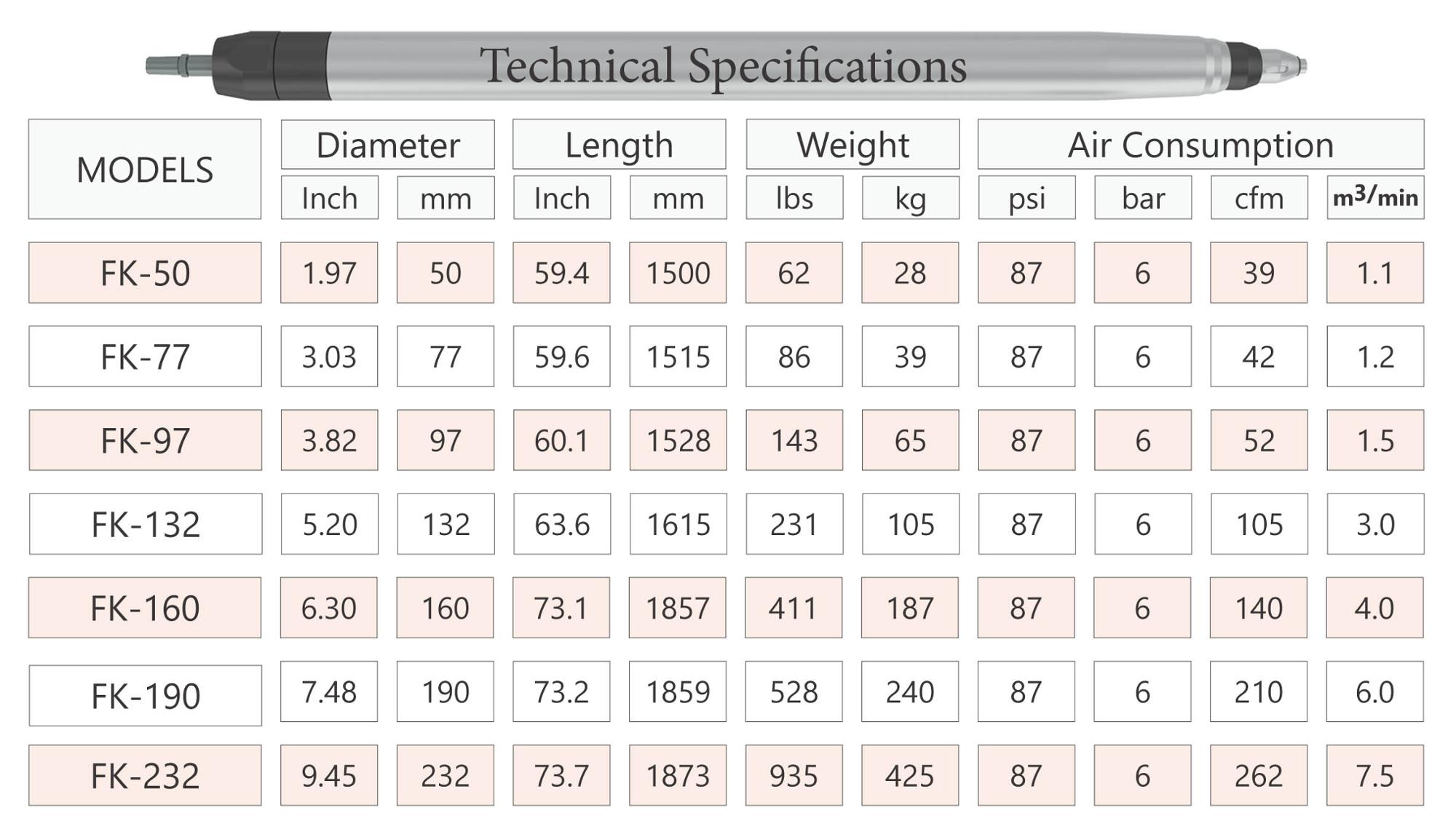

– our soilDisplacement Hammerrocket ismade77 mm in diameter,97 mm,132mm, 160mm, 190mm and 240mm. The diameter of the drilled hole determines the diameter of the rocket to be purchased.
– Ground Mole runs underground, moving forward and backward horizontally.
Pneumatic Digging Hammer
Soil Displacement Hammer;
1. Goal identification and initiation with minimal human effort.
2. Depth determination: The axis of rocket movement should be within the depth (h) of 12-15 times the diameter of the rocket.
3. The farther the drilling distance is, the more sensitive the target determination is, so good observation and precise alignment are essential.
4. Drilling distance: The drilling distance depends on the suitability of the formation, air temperature and applied air pressure. In general use, a distance of 100 meters can be carried out.
5. The starting board is placed about 40 cm. Set away from the surface to be drilled and secured to the ground by four ground spikes in the direction of the arrows.
6. The rocket is placed on the starting board and tightened with the roller bolts.
7. Target determination.
8. To move the rocket forward, turn the air hose to the right, and to move the rocket backward, turn the air hose to the left until it ends.
9. It must be checked that the air hose turns to the right when the rocket is on the starting board. Otherwise, the gear parts and other moving parts of the drum may be damaged.
10. Open the air supply valve halfway, and fully open after the rocket leaves the plate completely.
11. In the soil layer or clay layer with air pressure of 5-10 m/h, the average drilling speed is 5-10 m/h
87 PSI - 6 bar.
12. Remove the rocket from the bore: remove the plate, close the air supply valve, and turn the air hose all the way to the left. Then, the intake valve opens and the rocket starts moving backwards.
If you want to know more about Soil Displacement Hammer, please feel free to contact us.
www.thrustboring.com
Pneumatic mole removal machine
Horizontal drilling hammer.
Thrust boring machine.
