LTWL-50 Electric Portable Line Boring Welding Machine

Supplier: Xinxiang Lantu Machine Tool Co., Ltd.
Region: Henan, China
Contact: Mr Hao Zhang
Price: $1600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	brand:	LT
Accessories:	Elective	Health status:	new
Origin:	Henan, China	Feed rate:	0-3 mm (stepless speed regulation)
Operation method:	automatic	Applicable industries:	Manufacturing plants, machine repair shops, farms, retail, construction, energy and mining
Feed stroke (standard):	260 mm (support customization)	Weight (ton):	0.05 tons
Table travel (Y) (mm):	0mm	Voltage:	110V/220V/380V
Video outbound inspection:	if	Package preview:
Marketing Type:	Hot Products of 2022	Table travel (X) (mm):	260mm
Whether CNC:	CNC system	Main selling points:	multifunctional
Showroom location:	not any	Travel (W axis) (mm):	260mm
Boring bar speed:	0-200rpm (stepless speed regulation)	Number of axes:	2
Supply capacity:	30 sets per month	Power type:	3 kW servo motor
Production capacity:	30	Table travel (Z) (mm):	0mm
Boring range:	55-260mm	Spindle speed range (rpm):	200 rpm
Packaging Details:	Fumigation and disinfection plywood packing box	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Warranty:	1 year	type:	vertical
Boring bar (standard):	501600+50700 mm (support customization)	port:	Qingdao Port
End device feed:	0.1mm	After-sales service:	Online Support/Video Support
Spindle motor power (kW):	3	payment terms:	L/C, Western Union, T/T, MoneyGram
Core component warranty:	1 year

Specification

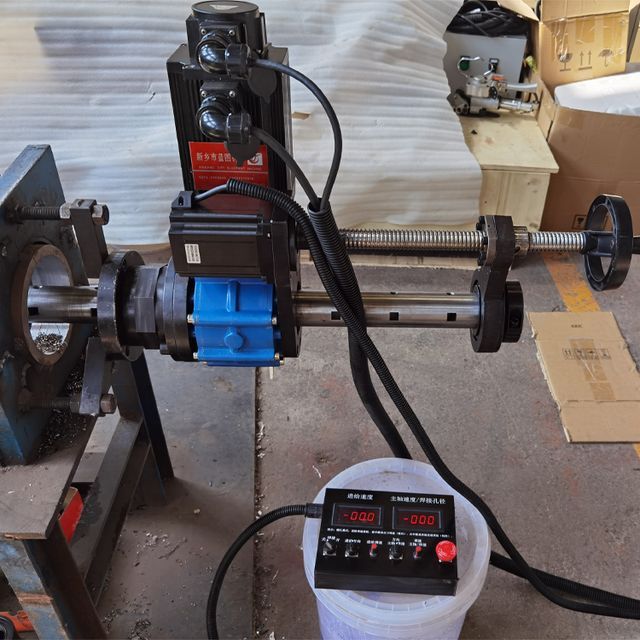

Name	LTWL-50 Worm Gear Boring Welding Machine
Model	LTWL-50
Maximum aperture mm	260
Minimum aperture mm	55
Feed stroke mm (standard)	260 (support customization)
Boring bar mm (standard)	50×1600 mm (customized)
Boring bar speed Rpm	0-200r/min (stepless speed regulation)
Motor power Kw	3 kW
power type	servo motor
Feed mm	0-3mm (stepless speed regulation)
End device feed	0.1/0.15
One side cutting depth mm	≥3mm
roughness	Ra3.2
Roundness mm	≤0.02mm
operation method	automatic / manual
Host weight Kg	60
pack	Fumigation and disinfection plywood packing box

Our company's patented portable drilling machine is designed for on-site construction. It is good at both drilling and welding. It has the characteristics of small size, light weight, and good boring and welding quality. It can be conveniently used for on-site drilling and welding of large steel structures, especially suitable for processing in narrow spaces. Widely used in the repair of large equipment, construction machinery pin holes, bearing holes and other round holes.

1. Choice of surfacing or boring mode 2. Choice of clockwise or counterclockwise rotation direction 3. Infinitely variable speed control 0–200 rpm 4. Choice of forward or reverse feed direction 5. Stepless feed speed 0–200 rpm 33 mm/min 6. Automatic operation boring mode: set the cutting length in millimeters, then the machine returns to the starting position at high speed 7. Automatic mode surfacing: set speed, surfacing step, surfacing length, rotation direction- The machine performs surfacing and closes when it arrives at the end of the work. 8. Automatic mode fan-shaped surfacing: set the surfacing angle, speed, retreat amount and surfacing length-the machine performs surfacing on the set sector and stops
