Package preview: | | usage: | 4x4 12v electric winch |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Warranty: | 1 year |
capacity: | 13000 lbs | brand: | 4 winches |
Origin: | Zhejiang, China | strength: | 12/24V DC |
product name: | 13,000 lb electric winch | MOQ: | 1 set |
Packaging Details: | carton | Customization support: | OEM production |
weight: | 30KG | Control Method: | wireless remote |
application: | ATV/UTV | Energy source: | electrical |
Fairlead: | Aluminum fairlead | model: | VTG3 |
Key words: | electric winch | | |
4 WINCH VTG3 13000LB 12V w/ Synthetic Cord High Quality Standard
4 WINCH is a well-known brand from Southeast Asia. It's a passionate and adventurous name that's much loved.
Been a loyal off-roader for 10 years since its inception. The newest 4 WINCH model, the VTG3, is built on a deep passion for off-road, it
An expression of steady strength and refined fashion.
4 WINCH VTG3 13000LB 12V w/ Synthetic Cord High Quality Standard

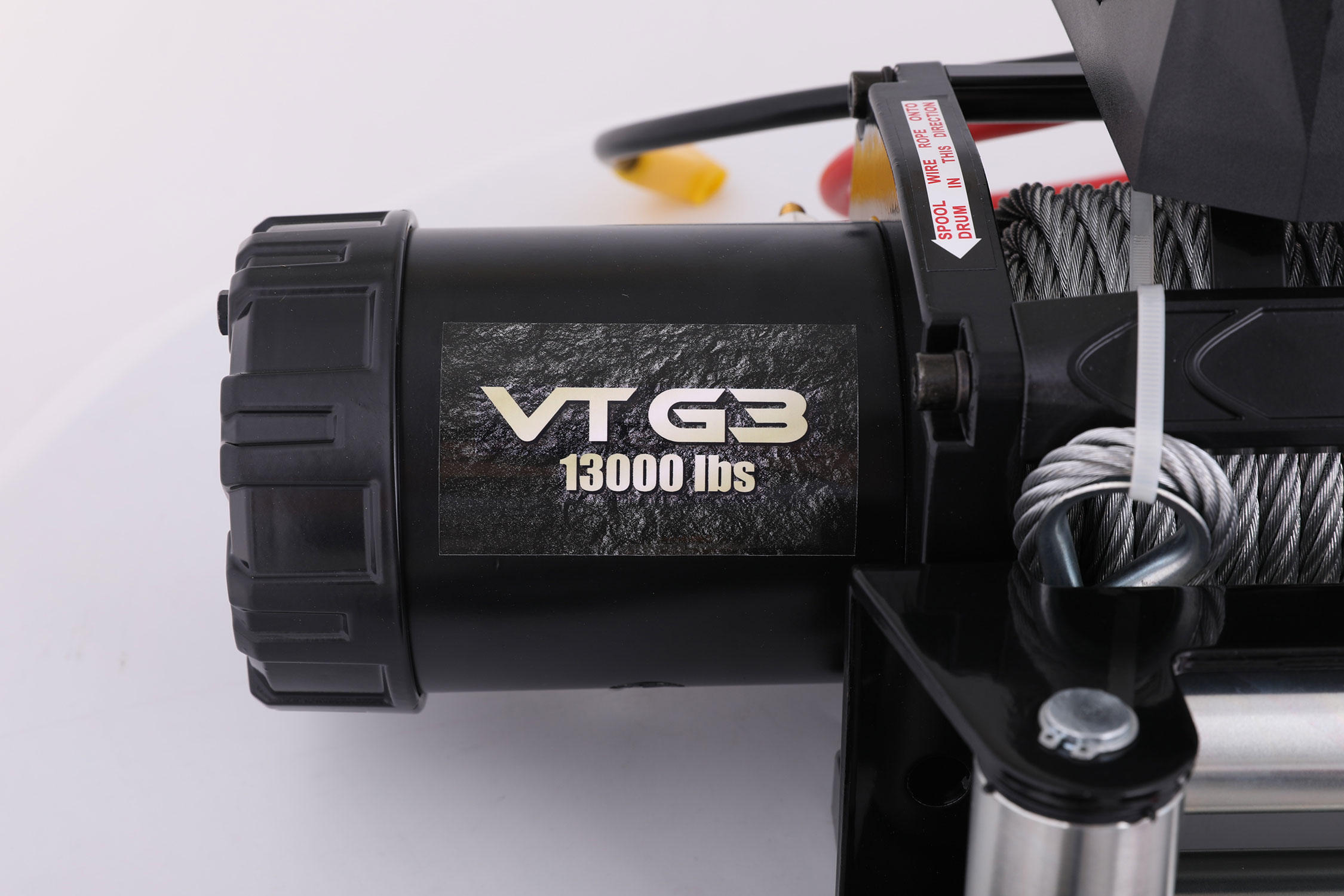

VTG3 is equipped with a high-horsepower motor, which is waterproof and has high concentricity, providing sufficient power for the winch. The brakes are very reliable, quiet and generate very little heat to the drum for maximum protection of the synthetic rope. The gears are made of high-precision 40Cr steel to meet the extreme traction capacity in different situations. In addition, there are useful indicator lights on the control box, winch
IN is indicated by green. Winch OUT is indicated by a red light. Paired with a durable high-current electromagnet and pure copper battery wire, and a waterproof rubber remote control, the VTG3 can do almost all the off-road and towing jobs for you.
Product Description
Rated pulling force: 13000LB (5909kg) single wire; Motor: 6.0hp/4.5kw 12V, series wound motor; Gear train: 3-stage planetary; Gear reduction ratio: 216:1; Clutch: Turn 180°; Cable: (φ9.5mm× 26m); Drum size: φ2.51"×8.82"(φ64mm×224mm); Dimensions: (L×W×H)21.1"×6.4"×6.7"(535x162x170mm); Gross weight: 62.3lbs(28.3kg); Duty cycle: intermittent; fairlead: aluminum fairlead; packing: 1pc/box, 565X210X345mm; mounting bolt pattern: 10"x4.5"(254mm×114.3mm); remote control: included;
Specification
thing | value |
Warranty | 1 year |
Custom support | OEM production |
birthplace | China |
| zhejiang |
brand | Target |
energy source | electrical |
application | ATV/UTV |
capacity | 13000 lbs |
product name | 13,000 lb electric winch |
usage | 4x4 12v electric winch |
weight | 30KG |
MOQ | 1 set |
strength | 12/24V DC |
Key words | electric winch |
control method | wireless remote |
fairlead | Aluminum fairlead |
