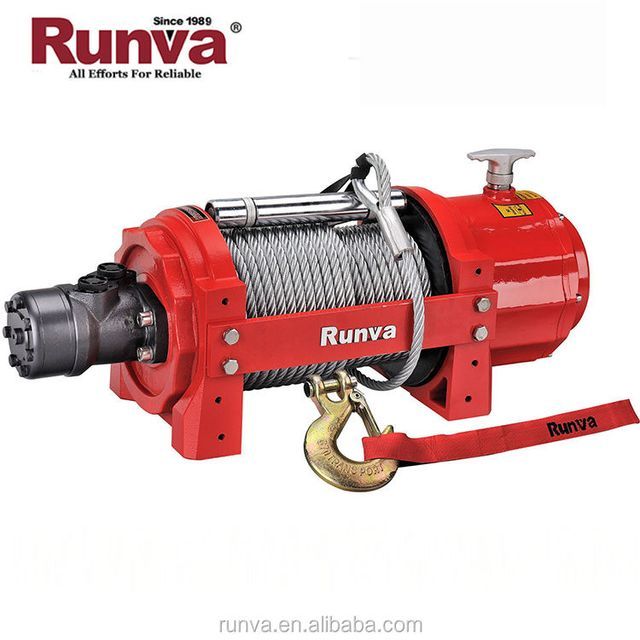

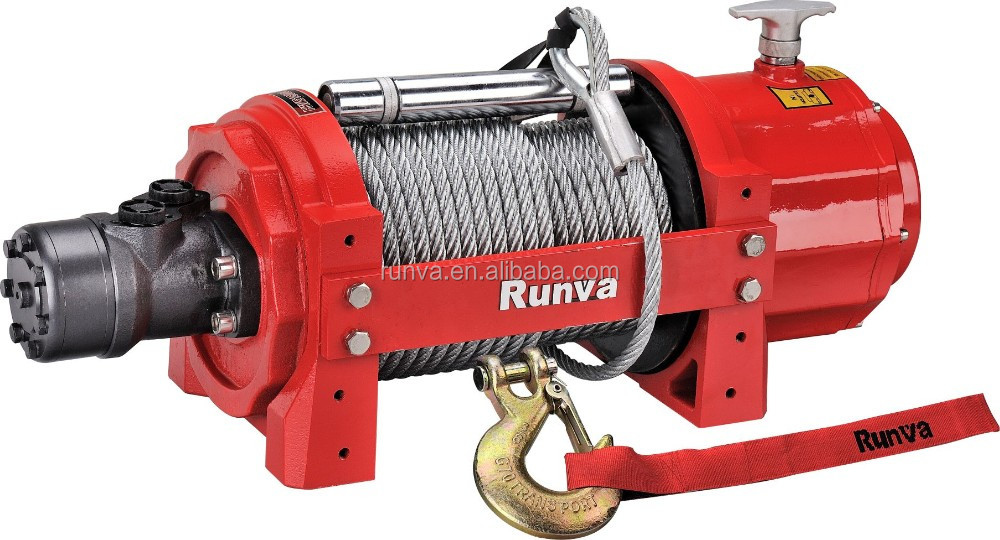

Runva Industrial Hydraulic High Speed ​​Winch

Rated Line Pull

15000 lbs (6804 kg)

Motor displacement

160ml/rev

oil flow

5~60L/min

pressure

17.5Mpa

gear reduction ratio

17.2:1

Cable (diameter x length)

Ø15/32"×86.9' (Ø12mm×26.5m)

Drum size (diameter x length)

Ø5.0"×10.5" (Ø127mm×266mm)

Mounting bolt pattern

12.0"×4.5" (303.5mm×114.3mm) ;

14.5"×6.7" (368.5mm×171.2mm) 8-M12

Dimensions

(length x width x height)

28.5"×12.3"×12.0"

723mm×312mm×304mm

net weight

lb (kg)

227 lbs (103 kg)

Pull lbs (kgs)

pressure

MPa (pounds per square inch)

flow

g/min (l/min)

Linear speedft/min(m/min)

0

2.0(290)

1.3(5)

1.4(0.7)

4000(1814)

4.6 (667)

2.6(10)

4.3(1.3)

6000(2722)

6.9(1000)

5.3(20)

8.9(2.7)

8000(3629)

9.2 (1334)

7.9 (30)

13.1(4.0)

10000(4536)

11.5 (1667)

10.6(40)

17.4(5.3)

12000(5443)

14.0 (2030)

13.2(50)

22.0(6.7)

15000(6810)

17.5 (2537)

15.6 (60)

26.2(8.0)

Layers of wire rope

Rated Line Pull

lb (kg)

drum total rope

feet (meters)

1

15000(6804)

29.5(9.0)

2

12791(5807)

65.6(20.0)

3

11150 (5062)

86.9 (26.5)
