Origin: | Guangdong, China | Warranty: | 1 year |
Showroom location: | not any | Video shipment inspection: | if |
Dimensions (L*W*H): | 1 | usage: | Melting furnace |
Applicable industries: | manufacturing plant | Certification: | CE certification |
Packaging Details: | export package | Health status: | new |
type: | induction furnace | Main selling points: | high productivity |
Power (kW): | 80 | Voltage: | 380v |
weight: | 1000 | brand: | brass machine |
Core component warranty: | 1 year | Local service location: | not any |
payment terms: | L/C, T/T | Marketing Type: | 2019 Hot Products |
Core components: | PLC, bearing, motor | Mechanical test report: | not available |
After warranty service: | online support | Weight (ton): | 12 tons |
Supply capacity: | 10 sets per year | port: | Guangzhou |

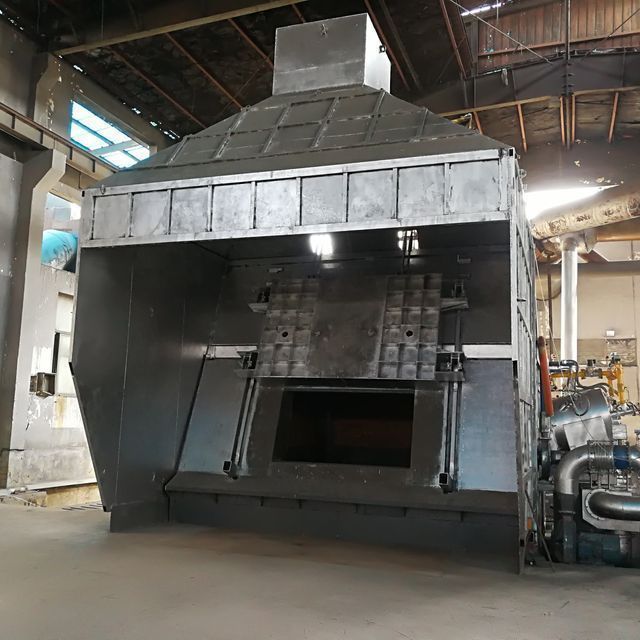

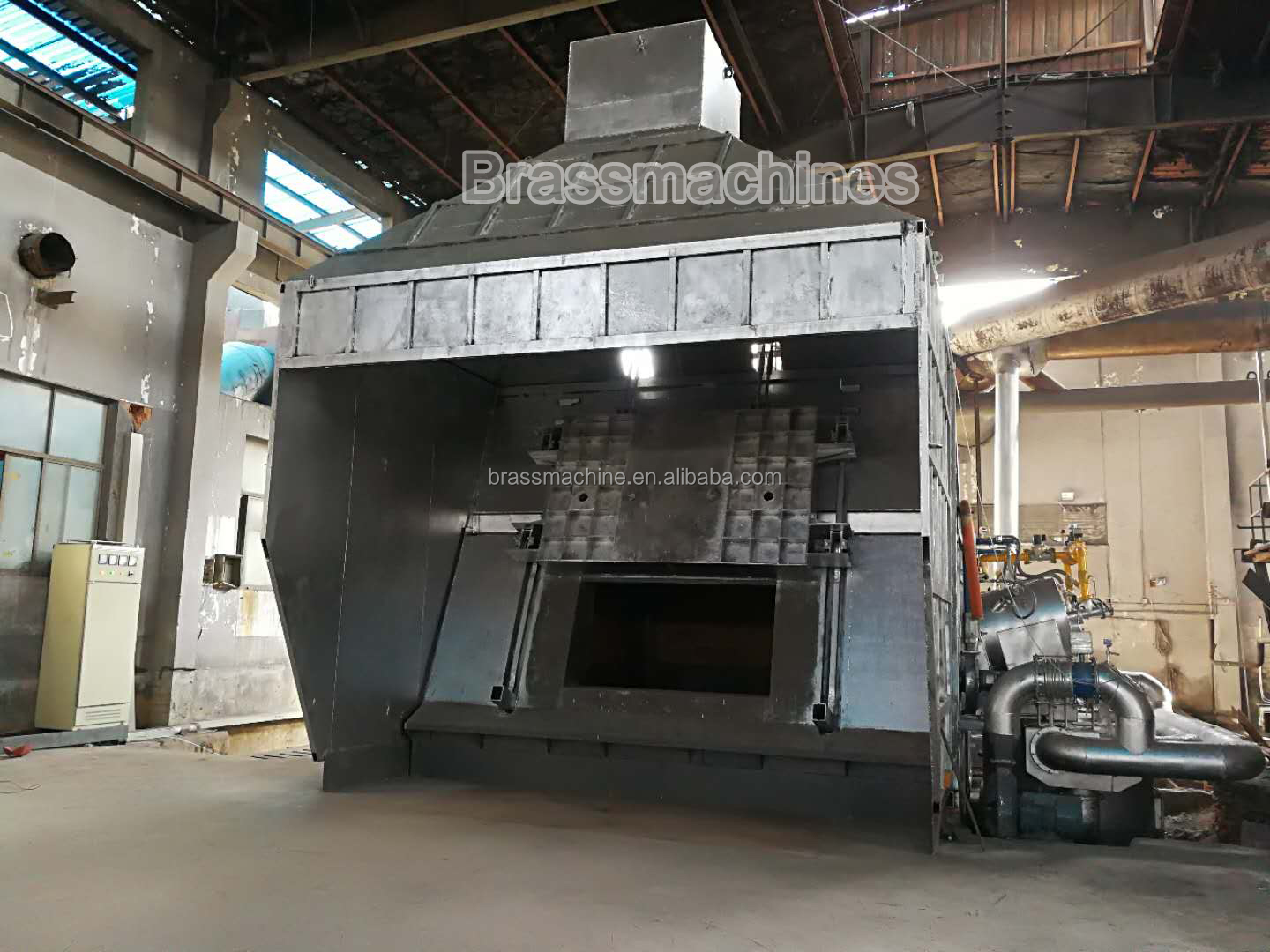

High Speed Aluminum Recycling Scrap Melting Furnace
product information |
The main technical parameters
No |
thing |
15T rectangular melting furnace |
1 |
maximum. volume |
15T +10% |
2 |
Rated pouring volume of molten aluminum |
15 tons |
3 |
Melting pool depth (to furnace door) |
650+100mm |
4 |
How the furnace door works |
Chain drive, electric lifting, self-weight compression |
5 |
Furnace door size |
2000x1000mm |
6 |
Furnace rated working temperature |
≤1100℃ |
7 |
Furnace wall temperature rises |
≤65℃ |
8 |
burner type |
Regenerative CT300+300 |
9 |
Furnace natural gas pressure |
0.008-0.02Mpa adjustable |
10 |
maximum. Air consumption |
350Nm3/hour |
11 |
Melting rate gas consumption/cubic/ton (more than 95% of the raw material is scrap aluminum) |
Below 65 cubic meters |
12 |
Flue gas temperature |
≤200℃ (melting) |
Furnace lining and casing:
part |
Material specification |
15T rectangular melting furnace |
Thickness (mm) |
||
Furnace wall (below molten pool and slag line) |
Non-stick aluminum castable (BZL-86) |
250 |
Impermeable castable (Ketai NN) |
102 |
|
Lightweight insulation brick (NG-0.8) |
180 |
|
Aluminum silicate fiber cotton (1260°C) |
50 |
|
Steel plate (Q-235) |
8 |
|
Total thickness |
580 |
|
Furnace wall (melt pool, above slag line) |
First grade clay brick (LZ-55) |
250 |
Lightweight insulation brick (NG-0.8) |
280 |
|
Aluminum silicate fiber cotton (1260°C) |
50 |
|
Steel plate (Q-235) |
8 |
|
Total thickness |
580 |
|
Slope of furnace bottom and furnace door |
Non-stick aluminum castable (BZL-86) |
250 |
Impermeable castable (Ketai NN) |
99 |
|
Lightweight insulation brick (NG-0.8) |
201 |
|
Steel plate (Q-235) |
10 |
|
Total thickness |
550 |
|
Stove top (flat top) |
Hanging brick + high strength low cement castable (KSTJ-70) |
200 |
Insulation cotton |
40 |
|
Impervious castable (Ketai QJ-1.0) |
100 |
|
Total thickness |
390 |
|
Furnace door |
High strength low cement castable (KSTJ-70) |
200 |
Aluminum silicate fiber cotton |
80 |
|
Steel plate (Q-235) |
10 |
|
Strengthen the framework |
110 |
|
Total thickness |
550 |
|
Stove frame |
16* double channel steel and 10mm steel plate |
|
Furnace frame |
16* double channel steel and 8mm steel plate |
|
stove top frame |
#25 I-beam and #10 I-beam for tic-tac box |

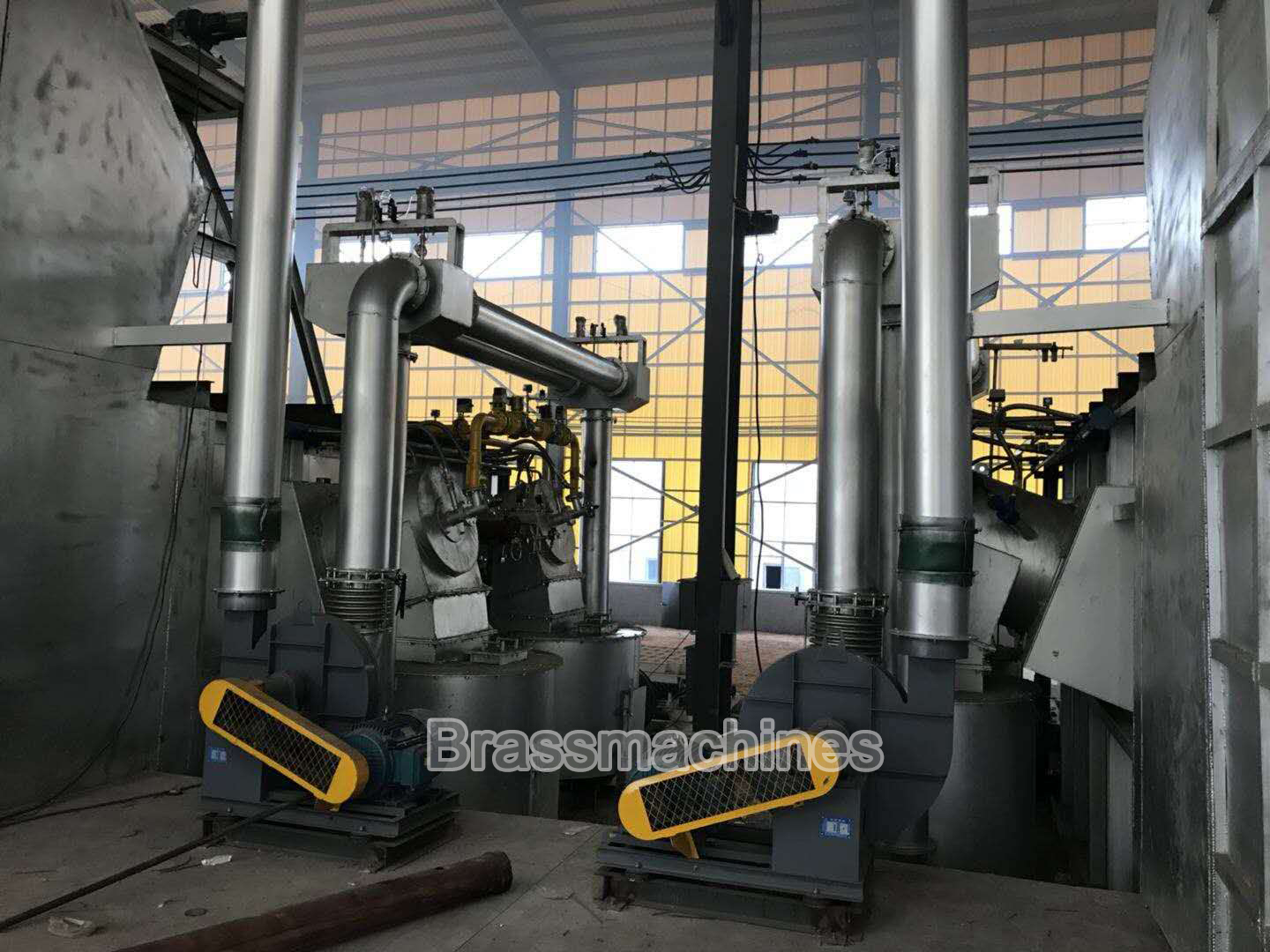

Combustion System
The furnace group adopts a regenerative combustion system, which is an advanced technology in the field of low nitrogen oxide emissions and high-efficiency combustion. The combustion system is fully automatic by PLC, with perfect interlock and alarm functions. The main flame of the aluminum melting furnace adopts manual control of large and small fires, which has good energy saving effect and realizes intelligent management.
Design transition period |
10-120s setting |
Air preheat temperature |
600~800℃ |
The maximum allowable temperature of flue gas discharge |
250°C |
Normal working flue gas discharge temperature |
100~200℃ |
heat storage medium |
ø25mm high alumina ball, alumina content ≥92% |
Heat storage capacity per unit medium |
1000-1200kg |
Furnace door and opening and closing system
1) Use a suitable size furnace door: it is convenient for forklift loading and slag loading. It also avoids overheating of the furnace body caused by excessive heat dissipation when the furnace door is too large and when it is opened.
2) Lifting: equipped with sprockets, chains, and counterweight cylinders. The counterweight barrel is lifted and lowered electrically, and the operation is simple and reliable.
3) Compaction: Self-weight compaction is used to save travel switches and improve the reliability of the furnace door.
4) The counterweight bucket of the furnace door is equipped with a guide groove to ensure that the counterweight bucket does not shake when the furnace door is raised or lowered.
5) The lower part of the furnace door is equipped with a slag guide plate, so that the aluminum slag can enter the slag hopper smoothly, and prevent the high-temperature aluminum slag from deforming the steel structure of the furnace body.
product display |
