Best Selling Electric Arc Furnace Graphite Electrode for Electric Arc Furnace 5 Ton Refractory Electric Arc Furnace

Supplier: Luoyang Monte Intelligent Technology Co., Ltd.
Region: Henan, China
Contact: Ms Helen Xu
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Power (kW):	3200KVA
Marketing type:	2020 new products	Mechanical test report:	if
Core components:	PLC, engine, pump	Warranty:	1 year
heating method:	IGBT sensing	Place of origin:	Henan, China
Voltage:	380V	Furnace type:	Electric heaters
Melting capacity:	1kg-500kg	Applicable industries:	Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Retail, Construction Engineering, Energy and Mining, Others
Weight (tons):	2 tons	Health status:	new
product name:	Induction metal melting furnace	Dimensions (lengthwidthheight):	3200*1600mm
application:	molten metal	Supply capacity:	10 sets per month
port:	Shanghai	Advantage:	Simple operation and high efficiency
brand:	Mongolian	Main selling points:	competitive price
Showroom location:	not any	Heating element:	Coil
Packaging details:	1. Plywood or wooden box 2. Tape to prevent scratches 3. Plastic film to hold the machine together 4. Foam board and foam blocks to prevent shaking 5. Other customer requirements	Video outbound inspection:	if
Key words:	melting furnace	working principle:	Electromagnetic induction melting
usage:	heat treatment furnace	Core component warranty:	1 year
type:	Induction furnace	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Melting material:	nonferrous metals

Product Description

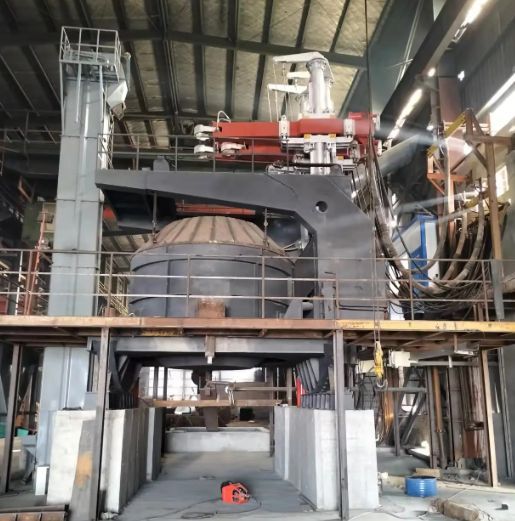

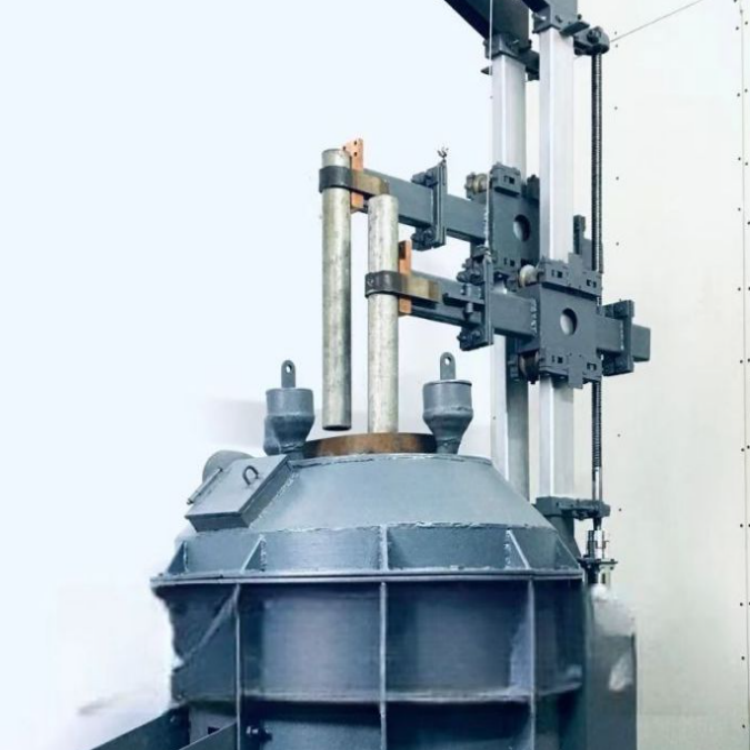

EAF (electric arc furnace) is an electric furnace that uses electrode arcs to generate high temperatures to smelt ores and metals. When gas discharge forms an arc, the energy is very concentrated, and the temperature in the arc zone is above 3000°C. For melting metal, electric arc furnaces are more flexible than other steelmaking furnaces. It can effectively remove impurities such as sulfur and phosphorus. The furnace temperature is easy to control and the equipment occupies a small area.

Model	Furnace shell inner diameter (mm)	Rated/maximum capacity(t)	transformer			Reactor capacity (KVar)	Electrode dividing circle diameter (mm)	Electrode diameter (mm)
Model	Furnace shell inner diameter (mm)	Rated/maximum capacity(t)				Reactor capacity (KVar)	Electrode dividing circle diameter (mm)	Electrode diameter (mm)	Rated	secondary voltage
MTAR-1250	2600	3~8	1250	210~104	200	650	260
MTAR-2200	3500	5~12 years old	2200	210~104	250	750	300
MTAR-3200	3600	10th~16th	3200	221~110	320	850	300
MTAR-3500	3700	15~20	5000	240~121	360	1000	350
MTAR-3700	3800	20~25	6300	260~139	360	1000	350
MTAR-4000	4000	25~30	9000	340~195	380	1050	350
MTAR-4200	4200	30~32	12500	340~195	380	1050	400

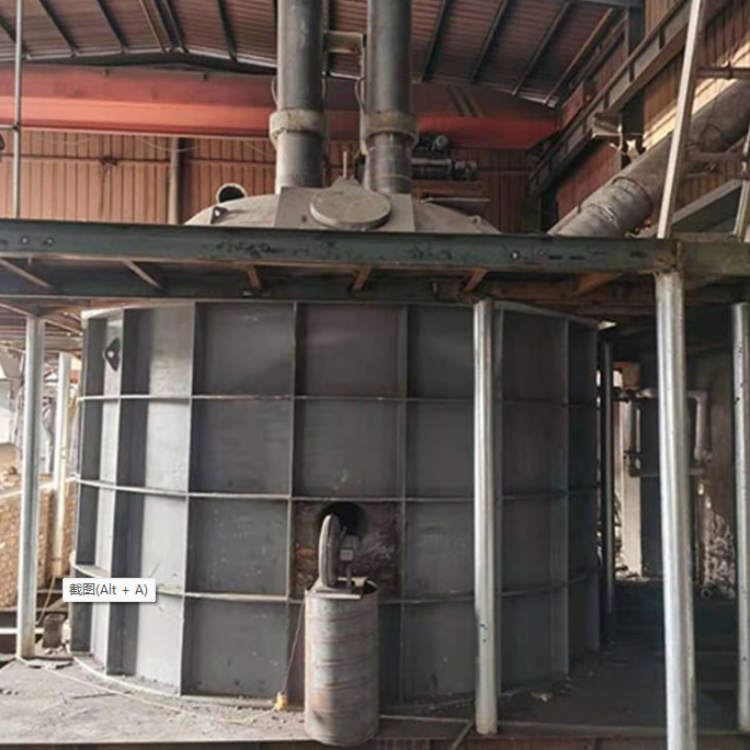

Chrome ore magnesite smeltingBauxite smelting

Product parameters

High performance intelligent digital IGBT power parameters
Specification	MT2200	MT2260	MT2300	MT2500
Power (kW)	2000 kilowatts	2600 kilowatts	3000 kilowatts	5000 kilowatts
Input voltage(V)	Three-phase voltage 380V	Three-phase voltage 380V	Three-phase voltage 380V	Three-phase voltage 380V
Output frequency(Hz)	50~8000	50~8000	50~8000	50~8000
Input capacity (KVA)	130	260	520	1000
Refrigeration capacity (L/min)	40	60	80	100
Overall dimensions (mm)	4800X800X2000			9600X800X2000
Weight (kg)	6000	8000	10000	12000

High performance intelligent digital IGBT power parameters
Specification	MT140	MT160	MT180	MT1100
Power (kW)	400kW	600 kilowatts	800kW	1000 kilowatts
Input voltage(V)	Three-phase voltage 380V	Three-phase voltage 380V	Three-phase voltage 380V	Three-phase voltage 380V
Output frequency(Hz)	1~20 pieces	1~20 pieces	1~20 pieces	1~20 pieces
Input capacity (KVA)	130	195	260	330
Refrigeration capacity (L/min)	40	50	60	70
Overall dimensions (mm)	1800X700X2000			2500X700X2000
Weight (kg)	1400	1400	1600	1600

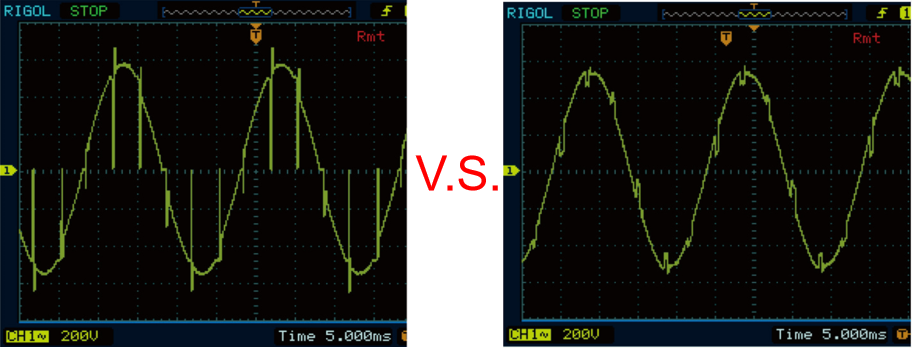

product comparison

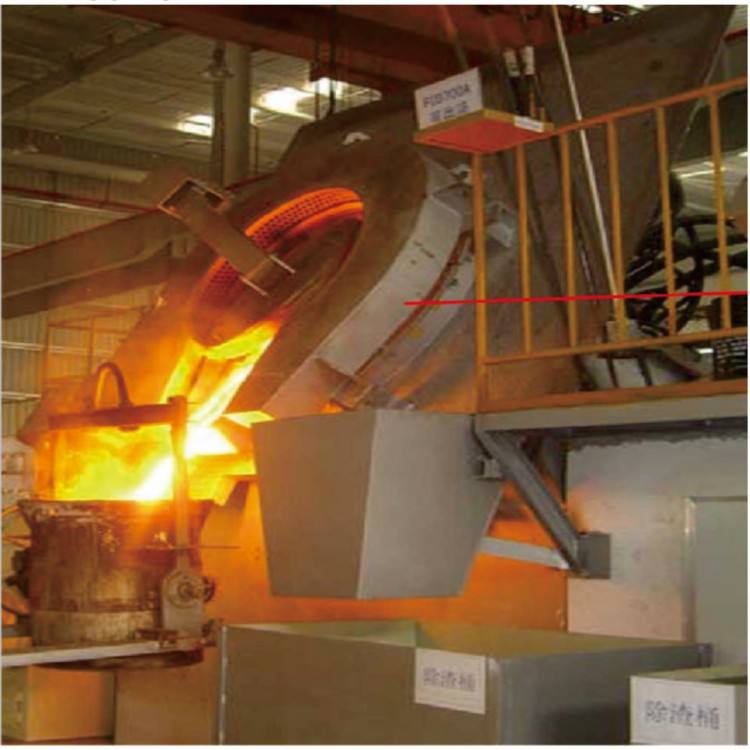

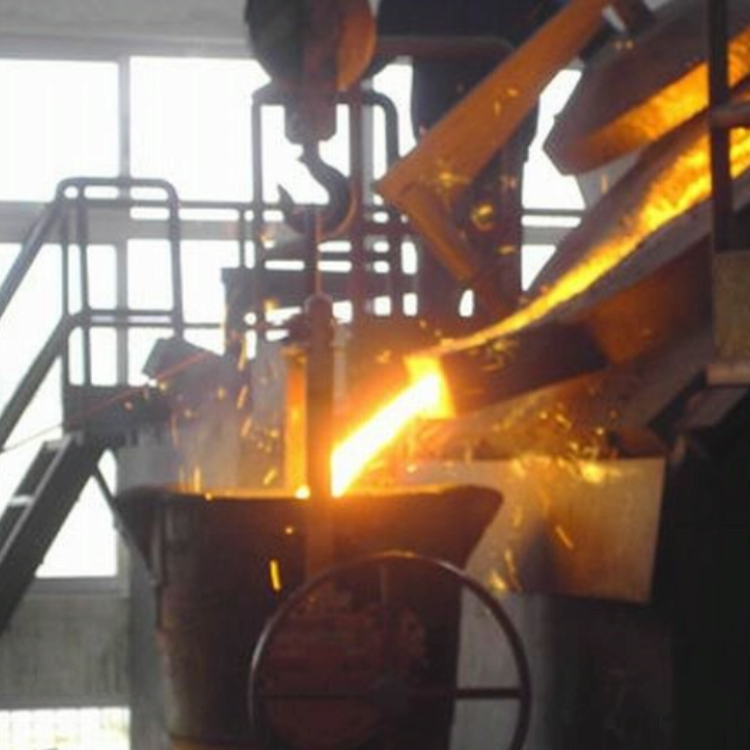

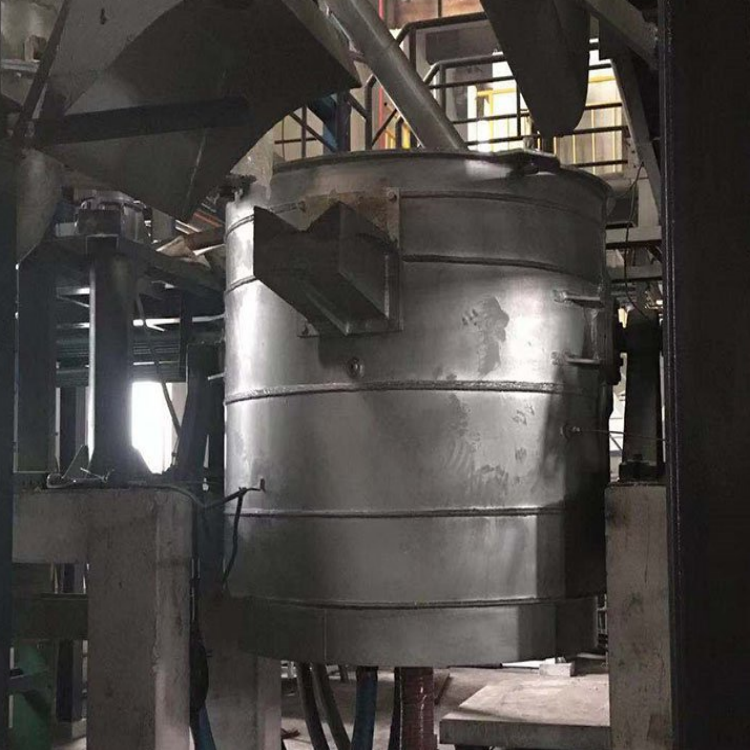

Device application
