15kV 24kV cabinet type SF6 load break switch interrupter

Product details
Rated current:630AOrigin:China
type:air insulationpayment terms:L/C, T/T
standard:IEC62271Voltage:24kV
Breaking capacity:20kAProtection class:IP4X

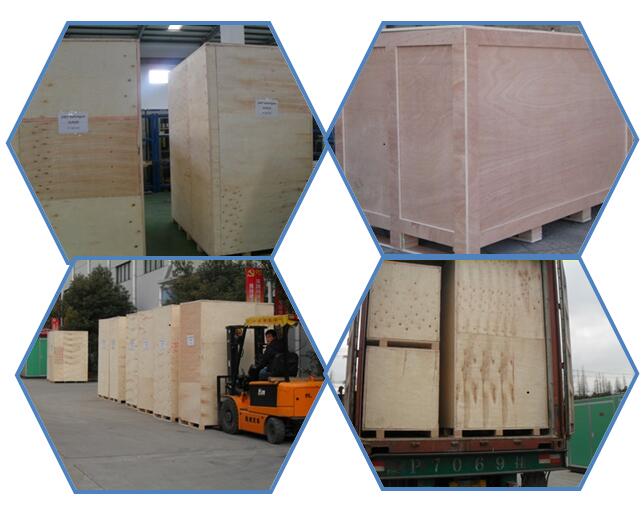

brand:hydrogen nitrogenPackaging Details:Seaworthy packing/wooden case
Supply capacity:200 units per monthfrequency:50/60 Hz
Transformer protection:fusemodel:Safety switch
insulation:125kVInstall:indoor
port:Shanghai

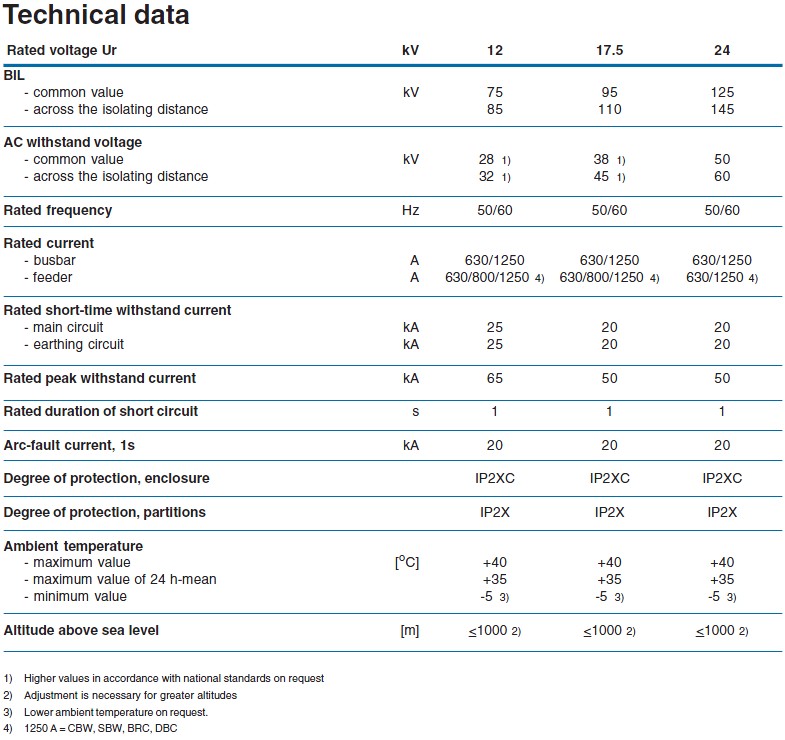

24kV Air Insulated Switchgear














standard



IEC 62271-100High voltage AC circuit breaker

IEC 62271-105: AC switch fuse combination

IEC 62271-102: AC isolating switch and grounding switch

IEC 62271-200AC metal-enclosed switchgear and control equipment with rated voltage above 1kV and below 52kV

IEC 62271-103High voltage switches with rated voltages above 1 kV and below 52 kV

IEC 60694:General specification for high voltage switchgear and controlgear standards

IEC 60265-1Switches with rated voltages above 1 kV and below 52 kV

IEC 60529:Degree of protection provided by the enclosure (IP code)



Service environment:
a) Temperature: Maximum temperature: +40°C; Minimum temperature: -25°C

b) Humidity: monthly average humidity 95%; daily average humidity 90%.

c) Altitude: Maximum installation altitude: 2500m

d) The surrounding air has no obvious corrosive, flammable gas, steam and other pollution.

e) No frequent violent shaking









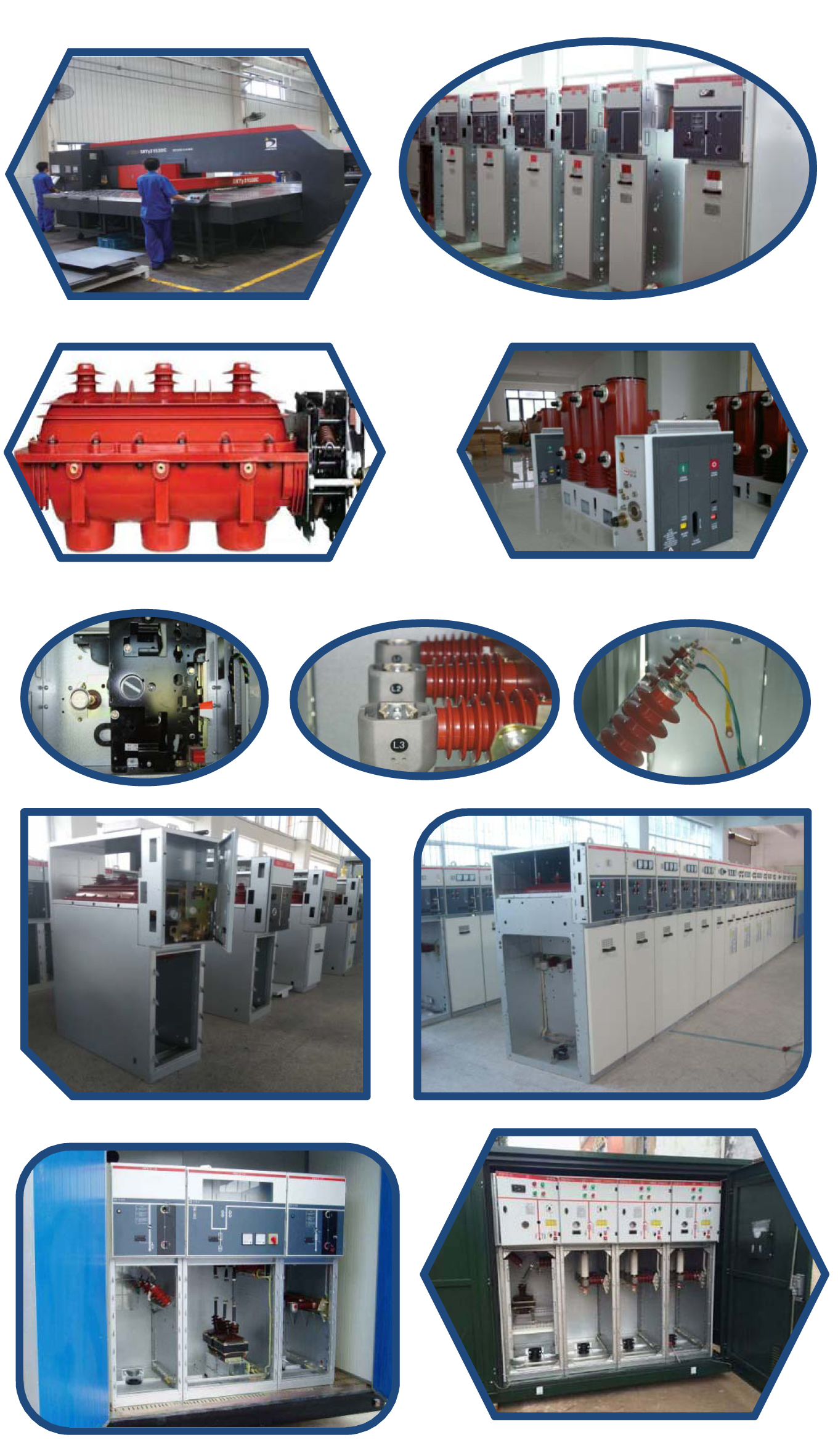

SafeSwitch is an air-insulated (AIS), metal-enclosed switchgear. Suitable for distribution automation and compact also scalable metal-enclosed switchgear. It has the characteristics of simple structure, flexible operation, reliable interlocking, convenient installation, etc., and can provide satisfactory technical solutions for different applications and users.



Utilizing the latest sensor technology and protective relays, coupled with advanced technology and flexible assembly options, SafeSwitch is well suited to meet changing market demands.



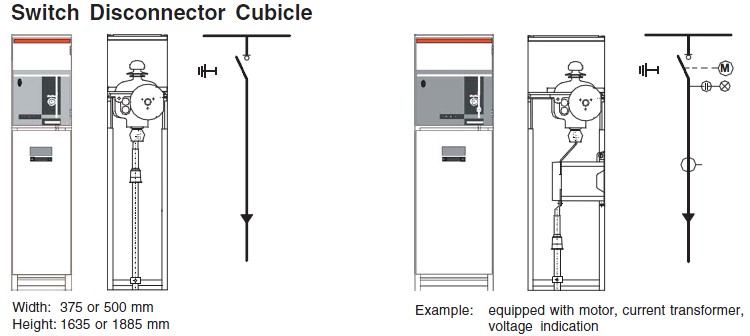

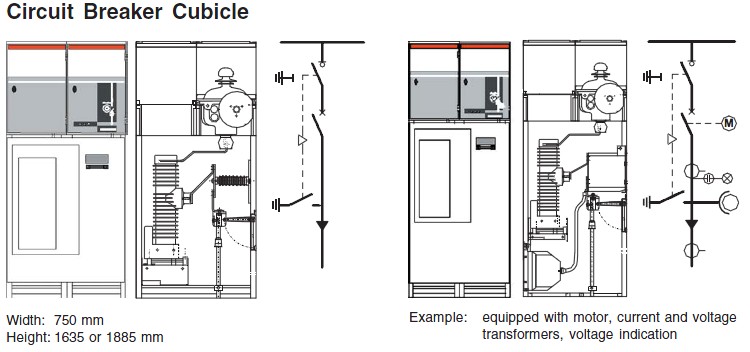

SafeSwitch can be equipped with SF6 load switch; it can also be assembled with vacuum circuit breaker according to user needs. The operation method can be manual or motor driven.

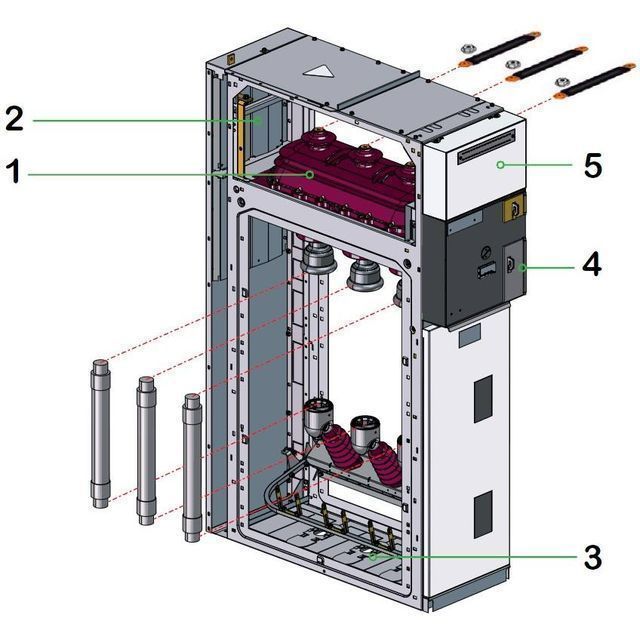

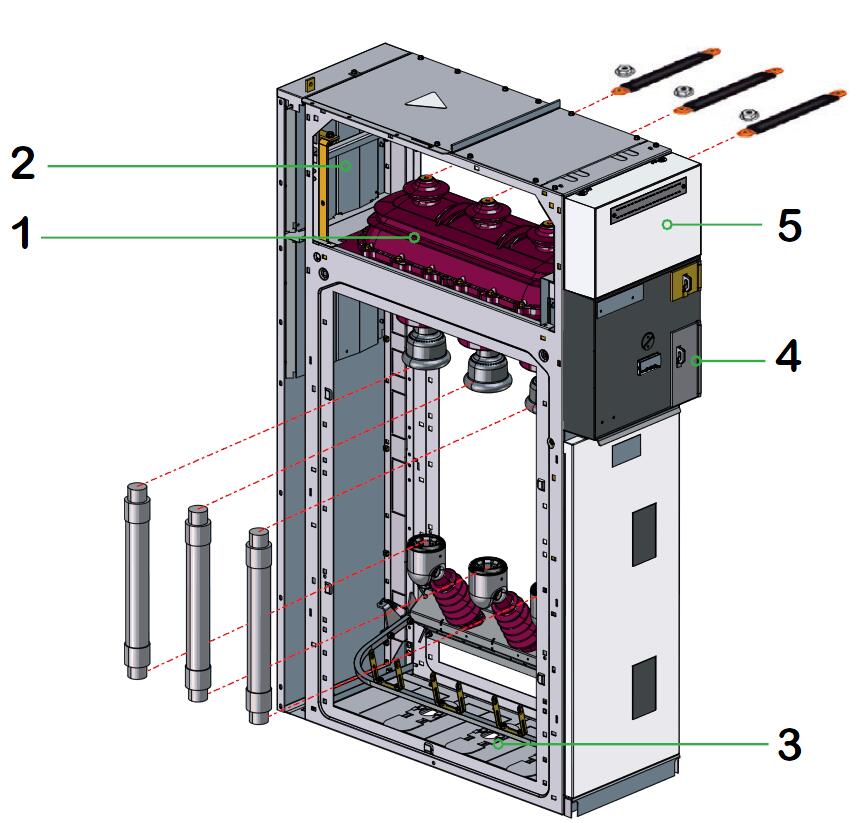

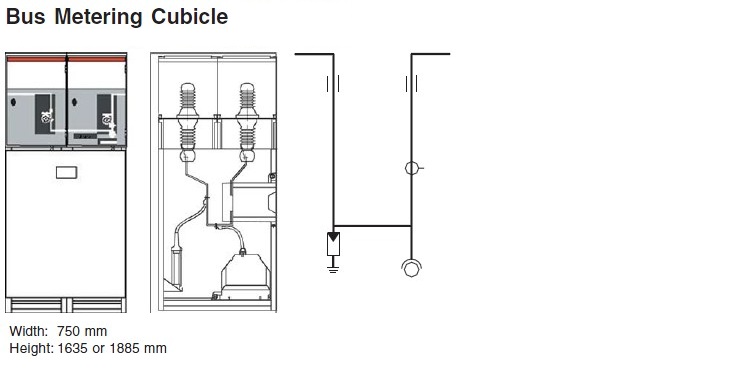

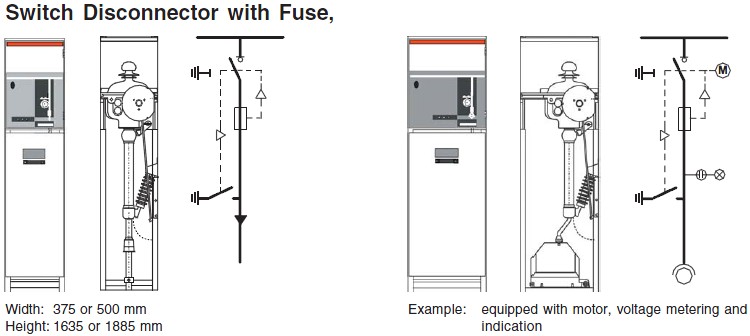

1 load switch: The load switch and earthing switch are in an SF6-filled enclosure and meet the "sealed pressure system" requirements.



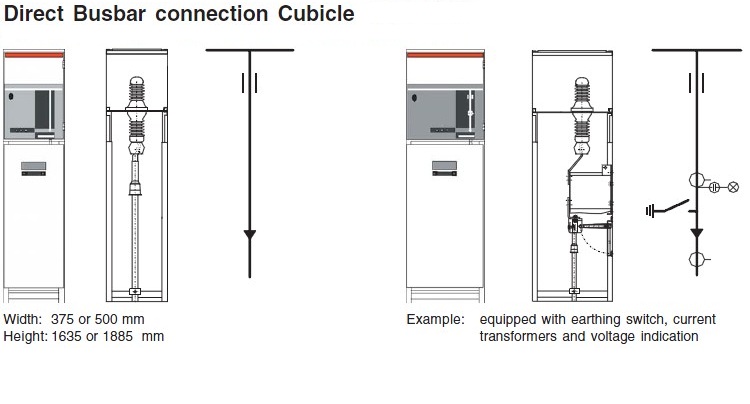

2 busbars: all on the same level, thus enabling future switchboard

Expansion and connection of existing equipment.



3 connections: Accessible from the front, connected to the lower load switch and earthing switch terminals or the lower fuse holder. The compartment is also equipped with an earthing switch downstream of the medium voltage fuse of the protective device.



4 Operating mechanism: Contains elements for operating switch-disconnectors and earthing switches and activating the corresponding indications

(Positive break).



5 low voltage: Install terminal box (if motor option is installed), low voltage fuses and compact relay devices.



If more space is needed, an extra enclosure can be added on top of the compartment.
