High quality hot sale sf6 pressure gauge for electrical equipment

Product details
Measuring range:0-2bar (absolute pressure)color:other
brand:Liyangplace of origin; place of origin:Zhejiang, China
model:LY1port:Shanghai/Ningbo
Rated frequency:50 Hzpayment terms:L/C, T/T, Western Union
application:GIS/RMU/SF6 LBSSupply capacity:25000 pieces per week
Working temperature:-30°C to +60°CPackaging Details:Standard export wooden box or carton according to customer requirements
Liyonde



product display

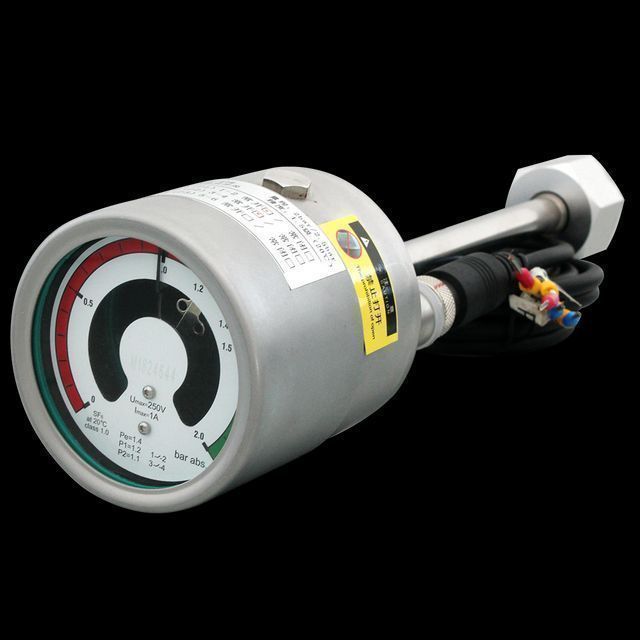

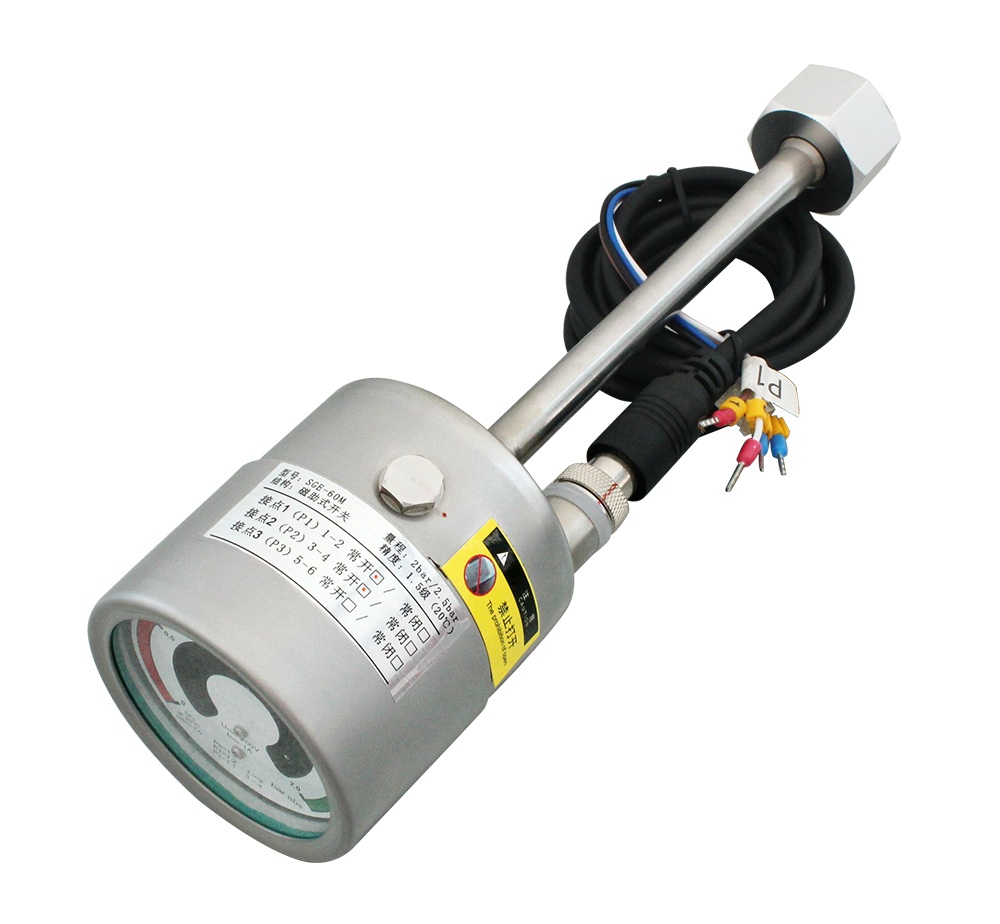

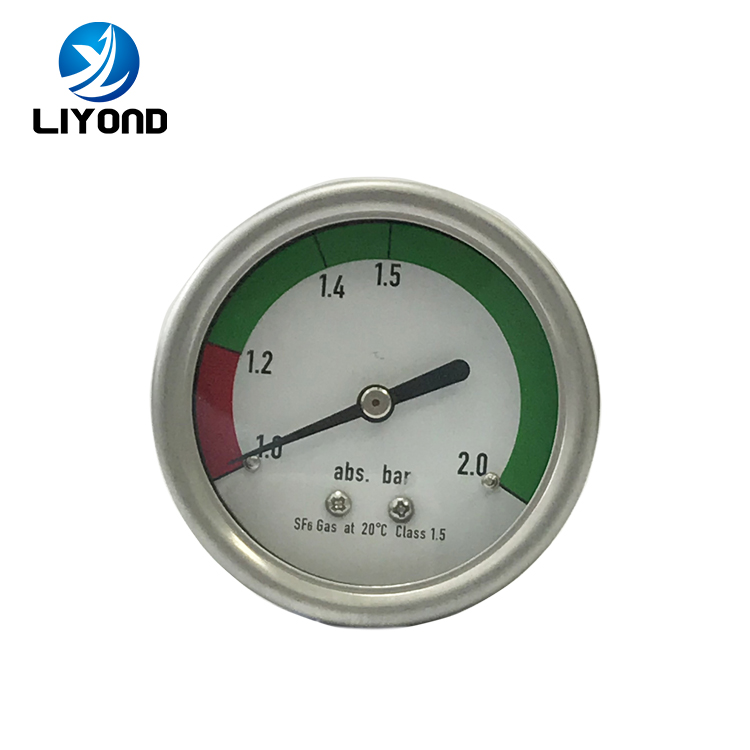

SF6 pressure gauge for SF6 electrical equipment SF6 density monitor for GIS



Overview:
It is used to detect the density of SF6 gas in a closed container, widely used in medium voltage switchgear and GIS, and can be used in harsh outdoor conditions.
Small size, special customized installation interface, convenient and reliable. The pressure interface can be customized according to customer requirements. Multiple switch action contacts can be provided according to user requirements.


Specification:

1. Size: 63mm

2. Range: -0.1-0.1Bar (can be customized)
3. Accuracy: at 20°C: 1.0 or 1.6; -20°C to +60°C: 2.5; -30°C to -20°C: 3.0
4. Protection level: IP67
5. Connection method: bottom or back
6. Leakage rate: <1×10-9 Pa·m 3 /s
7. Cable size: recommended 1.5mm²; maximum 2.5mm²
8. Insulation properties
Insulation resistance: >100MΩ (500V DC)
Withstanding voltage: AV2000V, 50/60 Hz 1 min (to case)
9. Contact rating: 30W/50VA, max 1A
220VDC/380V 50/60Hz max
10. Window: safety glass

feature:

1. AISI304 sealed stainless steel case

2. AISI316 parts in contact with gas

3. Temperature compensated Bourdon tube pressure gauge

4. Suitable for indoor or outdoor installation

5. The indication value and signal output have nothing to do with the installation height



application:

1. Gas insulated switchgear (GIS)

2. Gas insulated wire (GIL)

3. SF6 circuit breaker

4. Gas insulated bus system
