Medium voltage vacuum circuit breaker for indoor 10kV 12kV MV high voltage withdrawable switchgear

Supplier: Yueqing Liyond Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr GuoQi Liu
Price: $199.00 /set
Min. Order: 1 set

Click here to contact

Product details

Number of poles:	3	Type 1:	Front installation
Packaging Details:	standard package	Type 2:	embedded rod
model:	VSG-12	Install:	indoor
Types of:	vacuum	Rated frequency:	50 Hz
Supply capacity:	Monthly production of 10,000 vacuum circuit breakers	product name:	vacuum circuit breaker
Rated current:	630A / 1250A	payment terms:	L/C, Western Union, D/P, D/A, T/T
Package preview:		Rated voltage:	12kV
place of origin; place of origin:	Zhejiang, China	port:	Ningbo/Shanghai
brand:	Liyong	Rated current:	630A
Pole distance:	210mm	BCD curve:	C
Breaking capacity:	Excellent

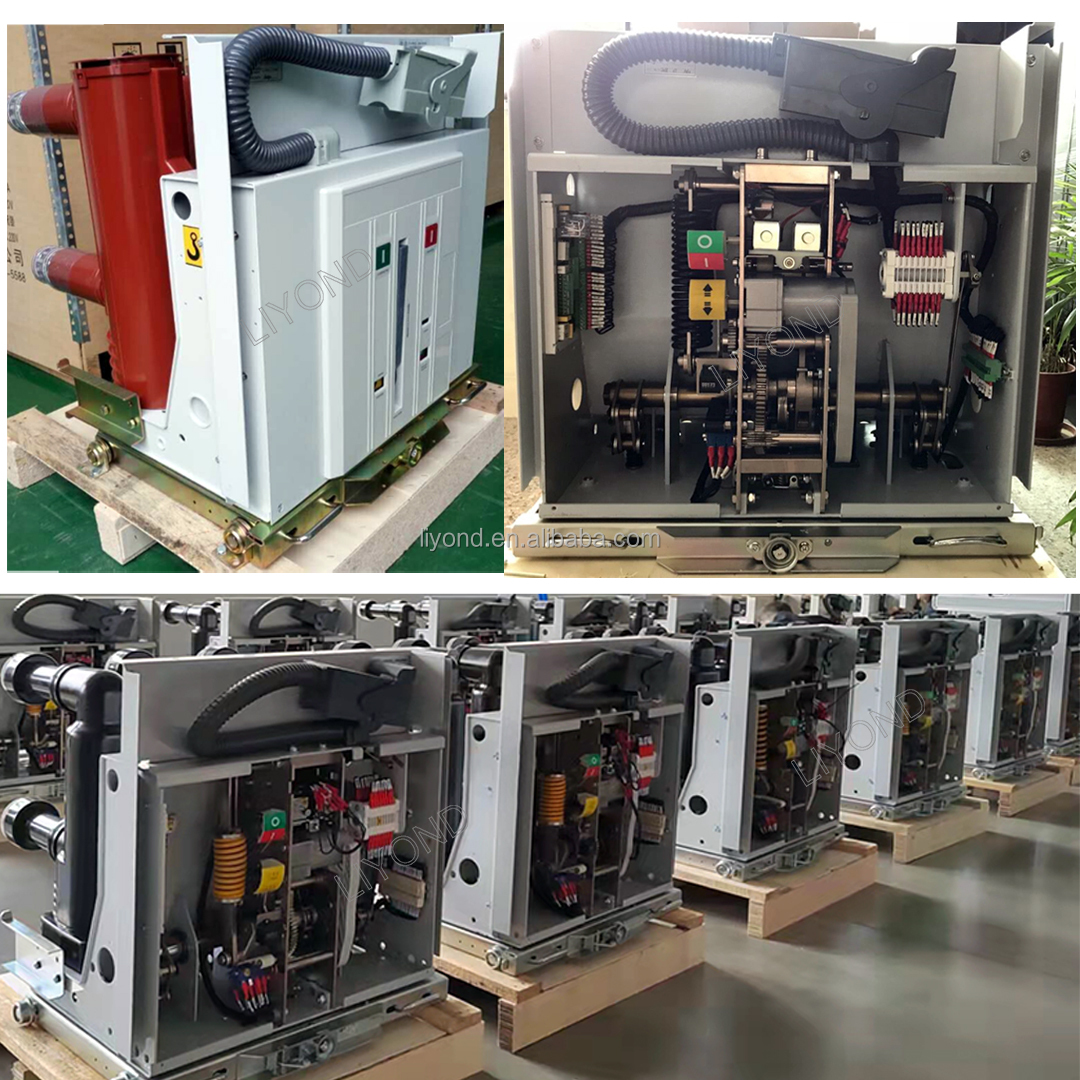

product display

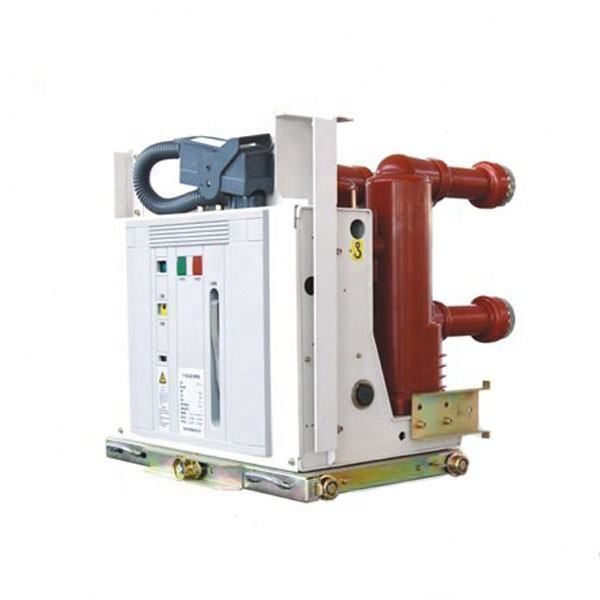

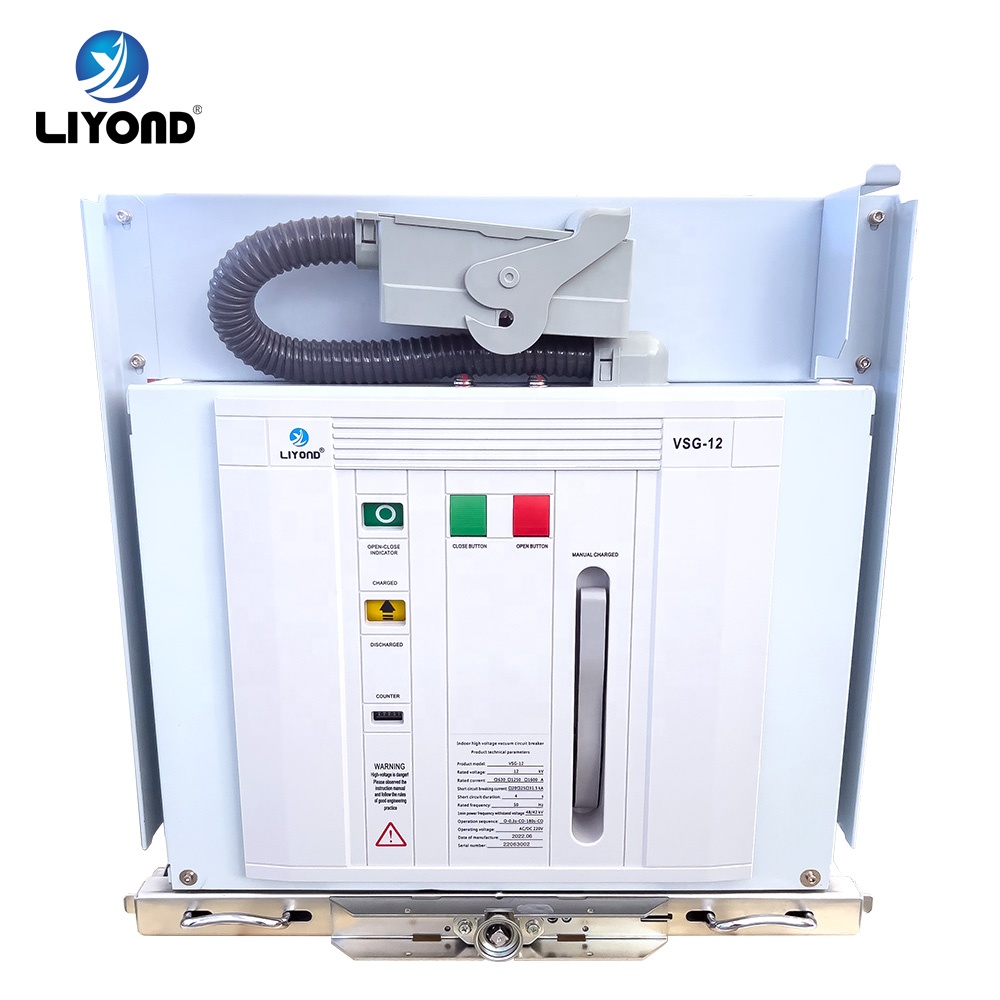

Medium voltage vacuum circuit breaker for indoor 10kV 12kV MV high voltage withdrawable switchgear

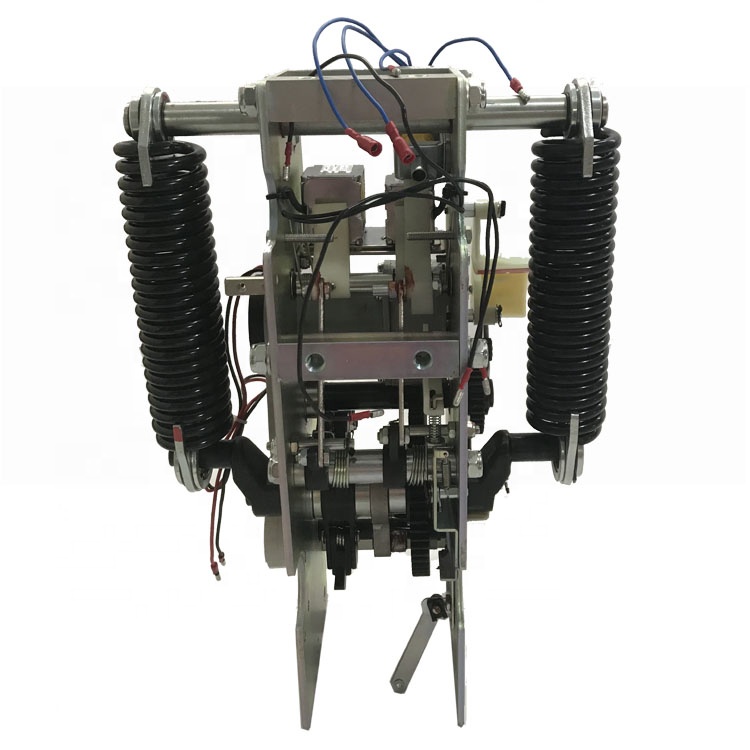

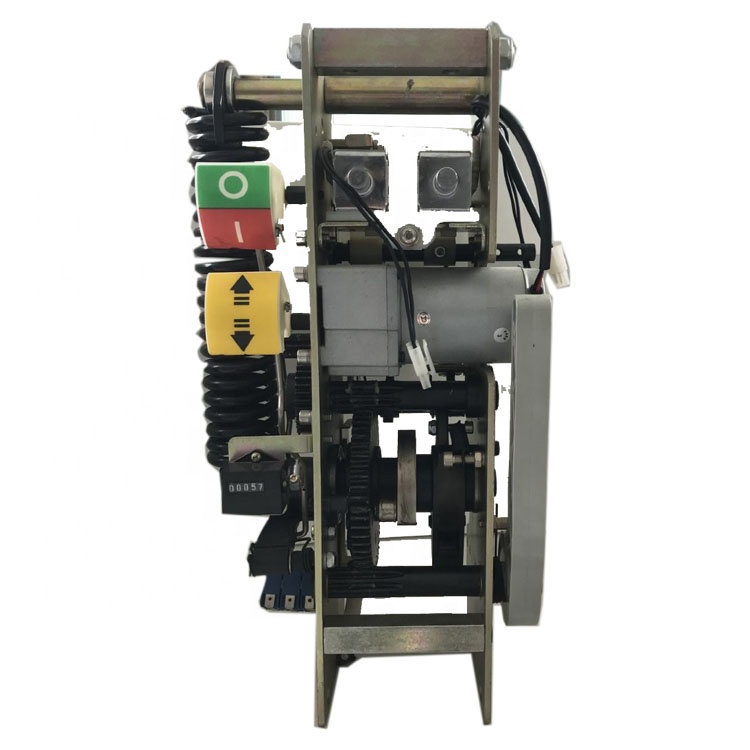

VSG vacuum circuit breaker for indoor switchgear is suitable for 12kv power system, as a protection and control unit for power equipment, industrial and mining enterprises, and can be used for breaking various loads and occasions where frequent operations and repeated breaking short-circuit current. . This product adopts a new type of circuit breaker, the VSG part can adopt the pre-embedded pole of the international brand, the vacuum interrupter and the main circuit part are fixed and sealed as a whole, and the interrupter is protected from collision, dust and gel images, and the ability is strong Adapt to the environment and greatly reduce operation and maintenance costs. It has truly realized the operation mechanism of part maintenance-free and low-maintenance of the product; the design of the operating mechanism and the circuit breaker body has passed the type test, and the mechanical and electrical life of E2 level and M2 level.

parameter

parameter	unit	data
Control circuit operating voltage	V	AC, DC 220/110
Closing and opening solenoid power supply	W	370
Live motor power	W	70 (100 for 40kA)
Turns electromagnetic current off and on	A sort of	1.1(220v)/3.3(110v)
Overcurrent release working current	A sort of	2.5, 3.5, 5(±10%)
charging time	Second	≤ 15
Closing time	Miss	35-70
business hours	Miss	20-50
Pairs of Auxiliary Switch Contacts		8K8B (up to 12K12B)
mechanism travel	mm	12KV-15/24KV-16.5
