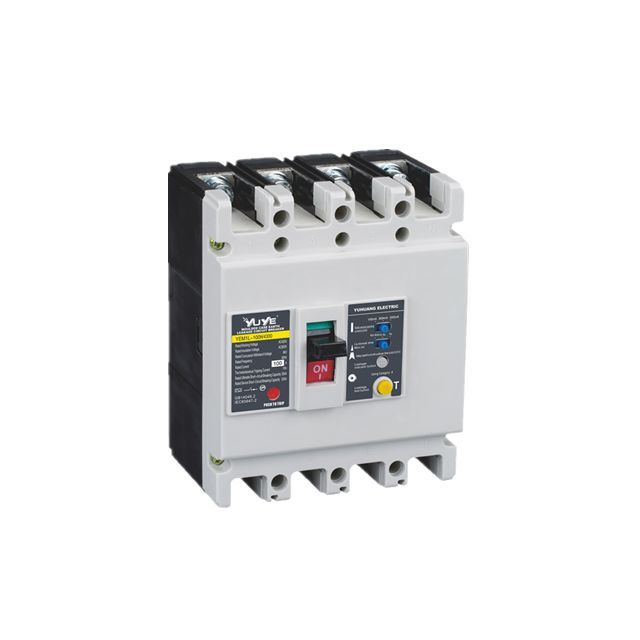

YEM1L- Leakage Molded Case Circuit Breaker (ELCB) 100A 200A 800A MCCB

Technical Data - Leakage Current Circuit Breaker (ELCB):

The circuit breaker has overload, short circuit, and undervoltage protection functions to protect circuits and power supply devices from damage. At the same time, it can provide indirect contact protection for personnel, and can also provide protection for fires that may be caused by long-term ground faults that cannot be detected by overcurrent protection. When other protection devices fail, the leakage circuit breaker YEM1L with a rated residual current of 30mA can be directly used as additional protection.

Rated current: 100(125)A, 225(250)A, 400A, 630A

·Model: YEM1L-100 leakage circuit breaker
·Category: Molded Case Circuit Breaker (MCCB)
Rated current (In): 16, 20, 25, 32, 40, 50, 63, 80, 100A

Rated current of rack: 100A
·Frequency type: AC 50HZ/60HZ
·Number of poles: 3P, 4P
·Rated working voltage (Un): AC 400V
·Rated insulation voltage Ui(V): AC800
·Rated breaking capacity Icu: 65,100KA
Standard: IEC60947-2
·N type models: A, B, C, D
Function: Overload, undervoltage protection function

Protect circuits and power equipment as required

and prevent fires caused by grounding issues

Rated current 30Ma can directly protect leakage circuit breaker

Such as failure of other protective equipment.

Applicable: infrequent line change and motor start

Suitable for industrial and mining enterprises, construction trade, business, family
