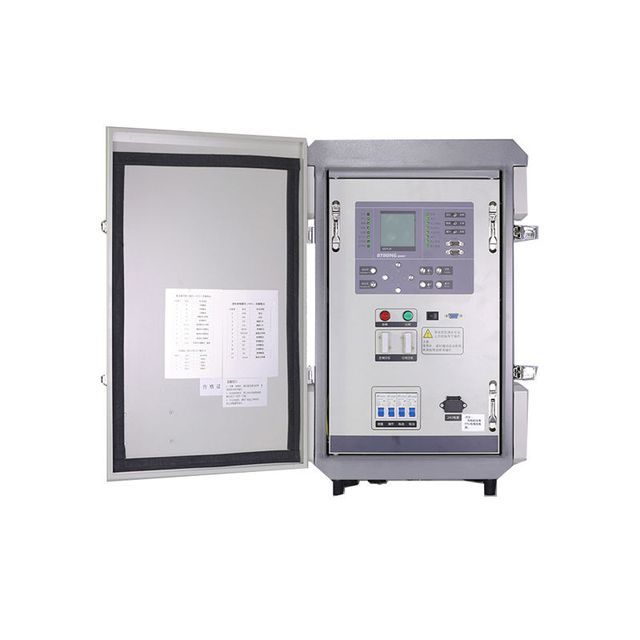

Automatic reclosing control of outdoor high voltage vacuum circuit breaker on column
-
Supplier: Strong Power Electric Co.,Ltd. -
Region: Henan Province, China -
Contact: Ms Strong Power -
Price: $500.00 /unit -
Min. Order: 1 unit
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | port: | Qingdao/Tianjin/Shanghai |
| Rated current: | 630A/1250A | model: | federal union |
| Rated continuous current: | 630A/800A | product name: | Automatic Reclosing Control of High Voltage Vacuum Circuit Breaker |
| BCD curve: | Second | Rated frequency: | 50 60 Hz |
| Package preview: | usage: | distribution channel | |
| type: | vacuum | Number of poles: | 3 |
| Supply capacity: | 100 pieces of automatic recloser control per month | Rated voltage: | 12 volts |
| Packaging Details: | Durable wooden box with pallet for pole mounted outdoor high voltage vacuum circuit breaker automatic circuit recloser control. | brand: | strong electricity |
| Measurement: | Current, Voltage, Energy and Unit Power | Various communication protocols: | IEC 61850 and IEC 60870-5-101 and DNP |
| Origin: | Henan, China | Phase: | three phase |
| Rated voltage: | 12 volts | Curve Type: | Custom Reclosers |

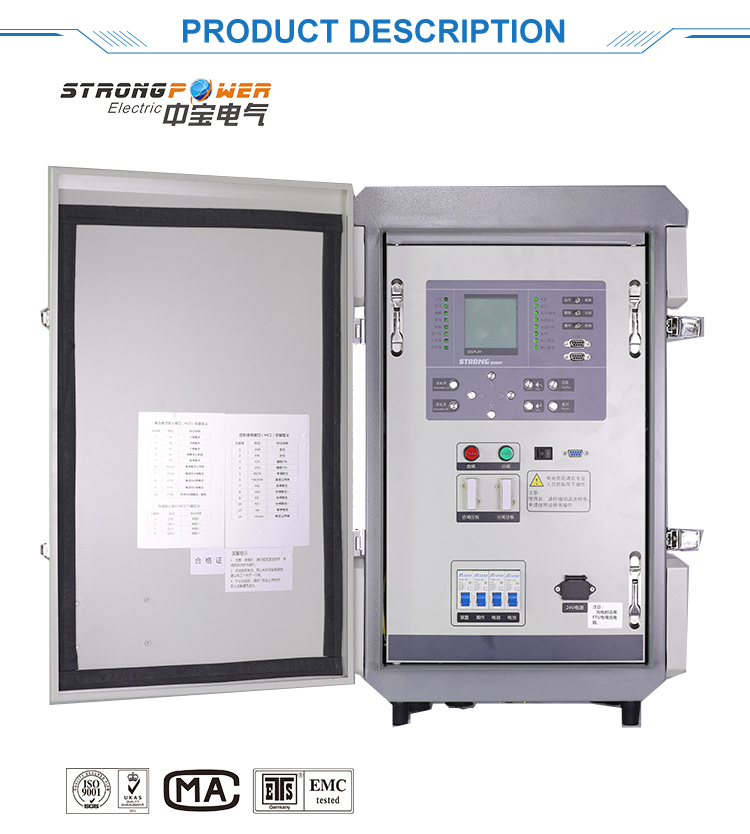

Automatic reclosing control of outdoor high voltage vacuum circuit breaker on column
describe
The recloser control unit is the front line of the distribution system, usually located in the feeder or distribution substation. The recloser control provides intelligence to the network and handles network protection and in many cases even RTU functions. The protective relay senses the fault and assists the vacuum circuit breaker module in the recloser to clear the fault on the line. Minimize outage time and the number of customers affected by the failure.

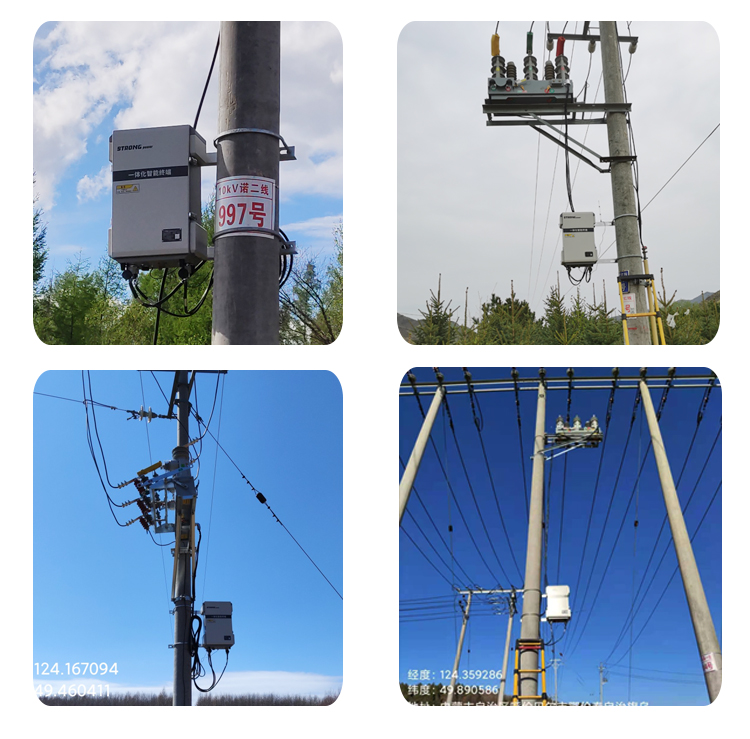

application
advantage
1. Fault clearing function and RTU function.
2. Status monitoring - local and remote.
3. Configuration and Control – Local and Remote (Full).
4. Power quality monitoring - local and remote.
5. Event recorder for failure analysis.
6. Metering – local and remote.
7. Multi-signaling protocols - IEC 870-5-101, IEC 870-5-104, IEC 61850 and IEC 60870-5-101 and DNP.
8. Operation panel module, providing man-machine interface.
Technical Parameters
|
No. |
thing |
unit |
scope |
|
1 |
Rated voltage |
Voltage |
12 |
|
2 |
rated current |
A |
630 |
|
3 |
Phase-to-ground/interface lightning impulse withstand voltage (peak value) |
Voltage |
75/85 |
|
4 |
Rated short-circuit breaking current |
Ka |
20 |
|
5 |
Rated short-circuit making current (peak value) |
Ka |
50/63 |
|
6 |
Rated peak withstand current |
Ka |
50/63 |
|
7 |
4s short-time withstand current |
Ka |
25 |
|
8 |
Rated short-circuit current breaking times |
number |
30 |
|
9 |
Mechanical life |
number |
10000 |
|
10 |
Energy storage motor rated voltage |
V |
DC 24 |
|
11 |
Energy storage motor rated power |
watt |
70 |
|
12 |
Rated working voltage |
V |
DC 24 |
|
13 |
Energy storage time at rated voltage |
the s |
<10 |
|
14 |
Release of the whole machine |
personal computer |
<10 |
