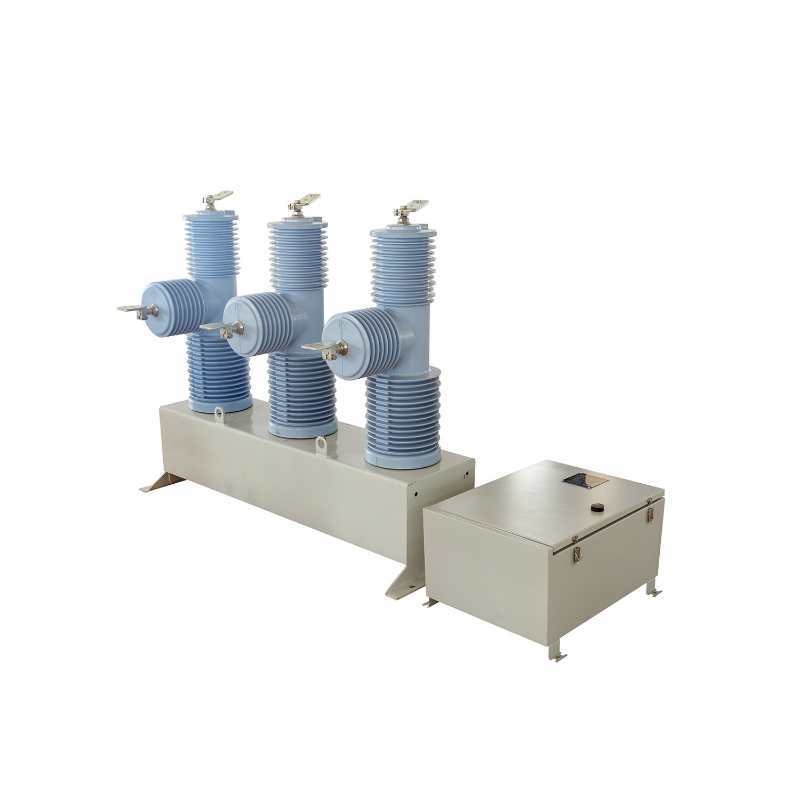

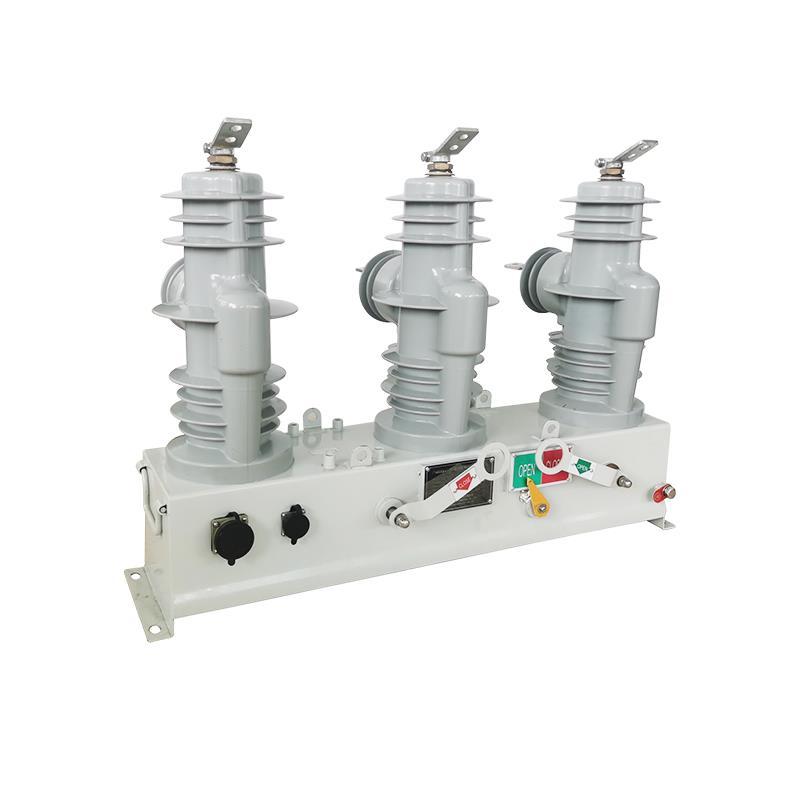

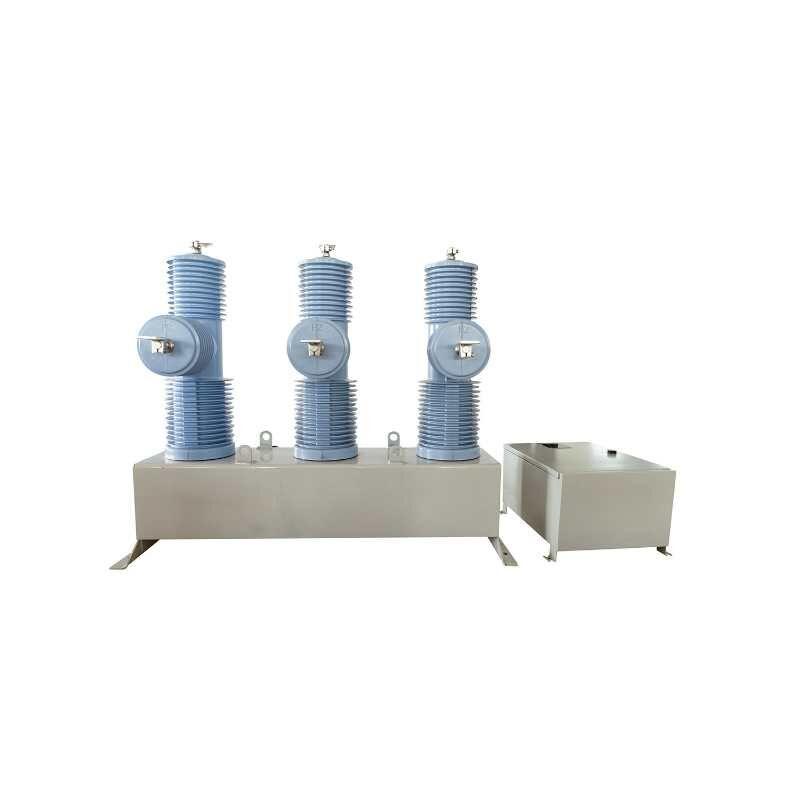

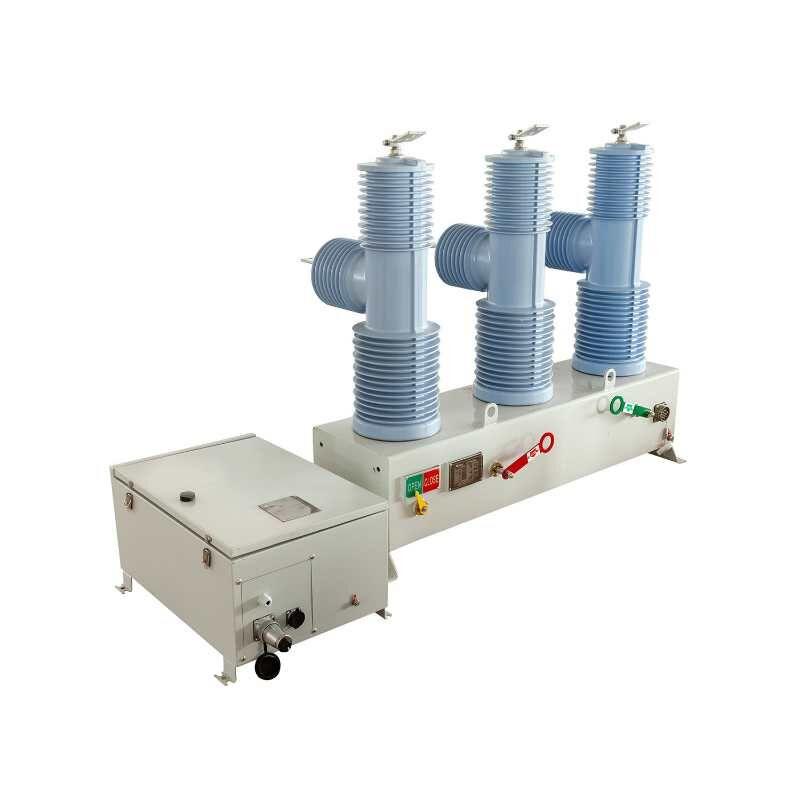

Outdoor automatic circuit breaker reclosing switch solid insulation vacuum reclosing

Supplier: Xiamen Four-Faith Smart Power Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Allen Ye
Price: $799.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Temperature:	-45℃-+85℃	port:	Xiamen
Packaging Details:	Each comes in a box.	Altitude:	Above 2500m
Supply capacity:	5000 pieces per day	model:	F-FTU200
Agency life:	200 times	Rated current:	400/630/800/1250A
Rated frequency:	50/60 Hz	Origin:	China
humidity:	Monthly average humidity 95%; Daily average humidity 90%	product name:	automatic recloser
Rated operating cycle:	O-0.5S-CO-2S-CO-5S-CO	Air pressure:	Summer air pressure 84.7Kpa (635mmHg) Winter air pressure 85.6Kpa (642mmHg)
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Product Description

Specification

summarize
Four-Faith Smart Power is committed to bringing customers the latest technology, competitive prices and the best distribution services
ionic auto.
F-OCB series automatic circuit breakers can be used in overhead distribution lines as well as distribution substation applications.
Suitable for all voltage classes from 11kV to 38kV in 50/60Hz power system. Rated current up to 1250A.
F-OCB series automatic recloser integrates the functions of control, protection, measurement, communication and fault diagnosis.
Protection, on-line monitoring of closing or opening.

service environment
1. Air temperature: maximum temperature: +85°C; minimum temperature: -45°C
2. Humidity: monthly average humidity 95%; daily average humidity 90%.
3. Altitude: Maximum installation altitude: above 2500m.
4. The surrounding air is not polluted by corrosive, combustible gas, steam, etc.
5. Air pressure in summer is 84.7Kpa (635mmHg), air pressure in winter is 85.6Kpa (642mmHg), maximum wind speed is 34m/s
6. Humidity 13mg, vapor pressure 17mm/Hg. No frequent violent vibrations.

dedication

With optional installation type classes:
Single-phase vacuum reclosers and three-phase vacuum reclosers. With optional relay protection curve for users to choose: Instantaneo
our overcurrent protection.
Timing overcurrent protection.
Negative sequence overcurrent protection. Directional overcurrent protection (*).
Overvoltage protection/undervoltage protection. More relay functions can be customized.
You can choose local or remote mode.
There are optional communication protocols and I/O ports for users to choose: support RS-232 and RS-485 ports.
DNP3.0 communication protocol support (*). Modbus communication protocol is optional (*). IEC 60870-5-101 communication protocol
support.
IEC 60870-5-104 communication protocol support. (*).
The recloser can communicate in English or Chinese (*) via GPRS (or GSM) modem. There are functions for users to choose.
Rated current, system phase current.
Rated voltage, system phase voltage, secondary low voltage power supply voltage. frequency, power (kWh), reactive power (kV arh),
power factor.
Optional reclosing interval available for user pre-programming: supports setting of reclosing times.
Support dead time setting.

With event recording function: SOE 1000 operation records.
Fault records and normal operation records.
Note: (*) indicates that it should be customized by the manufacturer if required.

thing	unit	data
Rated voltage	Voltage	11/15	27	38
rated current	A	400/630/800/1250
rated frequency	hertz	50/60
Rated short-circuit breaking current	Ka	12.5/16/20/25
Rated short-circuit breaking current (peak value)	Ka	31.5/40/50/63
Lightning impulse withstand voltage (peak value)	Voltage	95/110	125/165	170/200
Rated peak withstand current	Ka	31.5/40/50/63
4S short-time withstand current	Ka	12.5/16/20/25
Rated operating cycle		O-0.5S-CO-2S-CO-5S-CO
Rated short-circuit breaking current frequency	time	200
Institution life	time	30000
Power frequency tolerance of secondary circuit for 1 minute	Voltage	2
