DSN-AMY 12kV switch cabinet indoor electrical cabinet AC220v magnetic lock

  • Supplier: Yueqing Liyond Electric Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr GuoQi Liu
  • Price: $11.00 / 2 - 99 pieces
    $10.00 / 100 - 499 pieces
    $9.00 / >=500 pieces
  • Min. Order: 2 pieces
Product details
Rated current:110mApayment terms:Western Union, wire transfer
model:DSN-AmySupply capacity:20,000 pieces per month
port:Ningbo/Shanghaibrand:Li Yongde
Rated voltage:220 voltsproduct name:Indoor electromagnetic lock
Packaging details:Export standard packagingPlace of origin:Zhejiang, China
type:Outlet boxapplication:High voltage switch cabinet
Package preview:
Product display

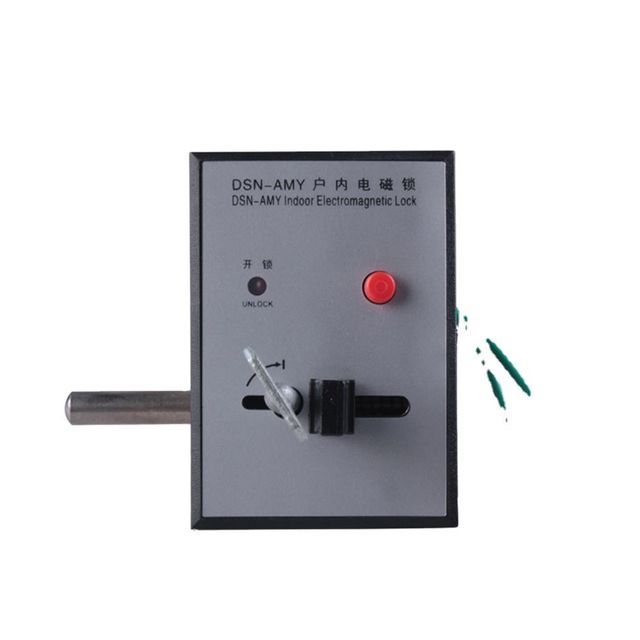

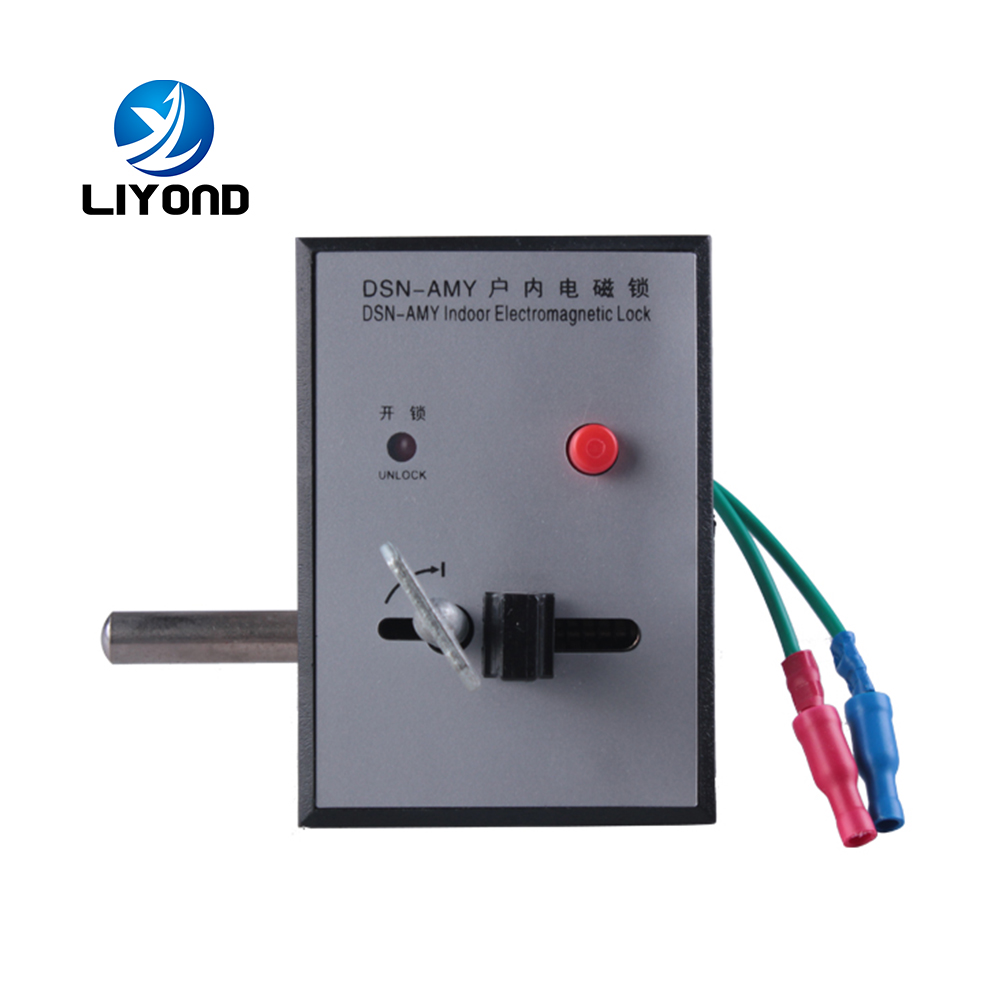

DSN type electromagnetic lock is a device for indoor high-voltage switch cabinet electric control mechanism to prevent misoperation of electric interlocking. It is mainly used in areas such as high-voltage switch cabinet doors that require mandatory safety interlock locks to prevent misoperation gaps and accidental entry into electrified conditions. It is an indispensable locking device for the generation, power generation and electric power sectors.



Specification



1. DSN type indoor electromagnetic lock is an electronically controlled structural interlocking device that prevents electrical misoperation of high-voltage switchgear.

2. This product is mainly suitable for high-voltage switch cabinet doors and other occasions that require safety interlocking to achieve forced interlocking, which can prevent misoperation and mistaken entry into live gaps.

3. This product is an indispensable locking device for power generation and power supply departments.





information

1. Purpose: used for switch cabinet interlocking device
2. Function: Prevent electrical appliances from malfunctioning

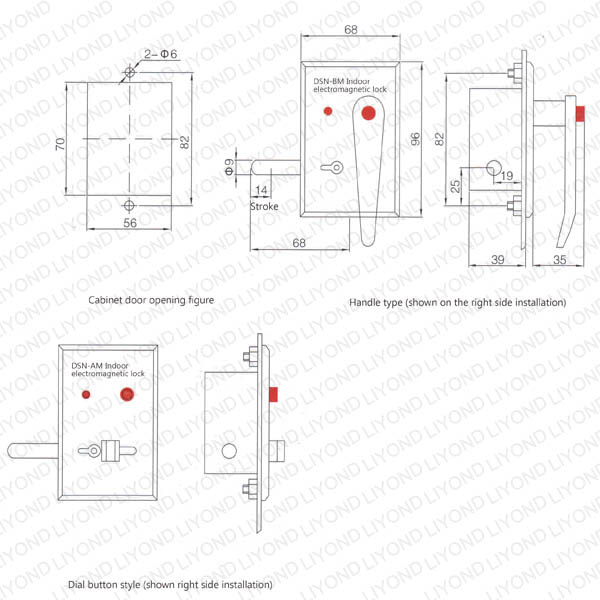

Model Rated voltage Rated current rated power Cabinet door installation drawing Lock handle route

DSN~AMZ

DSN~AMZ

DSN~AMZ

AC 220V

DC 220V

DC 110V

100mA

196mA

98mA

Less than 3VA

Less than 50W

Less than 12W

Diameter hole spacing 82mm 14mm
14mm
14mm

NSN~AMZ6

NSN~AMY6

NSN~BMZ6

NSN~BMY6

DC 6V 400mA Less than 2.5W 14mm
14mm
14mm
14mm



painting
