Outdoor three-phase 11KV 15KV 33KV compact pavilion type substation
-
Supplier: Guangdong Taigao Intelligent Electrical Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Tina Lai -
Price: $10000.00 /set -
Min. Order: 1 set
Product details
| brand: | too high | Origin: | Guangdong, China |
| payment terms: | L/C, D/P, D/P, T/T |
Product Description
Product introduction: use, function, style, etc.The following configures a product picture + configures the specific parameters of the product in the table
product name | too high | brand | too high |
birthplace | China | Province | Guangdong |
Physical map (1 front + 1 side + 1 back + 1 analytical picture including product length/height/width/etc.) + installation effect case (4) total 8
detailed image

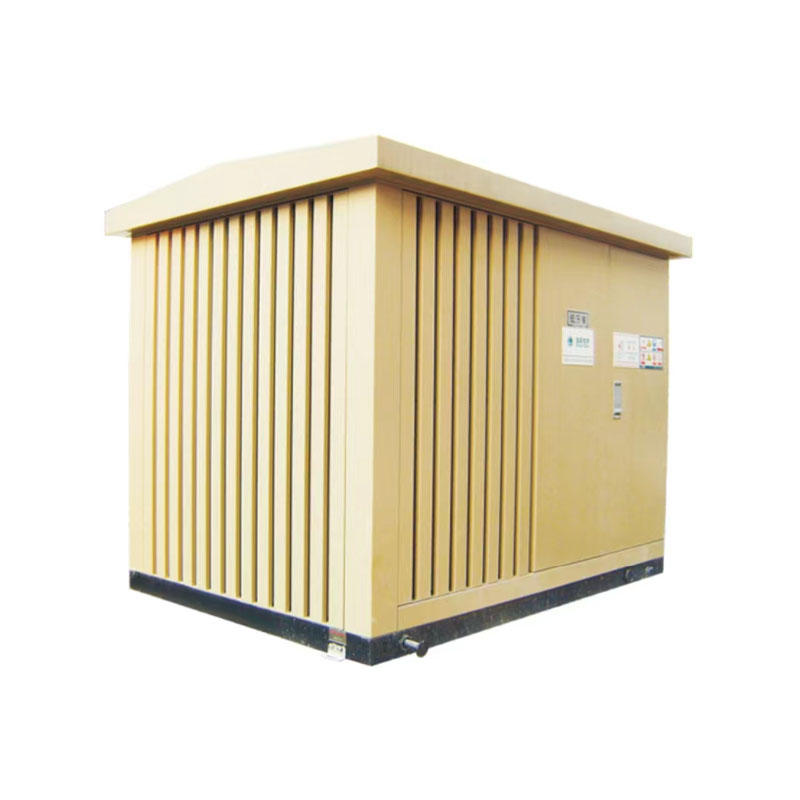

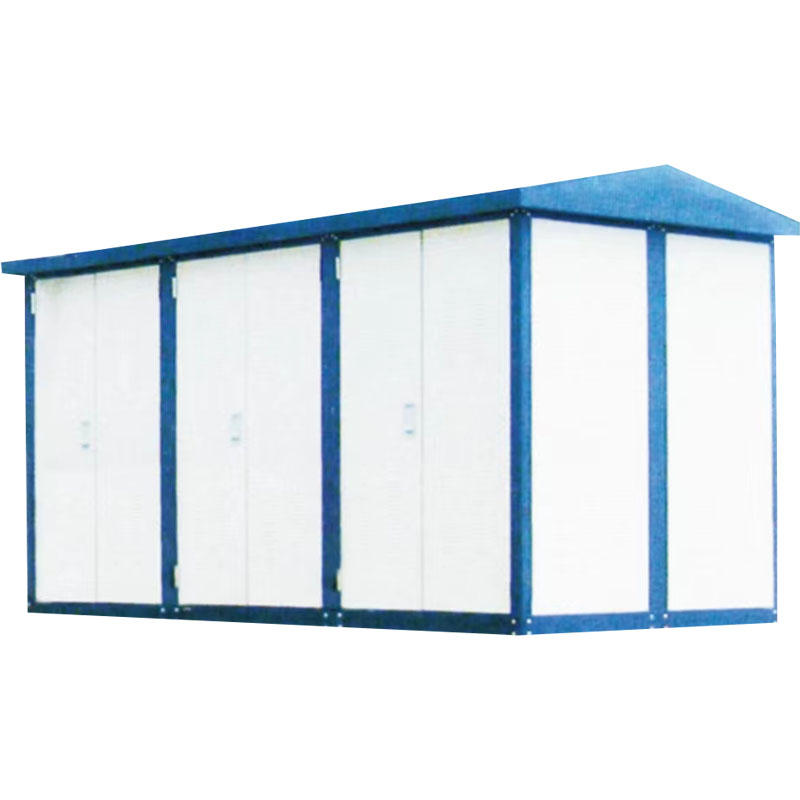

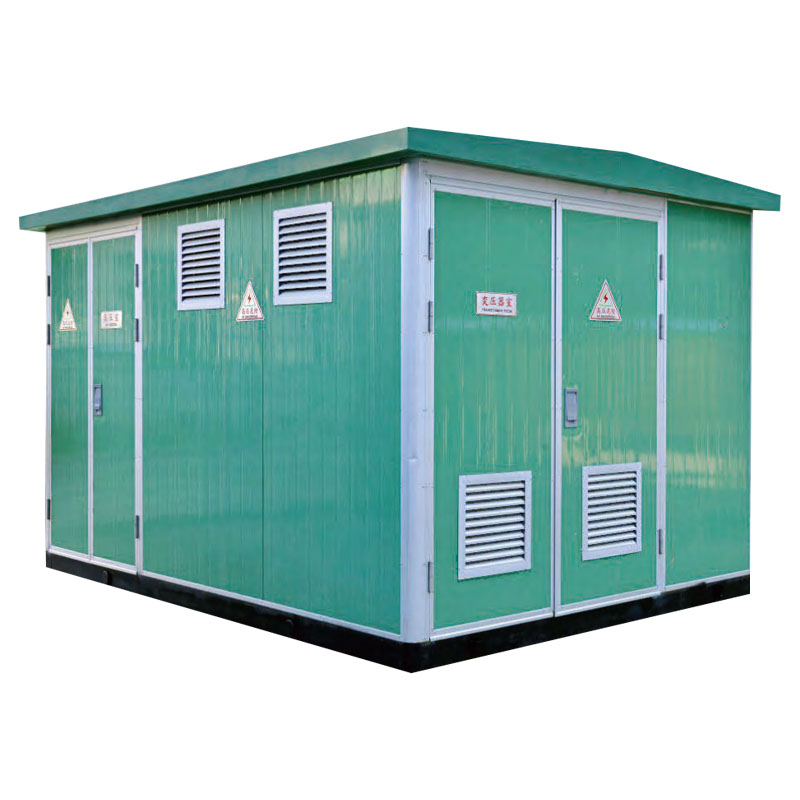

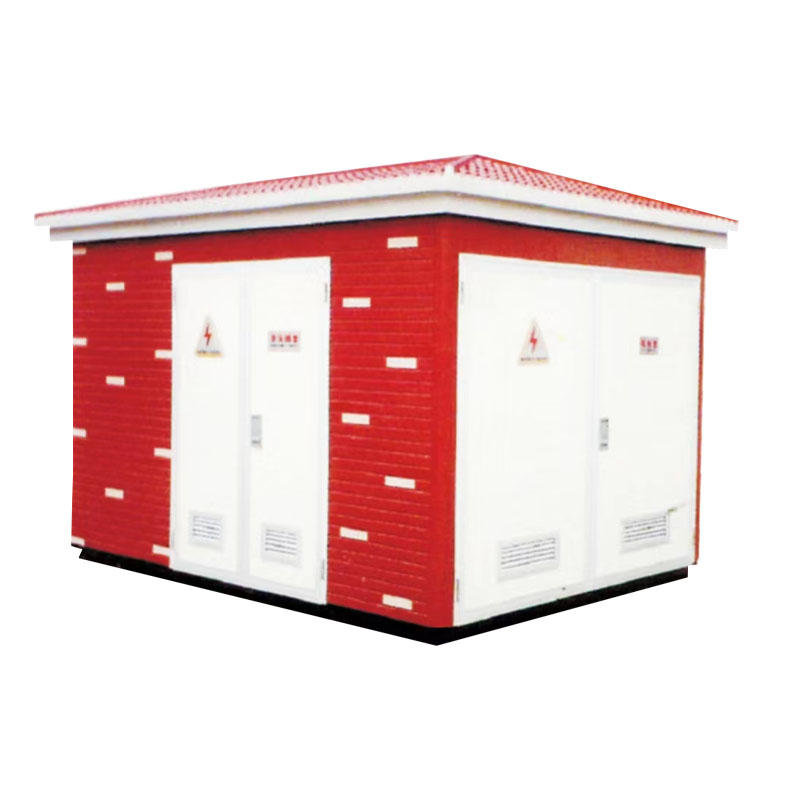

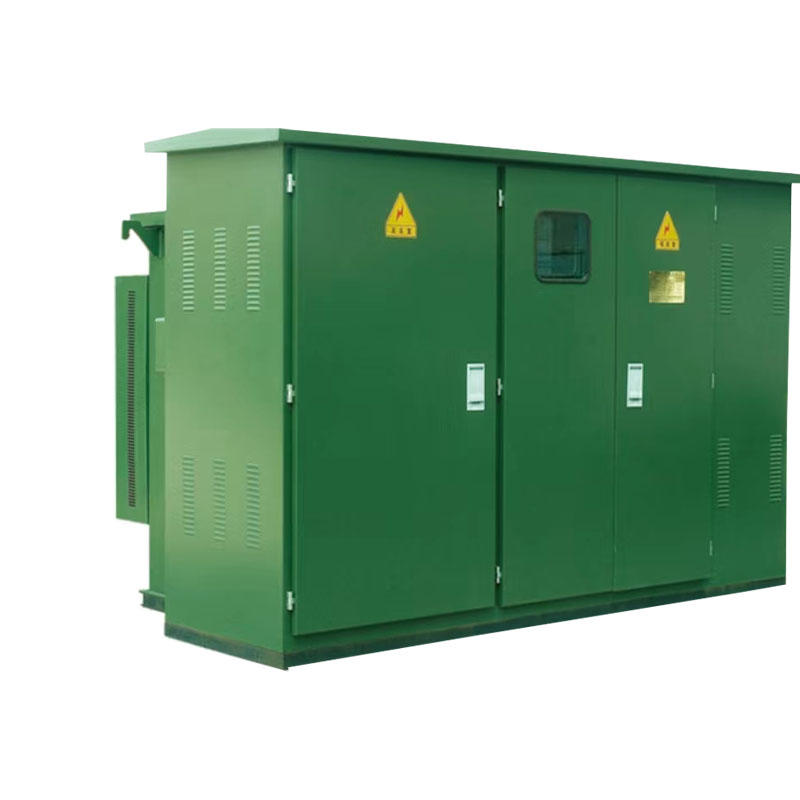

The base of YB-12 prefabricated box-type substation is welded by channel steel, and coated with anti-rust paint after anti-rust treatment. The shell is made of environmentally friendly composite profile plates, thin steel profile plates or aluminum alloy plates. The insulation layer in the top steel plate is provided with heat dissipation ventilation holes on the four sides of the upper circumference. The layout of the box substation should be designed in the form of "eye" and "product" according to the design or power demand; according to the installation environment and location, it can be designed as an environmental protection landscape type or an ordinary type. Three independent isolation rooms are set up in the room: high-voltage room, transformer room and low-voltage room
Material Description
There are 10kV (6kV) high-voltage power distribution cabinets inside the product, common SF6 load switch cabinets or inflatable SF6 load switch cabinets, vacuum circuit breaker cabinets can be configured when the transformer capacity is large
