Wholesale High Accuracy Oil Water Heating Mold Temperature C

Click here to contact
Product details
Payment Terms:L/C,T/T,Western Union;Application:Plastic Mould Auxiliary Equipment;
MTC Max.temp.:95℃------350℃;Temperature Control Accuracy:Within +/- 1C;
Dimension(L*W*H):720*280*670mm;Weight:60kg;
Type:Oil Temperature Machine;Supply Ability:300 Set/Sets per Month;
Packaging Detail:plywood,wooden or as your requirement.;Place of Origin:Guangdong China (Mainland);
Condition:New;Internal Piping Size:2*1/2";
Panel:PID Microcomputer touch-type control;KTC Max. temp.:95℃------200℃;
Certification:CE SGS;Temperature Range:0~200C;
After-sales Service Provided:Engineers available to service machinery overseas;Cooling Method:Water;
Port:Guangzhou China;Heat Transfer Medium:Oil / Water;
Model Number:MTC-4;Voltage:380V/3phase or Customized;
Power(W):9000;Series:MTC series & KTC series;
Brand Name:JIAYIN;Experience:Since 1985;
Delivery Detail:1~7 days;

Wholesale High Accuracy Oil Water Heating Mold Temperature Controller:

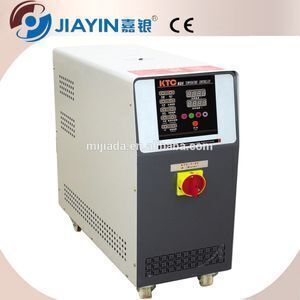

               KTC-Series Mold Temperature Controller                   MTC-Series Mold Temperature Controller



Company Information

      Guangzhou Jiayin Machinery Pte., Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte.,Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China, specializing in research, design, manufacture and distribution and service of such equipment with the technology and experience accumulated over 20 years. To view our more information, please back to our home pag.



Product Description

 MTC-series Mould temperature controller:



KTC Dispaly.jpg
KTC Details.jpg
Features:
1. Microcomputer touch-type control,easy to operate.
2. PID controlled touch-type memory for automatic computation,with temperature control at±1 and 35% energy saved.
3. Imported pump with large pressure and flow rate ensures uniform temperature on mould.
4. Brand-new design,elegant outlook,compact size and convenient maintenance.
5. Completely stainless steel made bladder and high-pressure blastproof piping.

Safety protection system:
No total power over-current breaker
Motor reversal protection and indication
Low oil protection and indication
Overheat protection and indication
Circulating pump overload protection and indication
Abnormality alarm buzzer and indication
Phase failure protection

Specifications of KTC-series full-auto mould temperature controller:
Model
KTC-1
KTC-2
KTC-3
KTC-4
Max. Temp.()
120
95
150
200
Diathermanous Media
Heat transfer oil
Water
Heat transfer oil
Heat transfer oil
Heating Energy(KW)
6
6
9
9
Cooling Type
Indirect
Direct
Indirect
Indirect

Pump
Motor Power
1HP
1HP
1HP
1HP
Max. Pressure
4kg/cm
4kg/cm
4kg/cm
6kg/cm
Max. Flow
60L/min
60L/min
60L/min
60L/min
Power Supply
220V/380/415V  60HZ/50HZ
Oil Tank Volume
8L
8L
8L
8L

Pipe Dia.
Circulating System
2×1/2
2×1/2
2×1/2
2×1/2
Cooling System
1/2
1/2
1/2
1/2
Overall Dimendsions
650×280×700(W*D*H)
Weight(kg)
60
60
60
70

All specifications above are for reference only due to constant research and improvement,welcome the provision of drawing or samples

------------------------------------------------------------------------------------------------------------------------------------------------------------------------
 MTC-series Mould temperature controller



MTC Dispaly.jpg

MTC Details.jpg

Features:

1.All-digital P.I.D. sectional from temperature system control, temperature error within ±1°C.

2.Multiple safety device, automatically detect the abnormality when accident occurs, indicator light display abnormality state.

3.Safety main power switch cut-off the power when any emergency comes out .

4.Use AOTE pump, large pressure, high stability.

5.Direct cooling to better cooling effect; automatically water makeup device, quick cooling to setting temperature, applicable to low temperature control.

6.Stainless inside,high pressure, exposion proof.

7.Elegant design, easy disassembly and maintain.

8.350°C oil temperature control is important for the Bottle Blowing, Delta Metal Die Casting industry in particular.



Safety protection system:
No total power over-current breaker
Motor reversal protection and indication
Low oil protection and indication
Overheat protection and indication
Circulating pump overload protection and indication
Abnormality alarm buzzer and indication
Phase failure protection



Specification of MTC-series Temperature Controller:



Model

Max Temp

(°C)

Heating capacity

(kw)

Diatherman ousMedia

Power  (HP)

Pressure (kg/cm)

Flow (L/min)

OilTank Volume

(L)

Pipe    Dia

Dimensions  (cm)

Weight  (kg)

MTCW-06

95

6

Water

0.37

2.5

35

10

2*1/2”

72*28*67

60

MTCW-09

9

0.75

3.8

60

10

2*1/2”

72*28*67

65

MTCW-12

12

1.5

3.8

75

10

2*1/2”

72*28*67

68

MTCW-16

16

4

3.8

200

  40

1*1”

150*50*120

160

MTCW-18

18

5.5

3.8

500

  60

2*1.5”

150*50*120

180

MTCW-40

40

11

3.8

900

  150

2*2”

170*55*170

240

MTCW-60

60

15

3.8

1300

180

2*2.5”

170*55*170

280

MTCO-06

200

6

Oil

0.37

2.5

35

 10

2*1/2”

72*28*67

60

MTCO-09

9

0.75

3.8

60

10

2*1/2”

72*28*67

65

MTCO-12

12

1.5

3.8

75

10

2*1/2”

72*28*67

68

MTCO-16

350

16

4

3.8

200

40

1*1”

150*50*120

160

MTCO-18

18

5.5

3.8

500

60

2*1.5”

150*50*120

180

MTCO-40

40

11

3.8

900

150

2*2”

170*55*170

240

MTCO-60

60

15

3.8

1300

180

2*2.5”

170*55*170

280









Packaging & Shipping

2-2

Certifications


Our Services

Pre-sale service:

1) provide detailed information, picture, video & quotation for customer;

2) free testing;

3) Professional suggestions.



Guarantee and Repair:

Guarantee: 1 Year in common using condition (except damageable and aitificial)

Repair: 1) We provide technical guidance all life.

             2) Within the guarantee period, we will offer customers replacements free of charge for the broken parts.



Installation:

 We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation  If buyers require. Ticket, board and lodging and some related local expenses in Buyer's country for buyer's account.

FAQ

How about the quality of your product?

-- Our products manufactured strictly according to national and international standard.

-- We have  CE ,ISO certification

-- We take a test on every product before delivery.

How about price of this product?

-- We can give the lowest price  than market one.

-- We do quotation as soon as possible for any customer.

-- Discount can be given according to quantity.

What is the MOQ?

-- 1 set.

If you can be custom-made?

-- We can make products according to customer's requiments.

What is the voltage?

-- 380V 50hz 3 phase.(we can change it according to customer's requirement, charging fee)
