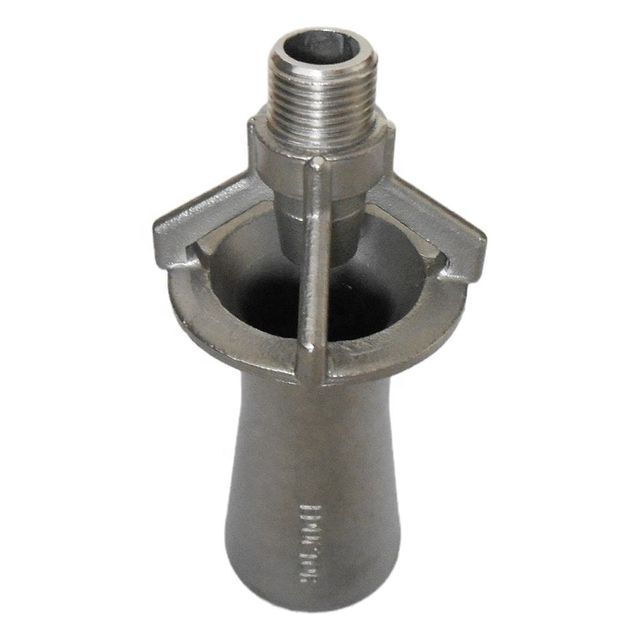

316SS Stainless Steel Tank Mixed Fluid Venturi Ejector

Product details
Health status:newMaterial:stainless steel 316
Mechanical test report:ifdiameter:32-76mm
Temperature resistance:120 degreesOrigin:Guangdong, China
Applicable industries:Manufacturing plants, machinery repair shops, retail, construction, energy and miningport:Shenzhen
weight:0.15-100gtype:mixed liquid nozzle
Packaging Details:Inner standard export polybag, outer cartonAdvantage:chemical resistance, high efficiency
payment terms:Western Union, T/TSupply capacity:5,000,000 pieces per month
Marketing Type:normal productWeight (kg):0.4
Thread size:1/4",3/8",1/2",3/4"BSPTShowroom location:Canada
Video shipment inspection:ifbrand:Smith Barney
Pressure range:1 to 4 bar

design feature

  • Large flow openings minimize clogging
  • A cost-effective way to optimize fluid performance

  • Allows small pumps to circulate large volumes of liquid

  • Contains no moving parts that require wear or maintenance
  • Compact design simplifies installation
  • Prevents filter system clogging by keeping particles in suspension
  • Material: PP (glass fiber polypropylene), 316SS, other materials as your request
  • Connection size: 1/4", 3/8", 1/2", 3/4"
  • Made of carbon fiber reinforced polypropylene (fiber 20%) or SS316.

  • The PP model has a maximum operating temperature of 120°C and the SS316 model has a maximum operating temperature of 300°C.

  • Corrosion and aging resistance.

Function
1. Improve the circulation of mixed flow and optimize the mixing of solutions.
2. Ensure that the solution is mixed evenly and improve product quality.

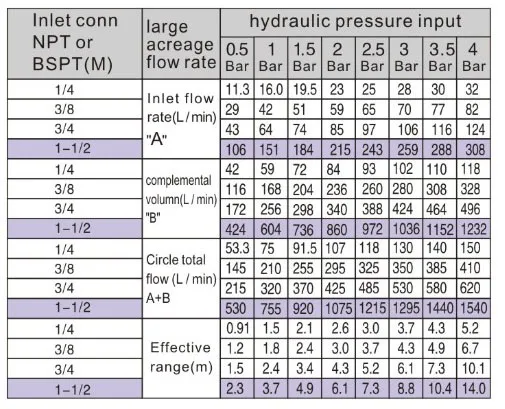

performance data

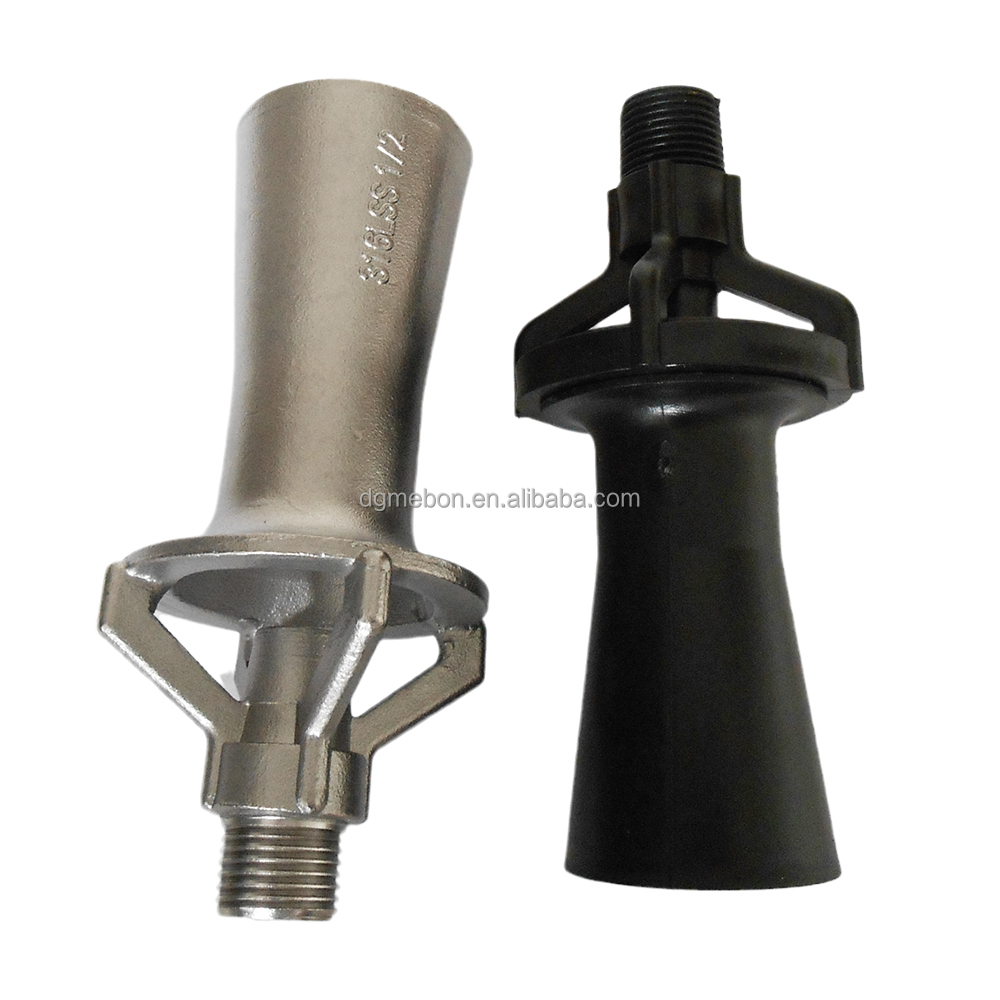

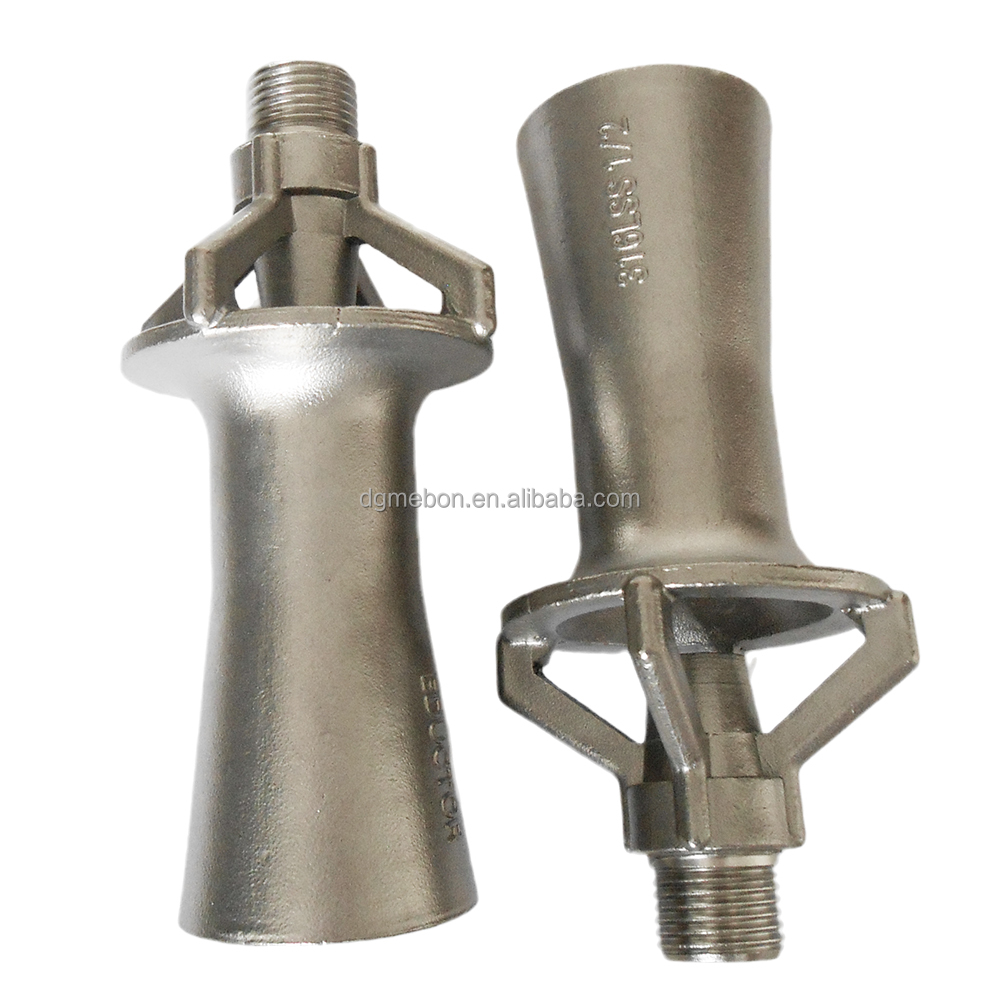

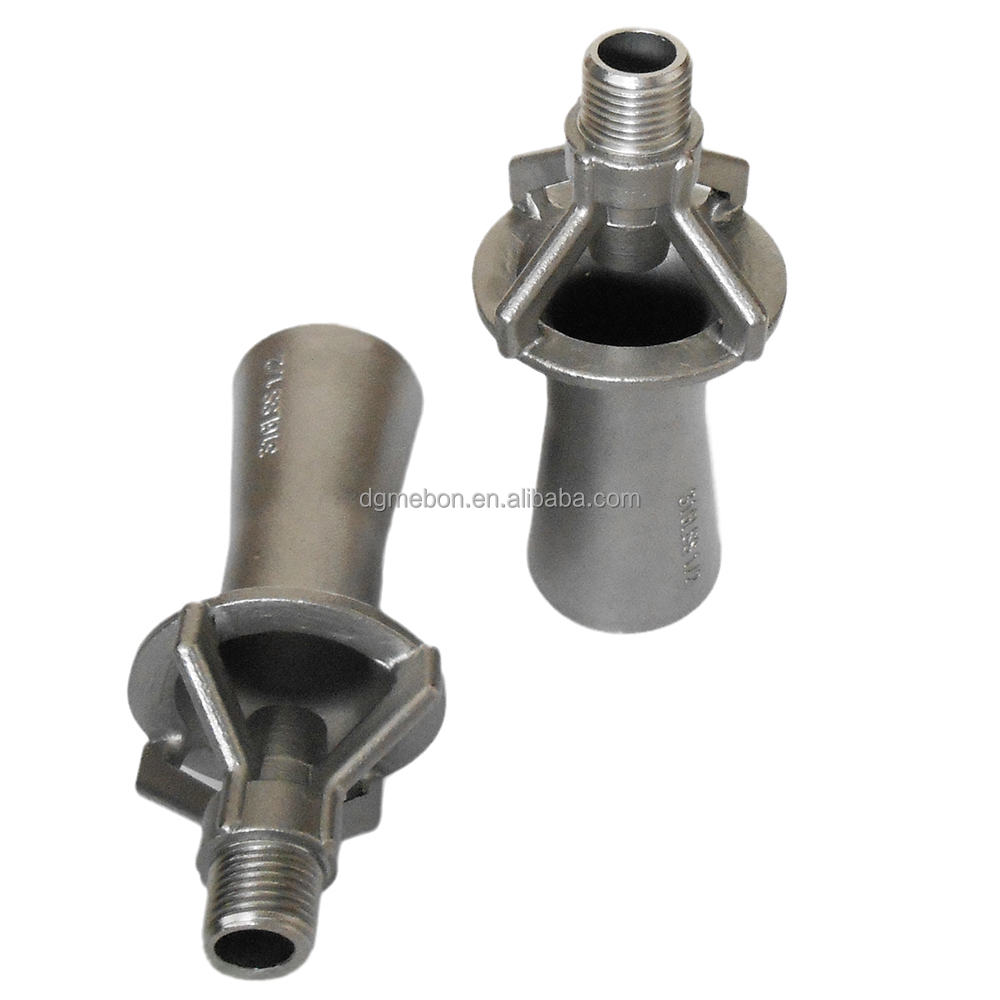

product display



Our factory





workshop



Why Smith Barney?

1. Fully support our representatives.

2. OEM service can be provided according to official and legal authorization.

3. Strict quality control system.

4. Faster delivery time than our competitors.

5. Good quality and low price.

6. Strong technical support

7. Nozzle solutions to meet your special requirements.

8. Samples are available with economical express fee.

9. 12 months quality guarantee after delivery.
