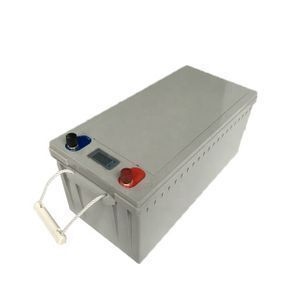

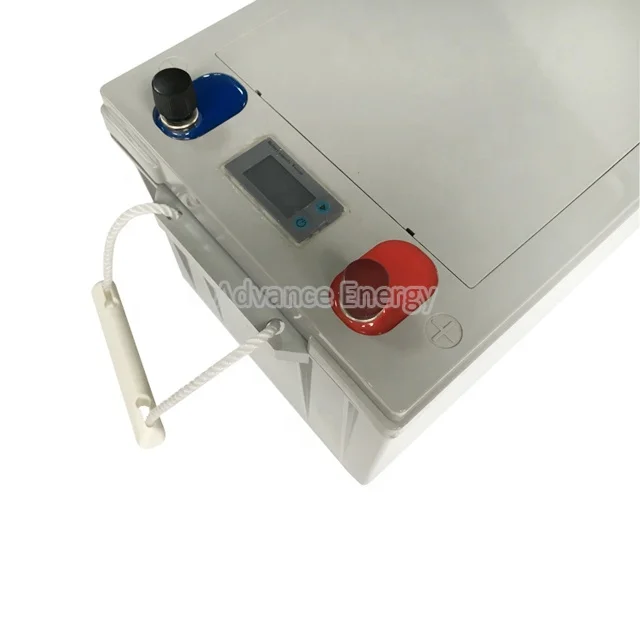

Deep cycle 24V 100AH LiFePO4 Battery for RV camper/yacht/marine/boat/off-grid solar system/UPS/Robot/Wheelchair

Product details
Delivery Detail:0 days after payment;Peak discharge:30A(OEM acceptable);
Package Preview:https://sc02.alicdn.com/kf/HLB1.Zx1SCzqK1RjSZPcq6zTepXa9.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1ANKCSwHqK1RjSZFEq6AGMXXam.jpg_640x640.jpg;Charge cut-off:20V;
Warranty:2 Years;Model Number:24V 100AH;
Cycle life:over 2000 Times;Certification:ce,MSDS;
Single package size:60X36X29 cm;Discharge cut-off:29.2V;
Certificate:CE/RoHS/UN38.3/MSDS;Discharge current:20A(OEM acceptable);
Brand Name:Advance Energy;Selling Units:Single item;
Type:Li-Ion;Single gross weight:25 KG;
Battery type:Lithium Iron Phosphate Battery;Package Type:Carton box or OEM package;
OEM/ODM:Accepatable;Charge current:20A(OEM acceptable);
Place of Origin:Guangdong China (Mainland);
Battery Pack
ItemsParameter
Battery TypeLiFePO4 battery
Nominal Voltage24V
Nominal Capacity100AH
Energy2560wh
Internal Resistance≤200mΩ
Charge cut-off voltage29.2V
Discharge cut-off voltage20V
Charge methodCC/CV
Standard charge current100A (OEM acceptable)
Continuous discharge current100A (OEM acceptable)
Max discharge current120A (OEM acceptable)
Cycle Life>2000 times
Dimension522*239*217mm
Weight25kg
Warranty2 years
Operation Temperature RangeCharge Temperature: 0℃ - 45℃
Discharge Temperature: -20℃ - 60℃
ProductionBuild with BMS, the BMS can protect the LiFePO4 battery from over discharge, over charge, over current, short circuit.



24V 100AH LiFePO4 battery is new environmentally friendly backup power system focus on short-term and high-rate discharge scenarios.The environmentally friendly LiFePO4 battery configured with high-performance BMS,has a wide range of performance and application advantages compared with conventional battery.



Hot Battery Pack
12V 100AH LiFePO4 Battery 12V 200AH LiFePO4 battery12V 150AH LiFePO4 battery
48V 100AH AGV battery RS485 48V 100AH LiFePO4 battery 24V 250AH Forklift Battery



Our Services

Advance Energy Service:

1) Reply within 24 working hours.
2) Customized available, OEM & ODM are welcomed.
3) Professional engineers & Exclusive and unique solution.

4) We could design and develop LiFePO4, LiFePO4 battery packs according to your product work performance & structure appearance.



Advance Energy OEM Service:
1>Customized battery voltage and capacity,3.2V-72V,3AH-1000AH
2>Customized battery case,plastic case,PVC,metal case
3>Customized BMS

4>Customized logo

4>Customized package

6>Delivery support,we can use your own cooperate forwarder or if you do not have cooperate forwarder,we can use our cooperate forwarder.
Also support drop ship from Advance Energy to end customer.



Company Information

ADVANCE ENERGY is a professional manufacturer specializing in development of lithium-ion rechargeable batteries and power systems.Our main founders have 10 years experience in the battery industry, focusing on lithium ion(Li-ion), ferric phosphate Lithium(LiFePO4), lithium titanate(Li-Titanate) battery applications and provide global technical support.

Our products are widely used in solar energy storage system, UPS, communication base energy storage station, low-speed electric vehicles (like electric tricycles, electric motorcycles, electric bicycles), golf carts, yachts, fishing boats, outdoor camping power supply, camping car/ car auxiliary power supply.

With years of design and development experience, and a good quality control system, our company will provide customers with the best energy storage solutions.

We provide LiFePO4 battery for RV ,campering car, touring car, golf carts,E-rickshaw, electric tricycles,medical quipment, wheelchair,washing machine,marine, yacht, fishing boat, AGV, UPS,Robot, solar PV system, energy solar system, etc
Special Function LiFePO4 battery with Bluetooth monitor transmission,telecommunication,RS480,RS232,SOC, sate of charge of the battery pack,etc.





FAQ

Q1. Can Advance Energy ship battery out of China?
R1: Yes, we can ship to any country out of China, you can tell us your address to check.

Q2. How does Advance Energy ship the LiFePo4 battery packs?
R2: For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can ship by air or by sea,sea shipping is more cheaper.
Customer can tell your nearest airport name and sea port name for Advance Energy sales person to check the best option for you.


Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?
R3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself.
It may cause danger and hurt the cycle life of battery.

Q4. Can we put different LiFePO4 battery pack in series by ourself?
R4: You can buy big voltage directly from us.We suggest do not out them in series by yourself,this will hurt the cycle life of the pack.

Q5. Does your battery pack include BMS? Can we use it for car?
R5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.

Q6. What is your warranty?
R6:We offer 2 years warranty for all our battery pack. we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means, after 2000@80% DOD, there will still around 60% capacity left. You can use it for at least 5 years for normal 1 time charge and discharge everyday.
