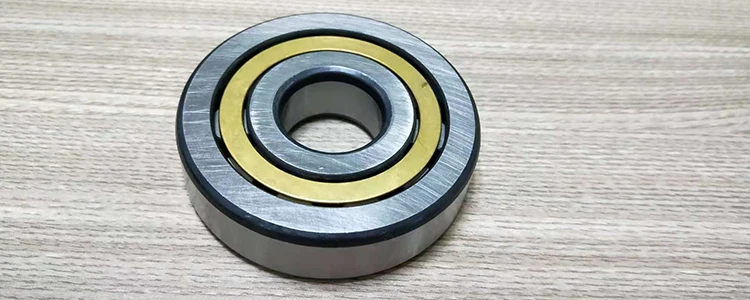

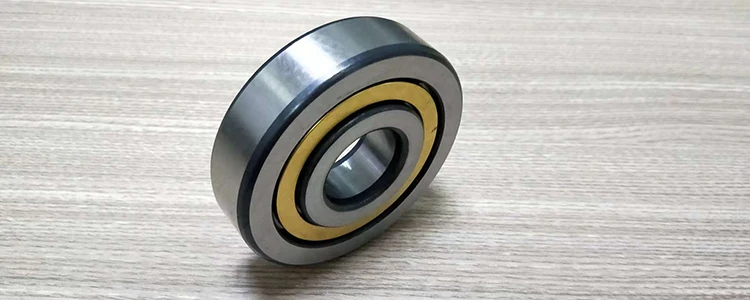

Cylindrical Roller Bearing NJ409

 Cylindrical Roller Bearing NJ409

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

Product Description:

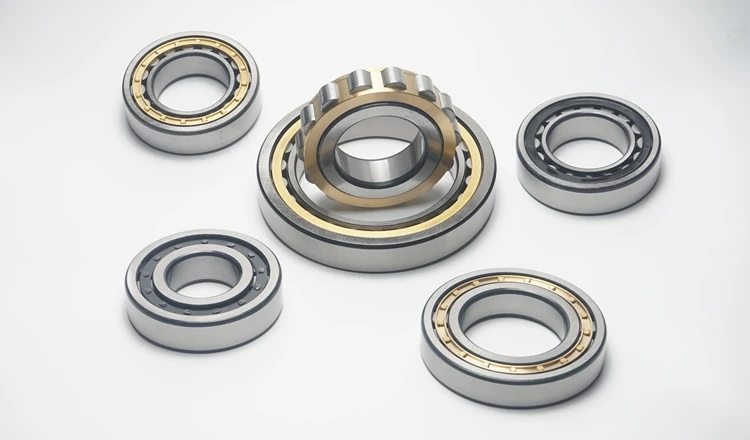

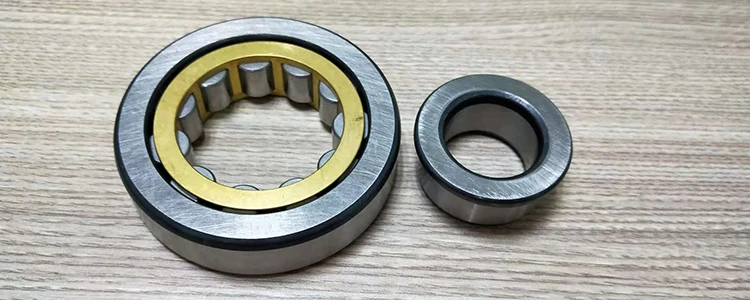

Cylindrical roller bearings are separable, easy to mount and dismount, feature more outstanding especially when they are used on bearings requiring interference fit between inner and outer rings with the shaft and housing. Cylindrical roller bearing is contacted with the revision line between the rollers and the raceway, which is of elimination of edge stress. Comparing with the ball bearings with same boundary dimensions, cylindrical roller bearings have larger radial carrying capacity. In structure, this type of bearing is more suitable for high speed rotation.

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings
Cage Material:
When the outer diameter is less than (inclusive) 400mm, solid brass cage or steel press cage are adopted for single row cylindrical roller bearing. When the outer diameter is more than 400mm, brass cage and pin-type cage are adopted for four row cylindrical roller bearing.

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings
Various Types:
N Series: The inner ring has two integral flanges and the outer ring is without flanges . Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
NU Series: The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
NJ Series: The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction
NUP Series: The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

 single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

Drawing:

Attention of Strage, Installation, and Using:
1. The bearing should be stored in the environment of dry, clean, ventilation and also the environment should without causticity gas
2. When installation, uniformity assistant tools should be used, especially the pressure can't transit to the rolling element.
3. If there is already dedicated grease in the clutch bearing or any sealed bearing, it is not neccesary to clear the bearings when installation.
4. When the bearing is in using, you have to keep the bearing in good lubricity and away from dust with its seal.

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

Feature:

1. High radial loads
2. Low friction
3. High strength
4. High speed rotation

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

Application:

Medium-Sized Motors, Locomotives, Machine Tool Spindle, Internal Combustion Engines, Generators, Gas Turbines, Gear Boxes, Vibrating Screen And Lifting And Transport Machinery, Printing Machinery, Automotive, Tractor, Machine Tool, Electric Machine, Water Pump, Cranes, Elevator, Agricultural Machinery, Textile Machinery, Rolling Mill, Mining, Metallurgical, Plastic Machinery ect.

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

The above models, are only show some products, only for your reference. Other models, please send inquiry to us.

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

single row cylindrical roller bearing , cylindrical roller bearing , roller bearing , bearings

Packaging Details:
1. industrial tube packing + cartons + pallets
2. Individual colorful or white box + carton + pallets
3. As the clients' requirement

Transportation:
1. Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2. Between 45 - 200 KGS, we will send by air transport. (Fastest and safest, but expensive )
3. More than 200 KGS, we will send by sea. (Cheapest and usual)

Payment:
1. TT. 30% payment in advance as deposit, balance before delivery.
2. L/C at sight. (high bank charges, not suggest , but acceptable )
3. 100% Western Union in advance. (specially for air shipment or small amount)
