Plastic flange protector, flange protection cap, Wenzhou flange manufacturer

Product details
Supply capacity:1,000,000 pieces per dayOrigin:Zhejiang, China
brand:JJJGPackaging Details:Packed in woven bag or carton
port:Shanghai/Ningbopayment terms:L/C, Western Union, T/T
color:blue, red, yellow, white, green, blackstandard:ISO, GB, API/ANSI, DIN, JIS, BS, NF, ANSI
model:JJGF570Standard or non-standard:standard

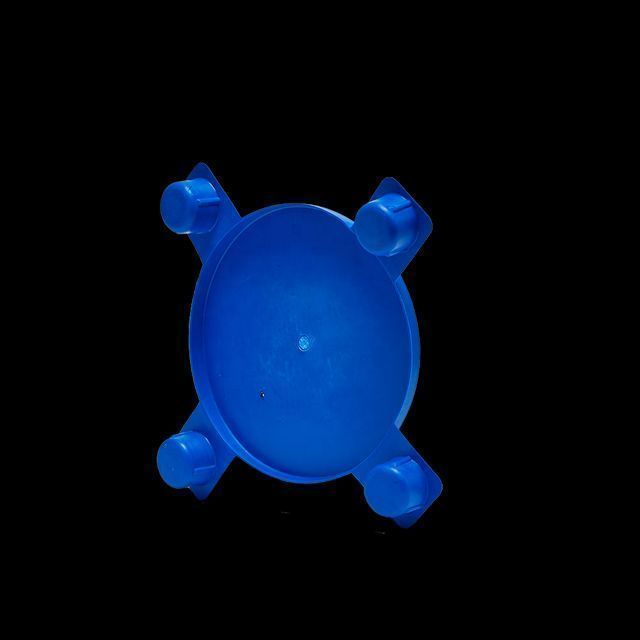

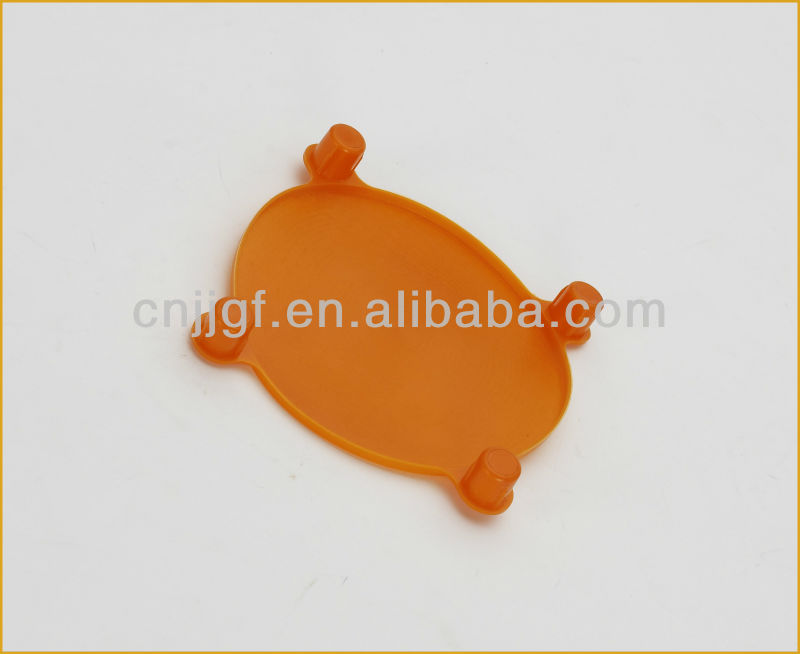

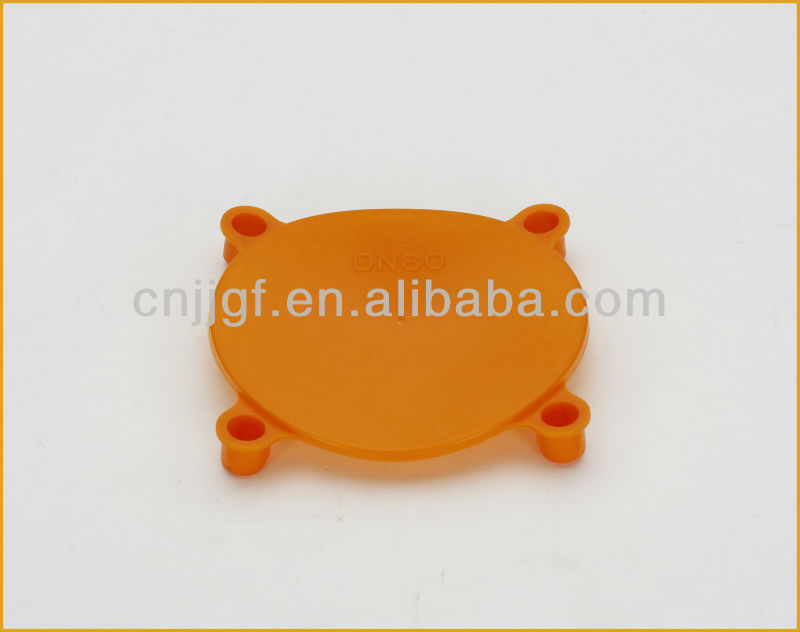

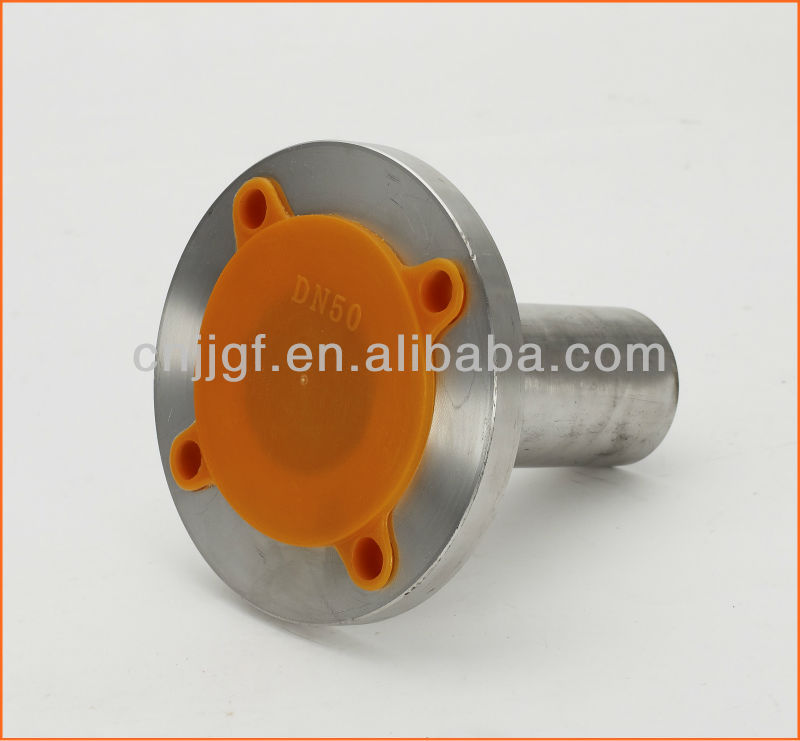

Wenzhou manufacturers plastic flange protector


Product Description



Specification:



Material: low density polyethylene

Color: refer to the chart



Conforms to ANSI B16.5 and API specifications



Suitable for ASA and BS1560 flanges 150lbs



feature:



Quick Fit Flange Bolt Holes

Weather and oil resistant



no fasteners required

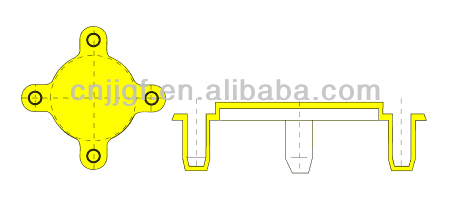

Size 150LB d1 d2 Hole
1/2" 60.3 39 16
3/4" 69.8 47 16
1" 79.4 55 16
1 1/4" 88.9 68 16
1 1/2" 98.4 77 16
2" 120.6 96 19
2 1/2" 139.7 109 19
3" 152.4 131 19
4" 190.5 161 19
5" 215.9 193 twenty two
6" 241.3 220 twenty two
8" 298.4 274 twenty two
10" 361.9 328 25
12" 431.8 385 25
14" 476.2 413 29
16"MAX 539.7 470 29
Size 300LB d1 d2 Hole
1/2" 67 39 16
3/4" 83 47 19
1" 89 55 19
1 1/4" 98 67 19
1 1/2" 114 77 twenty two
2" 127 96 19
2 1/2" 149 109 twenty two
3" 168 131 twenty two
4" 200 161 twenty two
5" 235 190 twenty two
6" 270 220 twenty two
8" 330 274 25
10" 387 328 29
12" 451 385 32
14" 514 413 32
16"MAX 572 470 35







If you can't find the specification you need, please email us your request.










Packaging and Shipping

pack



Our standard packing is woven bag, or according to your requirement.





shipping



Ship within 7 days after confirmation.



A large number of products in stock are available for your urgent needs and can be shipped at any time.














our service

sample:



We support 1-2 samples for your reference. before placing an order.





Customized service:





Welcome to provide drawings, samples for our production of plastic products.





OEM, ODM are also welcome.

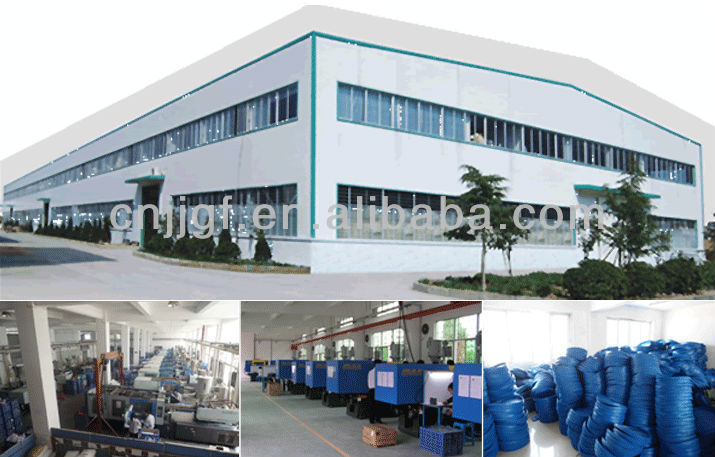

company information

With more than 20 years of expertise gained in the plastics industry, JJGF has become a privileged partner in the supply of plastic caps and plugs used to protect, cover, close or make waterproof elements that are used in the plumbing industry, hydraulic systems Equally prone to industry, automobile industry, home appliance industry, aviation industry, construction industry, conversion industry, electronics industry, furniture and fixture industry, medical industry industrial machinery, masking, packaging, nuclear power, oil coal, recreational sporting goods and wire industry.





Now, JJGF series protective covers are widely used in various industries to protect items during transportation and storage. They are also used to keep open ports free from contamination, protect delicate threads or finish your product by covering rough edges, exposed bolts and exposed pipe ends. With more than 5000 standard parts and 80 million stock parts, JJGF can solve all your product protection needs.
