Rotor diameter: | custom | Rated wind speed: | 3.5m/s-13m/s |
type: | permanent magnet generator | Controller: | Wind-solar hybrid controller |
Safe wind speed: | 45 m/s | rated power: | 5KW/10KW/15KW/20KW/30KW/40KW/50KW |
brand: | Yingshi | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Rated voltage: | 220V/240V/360V/380V/480V | Generator type: | Three-phase AC permanent magnet |
Blade material: | Strengthened FRP | Origin: | China Shanghai |
model: | DK type | The output voltage: | 220V/240V/360V/380V/480V |
application: | wind power system | custom made: | Yes |
Warranty: | 1 year | Certification: | CE ISO9001 |

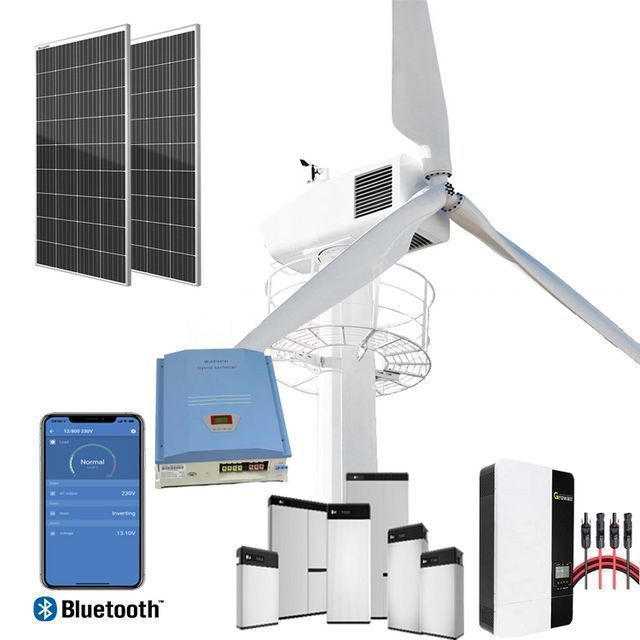

product name: | Windmill 50KW 60KW horizontal axis wind turbine | Start wind speed: | 2.5m/s |
rated power | 10KW | 20KW | 30KW | 50KW | 60KW | ||||
Maximum power | 12KW | 23KW | 33KW | 55KW | 65KW | ||||
Rated voltage | 220V/240V/360V/380V/480V | ||||||||
start wind speed | 2.5m/s | ||||||||
Working wind speed | 3.5m/s-13m/s | ||||||||
safe wind speed | 45 m/s | ||||||||
Blade Length/Diameter | 3.2m/6.8m | 3.8m/8m | 4.9m/10.2m | 6.3m/13m | 7.5m/15.5m | ||||
Blade material | Strengthened FRP | ||||||||
Insulation/Protection Class | F/IP54 | ||||||||
Magnetic steel material | NdFeB | ||||||||
generator type | Three-phase AC permanent magnet synchronous generator | ||||||||
control method | Electromagnetic unloading/mechanical spindle brake | ||||||||
wind direction adjustment | Electronically controlled yaw upwind | ||||||||
Lightning protection measures | Lightning protection module + lightning protection grounding | ||||||||
Operating temperature | -40℃-70℃ | ||||||||
Operating temperature | 25 years |
