Rated output power: | 5 kW | Wind turbine type: | Horizontal axis, direct drive wind power |
Warranty: | 2 years | Blade rotor diameter: | 6m/s (5m/s optional) |
Origin: | Shandong Province, China | port: | Qingdao |
payment terms: | L/C, Western Union, T/T, Paypal | Survival wind speed: | 50 m/s |
Supply capacity: | 200 sets per month | Working system: | Grid-connected, off-grid, wind-solar complementary |

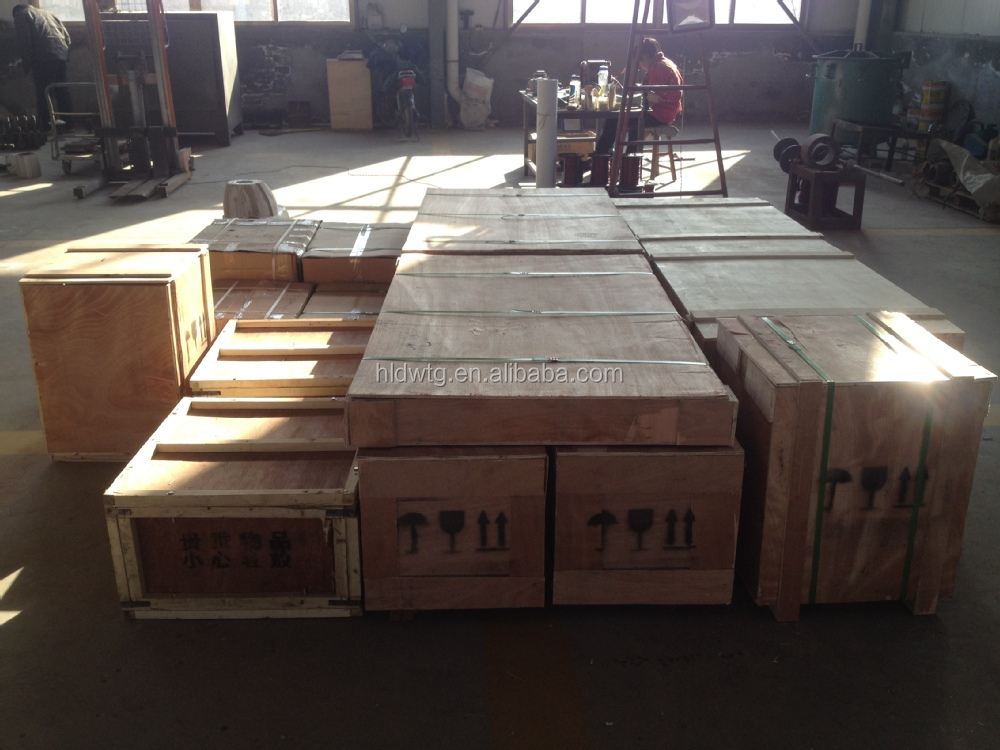

Rotor diameter: | 5M/6M | Packaging Details: | Wind generator main plywood box: 1.29cbm, 3 plywood boxes, controller with dump load: 1 plywood box, 0.28cbm; Inverter: 1 plywood box, 014cbm; 12m tilting tower with accessories: 4 soft bags, 5.84cbm. For detailed dimensions and weights, see the table below for all packages. |
model: | 5 kW | The output voltage: | 48V-400V |
Certification: | CE/IEC/ECM | rated power: | 5 kW |
Generator type: | Three-phase AC permanent magnet generator | brand: | HDL |
Rated wind speed: | 10 m/s | Operating Voltage: | 48V 96V 120V 240V 360V 500V |
Start wind speed: | 3 m/s | custom made: | Yes |
Maximum output power: | 7.5 kW | Package preview: |

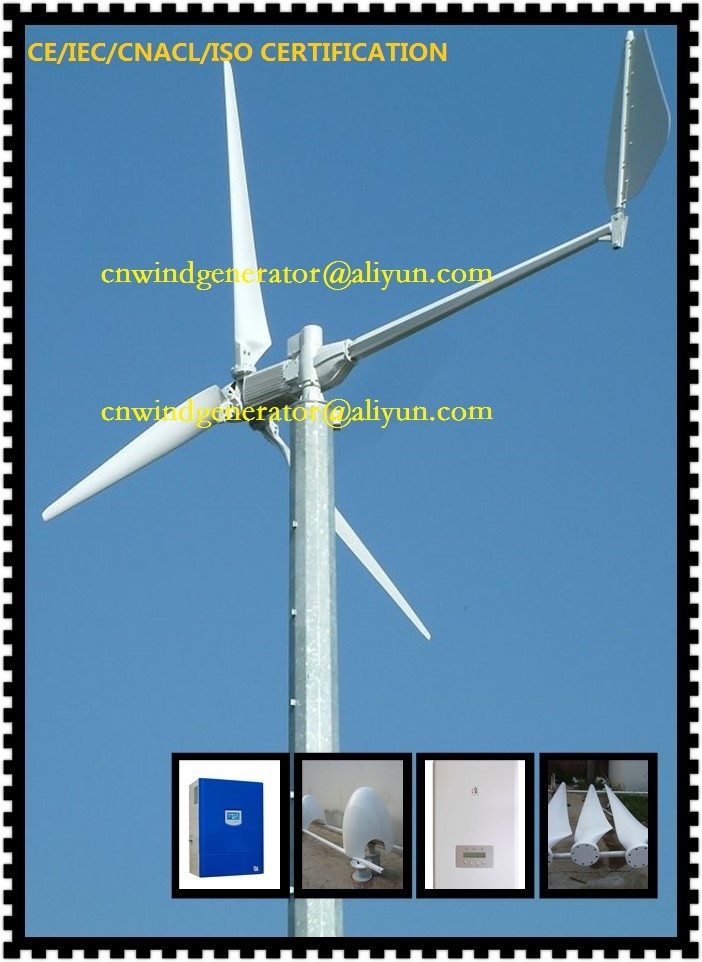

5 kilowatts! 5kw residential wind generator price, home wind generator 5kw wind generator 3 phase alternator, on grid/off grid
The normal price of the fan body is US$2700.00/unit.
(Includes 3 blades, hub, nose cone, generator, manual braking system, nacelle, tail boom, empennage)
The selling price is US$2400.00/set!
We provide complete systems for grid-connected systems/off-grid systems. With unloading controller, tower type, please contact us for inverter price.
introduce:
The 5kW wind power generator system uses wind energy to generate electricity. After being converted by the controller, the wind power generator charges the battery pack or provides DC power to the grid-connected inverter. Inverters convert DC power to AC power for domestic use or to feed into the utility grid.
Wind turbine off-grid systems include:Tower wind turbine + unloading controller + battery pack + inverter;
The grid-connected wind turbine system includes:
Wind turbine with tower + controller with dump load + grid tie inverter.
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
rated power | 5000W @10m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
peak power | 7500W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
start wind speed | 3 m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working wind speed | 3-25m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Survival wind speed | 50 m/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
noise |
≤45dB
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
rotor |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotor diameter | 6m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Swept area | 28.26M3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
blade | 3 pieces reinforced fiberglass | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Blade length | 2.9m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
shell material | precision steel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated speed | 200 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
weight | 300 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
others | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
generator type | Three-phase AC permanent magnet, gearless, CW | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed regulation and protection | Yaw + electromagnetic brake | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Controller rated voltage | DC 48V-500V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recommended battery capacity | 8pcs 12V 200AH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
suggestion tower |
8m-18m pull wire / 8-15m freestanding/tilted tower
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
-40-60℃
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power data of grid-connected system
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

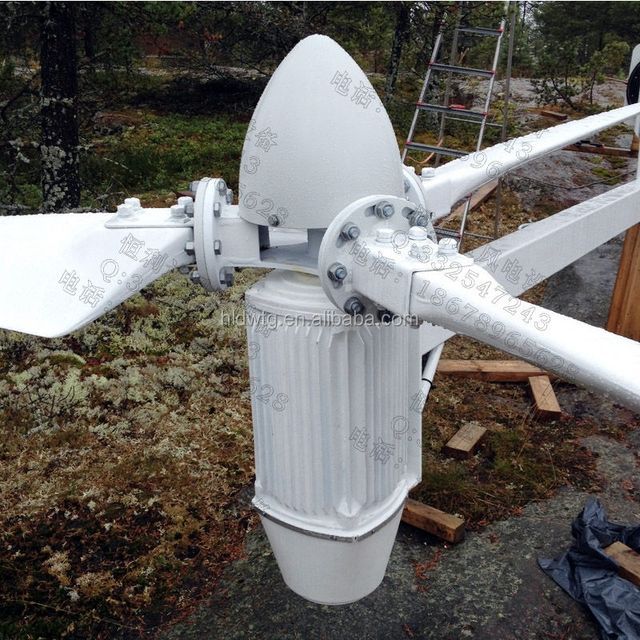

Wind turbine main assembly:

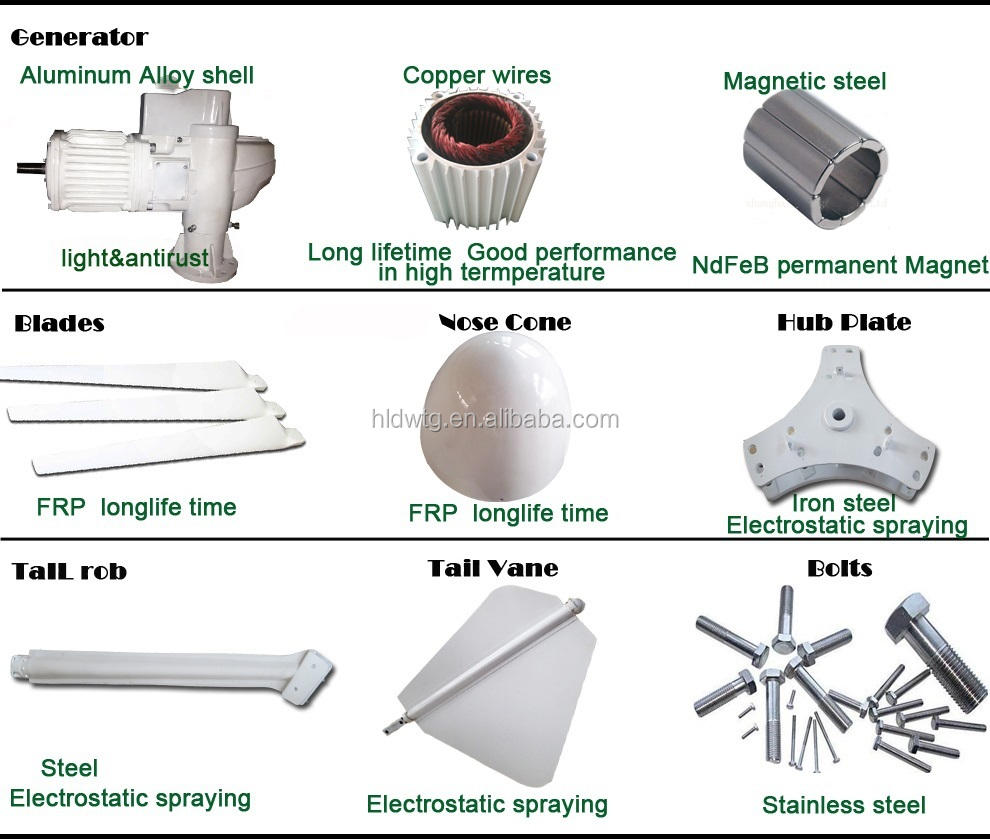

Including 3 blades, hub, nose cone, tail boom, empennage, generator, manual braking system, nacelle:
blade:

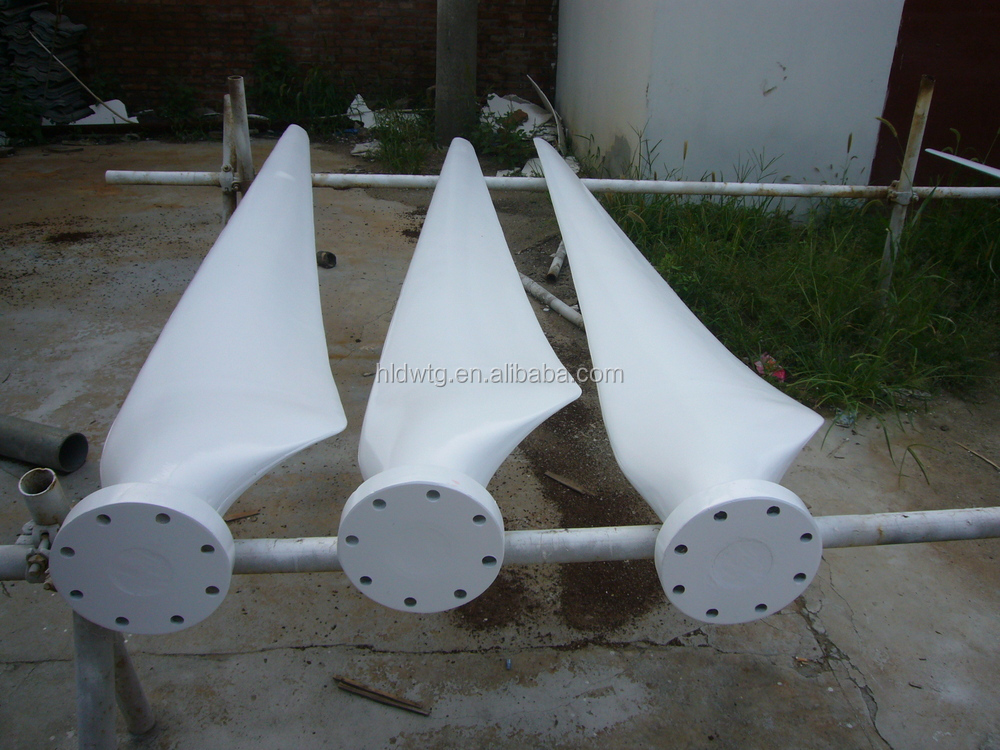

Vacuum mold blade with protective film
CW blade, low noise, high efficiency
FRB material, 3 blades per set
Adjust the blade rotor balance before leaving the factory
Pma of wind turbine:
Cast Iron Generator Housing and Nacelle

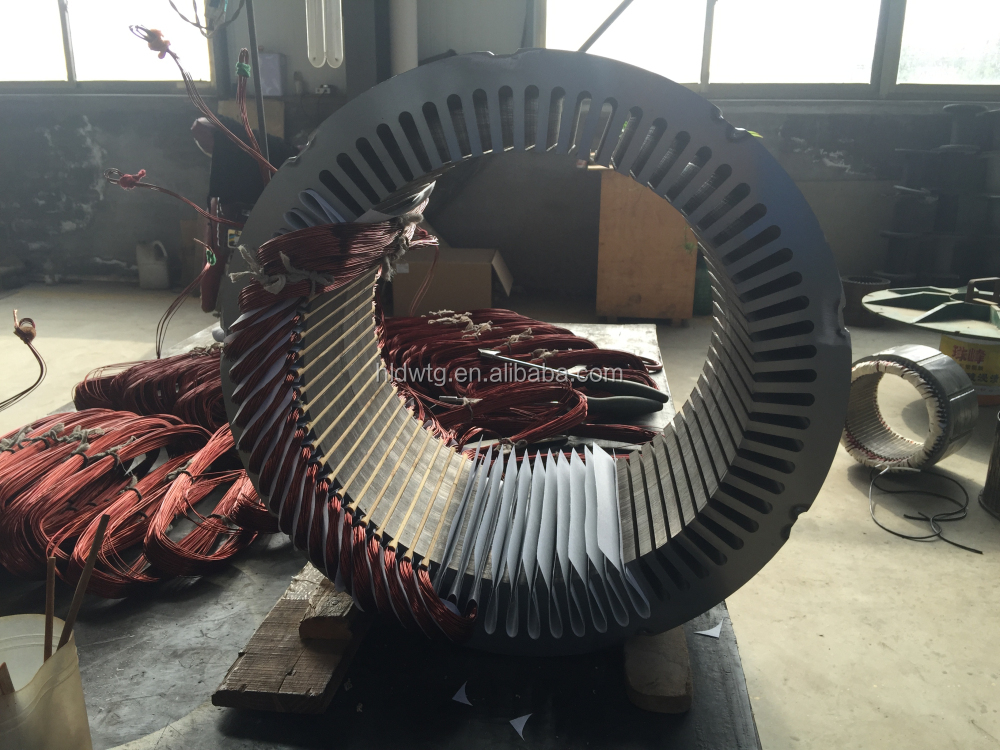

Permanent magnet, three-phase alternator
Starting torque: 4.5 Nm
Rated speed: 220rpm
Rated output power: 5kw
Maximum output power: 7kw
Working voltage: 48V-500V. or special request
Dimensions: 795*290*290mm
Net weight: 95 kg
Generator with braking part weight: 106kgs
10 pairs of rods
star connection
The magnet material is Nd-Fe-B. Prefabricated tangential magnetic circuit rotor; high magnetic flux density, small size, good manufacturing process and high performance. It can be used on HAWT and VAWT.
5kw wind turbine working system:
Wind-solar hybrid off-grid system:

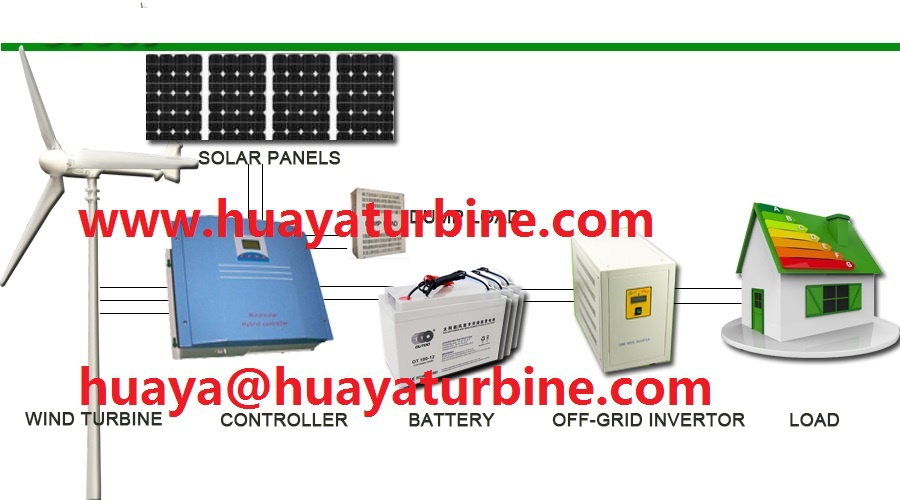

Tower Wind Turbine (+Solar Panel)+PWM Charge Controller with Unloading+Battery Pack+Inverter -->Home Appliances
System working voltage: 48v 96v 120v 240v
Inverter output 110v 60hz, 220v 60hz, 220v 50hz single-phase AC power supply
Wind (solar hybrid) grid-connected system:
(Grid power supply, diesel generator can be used as backup power supply)
Wind turbine with tower (+ solar panels) + PWM grid controller with dump load + grid inverter --> utility grid
System working voltage: 240v 300v 360v 380v 500v
Grid-connected inverter single-phase output, 110v 60hz, 220v 60hz, 220v 50hz

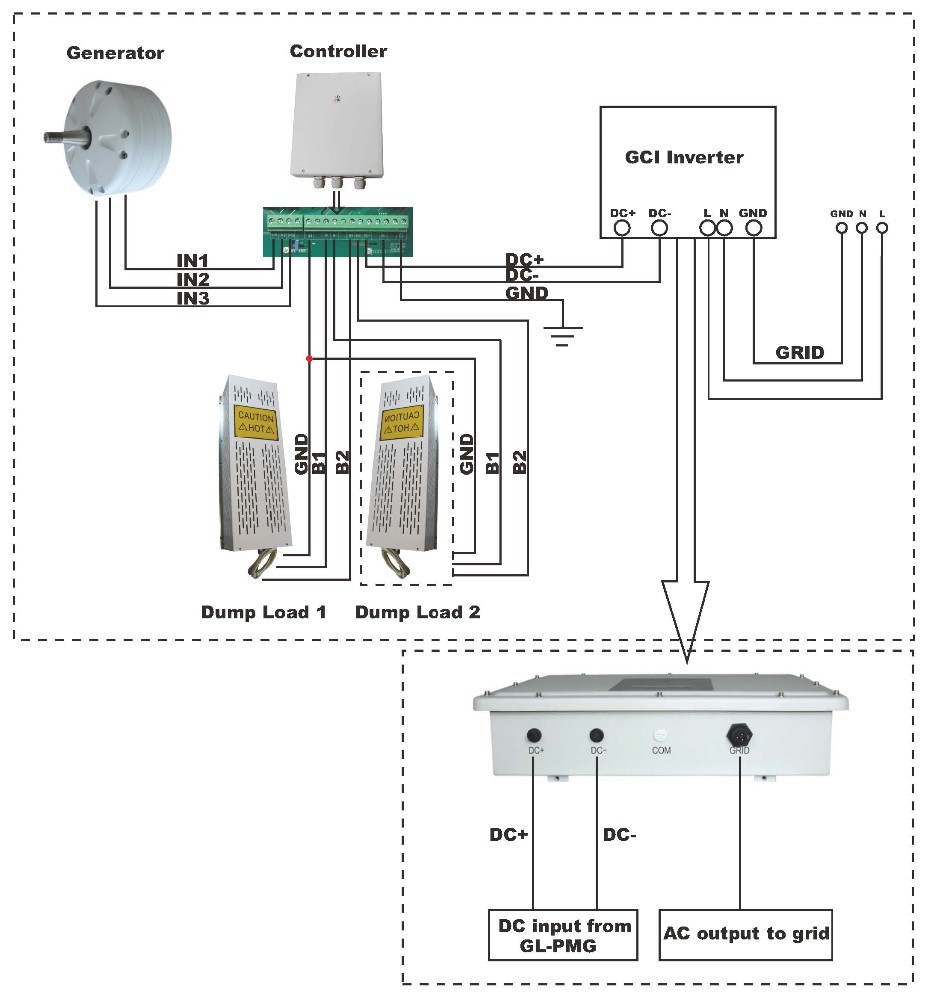

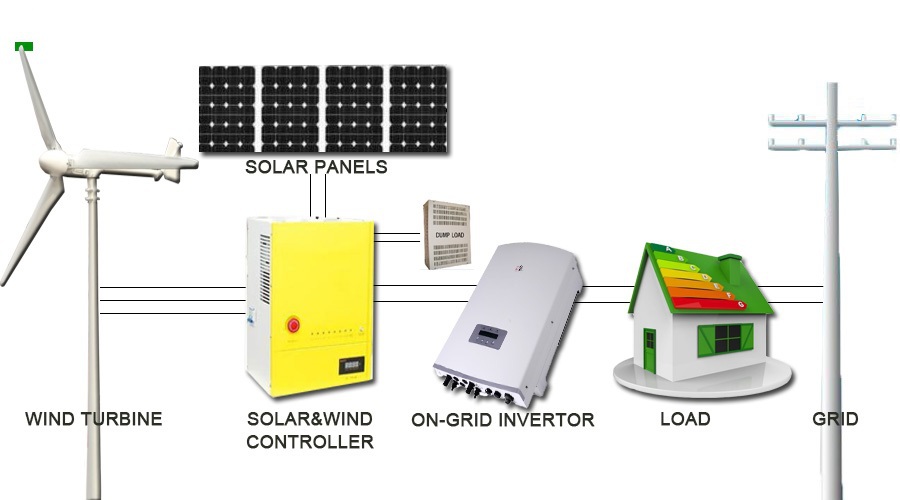

The wiring diagram of the grid-connected system is as follows:

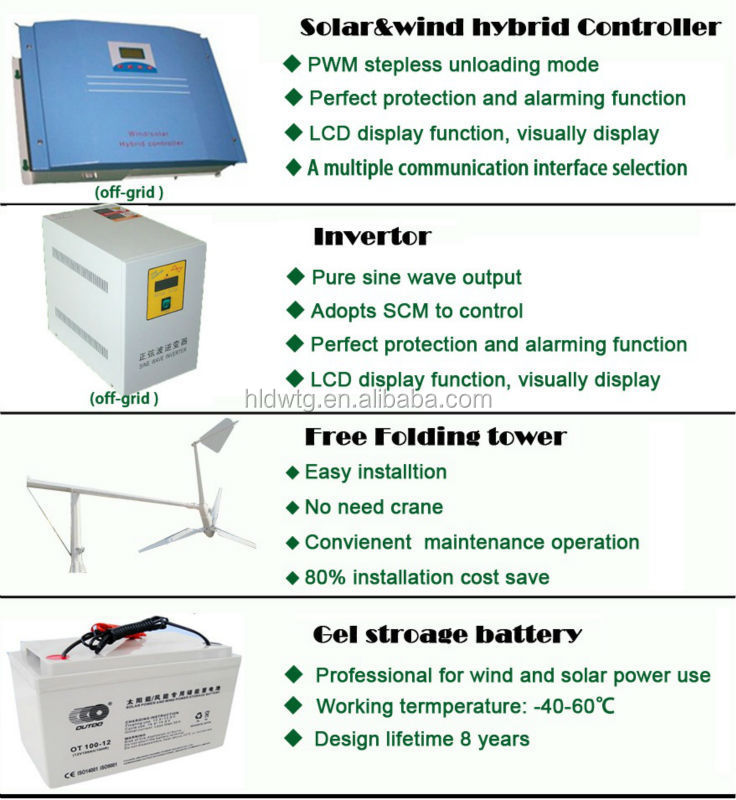

Supporting controller
The controller converts the three-phase AC power to DC and charges the battery pack or powers the grid-tied inverter.
The controller has automatic braking function and PWM voltage regulation function.
Supporting off-grid single-phase/three-phase pure sine wave inverter.

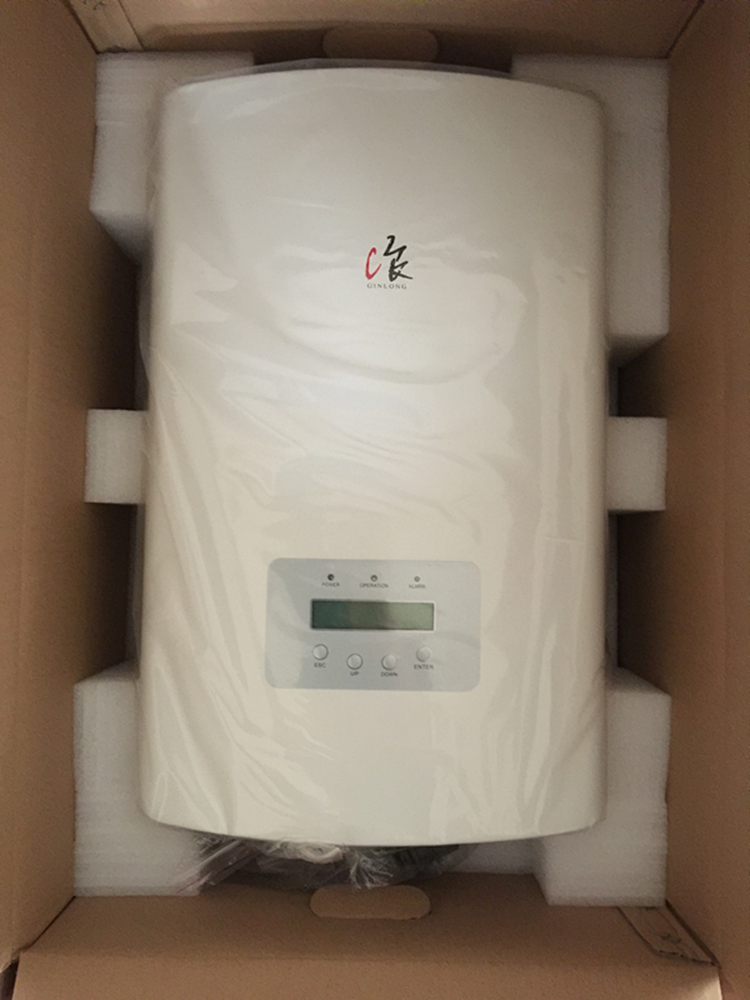

In grid system grid-connected inverter ABB power one inverter, we provide grid-connected inverter.
Supporting grid-connected inverter 5k/6k, pure sine wave inverter single-phase, 6kw for three-phase
The inverter output voltage and frequency can be manufactured according to the requirements of different countries.
Wind Turbine Towers:

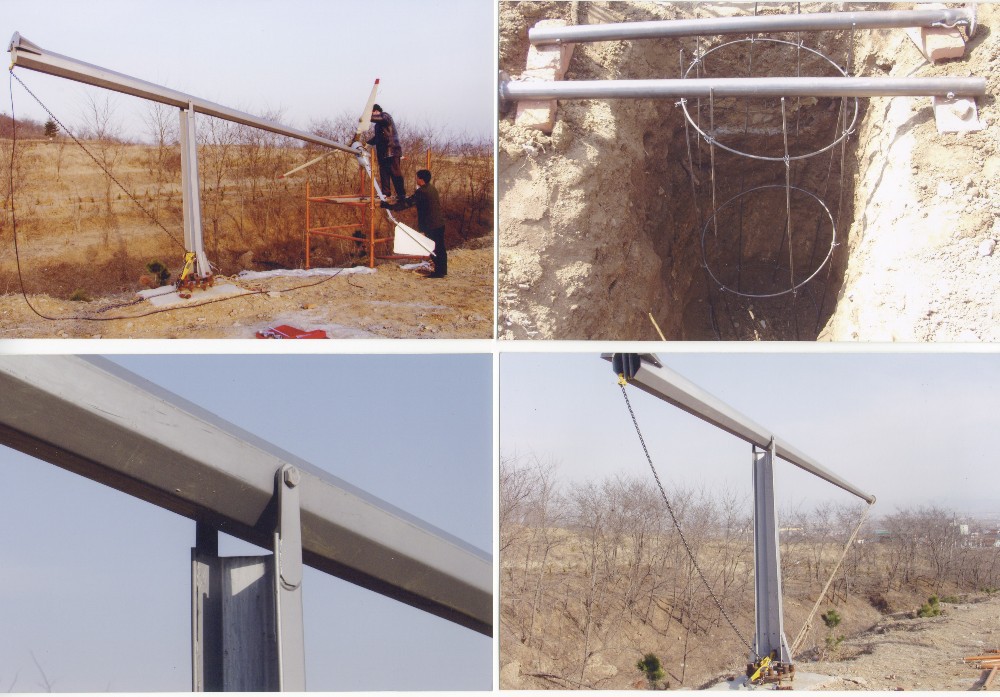

Tower type: guyed tower, independent tower, inclined tower, hydraulic tower (optional)
Tower height can be manufactured according to user requirements.
The tower body is hot-dip galvanized.
After determining the tower type and tower height, we will provide the tower foundation diagram.

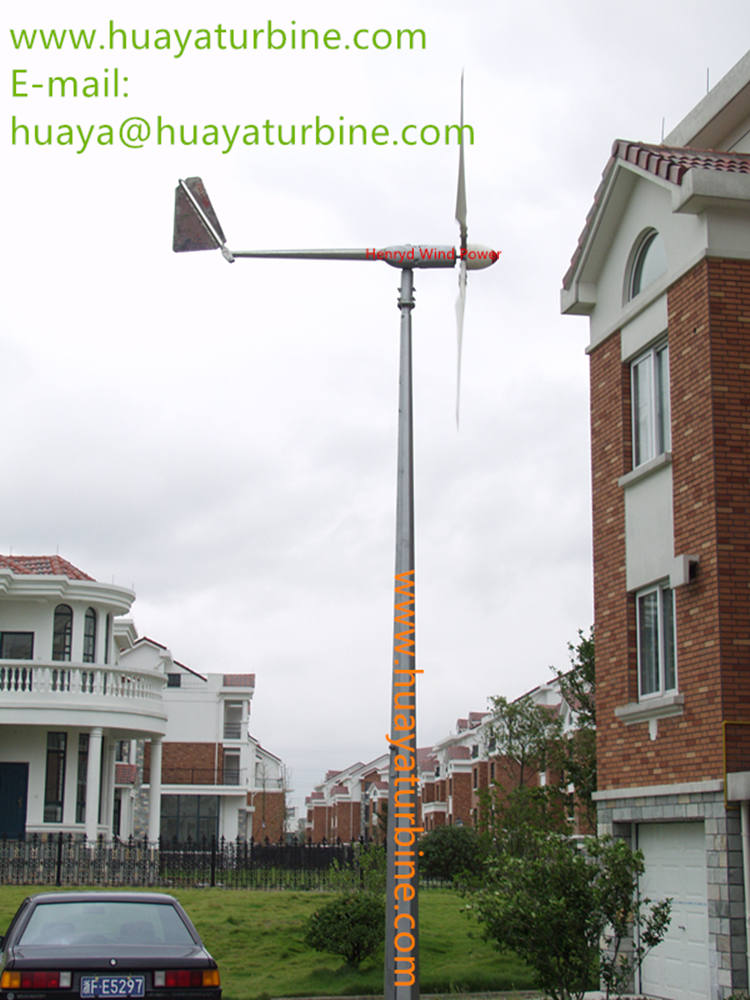

5kw wind turbine application:

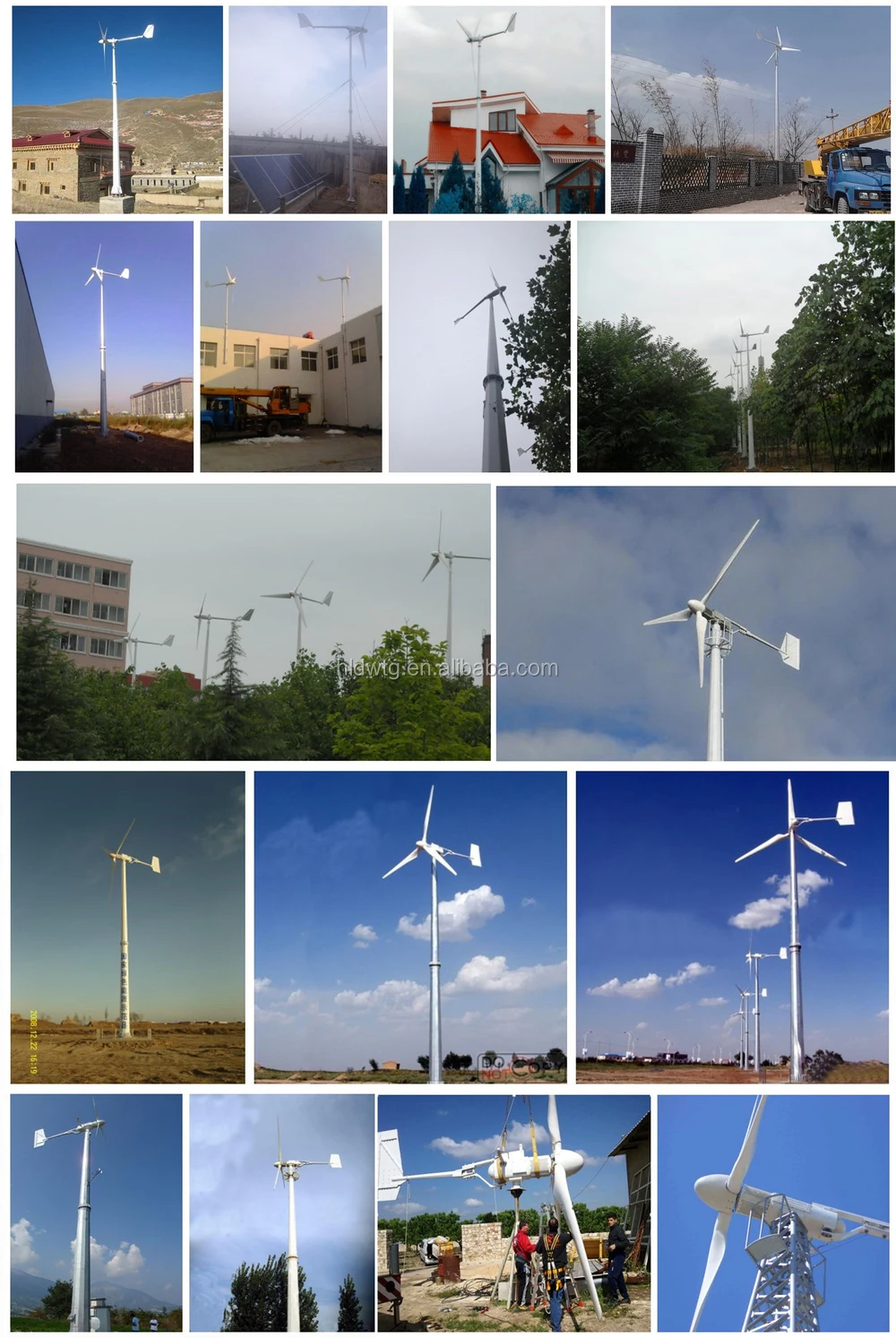

Houses, farms, signal stations, islands, gardens...
List of other fixed-pitch wind turbine models:
Model | Operating Voltage |
FD2.2-300W | DC 24V |
FD2.5-500W | DC 24V |
FD2.8-1KW | DC24V/DC48V |
FD3.2-1.5kw | DC24V/DC48V |
FD3.2-2KW | DC24V/DC48V |
FD3.8-2.5kw | DC 48V |
FD4-3KW | DC 48V |
FD4-4KW | DC 120v |
FD5-5KW | DC 120v |
FD8-10KW | DC 120V |
FD8-15kw | DC 240 |
FD10-15KW | DC 240V |
FD10-20KW | DC 500V |
FD10-25KW | DC 500V |
FD12-30KW | DC 500V |
FD2.8-500W | DC 24V |
FD3.2-1KW | DC24V/DC48V |
FD3.8-2KW | DC24V/DC48V |
FD6-5KW | DC 120V |
FD10-10KW | DC 120V |
FD12-20KW | DC 500 |
Specifications of variable pitch wind turbine:
thing | FD3.8-2kw | FD4-3kw | FD5.4-5kw | FD10-10kw | FD12-20kw | FD14-30kw | FD23-50kw |
Rotor diameter (m) | 3.8 | 4 | 5.4 | 10 | 12 | 14 | twenty three |
Blade material | Enhanced FPR | Enhanced FPR | Enhanced FPR | ||||
Number of blades | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Rated wind speed (m/s) | 9 | 10 | 10 | 10 | 10 | 9 | 9 |
Start wind speed(m/s) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Working wind speed (m/s) | 3.0-25 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 | 3.0-35 |
Safe wind speed (m/s) | 40 | 40 | 45 | 45 | 50 | 50 | 50 |
Starting torque(n/m) | 1.4 | 2.5 | 4.5 | 7.5 | 14 | 20 | 110 |
Speed mode | centrifugal pitch control | Active pitch control, active yaw | |||||
stop method | Electromagnetic + manual brake | Feathering, Yaw, Electromagnetic | |||||
generator type | Permanent magnet three-phase alternator | ||||||
rated power | 2 kW | 3 kW | 5 kW | 10 kW | 20 kW | 30 kW | 50 kW |
Maximum power | 3 kW | 4 kW | 6 kW | 12 kW | 25 kW | 35 kW | 60 kW |
Rated speed(r/min) | 380 | 300 | 240 | 180 | 150 | 140 | 60 |
Operating Voltage | DC 24V-500V | DC 48V-500V | DC 48V-500V | DC 120V-500V | DC 240V-500V | DC 500V | DC 700V |
Fan weight(kg) | 130 | 160 | 260 | 1000 | 2500 | 2800 | 6580 |
Product Description | Package size (m) | Gross weight (kg) | G. CUBAGE (M3) | quantity | Comment | |
5kw 48v wind turbine main body | Generator and rotor body | 1.96*0.81*0.5 | Chapter 387 | 0.45 | 1 | Plywood boxes |
tail rod | 1.41*1.04*0.2 | 56 | 0.29 | 1 | ||
blades and fins | 2.71*0.58*0.35 | 120 | 0.55 | 1 | ||
Controller with dump load | 0.76*0.61*0.78 | 84 | 0.28 | 1 | ||
5kw12m inclined tower | Bottom part | 0.84*0.84*5.8 | 610 | 5.72 | 1 | |
upper part of the tower | 0.53*0.53*5.8 | 1 | ||||
chassis | 0.84*0.84*0.008 | twenty one | 0.0056 | 1 | ||
ground screw | 1.83*0.27*0.23 | 138 | 0.11 | 1 | ||
5kW 48v inverter | inverter | 0.53*0.36*0.74 | 66 | 0.14 | 1 | Plywood boxes |
Chapter 1482 | 7.5456 | 9 |
Usually we ship products by sea. If you need us to check the shipping cost, please let us know your destination port. Then we will check the shipping cost accordingly.
shipping. FOB/C&F, CIF
Provide professional fan technical support;
Provide on-grid system design and wind-solar hybrid system design services.
Complete system provider and designer;
Fan type, model, capacity selection professional support;
Tower design, foundation drawing support;
Provide Pma, hub, flange drawings;
Provide OEM service, customized service.
Support paypal/Western Union payment, TT payment;
