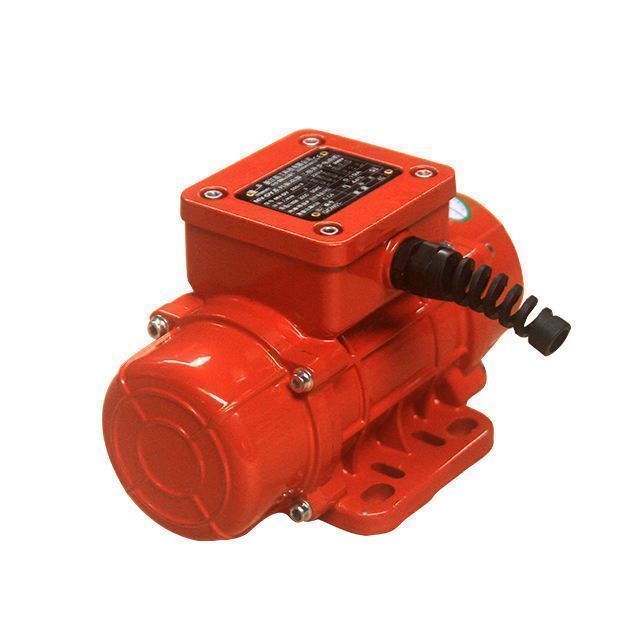

High quality oil WOMA mve/wme series vibration motor MVE300/3-60Hz/3Phase/220/380v Industrial vibrators

Product details
Warranty:3 months - 1 yearRated speed (r/min):3000
port:Ningbo/Shanghaicustom made:Yes
rated power:0.16KW, 0.16KWproduct:2 pole vibration motor
brand:WOMAQ:380V,380V
type:Asynchronous motor, asynchronous motor, vibration motorapplication:Mining, food, sieve powder, grain machinery, etc.
Protective function:IP65color:orange, customized
Vibration force:3KNmodel:WME300/3, WME100/3
Origin:Zhejiang, Chinapayment terms:wire transfer
Number of poles:2 polesRated speed:3000
WOMA MVE/WME 0.04kw 0.7kN Industrial Vibration Motor for Vibration Motor
Model (3000RPM)
Force (kn)
Power (kW)
Weight (kg)
Installation size (mm)
WME60/3
0.7
0.04
4.7
62-74*106
WME100/3
1
0.04
4.9
62-74*106
WME200/3
2
0.09
6.6
62-74*106
WME300/3
3
0.16
10.2
90*125
WME400/3
4
0.2
11.0
90*125
WME500/3
5
0.37
16.0
105*140
WME700/3
7
0.45
16.8
105*140
WME800/3
8
0.55
20.1
120*170
WME1200/3
12
0.75
21.8
120*170
WME1300/3
13
1.1
23.9
120*170
WME1600/3
16
1.25
54.0
140*190
WME1800/3
18
1.25
54.9
140*190
WME2000/3
20
2
55.8
140*190
WME2200/3
twenty two
2
56.4
140*190
WME2300/3
twenty three
2
57.0
140*190
WME3200/3
32
2.2
100.0
155*255
WME4000/3
40
2.3
105.2
155*255
WME5000/3
50
3.5
110.0
155*255
WME6500/3
65
4.2
211.0
200*320
WME9000/3
Post-90s
7.2
215.5
200*320
WME12000/3
120
10
267.7
125-125*380
WME15000/3
150
15
325.0
125-125*380
Model (1500RPM)
Force (kn)
Power (kW)
Weight (kg)
Installation size (mm)
WME40/15
0.3
0.03
4.8
62-74*106
WME90/15
0.9
0.04
7.1
62-74*106
WME200/15
2
0.06
12.1
90*125
WME250/15
2.5
0.07
13.0
90*125
WME300/15
3
0.08
13.7
90*125
WME400/15
4
0.15
19.3
105*140
WME500/15
5
0.25
21.0
105*140
WME700/15
7
0.37
27.6
120*170
WME800/15
8
0.4
28.5
120*170
WME1100/15
11
0.4
35.2
120*170
WME1400/15
14
0.45
63.2
140*190
WME1700/15
17
0.75
67.0
140*190
WME2400/15
twenty four
1
75.7
140*190
WME2700/15
25
1.2
86.0
155*255
WME3000/15
30
1.5
94.0
155*255
WME3800/15
38
1.72
125.0
155*255
WME4300/15
43
1.94
130.0
155*255
WME5500/15
55
2.2
165.8
180*280
WME7200/15
72
3
231.0
200*320
WME9000/15
Post-90s
5.8
246.0
200*320
WME10000/15
100
6.3
329.0
125-125*380
Model (1000RPM)
Force (kn)
Power (kW)
Weight (kg)
Installation size (mm)
WME50/1
0.5
0.03
10.0
90*125
WME100/1
1
0.04
12.7
90*125
WME200/1
1.8
0.05
19.4
105*140
WME300/1
3
0.16
27.3
105*140
WME400/1
4
0.25
30.8
120*170
WME500/1
5
0.37
34.6
120*170
WME800/1
7.8
0.45
64.4
140*190
WME1100/1
11
0.55
83.1
140*190
WME1400/1
14
0.7
85.6
140*190
WME1500/1
15
0.7
87.2
140*190
WME1600/1
16
0.75
88.4
140*190
WME1620/1
16
0.75
96.0
155*255
WME2100/1
twenty one
1.1
108.0
155*255
WME2600/1
26
1.5
148.0
155*255
WME3000/1
30
1.7
155.0
155*255
WME3800/1
38
2
188.0
180*280
WME4700/1
47
2.35
206.2
180*280
WME5200/1
52
2.6
260.0
200*320
WME6500/1
65
2.9
280.0
200*320
WME8000/1
80
4.5
300.0
200*320
WME9000/1
Post-90s
5
311.0
200*320
WME10000/1
100
6
401.5
125-125*380
WME13000/1
130
7
438.0
125-125*380
Vibration motors are general excitation sources for various types of vibrating machinery. Such as vibrating feeder, vibrating conveyor, vibrating dryer, vibrating ore discharger, vibrating screen, vibrating screening machine, silo anti-blocking, etc. Can be widely used in electric power, building materials, grain, coal, mining and other industries. , metallurgy, chemical industry, light industry, foundry, cement, port and other industries.
Zhejiang Woma Machinery Technology Co., Ltd. was founded in 2000. Its predecessor was Jiuding Bearing Factory in Wenling City, which is located on the east coast of China. The company is a high-tech enterprise integrating the research and development of mechanical equipment, electromechanical and control systems, and the design and production of vibrators. grinder. motor and bearings. The company has more than 300 employees. Among them, there are more than 20 senior engineers. Huge processing center, first-class testing center and perfect equipment are the guarantee of our product quality. What's more, we passed ISO. 5S and CCC certification. Adhering to the business philosophy of "Active Transcendence. Quality Innovation", we firmly believe that brand and professionalism are the key to survival. Woma products were rated as "Taizhou Famous Brand Products". Our products not only sell well in 30 provinces across the country. Municipalities and autonomous regions: also exported to Europe. America, Southeast Asia, and especially India. Zhejiang Woma Machinery Technology Co., Ltd. clearly knows that in order to make the exhibition more powerful, it must strengthen management and establish a good image. The company has a complete and scientific quality management system. We strictly abide by the principle of good quality and customer first. And welcome friends from all walks of life to visit, guide and negotiate business.
