efficiency: | browser 2 | Origin: | Guangdong, China |
brand: | Kaigu Motorcycle | Commutation: | brush |
put up: | Permanent magnets | Rated speed (r/min): | 21900 rpm |
type: | micro motor, coreless motor | usage: | smart home |
rated power: | 0.05W | Package preview: | |
Certification: | RoHS Directive | usage: | car |
application: | Toy | Supply capacity: | 60000 pieces per day |
Certificate: | ce | port: | Shenzhen/Hong Kong |
Warranty: | 3 months - 1 year | Protective function: | fully enclosed |
payment terms: | L/C, Western Union, T/T | Packaging Details: | Standard carton, 1000pcs/carton. Can be customized upon request. |
custom made: | Yes | Q: | 6V |
model: | 1515R | Number of poles: | 3 |
Product Description
15mm diameter, 15mm length 6v 12V coreless DCtoy micromotor,Output shaft length: 5mm. Motor length: 15.2mm. Motor weight: 21.Coreless motor, light in weight, small in size and high in efficiency. Gear Motor Stepper Motor Coreless Motor Brushless Motor, Steel Shaft Strong Magnet,15MM Ironless Core Motor 10000RPM 12V DC Motor for Rotary Tattoo Machine
volt | 5 volts |
no-load speed | 25500 rpm |
rated speed | 23000 rpm |
Rated torque | 5g.cm |
application | Robots, door locks, toys, cabinet locks, home appliances, vacuum cleaners |
Specification:
1. Voltage: DC 5V
2. No-load speed: 25500±10%rpm
3. No-load current: 0.1A
4. Diameter 15mm, length 15.2mm, shaft diameter 1.0mm
5. Material: plastic gear and metal DC motor
6. Weight: about 21g
7. Applications: robots, bicycle locks, home appliances, door locks, etc.
8. Customization, free adjustment of performance (voltage, speed, torque)
The gear material is made of special imported steel with the smallest modulus (0.15 modulus), ultra-low noise and high reliability. The motor uses a high
Oxidation resistant commutator and brush materials with
It has the characteristics of stable operation, long life and small vibration.
* High torque
* low noise
* Longer service life up to 200,000 unlocks
career | 100 hours | Voltage | DC 6V | |
No-load current | 0.01A | no-load speed | 21900 rpm | |
load current | 0.02A | loading speed | 19068 rpm | |
strength | 0.01 watts | load torque | 21 g cm | |
Stall current | 0.09A | total torque | 165g.cm | |
Warranty | 1 year | MOQ | 1000 | |
model | 1718R 17mm x 18 mm Mini Coreless Motor | price | $0.7-0.9 | |
application | cell phone | port | Shenzhen | |

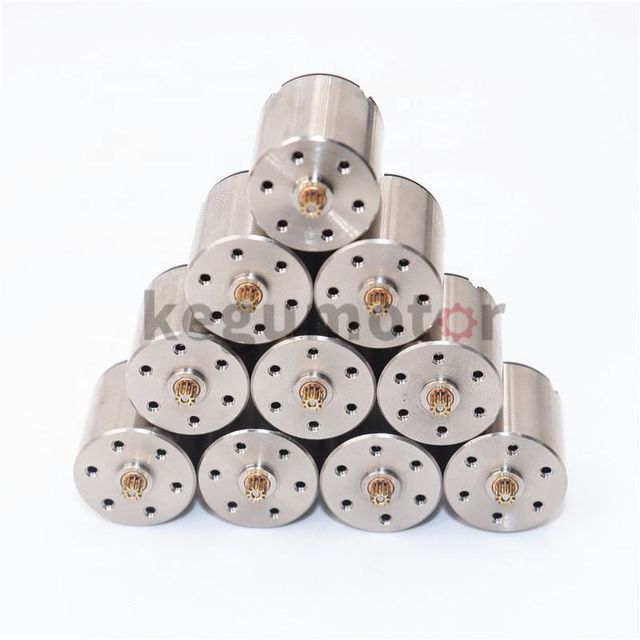

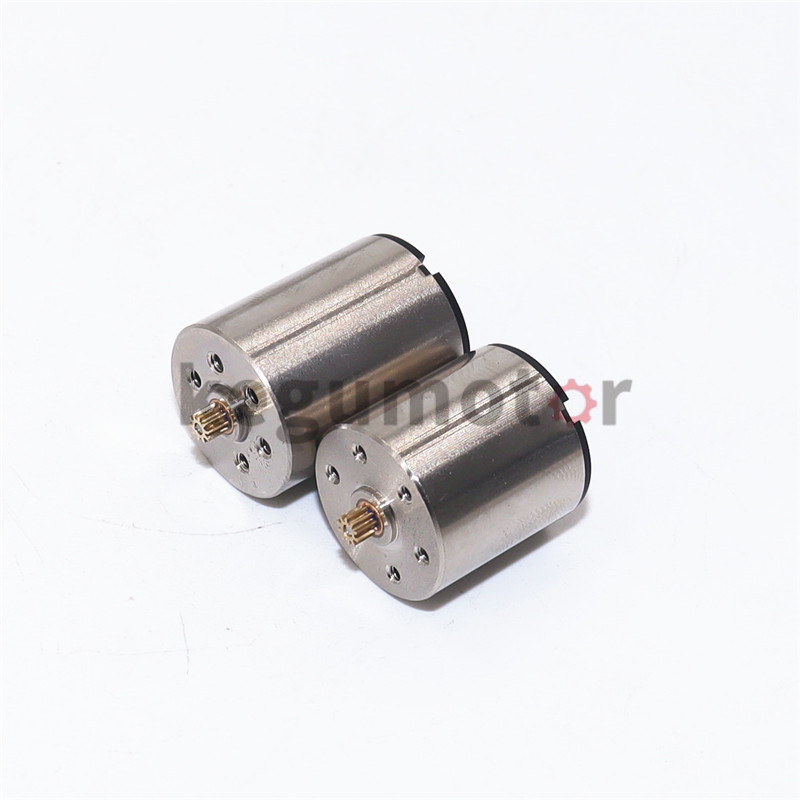

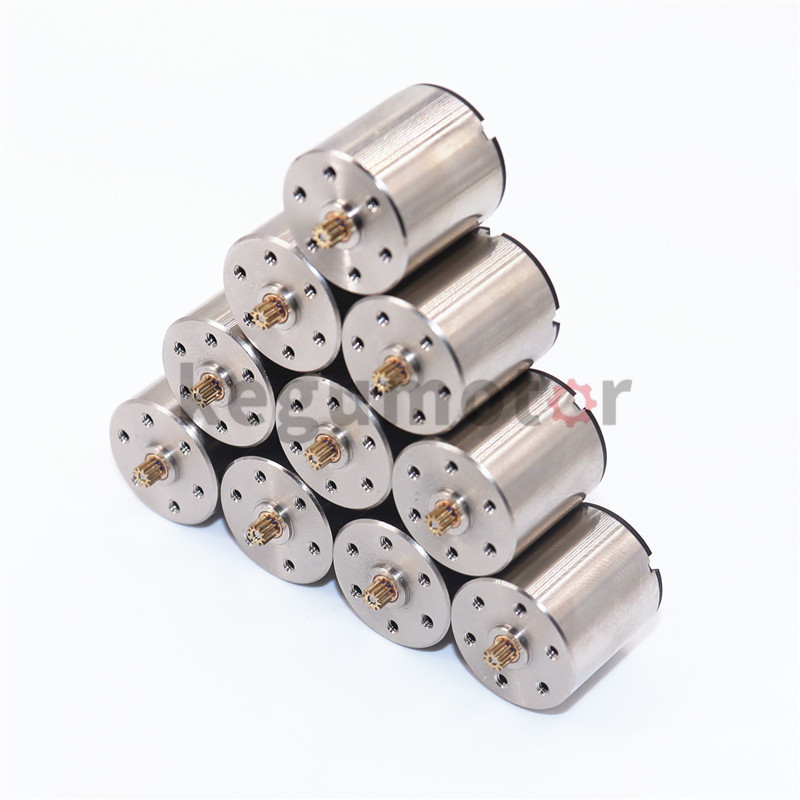

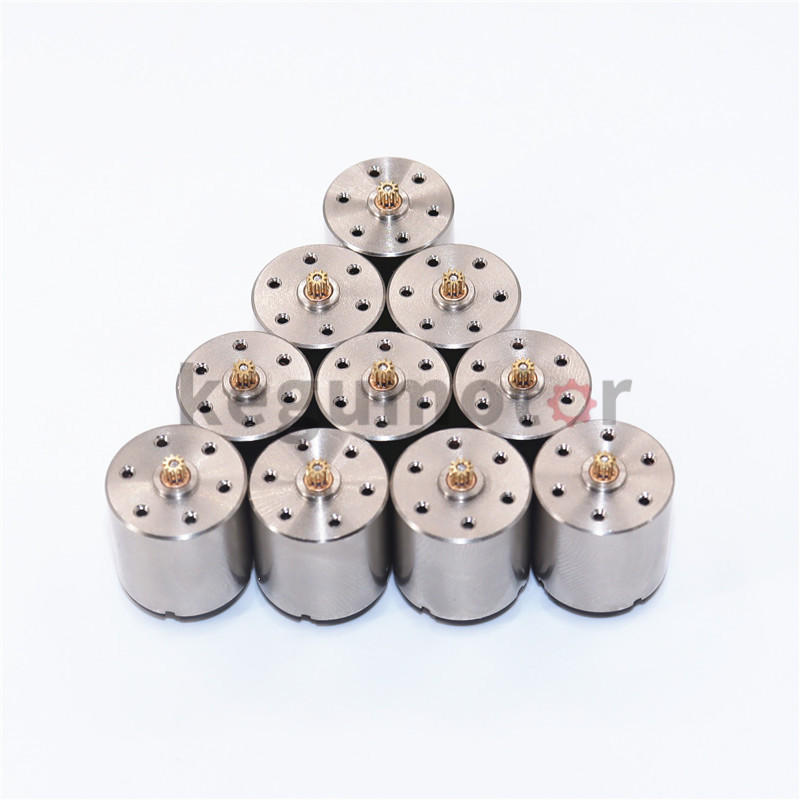

detailed image
Size Information
15mm mini BLDC coreless motor drawing,15mm Coreless Motor for Rotary Tattoo Machine 10000rpm 12V DC Motor
1. Structure: coreless rotor + permanent magnet stator + metal brush
2. Size: Dia15*L15.2mm
3. Shaft diameter: 1.0mm
4. Certification: ISO9001, ROHS
5. Axial clearance: 0.35mm Max
6. Rotation: Clockwise/Counterclockwise
7. Voltage: 12 V DC.
8. No-load: 10000rpm 30mA
9. Rating: 3.4mNm 0.3A 7600RPM
10. Stall: 14mNm
11. Shorter version, gearbox available
12. Long life, quiet, low vibration, high efficiency
13. Ideal for tattoo guns, medical equipment
We can also provide custom specifications.
15mm hollow cup motor, 15mm hollow cup motor, tattoo machine hollow cup motor, tattoo machine hollow cup motor, tattoo machine
Motors, Tatto Machine Coreless Motors, Tatto Machine Coreless Motors, Coreless Motor Manufacturer, Coreless Motor Factory, Coreless
Motor Shenzhen China manufacturer factory, custom motor, custom motor, custom coreless motor
1515R Miniature Brushed Coreless DC Motor Brand Kegumotor
Item 15mm Mini BLDC Vibration Motor Location Shenzhen Model 1515r Load Current 98mA Load Power 1.2w Load Voltage
Load Torque 5G.cm Certificate ROHS/ISO9001 Application Sphygmomanometer
Voltage range 3.0-12V, no-load speed: 25500rpm
Outline drawing of 1515r coreless DC motor
A full range of precision gearboxes, diameter 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 22mm, 24mm, 28mm, 32mm, 36mm, 37mm, 42mm, 48mm, output speed 5-3000rpm, reduction ratio 5-1500, output Torque 1g.cm to 50kg.cm
