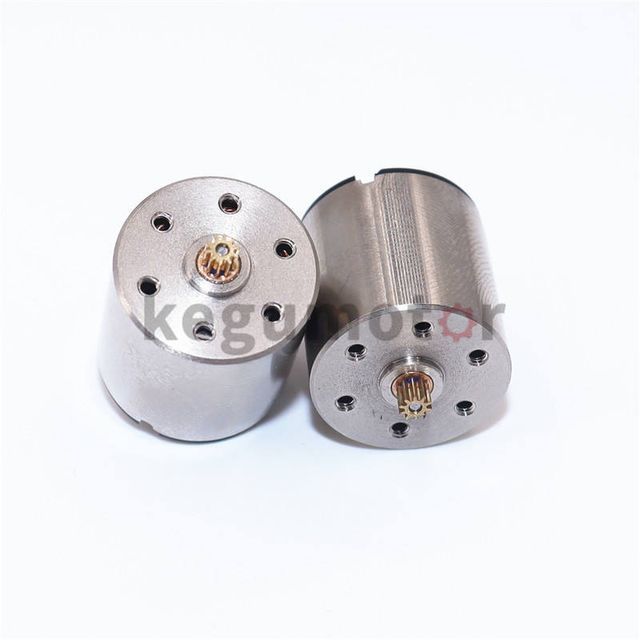

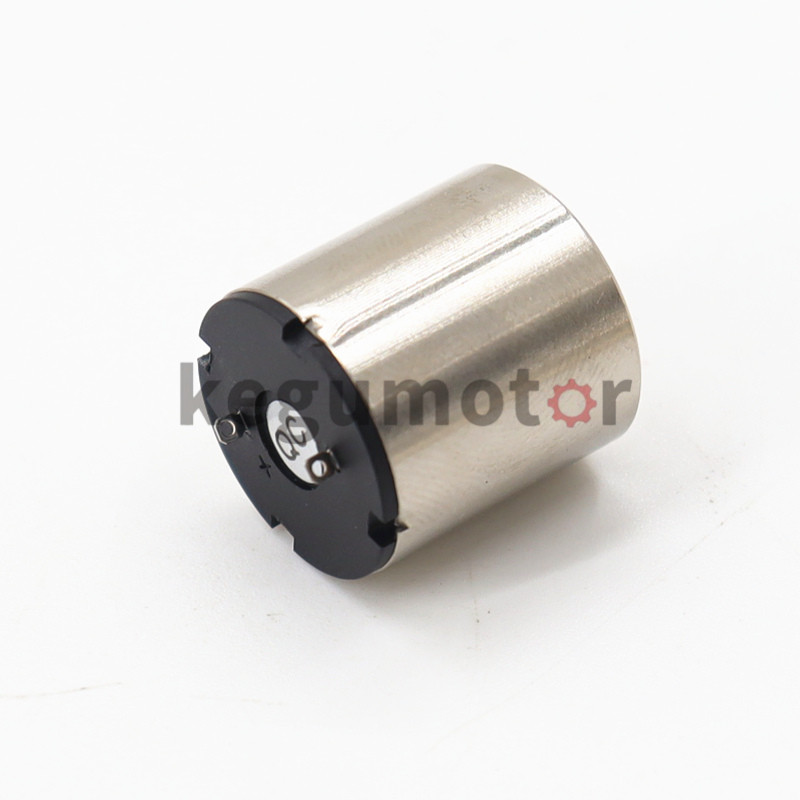

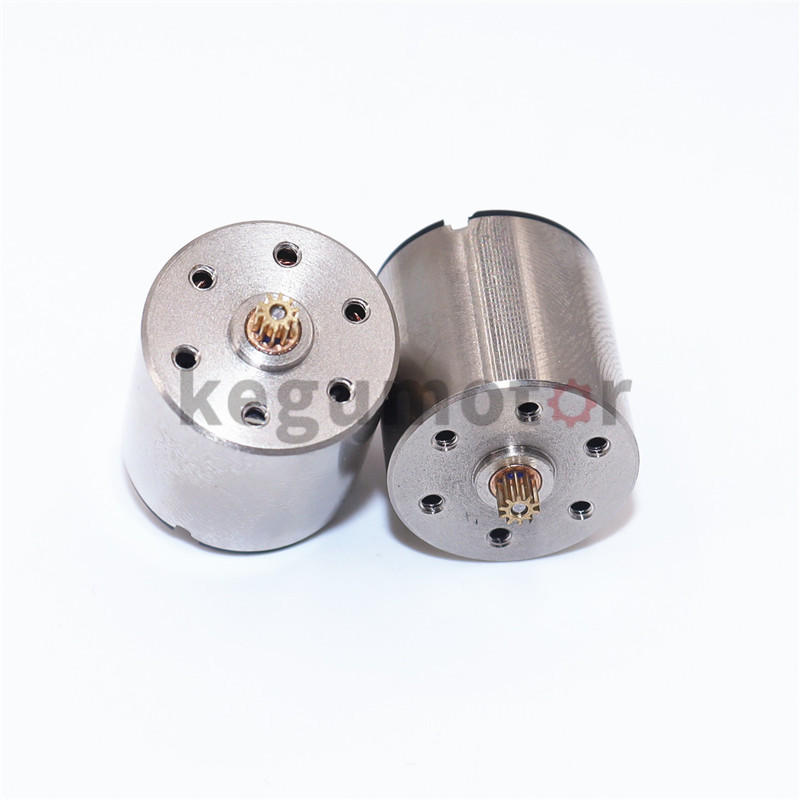

17mm*18mm Mini Coreless Motor DC 12V 22000RPM CL-1718 High Speed ​​Strong Magnetic 5 Pole Rotor Micro Coreless 1718 Motor

Click here to contact
Product details
usage:smart homecustom made:yes
Q:6Vmodel:1718R
usage:carbrand:Kaigu Motorcycle
Protective function:fully enclosedWarranty:3 months - 1 year
put up:Permanent magnetsplace of origin; place of origin:Guangdong, China
Supply capacity:60000 pieces per dayCertificationS:ce
payment terms:L/C, Western Union, T/TCommutation:brush
Package preview:Number of poles:3
Packaging Details:Standard carton, 1000pcs/carton. Can be customized upon request.efficiency:browser 2
port:Shenzhen/Hong KongRated speed (r/min):21900 rpm
rated power:0.05Wapplication:Toy
Certification:RoHS DirectiveTypes of:micro motor, coreless motor
Product Description
17mm 6v 12V Coreless DCtoy micromotor,1215R 1515R 1715R 1718R 1722R 2225R 3265R 3653R 12mm 15mm 17mm 32mm 35mm 36mm 6v 12v 24v Intelligent Robot Coreless DC Motor,1718 17mm*18mm Strong Magnetic Ironless DC Motor 12V 12000RPM/15000RPM/21900RPM Rotary Tattoo Machine High Speed ​​Motor
17mm*18mm Mini Coreless Motor DC 12V 22000RPM CL-1718 High Speed ​​Strong Magnetic 5 Pole Rotor Micro Coreless 1718 Motor
volt
6 volts
no-load speed
21900 rpm
rated speed
19000 rpm
Rated torque
21g.cm
application
Robots, door locks, toys, cabinet locks, home appliances, vacuum cleaners
Specification:

1. Voltage: DC 6V
2. No-load speed: 21900±10%rpm
3. No-load current: 0.01A
4. Diameter 17mm, length 18mm, shaft diameter 1.2mm
5. Material: plastic gear and metal DC motor
6. Weight: about 20g
7. Applications: robots, bicycle locks, home appliances, door locks, etc.
8. Customization, free adjustment of performance (voltage, speed, torque)

  • Kegu Motor provides smart lock solutions

The gear material is made of special imported steel with the smallest modulus (0.15 modulus), ultra-low noise and high reliability. The motor uses a high
Oxidation resistant commutator and brush materials with
It has the characteristics of stable operation, long life and small vibration.
* High torque

* low noise

* Longer service life up to 200,000 unlocks
career
100 hours
Voltage
DC 6V
No-load current
0.01A
no-load speed
21900 rpm
load current
0.02A
loading speed
19068 rpm
strength
0.01 watts
load torque
21 g cm
Stall current
0.09A
total torque
165g.cm
Warranty
1 year
MOQ
1000
model
1718R 17mm x 18 mm Mini Coreless Motor
price
$0.7-0.9
application
cell phone
port
Shenzhen
detailed image
Size Information
17mm mini BLDC Coreless Motor Drawing
1718R Miniature Brushed Coreless DC Motor Brand Kegumotor
Item 17mm Mini BLDC Vibration Motor Location Shenzhen Model 1718r Load Current 55mA Load Power 0.01w Load Voltage
Load Torque 12G.cm Certificate ROHS/ISO9001 Application Sphygmomanometer
Voltage range 3.0-12V
DC motor is durable, 1718 miniature 17mm coreless motor, NdFeB strong magnet high torque silent gear 10T coreless servo steering motor,
Accessories (Speed ​​(RPM): Motor only)
Motor diameter: 17mm
Motor height: 17.8mm
Gear size: OD 2.95mm, 10T, 0.25M
Rated voltage: DC 12V
Speed: 19800RPM/21900RPM
Output shaft diameter: 1.2mm
Output shaft length: 5mm
Weight: 20 grams
Outline drawing of 1718r coreless DC motor
A full range of precision gearboxes, diameter 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 22mm, 24mm, 28mm, 32mm, 36mm, 37mm, 42mm, 48mm, output speed 5-3000rpm, reduction ratio 5-1500, output Torque 1g.cm to 50kg.cm
